    Pronto

    Home Control Panel

    TSU9400/37

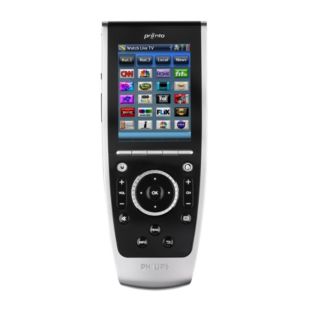

    Pronto Home Control Panel

    TSU9400/37

    Designed by installers, made by Philips

    Ultra-thin with a stunning 8.9 cm/3.5" QVGA color touch screen the Pronto TSU9400 is a hybrid of full functionality! It can blend into practically any modern interior with its designer looks and geometric aluminum and black gloss finishing.

    Unfortunately this product is no longer available

    Designed by installers, made by Philips

    Ultra-thin with a stunning 8.9 cm/3.5" QVGA color touch screen the Pronto TSU9400 is a hybrid of full functionality! It can blend into practically any modern interior with its designer looks and geometric aluminum and black gloss finishing.

    Bundle bonus Make it a bundle and get 1 item for free

    Discover your savings when you bundle the below products together

    Bundle price

    Skip this

    Choose one of the following: Choose one of the following products:

    Add accessories

    Pronto

    Pronto

    Home Control Panel

    - {discount-value}

    Total:

    recurring payment

    Designed by installers, made by Philips

    Control multiple devices with a single touch

    Control multiple devices with a single touch

    One-touch control allows you to perform multiple commands with one press of a button via a macro. A macro combines a string of pre-programmed commands under one single button. Therefore, it simply takes one button press to execute a series of functions.

    High resolution 3.5" color touchscreen with superb contrast

    8.9 cm (3.5") LCD touchscreen display with high resolution color screen enables a user to discern superb contrast and vivid colors.

    Ergonomic design for single-handed operation

    The remote is specifically designed to be able to use with only one hand. For example, the remote is vertically aligned, or the design is ultra-slim, resulting in easy, single-handed operation.

    Cutting-edge design with flush-mounted display

    Flush-mounted display means that the screen is not recessed anymore, but instead flows smoothly with the casing.

    User interface matching your personal taste and preferences

    User interface can be created to fully incorporate the end user's personal taste and preferences. So, only the devices and buttons that are used most, will be visible on the touchscreen. Also, the graphical design (backgrounds, icons, buttons, colors used) can be chosen by the user.

    System feedback via dynamic 2-way user interface

    ProntoScript, a JavaScript based software tool, enables installers to create a dynamic 2-way user interface for system control over RS232 or IP with full graphical flexibility. The tool is incorporated in the ProntoEdit Professional software. Ready-made ProntoScript modules with Pronto partners are available via the website. For typical installations, you may opt to use standard installation reference files and simply re-assign the various components. More advanced JavaScript programmers will be able to create their own ProntoScript modules for complete system operation and feedback.

    Control hidden equipment and devices in other rooms

    A range of extenders is available, both wired and wireless versions, that extend the range of transmission of the remote control. This enables the user to control equipment hidden in cabinets or in other rooms with one and the same control unit.

    Music server control with intuitive rotary cursor

    Out-of-the-box, a user can control his music server e.g. Escient Fireball. The user interface of the music server is built into the remote control. It facilitates listening to music without being in view of a TV, which is normalIy required to display a music server's user interface. This, in combination with an ergonomic thumb wheel on the remote, simplifies selecting tracks and playlists, & also frees up the TV screen for other activities.

    Pre-configured lighting control (Lutron RadioRa)

    Pre-configured lighting control includes a full on-screen user interface for controlling lighting scenes, moods and individual dimmers. With on-screen feedback from lighting throughout the house, the end user knows if the light is actually on or off.

    Access digital files from any Windows MCE PC

    Through 3rd party software, the Pronto control panel can incorporated Windows MCE PC functionality. This means you are able to access any digital files from your MCE PC via the control panel.

    Technical Specifications

    • Connectivity

      Built-in wireless technology
      802.11g
      Connector
      Mini USB
      USB
      USB 2.0
      Encryption / security
      • WEP 128 bit
      • WEP 64 bit
      Power
      100-240V, 50/60Hz
      Network mode
      • DHCP
      • Fixed IP
    • System Requirements

      CD-ROM drive
      Yes
      Hard disk space
      250 MB free
      PC OS
      Windows 2000, XP, Vista
      RAM memory
      256 MB free
      USB
      Free USB port
    • Outer Carton

      Number of consumer packagings
      1
      Length
      14  inch
      Width
      8.5  inch
      Height
      3.9  inch
      Gross weight
      2.549  lb
      Nett weight
      0.836  lb
      Tare weight
      1.713  lb
      UPC
      6 09585 13977 0
    • Convenience

      Automatic power off
      Yes
      Cradle/ docking station
      Yes
      Clock with calendar
      Yes
      Cursor key
      Yes
      Multi language
      English, Spanish, French, German, Dutch
      Pick up sensor
      Yes
      Rotary wheel
      Yes
      Soft touch back for extra grip
      Yes
    • Power

      Battery Capacity
      1700 mAh
      On/Off switch
      Yes
      Battery Type
      LI-Polymer
      Charging time
      Up to 3  hour(s)
    • Packaging dimensions

      Packaging type
      Carton
      Type of shelf placement
      Laying
      Height
      8.1  inch
      Number of products included
      1
      Width
      13.6  inch
      Depth
      3.3  inch
      Gross weight
      2.549  lb
      Nett weight
      0.836  lb
      Tare weight
      1.713  lb
      UPC
      6 09585 13977 0
    • Product dimensions

      Width
      3.3  inch
      Height
      7.9  inch
      Depth
      1.0  inch
      Weight
      0.836  lb
    • Accessories

      AC/DC Adaptor
      Yes
      CD-ROM
      Yes
      Printed User Guide
      Yes
      USB cable
      Yes
      Warranty Card
      No
      Docking Station
      Yes
    • Dimensions

      Master carton quantity
      1
      Box height
      85  mm
      Box width
      352  mm
      Product dimension (WxDxH) inch
      6.2 x 3.9 x 1.3  inch
      Product weight (lb)
      0.63  lb
      Master carton weight
      1.360  kg
      Box depth
      207  mm
    • Picture/Display

      Diagonal screen size (inch)
      3.5  inch
      Display backlight
      White
      Display screen type
      LCD TFT
      Resolution
      320 x 240 pixels
      Touch panel
      Yes
      Display colors
      65,536
    • Infrared Capabilities

      Operating distance
      36 ft (12 m)
      Learning IR codes
      Yes
      Learning frequency range
      25 kHz - 1 MHz
      Transmitting LEDs
      5
      Universal IR code database
      Yes
      Number of brands in database
      Over 3000
    • System Specifications

      CPU
      Freescale 32 bit RISC
      Flash memory size
      64 MB
      CPU speed
      266 MHz
      Ram size
      64 MB
    • Customization

      On screen customization
      Yes
      Full screen configurability
      Yes
      Alpha-blending
      Yes
      Macros
      Up to 250 steps
      Database
      • Configurable personal database
      • Model number based database
    • RF Capabilities

      Frequency (GHz)
      2.4
      WiFi based
      Yes

    What's in the box?

    Other items in the box

    • Docking station
