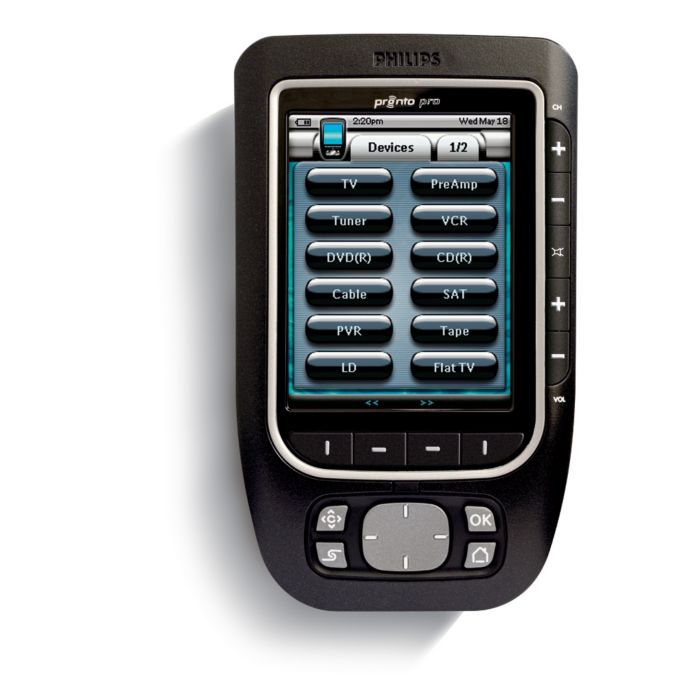

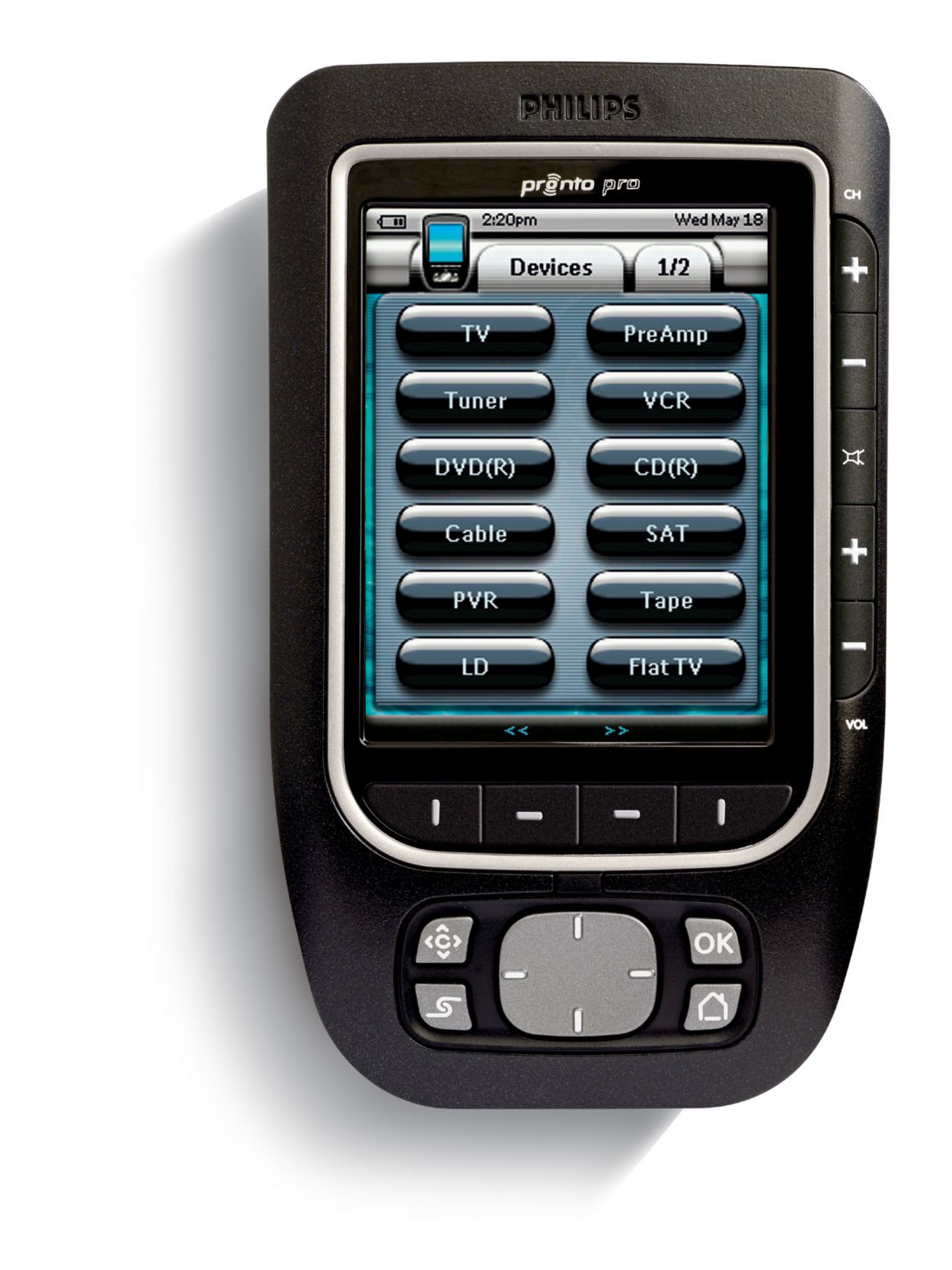

Pronto Home Theater Control Panel
TSU7500/17
Extreme colors, ultimate control
The ProntoPro control panel replaces a table full of remotes! The programmable, elegant unit is compatible with virtually any brand of A/V equipment. Best-in-class color graphics ensure a visually stunning one-touch control solution.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all Universal remote controlsBundle bonus Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
Pronto
Home Theater Control Panel
Total
recurring payment
Control multiple devices with a single touch
One-touch control allows you to perform multiple commands with one press of a button via a macro. A macro combines a string of pre-programmed commands under one single button. Therefore, it simply takes one button press to execute a series of functions.
Extensive infrared code database for most devices & brands
A universal IR code database refers to a library of infrared codes built-in to a particular remote. This feature allows a remote to control your equipment without needing to learn individual signals. Select the correct infrared code sets in the database for the devices you want to control, to enable control of virtually every audio/video system element on the market today – regardless of model or brand.
Convenient IR learning from another remote
Learning functionality refers to the process through which a remote control captures and stores infrared signals from other remotes for later use. When device codes are not included in the on-board database, they can always be learned from the original remote, simply by pointing to it.
Radio frequency works through walls and from other rooms
A radio technology that allows you to control components not in direct line-of-sight, such as through walls or other obstacles. There are two types of RF used in remote controls: RF to component, and RF to infrared.
Additional functionality through future software upgrades
To keep your device up to date and enhance its functionality you can download new softwares that become available. Connect the device to the Internet, either directly or through a PC, and launch the upgrade utility.
Attractive and easy-to-read touchscreen color LCD display
Color Liquid Crystal Display with touch screen input ensures better readability and the capability to visualize colour buttons and backgrounds. Easy selection of buttons and commands is possible using the touch screen.
Alpha blending allows see-through buttons and backgrounds
Alpha blending is used to create the effect of transparency. It does this by combining a translucent foreground with a background colour to create an in-between blend.
LCD screen with backlighting for convenience in the dark
Backlighting is a feature that illuminates the LCD screen or keypad for use in the dark. The two most common types of backlighting include LED and electroluminescent (EL). Remotes backlit with LEDs are typically bright but uneven with a yellow or green color, while EL panels are smooth with blue, white or green shades.
Pick-up sensor activates the remote control when picked up
Pick-up sensor is a feature that automatically activates the backlighting when the remote is moved or picked up.
Timer functionality starts functions, even when you're out
Timer functionality refers to a feature that allows a remote control to perform certain actions automatically at a predefined time.
Select the language of the user interface
On-device support is provided in English, Spanish, French, German and Dutch. To tailor the user interface to your local language, in the settings menu, select the language preffered.
Technical Specifications
-
Connectivity
- USB
- USB 1.1
-
System Requirements
- CD-ROM drive
- Yes
- Hard disk space
- 75 MB
- PC OS
- Windows 98 SE, 2000, ME, XP
- RAM memory
- 64 MB
- USB
- Free USB port
-
Convenience
- Automatic power off
- Yes
- Gentle fade out of light
- Yes
- Cradle/ docking station
- Yes
- Clock with calendar
- Yes
- Cursor key
- Yes
- Hard buttons
- Yes
- Multi language
- GB, D, F, E, NL
- Programmable timers
- 20
- Pick up sensor
- Yes
-
Power
- Mains power
- 120V (+/-10/-15%)/60Hz
- Charging time
- Max 3 hour(s)
-
Accessories
- Batteries
- Ni-MH battery pack
- Printed User Guide
- Yes
- USB cable
- Yes
- Warranty Card
- Yes
- Docking Station
- Yes
- User Guide on CD-ROM
- Yes
-
Dimensions
- Master carton quantity
- 1
- Product dimension (WxDxH) inch
- 3.6" x 1.1" x 6.0" inch
- Product weight (lb)
- 0.551 lb
- Temperature range (operation)
- 41°F to 113°F
-
Picture/Display
- Backlight
- Yes
- Diagonal screen size (inch)
- 3.8 inch
- Backlight color
- White
- Display screen type
- LCD TFT
- Resolution
- 320 x 240 pixels
- Touch panel
- Yes
- Display colors
- 65,536
-
Infrared Capabilities
- Operating distance
- 33 ft (10 m)
- Learning IR codes
- Yes
- Learning frequency range
- Up to 78 kHz and 455 kHz
- Transmitting LEDs
- 4
- Universal IR code database
- Yes
- Number of brands in database
- Over 1100
-
System Specifications
- CPU
- Mitsubishi 32 bit
- Flash memory size
- 32 MB
- CPU speed
- 20 MHz
-
Customization
- Editor application on PC
- ProntoProEdit NG
- On screen customization
- Yes
- Full screen configurability
- Yes
- Transparency
- Yes
- Alpha-blending
- Yes
- Macros
- Up to 250 steps
-
RF Capabilities
- Adresses (ID's)
- 16
- Channels
- 4
- Communication
- 1-way
- Frequency (MHz)
- 418
