Radiography 5000 C — DigitalDiagnost C50 Premium bundle
Ceiling-mounted digital radiography solution
HCNRDT151Digital radiography
Radiography 5000 C — DigitalDiagnost C50 Premium bundle
Ceiling-mounted digital radiography solution
HCNRDT151Digital radiography

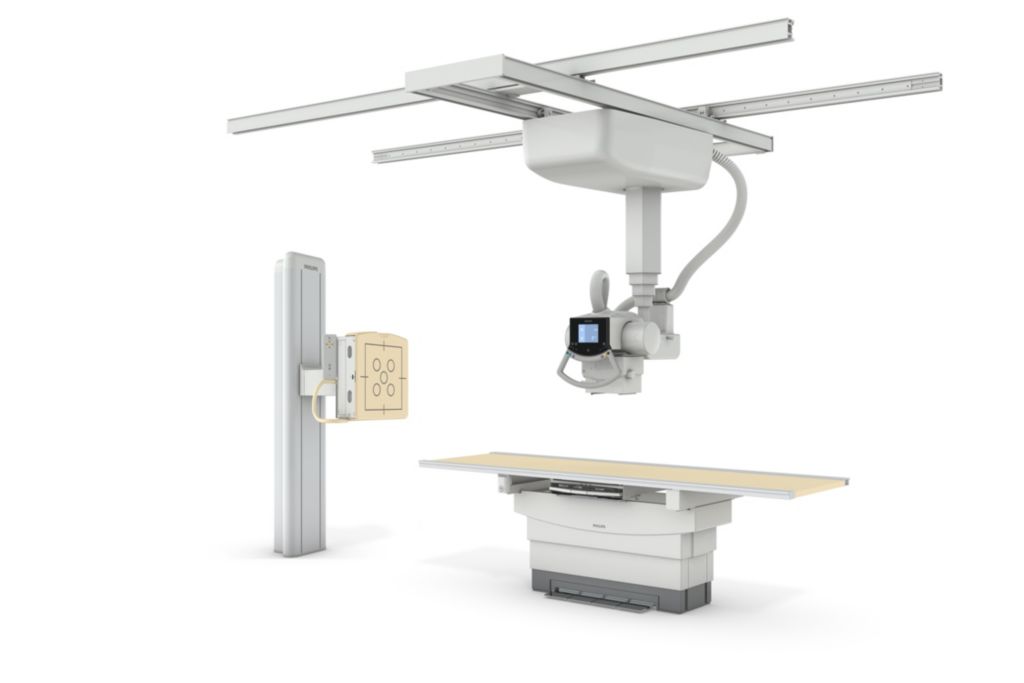

Fully featured DigitalDiagnost C50 premium bundle is composed of a high-performance room with elevating table, one 17” x 17” fixed detector, one SkyPlateE wireless detector and 65kW generator. Clinical QC and detector sharing license are provided by default. This bundle offers high quality digital radiography examinations in the room with efficient workflow and diagnostic confidence.
Features
Extended clinical capability
DigitalDiagnost C50 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation CSI wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.
Diagnostic confidence
Philips UNIQUE 2 image processing software provides superb images of all anatomical areas. Together with other identical premium image chain on DigitalDiagnost C50, UNIQUE 2 image processing delivers fast, outstanding digital images. It significantly improves image quality like more homogeneous black backgrounds, reduced noise, and automatic enhancement of small details.
Integrated dose management aids
You can easily check X-ray dose and perform accurate dose reporting with the built-in Dose Area Product (DAP) meter1. The manual collimator helps capture the area of interest only and avoids unnecessary radiation exposure to the patient. Optional grids enhance the contrast and quality of the image.
Specifications
- Collimator
- Type
- Manual, with light field indicator
- Type
- ±45°
- Type
- 30 s (should be configurable)
- X-ray generation
- Generator
- 50 kW
- 65 kW
- High-voltage generator
- The converter generator generates high voltage equivalent to DC voltage
- Mains voltage
- 380V/400 V / 480 V (±10%); 50 Hz or 60 Hz, 3-phase
- Max. mains resistance at 400 V
- 0.3 Ohm
- 0.2 Ohm
- Max. mains current at 400 V
- 112A
- 134A
- Nominal power (IEC)
- 50 kW
- 65 kW
- Max. tube voltage
- 150 kV
- Max. tube current (at 70 kV)
- 630 mA
- 928 mA
- mAs product
- 0.4 mAs to 850 mAs
- Exposure times
- 1ms to 4s
- Tube High power X-ray tube
- Two focal spots
- RO1750 - 0.6 and 1.2
- SRO 33100 - 0.6 and 1.2
- Maximum power with focal spot 0.6
- RO1750 - 21 kW
- 3SRO 33100 - 33 kW
- Maximum power with focal spot 1.2
- RO1750 - 60 kW
- SRO 33100 - 100 kW
- Anode angle
- RO1750 - 13°
- SRO 33100 - 13°
- Maximum tube voltage
- RO1750 - 150 kV
- SRO 33100 - 150 kV
- Anode heat storage capacity
- RO1750 - 220 kJ (300 kHU)
- SRO 33100 - 220 kJ (300 kHU)
- Assembly heat capacity
- RO1750 - 1500 kJ (2202.4 kHU)
- SRO 33100 - 1500 kJ (2202.4 kHU)
- Continuous anode input power
- RO1750 - 200 W
- SRO 33100 - 200 W
- Minimum anode speed
- RO1750 - 3000-3600 revolutions/minute
- SRO 33100 - 9000-10800 revolutions/minute
- Fixed detector
- Type
- Digital flat Cesium Iodide (CsI) detector
- Pixel size
- 148 μm
- Detector pixels
- 8.2 Megapixel
- Active area
- 42 cm x 42.5 cm (16.5" x 16.7")
- Image matrix size
- 2,840 pixels x 2,874 pixels
- Weight
- 2.1 kg
- Image resolution
- up to 3.4 Lp/mm
- Detector size
- 43 cm x 43 cm (17"x 17")
- Movable ceiling suspension
- Travel with Comfort Track and Comfort Move
- 305/405 cm (120.1"/159.4")
- Travel with fully motorized Comfort Position (optional)
- 180 cm (70.9")
- Ceiling height at source image distance 110 cm (44")
- 150 cm (59.1") Maximum
- Ceiling suspension CS
- Ceiling height at source image distance
- 2.75 m to 3 m (9' to 10’ 5.9") when table height is 70 cm (27.6") and above
- Column
- 110 cm (44”)
- Eleva workspot computer
- Hard disk
- 480 GB SSD total
- RAM storage capacity
- 16 GB
- Wireless portable detector
- Type
- Digital wireless flat detector
- Scintillator
- Cesium Iodide (CsI)
- Image matrix size
- 2,156 x 2,653 pixels
- Detector size
- 35 cm x 43 cm (approx 14" x 17")
- Pixel size
- 160
- Active Area
- 34.5 cm x 42.5 cm (13.6" x 16.7")
- Active pixel area
- 2,156 x 2,653 pixels
- Detector pixels
- 5.7 Megapixels
- A/D conversion (bits)
- 16 bits
- Weight (incl. battery)
- 3.1 kg (6.8 lb)
Related products
- Philips mShield protects the system from potential malicious software attacks within the hospital network. It decouples the modality from the network and creates a secure environment. By restricting traffic to only authorized devices, mShield acts to prevent malicious activity directed from the modality to unrelated devices on your hospital network. Once installed it requires almost no maintenance or update. Philips mShield is always recommended if the system becomes part of a hospital network.

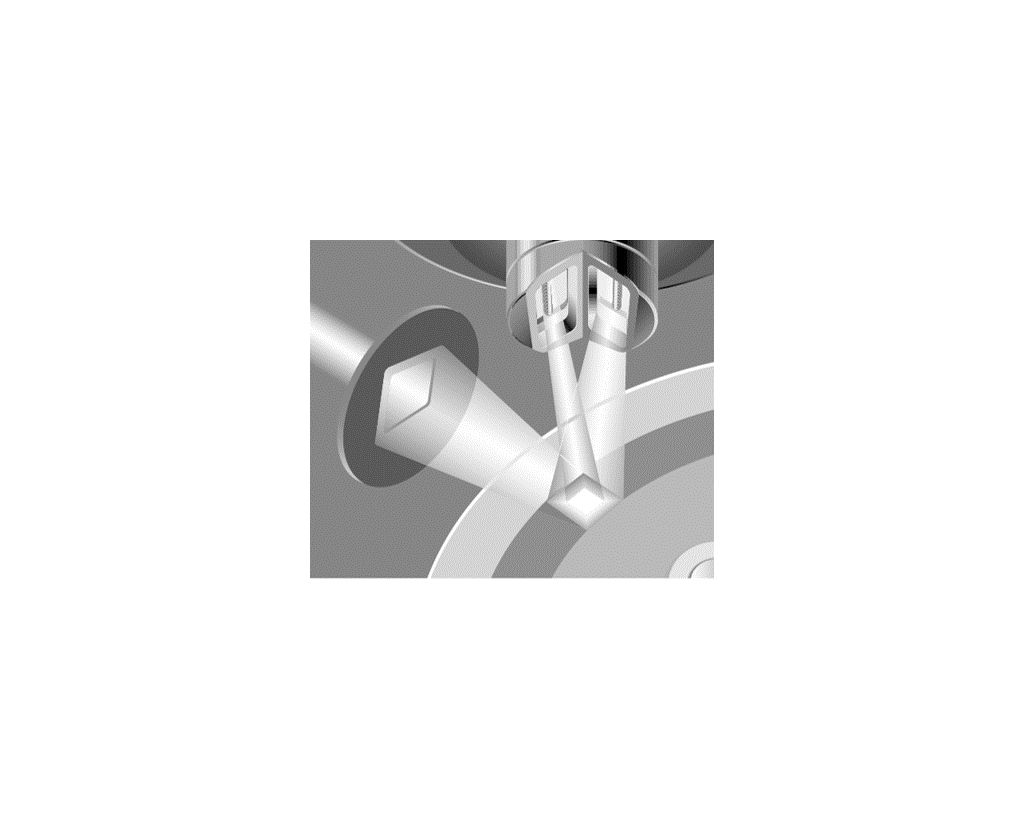

- Philips VarioFocus ensures optimal image resolution, by avoiding to compromise on which tube focus spot size to use, power load and exposure time. By using both focus spots simultaneously to define a variable focus spot, it automatically balances the power on both focus spots in a defined ratio, ensuring optimal image resolution at any required power. Tube filaments are preserved through power balancing on both focus spots and reduced power load on each of them, which may result in longer tube life.
- To avoid extensive scatter radiation on images, an anti-scatter grid is sometimes used, typically for anatomies such as chest, abdomen or pelvis. With SkyFlow, Philips presents an innovation and exciting way to enhance image quality for all anatomies where grid was recommended without applying an anti-scatter grid. Such as Abdomen, Chest, Knee, Pelvis, Shoulder. The SkyFlow functionality is especially suitable for bariatric patients. Once the license is installed at the system, it does not need a single technologist interaction and is automatically applied on images.
- • Movable stand recommended to facilitate long length acquisitions with a vertical stand • Wide and stable footplate and large height adjustable handles to hold to • Easy to step on due to a low height profile step • Four lockable wheels allow easy placement in front of the vertical stand and storage • Height: 199 cm (78.3"), Width: 111 cm (43.7"), Length: 88.1 cm (34.7") • Weight: 70 kg (154 lbs) • Maximum patient weight: 225 kg (496 lbs) • Including label for color blind users
Disclaimer
* Philips unique VarioFocus option is a generator technology that provides outstanding image resolution by simultaneously using both the small and large tube filament. This provides the high resolution of the small focus and the greater power of the large focus and may result in longer tube life.
** When compared to a configuration and quotation of a non-bundled Philips Radiography 5000 C – DigitalDiagnost C50. Lead times are considered the time between the moment an order is placed until the order is to be shipped. This is subject to material and component availability.
