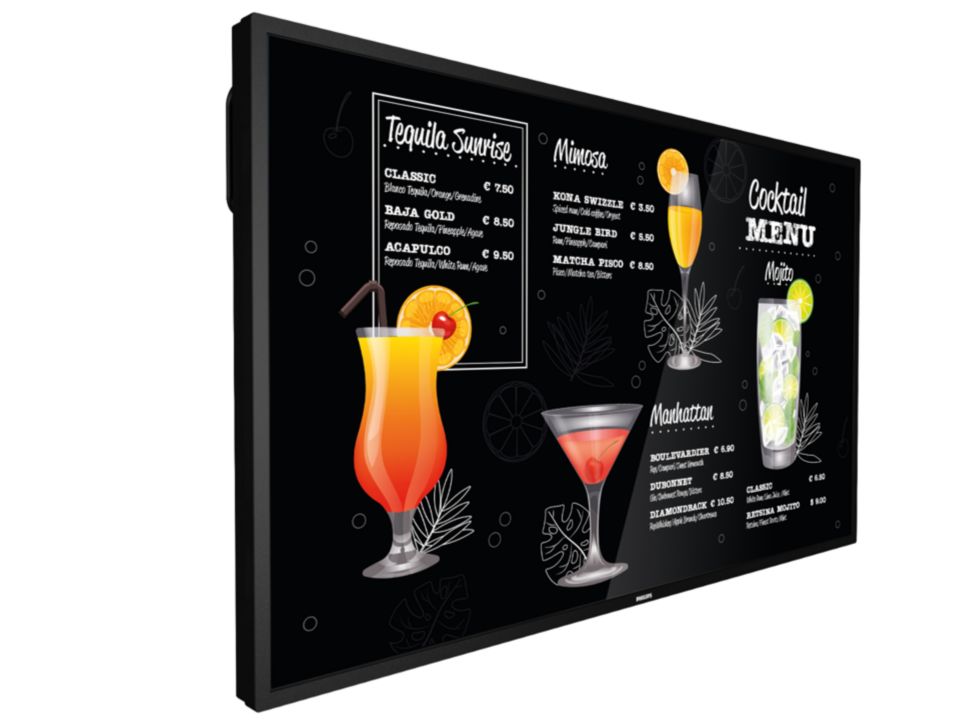

Signage Solutions P-Line Display
65BDL3017P/00
- -{discount-value}
Signage Solutions P-Line Display
65BDL3017P/00Power and flexibility
Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high-brightness make it perfect for demanding environments such as retail, transportation and food & beverage.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Signage Solutions P-Line Display
Power and flexibility
Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high-brightness make it perfect for demanding environments such as retail, transportation and food & beverage.
Power and flexibility
Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high-brightness make it perfect for demanding environments such as retail, transportation and food & beverage.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Signage Solutions P-Line Display
Power and flexibility
Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high-brightness make it perfect for demanding environments such as retail, transportation and food & beverage.
Similar products
See all P-Line seriesBundle bonus Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
P-Line Display
Total:
D-image:clinically accurate imaging
This Philips Professional Display is factory-calibrated to meet clinical compliance standards for greyscale performance. The optimal image achieved by the display can be used to review medical images in consultation rooms or lecture theatres.
Operate, monitor and maintain with CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
FailOver ensures content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.
Sophistication and intelligence with SDM-L
An integrated Intel Smart Display Module Large adds scalable sophistication to your display, enabling quick and cost-effective upgrades when you need to add new features and functionality. Its thin design provides the same level of intelligence and interoperability as OPS, whilst keeping the display as sleek as possible.
Technical Specifications
-
Picture/Display
- Diagonal screen size (inch)
- 65 inch
- Diagonal screen size (metric)
- 164 cm
- Panel resolution
- 3840 x 2160
- Optimum resolution
- 3840 x 2160 @ 60Hz
- Brightness
- 750 cd/m²
- Contrast ratio (typical)
- 1200:1
- Dynamic contrast ratio
- 500,000:1
- Aspect ratio
- 16:9
- Response time (typical)
- 8 ms
- Pixel pitch
- 0.372 x 0.372 mm
- Display colors
- 1.07 billion
- Viewing angle (horizontal)
- 178 degree
- Viewing angle (vertical)
- 178 degree
- Haze
- 25 %
- Panel technology
- IPS
-
Connectivity
- Video input
-
- Display Port1.2 (x1)
- HDMI 2.0 (x2)
- DVI-I (x 1)
- USB 2.0 ( x1)
-
- Video output
-
- DisplayPort 1.2 (x1)
- HDMI 2.0 (x1)
-
- Audio input
- 3.5 mm jack
- Audio output
- 3.5mm jack
- Other connections
-
- SDM-L
- Micro SD (x1)
-
- External control
-
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
-
-
Supported Display Resolution
- Computer formats
-
- 1280 x 1024, 60Hz
- 1920 x 1080, 60Hz
- 1280 x 800, 60Hz
- 1600 x 1200, 60Hz
- 640 x 480, 60, 67, 72, 75Hz
- 720 x 400, 70Hz
- 1024 x 768, 60, 70, 75Hz
- 1152 x 864, 75Hz
- 1152 x 870, 75Hz
- 1280 x 720, 60Hz
- 1440 x 900, 60Hz
- 1680 x 1050, 60Hz
- 800 x 600, 56, 60, 72, 75Hz
-
- Video formats
-
- 1080p, 50, 60Hz
- 720p, 50, 60Hz
- 1080i, 50, 60Hz
- 3840 x 2160, 30Hz
- 3840 x 2160, 60Hz
- 480p, 60Hz
- 576p, 50Hz
-
-
Dimensions
- Set Width
- 1462.3 mm
- Set Height
- 837.3 mm
- Set Depth
- 89.9 mm
- Set Width (inch)
- 57.71 inch
- Set Height (inch)
- 32.96 inch
- Set Depth (inch)
- 3.54 inch
- Bezel width
- 14.90 mm (Even bezel)
- Product weight (lb)
- 61.3 lb
- Product weight
- 27.8 kg
- Wall Mount
- 400 x 400 mm, M6
-
Convenience
- Placement
-
- Landscape (24/7)
- Portrait (24/7)
-
- Tiled Matrix
- Up to 15 x 15
- Keyboard control
-
- Hidden
- Lockable
-
- Signal loop through
-
- IR Loopthrough
- DisplayPort
- RS232
- HDMI
-
- Network controllable
-
- RJ45
- RS232
-
- Energy saving functions
- Smart Power
- Screen saving functions
- Pixel Shift, Low Bright
- Ease of installation
-
- Carrying Handles
- Smart Insert
-
-
Power
- Standby power consumption
- <0.5 W
- Mains power
- 100 ~ 240 VAC, 50 ~ 60 Hz
- Consumption (Typical)
- 155 W
- Consumption (Max)
- 330 W
- Energy Label Class
- G
-
Operating conditions
- Temperature range (operation)
- 0 ~ 40 °C
- Temperature range (storage)
- -20 ~ 60 °C
- Altitude
- 0 ~ 3000 m
- MTBF
- 50,000 hour(s)
- Humidity range (operation)[RH]
- 20 ~ 80% RH (No condensation)
- Humidity range (storage) [RH]
- 5 ~ 95% RH (No condensation)
-
Sound
- Built-in speakers
- 2 x 10W RMS
-
Accessories
- Included Accessories
-
- Philips logo (x1)
- AC Switch Cover
- Edge Alignment Kit (1) -1 pcs
- Edge Alignment Kit (2) - 2 pcs
- IR sensor cable (1.8 m) (x1)
- Power cable (x3)
- Quick start guide (x1)
- Remote control & AAA batteries
- RS232 cable (3 m) (x1)
- RS232 daisy chain cable (x1)
- USB Cover (x1)
- Wire Clamper (x3)
-
-
Multimedia Applications
- USB Playback Audio
-
- AAC
- HEAAC
- MPEG
-
- USB Playback Picture
-
- BMP
- JPEG
- PNG
-
- USB Playback Video
-
- H.264
- Motion JPEG
- MPEG1/2
- WMV3
-
-
Miscellaneous
- On-Screen Display Languages
-
- English
- French
- German
- Spanish
- Polish
- Turkish
- Russian
- Italian
- Simplified Chinese
- Traditional Chinese
- Arabic
- Japanese
- Danish
- Dutch
- Finnish
- Norwegian
- Portuguese
- Swedish
-
- Regulatory approvals
-
- CE
- CCC
- BSMI
- CB
- VCCI
- CECP
- EAC
- PSB
- EMF
- EnergyStar 8.0
- ETL
- FCC, Class A
-
- Warranty
- 3 year warranty
