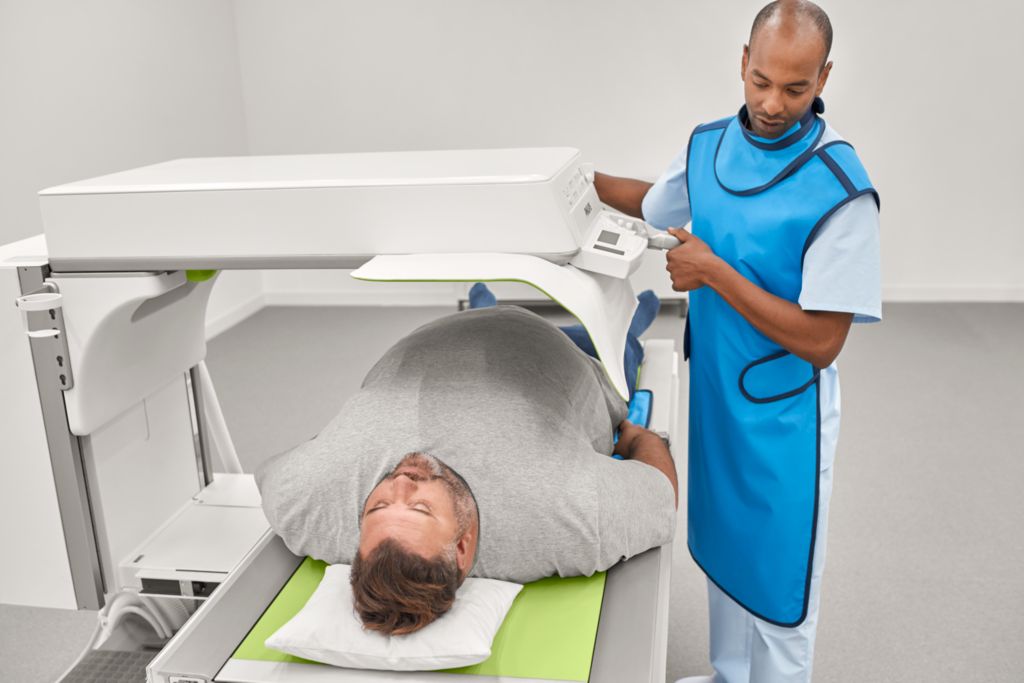

ProxiDiagnost N90 DRF-Digital radiography and nearby fluoroscopy

ProxiDiagnost N90

DRF-Digital radiography and nearby fluoroscopy

Find similar products

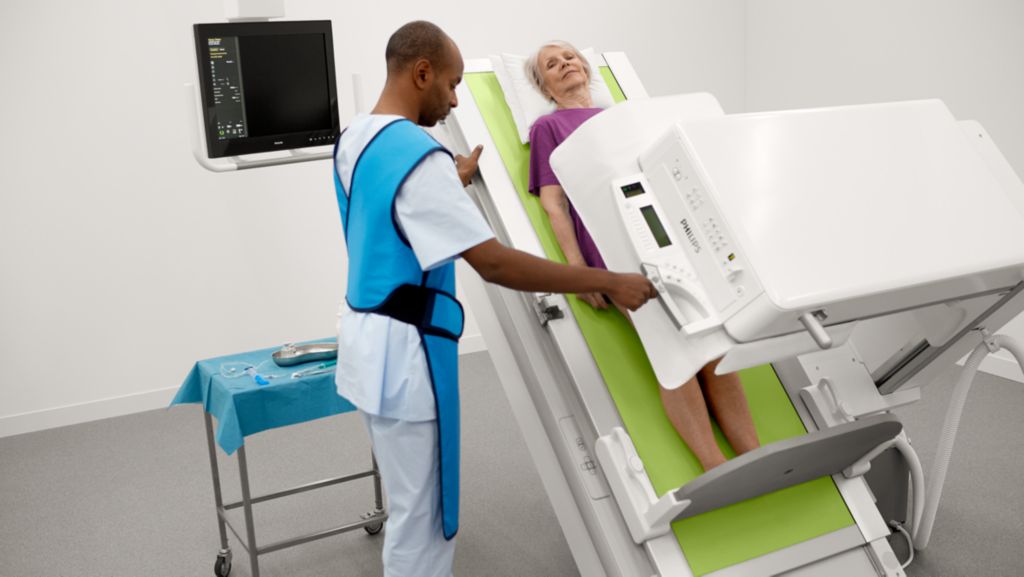

This system combines high-end, nearby fluoroscopy and digital radiography into one DRF unit , designed to broaden clinical capacity and increase room utilization.

Contact us

Media Gallery

Features
Cost effective
Cost effective

Cost effective

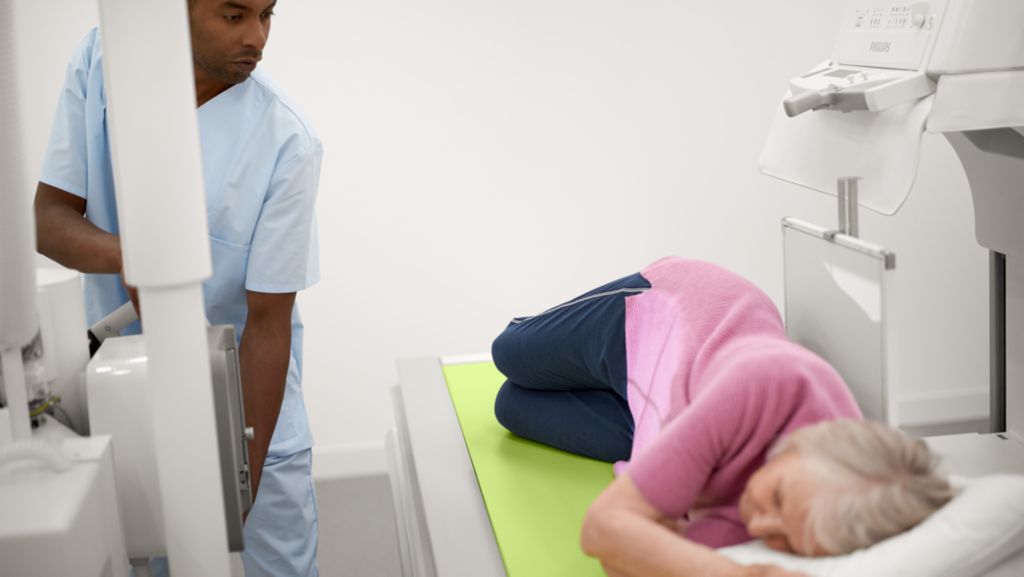

Facilitate high room utilization with the ability to perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.
Superb image quality
Superb image quality

Superb image quality

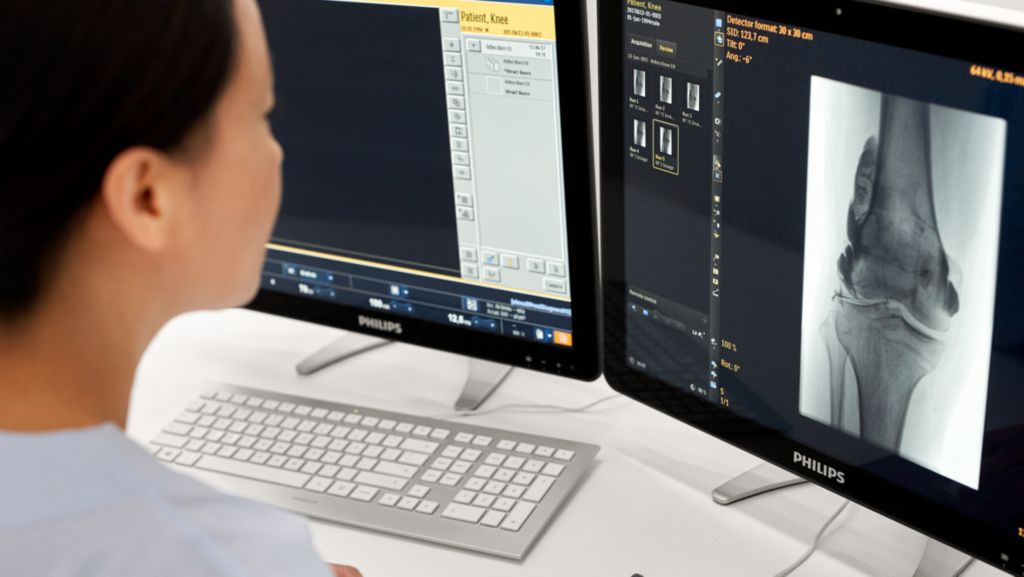

Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.
Intuitive
Intuitive

Intuitive

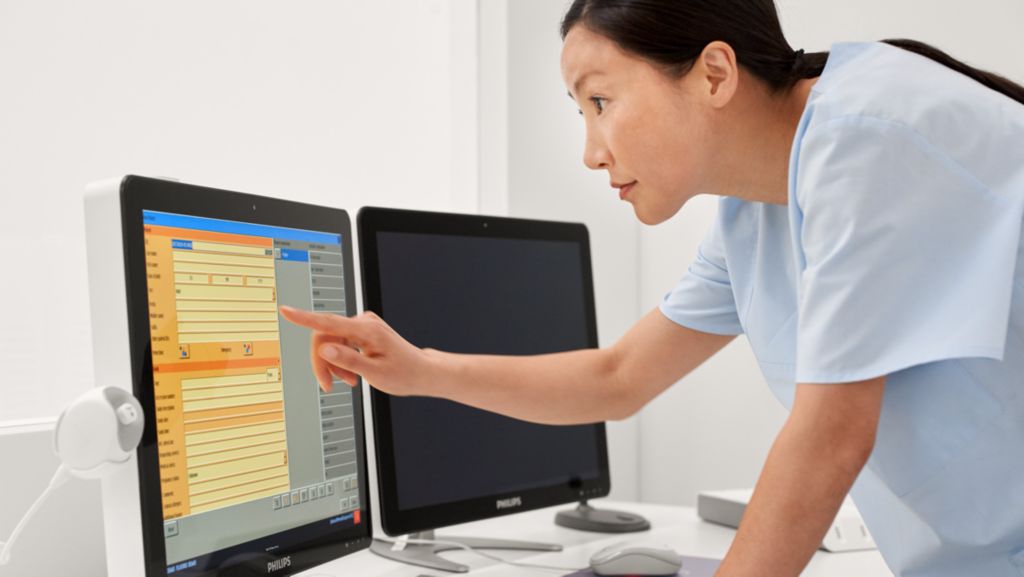

Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Dose management
Dose management

Dose management

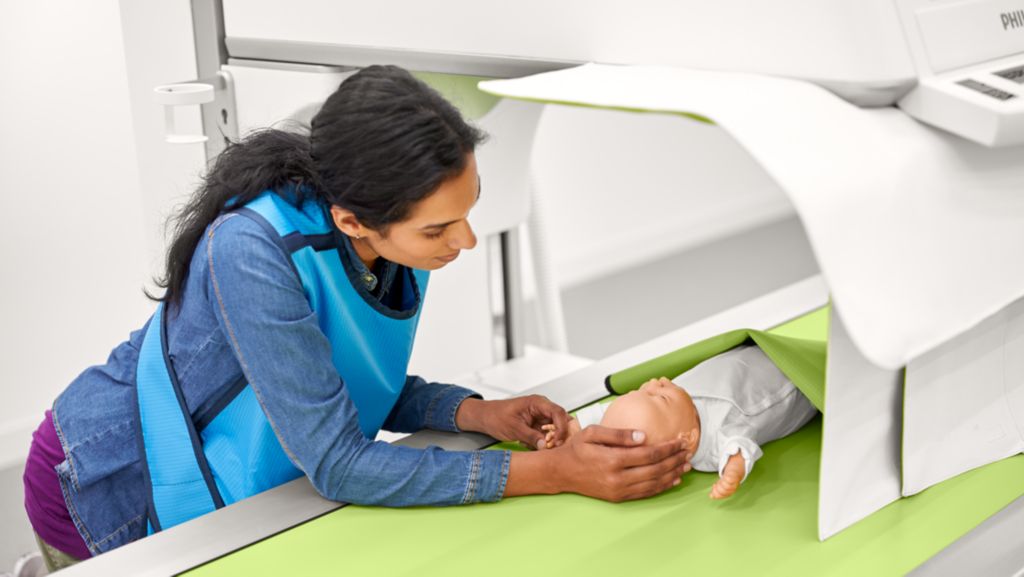

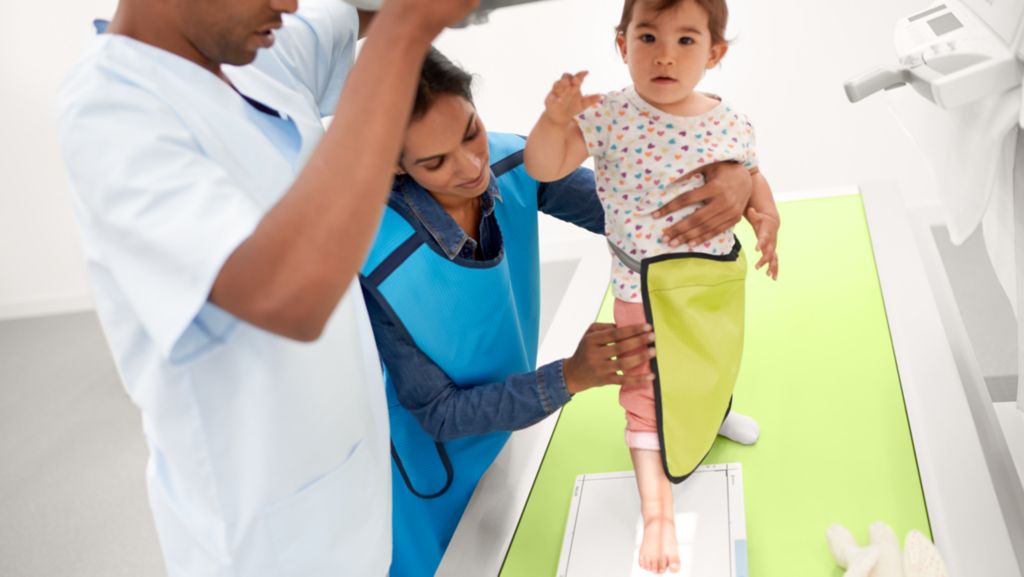

Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.
Bariatrics
Bariatrics

Bariatrics

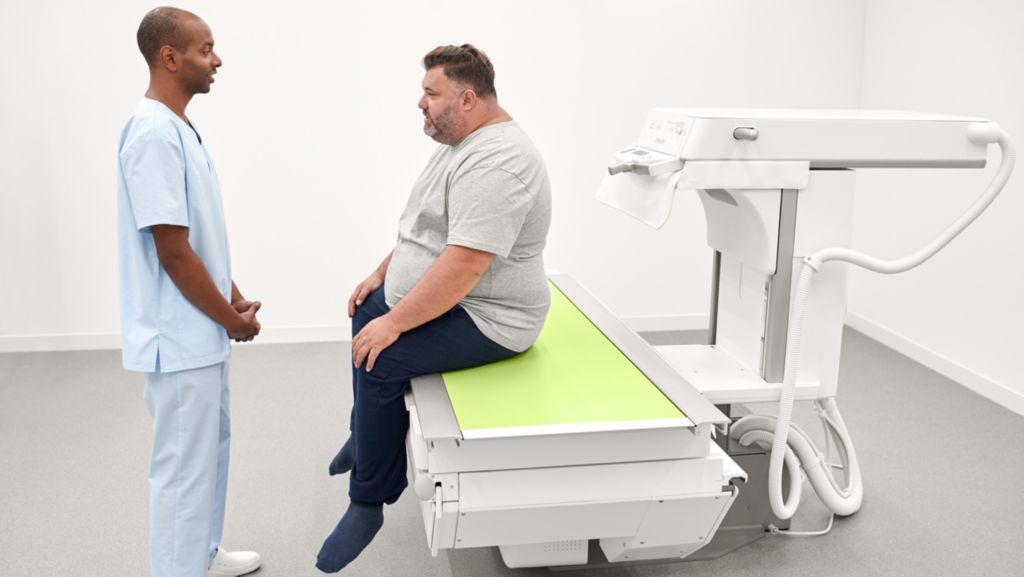

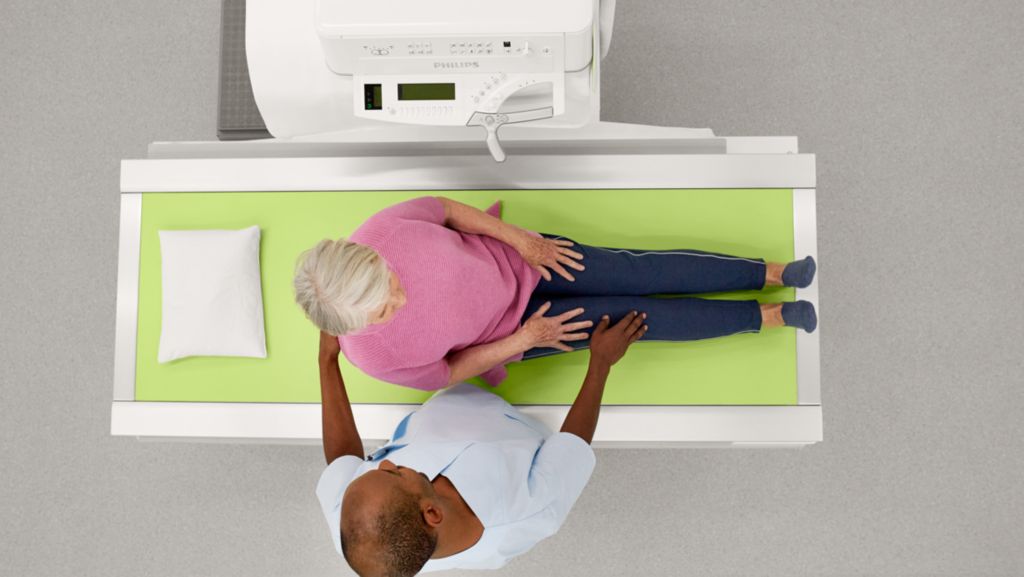

Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (660 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and good image quality.
  • Cost effective
  • Superb image quality
  • Intuitive
  • Dose management
See all features
Cost effective
Cost effective

Cost effective

Facilitate high room utilization with the ability to perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.
Superb image quality
Superb image quality

Superb image quality

Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.
Intuitive
Intuitive

Intuitive

Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Dose management
Dose management

Dose management

Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.
Bariatrics
Bariatrics

Bariatrics

Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (660 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and good image quality.

Documentation

Product overview (1)

Product overview

Product overview (1)

Product overview

See all documentation

Product overview (1)

Product overview

Specifications

SkyPlate Detector Large (option)
SkyPlate Detector Large (option)
Type
  • Digital CsI (Cesium Iodide) flat detector
Image Matrix Size
  • 2330 pixel x 2846 pixel
Detector Size
  • 35 cm x 43 cm (14" x 17")
Active area
  • 34.48 cm x 42.12 cm (13.6" x 16.6")
Ceiling Suspension CSM (option)
Ceiling Suspension CSM (option)
Collimator
  • Motorized, automatic
Type
  • Four-part telescopic column
Ceiling height at SID 110 cm (44")
  • 2.83 – 3.21 m (8' 8.3" – 10' 5.9")
SkyPlate Detector Small (option)
SkyPlate Detector Small (option)
Type
  • Digital CsI (Cesium Iodide) flat detector
Active area
  • 22.2 cm x 28.4 cm (8.7" x 11.2")
Image Matrix Size
  • 1500 pixel x 1920 pixel
Detector Size
  • 24 cm x 30 cm (app. 10" x 12")
Table Geometry
Table Geometry
Detector for table Bucky
  • SkyPlate 35 cm x 43 cm (14" x 17")
Tabletop
  • 200 cm x 80 cm (78.7" x 31.5")
Table tilt angle
  • +90° – -20°, optional -30°/-45°/-85°
Weight capacity Static
  • 300 kg (660 lbs)
Tabletop height
  • 83.3 cm (32.8")
Footrest weight capacity
  • 250 kg (550 lbs)
Weight capacity Tilting
  • 250 kg (550 lbs)
Tabletop to detector housing clearance
  • 25 – 60 cm (9.8" – 23.6")
Weight capacity All movements
  • 185 kg (407 lbs)
Generator
Generator
Exposure Techniques
  • Manual, Automatic, Intelligent Exp. (IQX) in-pulse control , Automatic kV
Fluoroscopy Techniques
  • In-pulse control with Grid or Pulsed Controlled Fluoroscopy
Tube voltage fluoroscopy
  • 40 – 125 kV
Power
  • 65 kW, 80 kW optional
Tube voltage exposure
  • 40 – 150 kV
Vertical Stand (option)
Vertical Stand (option)
Tilting (motorized)
  • Optional, -20° – +90°
Detector
  • Fixed 43 cm x 43 cm (17" x 17") or SkyPlate 35 cm x 43 cm (14" x 17")
Vertical travel (motorized)
  • 30 – 180 cm (11.8 – 5'11")
Dynamic Flat Detector
Dynamic Flat Detector
Pixel size
  • 148 μm
Acquisition mode continuous fluoroscopy
  • Up to 30 fps
Type
  • Cesium Iodide (CsI)
Acquisition mode pulsed fluoroscopy with Pulsed Controlled Fluoroscopy (PCF)
  • Up to 6 fps
Detector size
  • 43 cm x 43 cm (17" x 17")
Acquisition mode pulsed fluoroscopy with Grid Controlled Fluoroscopy (GCF)
  • 0.5 – 30 fps
Active area
  • 42 cm x 42.5 cm (16.5" x 16.7")
Image matrix size
  • 2880 pixel x 2881 pixel
SkyPlate Detector Large (option)
SkyPlate Detector Large (option)
Type
  • Digital CsI (Cesium Iodide) flat detector
Image Matrix Size
  • 2330 pixel x 2846 pixel
Ceiling Suspension CSM (option)
Ceiling Suspension CSM (option)
Collimator
  • Motorized, automatic
Type
  • Four-part telescopic column
See all specifications
SkyPlate Detector Large (option)
SkyPlate Detector Large (option)
Type
  • Digital CsI (Cesium Iodide) flat detector
Image Matrix Size
  • 2330 pixel x 2846 pixel
Detector Size
  • 35 cm x 43 cm (14" x 17")
Active area
  • 34.48 cm x 42.12 cm (13.6" x 16.6")
Ceiling Suspension CSM (option)
Ceiling Suspension CSM (option)
Collimator
  • Motorized, automatic
Type
  • Four-part telescopic column
Ceiling height at SID 110 cm (44")
  • 2.83 – 3.21 m (8' 8.3" – 10' 5.9")
SkyPlate Detector Small (option)
SkyPlate Detector Small (option)
Type
  • Digital CsI (Cesium Iodide) flat detector
Active area
  • 22.2 cm x 28.4 cm (8.7" x 11.2")
Image Matrix Size
  • 1500 pixel x 1920 pixel
Detector Size
  • 24 cm x 30 cm (app. 10" x 12")
Table Geometry
Table Geometry
Detector for table Bucky
  • SkyPlate 35 cm x 43 cm (14" x 17")
Tabletop
  • 200 cm x 80 cm (78.7" x 31.5")
Table tilt angle
  • +90° – -20°, optional -30°/-45°/-85°
Weight capacity Static
  • 300 kg (660 lbs)
Tabletop height
  • 83.3 cm (32.8")
Footrest weight capacity
  • 250 kg (550 lbs)
Weight capacity Tilting
  • 250 kg (550 lbs)
Tabletop to detector housing clearance
  • 25 – 60 cm (9.8" – 23.6")
Weight capacity All movements
  • 185 kg (407 lbs)
Generator
Generator
Exposure Techniques
  • Manual, Automatic, Intelligent Exp. (IQX) in-pulse control , Automatic kV
Fluoroscopy Techniques
  • In-pulse control with Grid or Pulsed Controlled Fluoroscopy
Tube voltage fluoroscopy
  • 40 – 125 kV
Power
  • 65 kW, 80 kW optional
Tube voltage exposure
  • 40 – 150 kV
Vertical Stand (option)
Vertical Stand (option)
Tilting (motorized)
  • Optional, -20° – +90°
Detector
  • Fixed 43 cm x 43 cm (17" x 17") or SkyPlate 35 cm x 43 cm (14" x 17")
Vertical travel (motorized)
  • 30 – 180 cm (11.8 – 5'11")
Dynamic Flat Detector
Dynamic Flat Detector
Pixel size
  • 148 μm
Acquisition mode continuous fluoroscopy
  • Up to 30 fps
Type
  • Cesium Iodide (CsI)
Acquisition mode pulsed fluoroscopy with Pulsed Controlled Fluoroscopy (PCF)
  • Up to 6 fps
Detector size
  • 43 cm x 43 cm (17" x 17")
Acquisition mode pulsed fluoroscopy with Grid Controlled Fluoroscopy (GCF)
  • 0.5 – 30 fps
Active area
  • 42 cm x 42.5 cm (16.5" x 16.7")
Image matrix size
  • 2880 pixel x 2881 pixel
