BP10-5ec

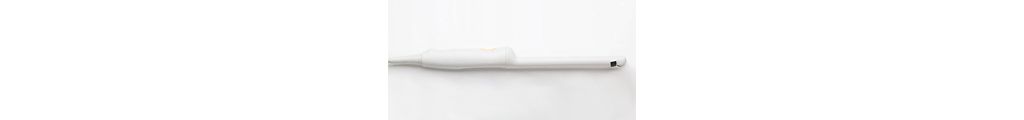

Biplane curved array transducer

Find similar products

Learn more about the Philips BP10-5ec biplane curved array transducer in the specification table below.

Contact us

Media Gallery

Features
Technology: -

Technology: -

Technology: -

Technology: -

Technology: -

Technology: -

Technology: -
Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96
Frequency range: 10-5 MHz || KBA1

Frequency range: 10-5 MHz

Frequency range: 10-5 MHz

Frequency range: 10-5 MHz

Frequency range: 10-5 MHz

Frequency range: 10-5 MHz

Frequency range: 10-5 MHz
  • Technology: -
  • Number of elements: 96
  • Frequency range: 10-5 MHz || KBA1
See all features
Technology: -

Technology: -

Technology: -

Technology: -

Technology: -

Technology: -

Technology: -
Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96
Frequency range: 10-5 MHz || KBA1

Frequency range: 10-5 MHz

Frequency range: 10-5 MHz

Frequency range: 10-5 MHz

Frequency range: 10-5 MHz

Frequency range: 10-5 MHz

Frequency range: 10-5 MHz

Specifications

Specifications
Specifications
Technology
  • -
Number of elements
  • 96
Frequency range
  • 10 - 5 MHz
Array Type
  • Tightly curved
Aperture
  • 19.6 mm
Field of view
  • 150°
Volume of field of view
  • 127° on each biplane array
Modes
  • 2D, steerable pulsed wave and color Doppler, Color Power Angio (CPA), directional CPA, SonoCT, XRES, and harmonic imaging
Applications
  • Urology
Biopsy capable
  • Yes
Image Fusion Navigation capable
  • No
Physical dimensions
  • -
Specifications
Specifications
Technology
  • -
Number of elements
  • 96
See all specifications
Specifications
Specifications
Technology
  • -
Number of elements
  • 96
Frequency range
  • 10 - 5 MHz
Array Type
  • Tightly curved
Aperture
  • 19.6 mm
Field of view
  • 150°
Volume of field of view
  • 127° on each biplane array
Modes
  • 2D, steerable pulsed wave and color Doppler, Color Power Angio (CPA), directional CPA, SonoCT, XRES, and harmonic imaging
Applications
  • Urology
Biopsy capable
  • Yes
Image Fusion Navigation capable
  • No
Physical dimensions
  • -
