World’s first solid core pressure guide wire.1

With an all new workhorse design, only Philips OmniWire pressure guide wire combines confidence in wire performance with proven iFR outcomes and iFR Co-registration, making it easy to benefit from physiology throughout the case.2-4

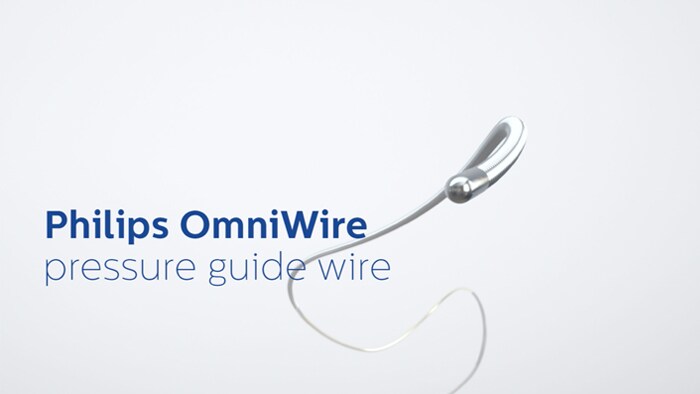

Pressure guide video

Only OmniWire brings together:

Confidence in wire performance with its workhorse design
Proven iFR outcomes
Advances PCI guidance with iFR Co-registration

Designed more like a contemporary workhorse guide wire

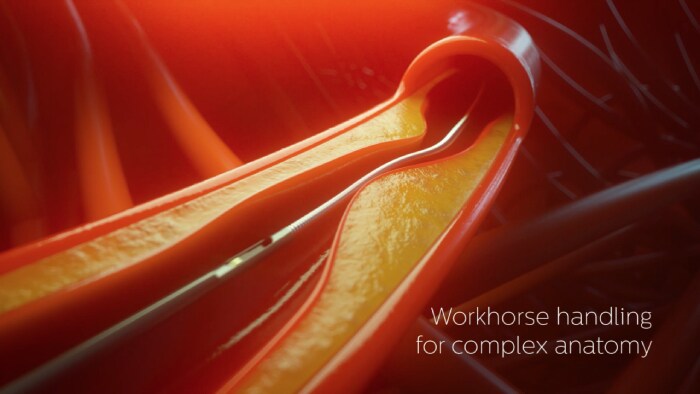

New design from tip-to-tail to improve navigation in complex anatomy.



The embedded conductive ribbons eliminate the need for a hollow hypo tube therefore making a larger solid core possible similar to the design of a workhorse guide wire.



  • New Nitinol distal core provides increased durability and shape recovery: ideal for use in multi-vessel disease and complex cases.
  • Unique solid core for improved torque, pushability and kink resistance.
  • Durable, integrated conductive bands for confidence during device delivery, reconnections and post-measurements.
Traditional pressure
Traditional pressure wire
Solid core
Omniwire with solid core
Guide wire
Workhorse guide wire*
*Proximal cross-sections. Not to scale, for illustration purposes only
Proximal cross
*Proximal cross-sections. Not to scale, for illustration purposes only.

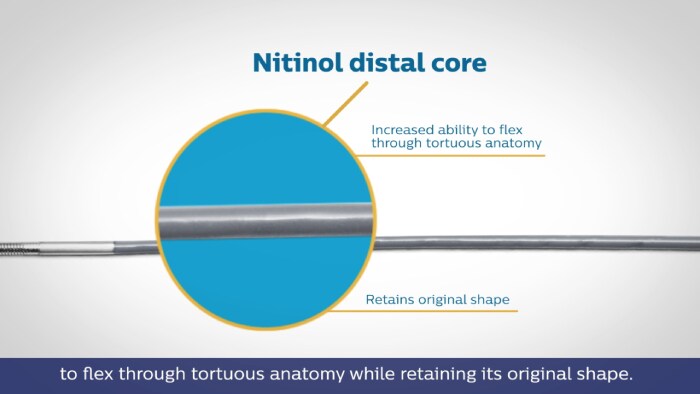

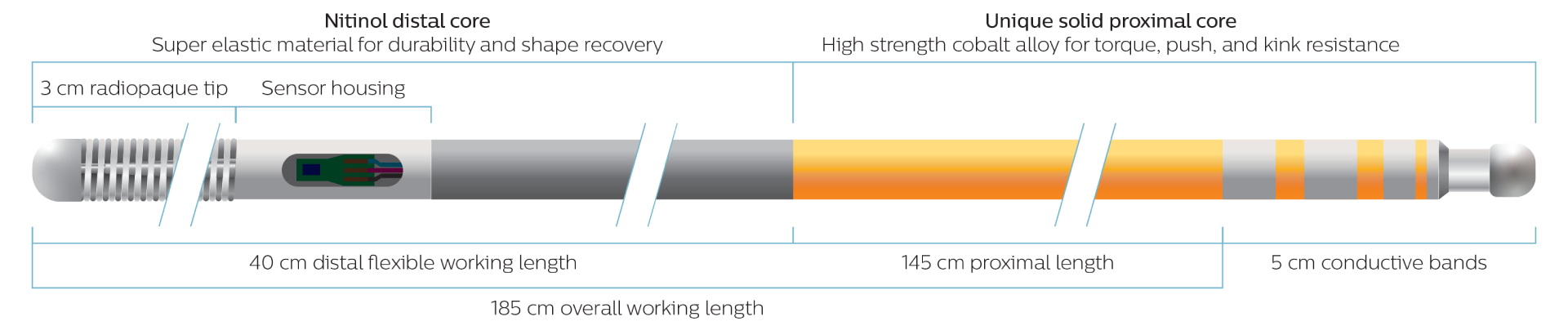

Nitinal distal core and integrated conductive bands

The Nitinol core is super elastic for durability and shape recovery. Useful for long multi-vessel procedures. Integrated conductive bands enable the back end to be a continuous piece with no joints, designed to reduce kinking, facilitate device loading, device delivery and easy reconnects.
Omniwire first

Improved durability

Omniwire second

Improves pushability

Omniwire forth

Improves torque response

Omniwire third

Reduced risk of kinking

With proven outcomes, iFR is in a class of its own

iFR is the gold standard among resting indices backed by clinical outcomes that reduces patient discomfort, procedural time and cost.2,3,5 while providing advance guidance with co-registration for confidence in your treatment decisions.
Ifr icons

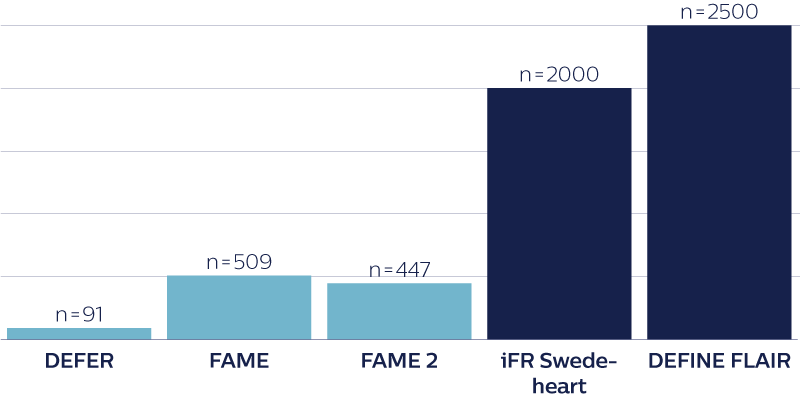

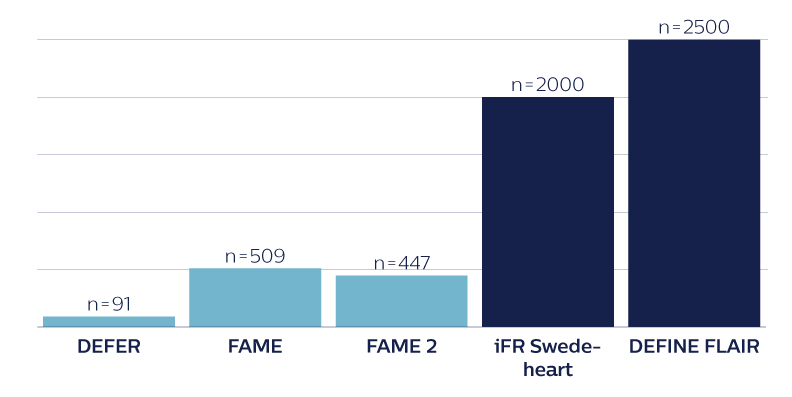

iFR is validated in the largest physiology clinical outcomes studies  with data from over 4500 patients. 2,3



iFR is recognized by all three key cardiovascular societies. It is the only resting index with a class IA recommendation by the ESC, designated as “definitely beneficial” by SCAI, and included in both the ACC

AUC and NCDR.6-9

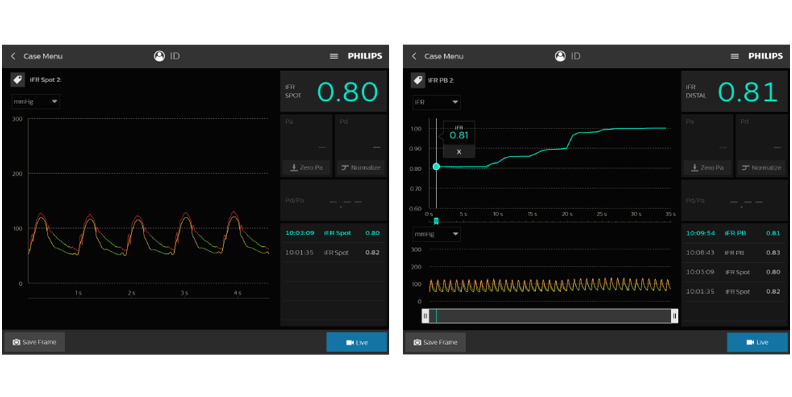

Only iFR has co-registration for advanced physiologic guidance

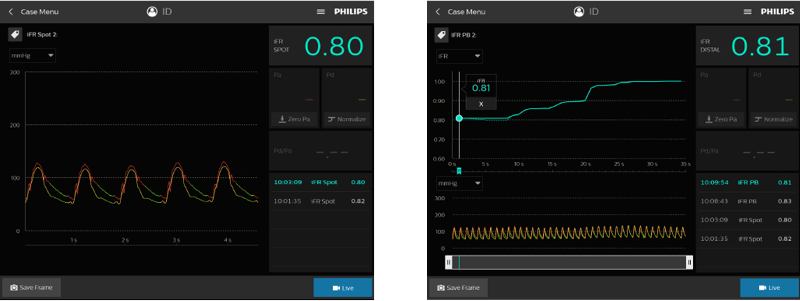

iFR is the leading hyperemia-free physiologic index for measuring pressure in diagnostic and interventional procedures. Only offered by Philips, iFR is an evidence-based methodology that improves outcomes, saves time, and reduces patient discomfort. 5,10,11

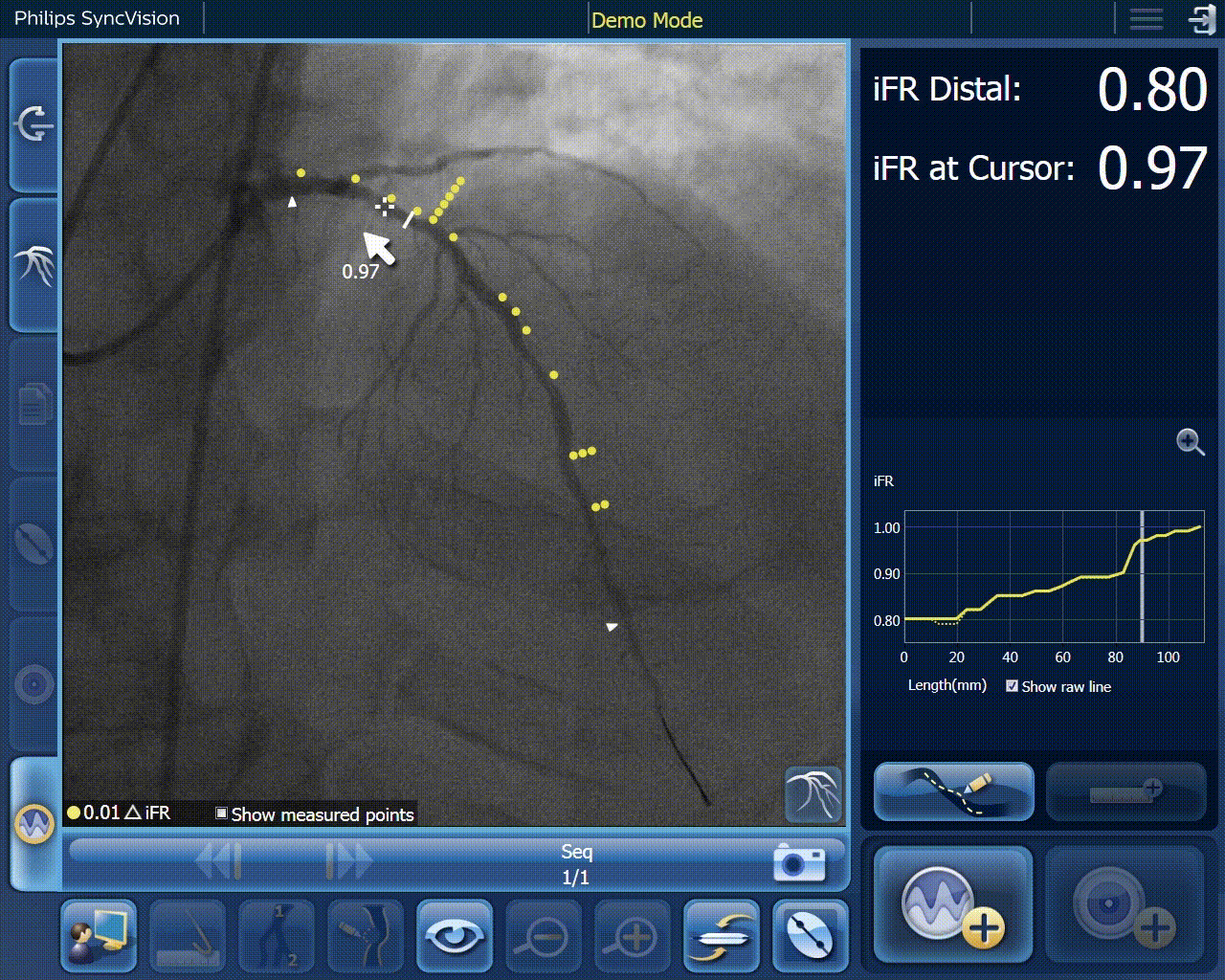

iFR Co-registration maps the physiologic measurements, directly onto the angiogram enabling more complete procedural guidance.



• Mapping of physiologic pressure drops onto the angiogram to better discern focal, serial or diffuse disease

• Precise lesion severity, location and length assessment

• Make length measurements without a cumbersome pull back device

• Physiologic impact of a virtual stent

iFR co registration RCA length

Plan your procedure with physiologic guidance.



* Co-registration tools available within IntraSight 7 configuration via SyncVision
UVM image

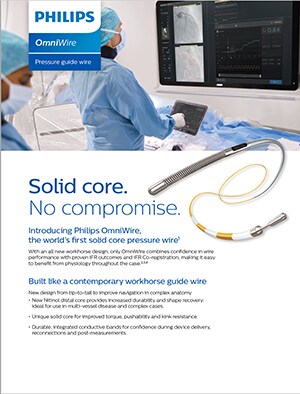

Resources

Indications for use:



The OmniWire pressure guide wire is indicated for use to measure pressure in blood vessels, including both coronary and peripheral vessels, during diagnostic angiography and/or any interventional procedures. It can also be used to facilitate the placement of catheters as well as other interventional devices in coronary and peripheral vessels. Blood pressure measurements provide hemodynamic information for the diagnosis and treatment of blood vessel disease. The device is indicated for patients undergoing diagnostic angiography and/or percutaneous interventions in the coronary and peripheral vessels. iFR has been FDA cleared for ischemia testing using proven dichotomous cut-point, 0.89.



Ordering information

Order number
Product name
Size
Tip shape
89185
OmniWire pressure guide wire
185 cm
Straight Tip
Omniwire straight
89185J
OmniWire pressure guide wire
185 cm
J-Tip
Omniwire straight

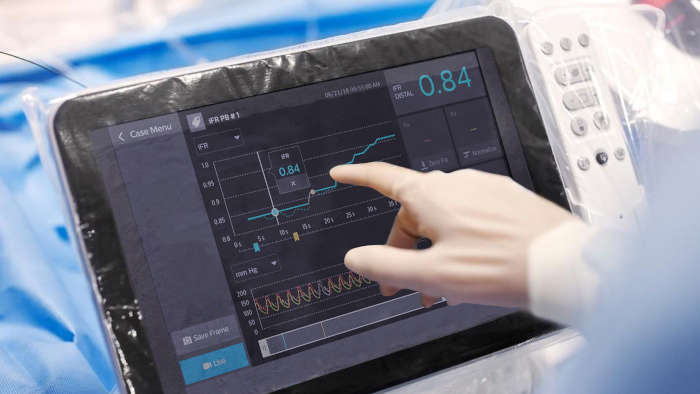

IntraSight TSM iFR
