VeriSight Single Plane Steerable
ICE Catheter
VeriSight Single Plane Steerable
ICE Catheter
Philips VeriSight Single Plane Steerable Intracardiac Echocardiography (ICE) Catheter transforms traditional 2D ICE imaging by delivering exceptional image quality and control. [1,2] Reduce catheter manipulation by leveraging intuitive digital steering to capture challenging views that traditional fixed plane catheters find difficult.
VeriSight clearly guides physicians with 360-degree xMatrix 2D imaging, giving you more procedural control.
Clinical image gallery
- 2D imaging mode Image on file with Philips

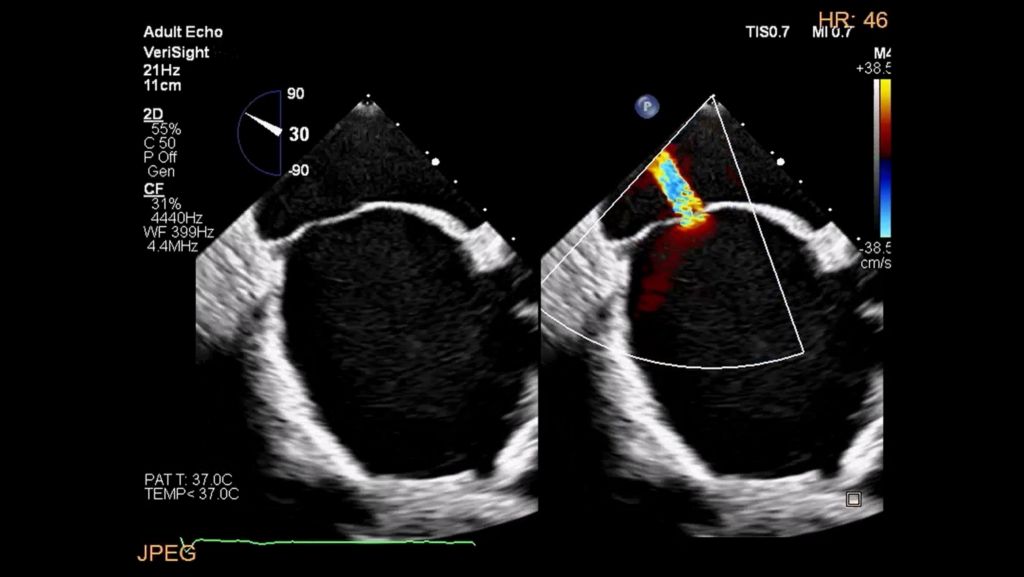

- 2D imaging mode Image courtesy: Dr. Mohamad Alkhouli, Mayo Clinic
- 2D imaging mode Image on file with Philips
- 2D imaging mode Image courtesy: Dr. Mohamad Alkhouli, Mayo Clinic
Features
Increase your control in every procedure [3]
Philips VeriSight Single Plane delivers powerful 2D imaging capabilities on a 9 French catheter. From PFAs to ASD/PFOs, navigate complex anatomy and tailor views to your procedure. VeriSight gives you advanced control—right at your fingertips—with digital steering, an important solution for EP labs.
![Increase your control in every procedure [3]](https://images.philips.com/is/image/philipsconsumer/77d7fa4ec93e4ed4a30ab3a1010a6cf3?wid=450&$jpglarge$)
True 360° visualization for clinical versatility
VeriSight provides unique and complete 360-degree visualization without the need for physical catheter repositioning. Effortlessly view and thoroughly interrogate your anatomical or device target during various electrophysiology and structural heart procedures with complete confidence you can only achieve with digital steering.

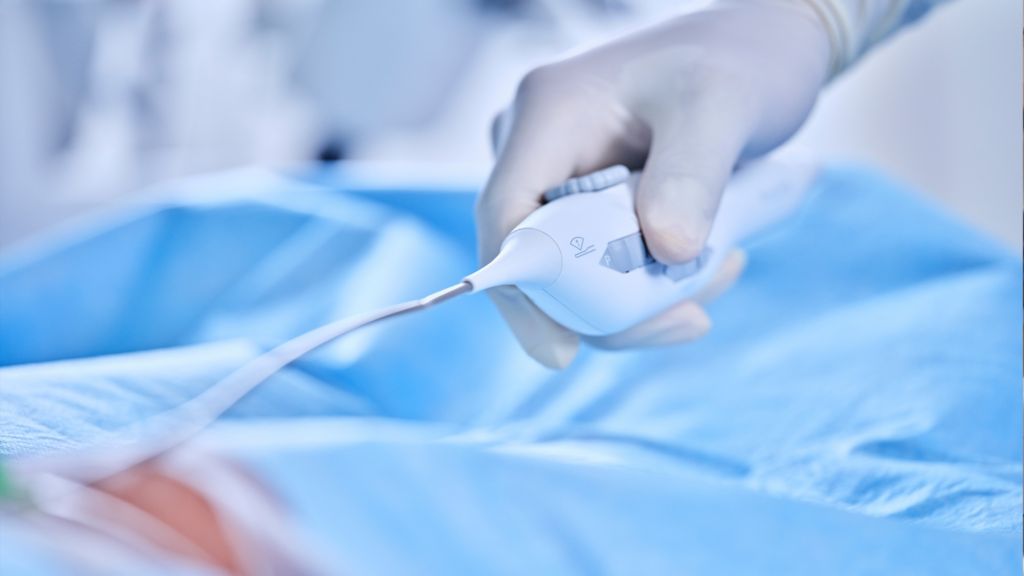

More control, fewer catheter manipulations [4]
Our intuitive digital rotation feature allows you to capture views that are challenging to achieve with traditional fixed plane catheters with single operator capability. Digitally rotate the imaging plane without the need to physically manipulate the catheter, streamlining workflows [5-7] and boosting procedural efficiency, even in the most demanding procedures.
![More control, fewer catheter manipulations [4]](https://images.philips.com/is/image/philipsconsumer/ade34f5b109c46c1b755b3a1010a35d0?wid=450&$jpglarge$)
Specifications
- Product Specs
- Catalog number
- VSICE2D
- Outer diameter
- 9 F
- Minimum sheath size
- 10 F
- Working length
- 90 cm
- Articulating segment length
- 7.5 cm
- Fixed distal tip length
- 2 cm
- Deflection range
- 120° 4-way deflection
- Compatibility
- EPIQ 7C EPIQ CVx EPIQ CVxi
- Broadband frequency range
- 4 - 10 MHz
- Type of array
- xMATRIX
- Number of elements
- 840
- Field of view
- 90°
- Imaging modes
- 2D imaging
- Y
- Spectral doppler (PW/CW)
- Y
- iRotate echo (digital steering)
- Y
- Adult card pre-set
- Y
- Easy quick angles
- Y
Recommended products
- Philips VeriSight Pro 3D Intracardiac Echocardiography (ICE) Catheter was developed to challenge the standard of care for electrophysiology and structural heart disease. As the first ICE catheter to miniaturize the same 3D imaging technology that powers transesophageal echocardiogram (TEE), VeriSight Pro clearly guides physicians in 2D and 3D imaging giving them more confidence and control in interventional procedures.
- EPIQ CVx, our premium cardiovascular ultrasound system built on our innovative, modular, industry-leading ultrasound platform, has powerful AI-based capabilities and advanced diagnostic solutions to help you transcend today's complexities and propel echocardiography into the next dimension. This enables you to achieve greater consistency, accessible innovation, smarter workflows, and easier scalability.
- Philips xMatrix sector array transesophageal transducer with PureWave Crystal technology with an 8 to 2 MHz extended operating frequency range for imaging in 2D, Live xPlane, Live 3D, 3D Zoom, Full Volume and 3D color modes. Provides a user configurable button on the handle to assist with exam efficiency. Includes ECG interface cable and a disposable tip protector.
Disclaimer
1. Alkouli MA, et al. Multicenter Experience With a Novel Real-Time 3-Dimensional Intracardiac Echocardiography Catheter to Guide Interventional Cardiac Procedures. JAHA. 2025; 14(6). DOI: 10.1161/JAHA.124.037019
2. Alkhouli MA, et al. First Experience with a Novel 3D ICE Probe to Guide Cardiac Interventional Procedures. JACC. 2023 Mar, 81 (8_Supplement) 1355. DOI: 10.1016/S0735-1097(23)01799-0
3. Sharkey et al. Advancing Precision in 3D Echocardiography: Incorporating 3D Markers to Aid Spatial Orientation. Journal of Cardiothoracis and vascular Anesthesia. Volume 38 Issue 9, September 2024, Pages 2070-2079. https://doi.org/10.1053/j.jvca.2024.05.009
4. Sularz, A, Chavez Ponce, A, Al-Abcha, A. et al. Safety and Feasibility of 3D Intracardiac Echocardiography in Guiding Left Atrial Appendage Occlusion With WATCHMAN FLX. JACC Adv. 2025 Feb, 4 (2).
5. Sorajja et al. Transcatheter Repair for Patients with Tricuspid Regurgitation. NEJM, 2023:388(20). DOI: 10.1056/NEJMoa2300525 (90 +/- 66 min)
6. Lurz P et al. Short-Term Outcomes of Tricuspid Edge-to-Edge Repair in Clinical Practice. JACC, 2023;82(4). DOI: 10.1016/j.jacc.2023.05.008 (76 +/- 39 min)
7. Eleid MF et al. Utility of Intracardiac Echocardiography in the Early Experience of Transcatheter Edge to Edge Tricuspid Valve Repair. Circ Cardiovasc Interv, 2021;14(10). DOI: 10.1161/CIRCINTERVENTIONS.121.011118 (170 +/- 51 mins)
8. Philips data on file. AdvaMed data per Philips MA&F "Ultrasound Market Share Report Q12019-Q32025".
9. Ahmed et al. (2025). Left Atrial Intra-Cardiac Echocardiography to Assist Zero Fluoroscopy Pulse Field Atrial Fibrillation Ablation - A Beginner`s Guide. CJC Open. https://doi.org/10.1016/j.cjco.2025.10.010
10. Akella K, et al. Evaluating the role of transesophageal echocardiography (TEE) or intracardiac echocardiography (ICE) in left atrial appendage occlusion: a meta-analysis. 2021. J Interv Card Electrophysiol. 2021;60:41-48. DOI: 10.1007/s10840-019-00677-x
11. Enriquez A, Saenz LC, Rosso R, Silvestry FE, Callans D, Marchlinski FE, Garcia F. Use of Intracardiac Echocardiography in Interventional Cardiology: Working With the Anatomy Rather Than Fighting It. Circulation. 2018;137(21) 2278-94. DOI: 10.1161/CIRCULATIONAHA.117.03134
12. D000252024_A_ICE Design Validation Report_highlighted.docx. See highlighted Section 5.9, Test #35
VeriSight Single Plane Steerable is only available in the select countries. Please contact your representative.
