Fluoroscopy 7000 N — ProxiDiagnost N90

DRF digital radiography and nearby fluoroscopy solution
Fluoroscopy systems

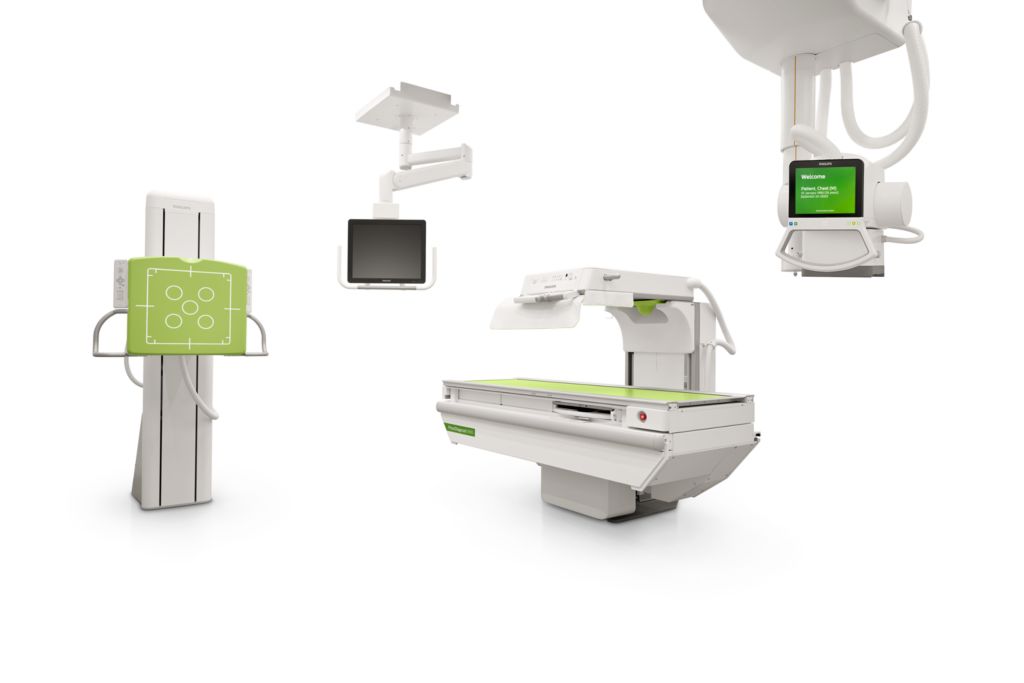

The versatile ProxiDiagnost N90 digital radiography-fluoroscopy (DRF) room is a compact 2-in-1 powerhouse, with premium Philips imaging innovation, designed to enhance your clinical confidence

Features
2-in-1 system - High end radiography and fluoroscopy

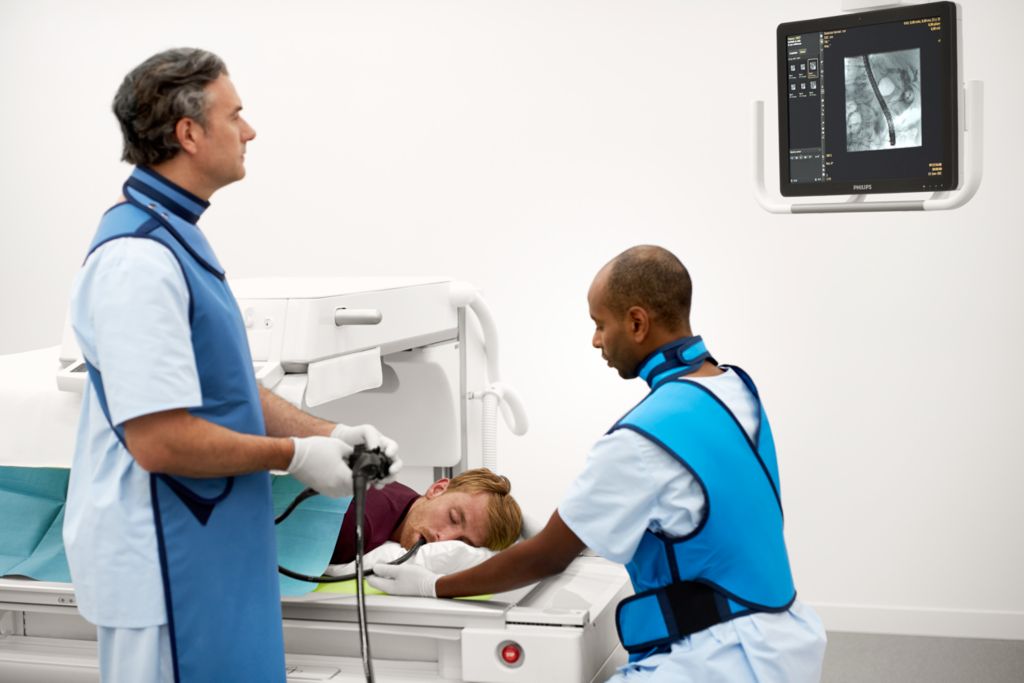

Philips ProxiDiagnost N90 premium cross-functional system is a true all around performer. Applications include chest, full leg and spine, upper and lower extremities, skull, as well as gastro-intestinal exams, arthrography, venography, lymphography, myelography and Digital Subtraction Angiography (DSA).
2-in-1 system - High end radiography and fluoroscopy
Grid-Controlled Fluoroscopy (GCF) - Fully automatic dose adjustment
GCF is an exclusive Philips technology of pulsed fluoroscopy, providing superb image quality at low dose. Reduction of soft radiation is achieved by the use of a grid-switch mechanism in the X-ray tube. Moreover, X-ray parameters kV, mA and time are controlled automatically and in real time within each single pulse (in-pulse control).
Grid-Controlled Fluoroscopy (GCF) - Fully automatic dose adjustment

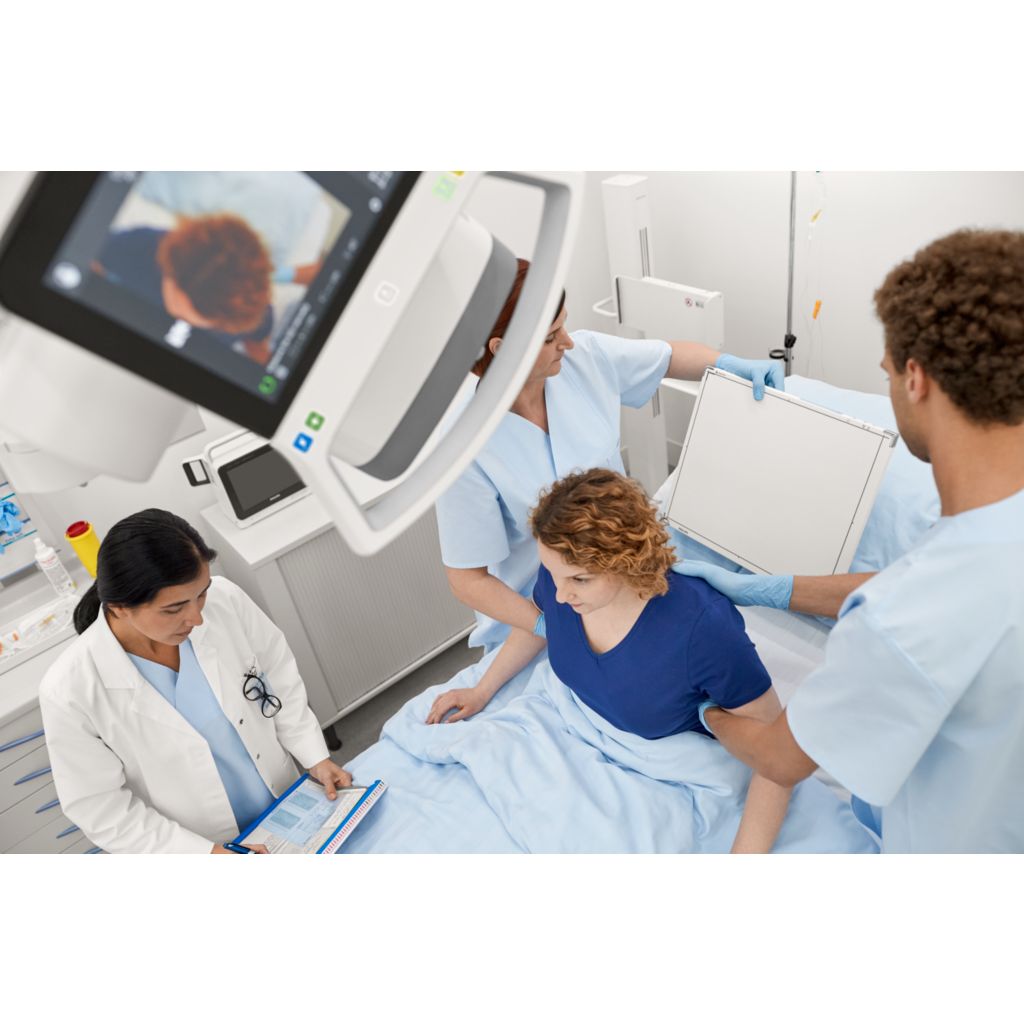

Eleva Tube Head¹ - Patient centered work

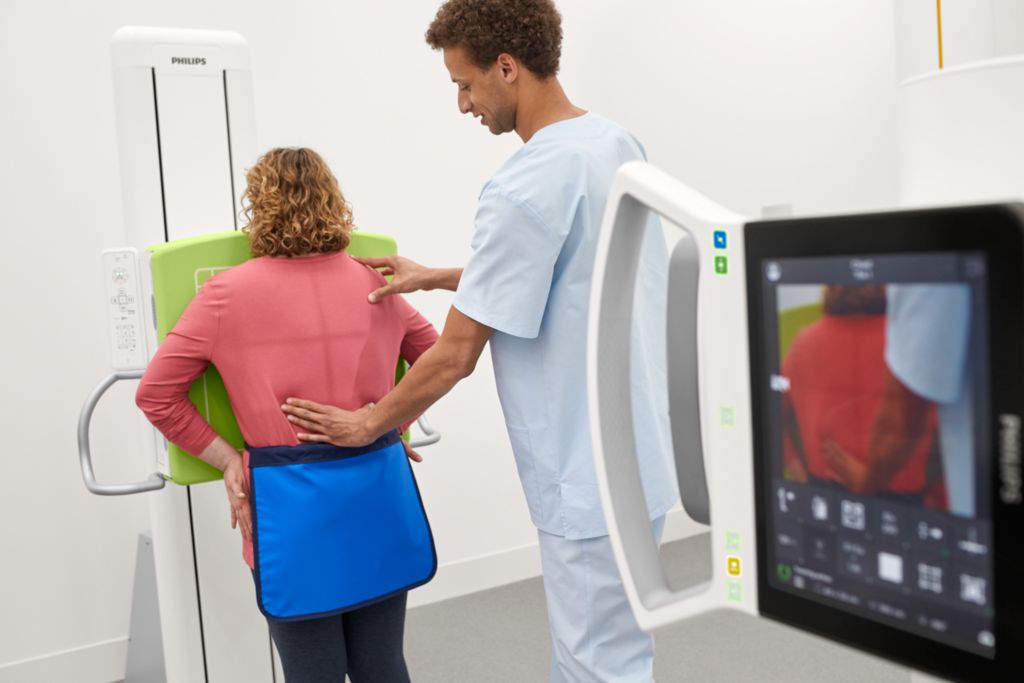

When equipped with a ceiling suspension ProxiDiagnost N90 features the intuitive Eleva Tube Head, a modern smart touch interface in the examimation room. It allows the user to quickly change the most vital parameters for rad imaging directly at the tube head. The Eleva Tube Head offers an optional live camera image for improved positioning support.
Eleva Tube Head¹ - Patient centered work
Specifications

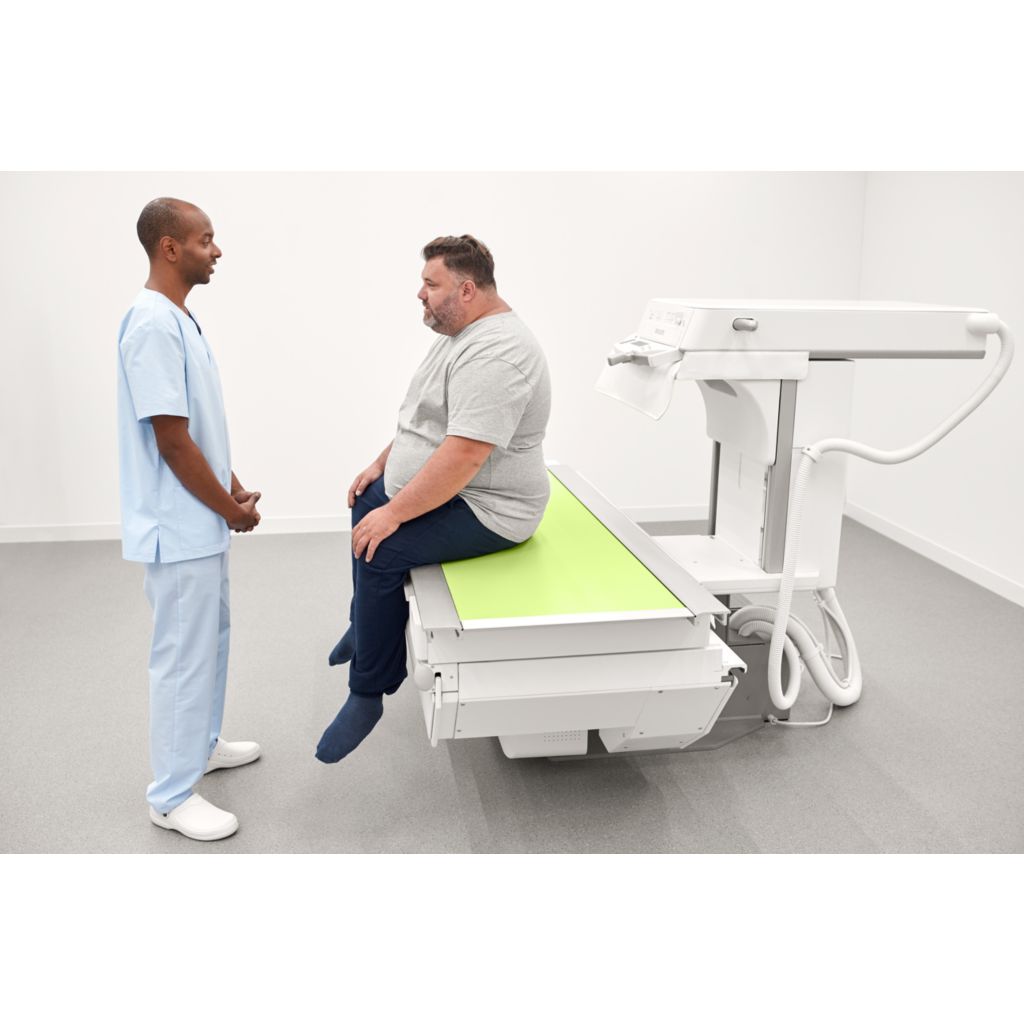

  • Table Geometry
    Weight capacity Static
    300 kg (661 lbs)
    Weight capacity Tilting
    250 kg (551.2 lbs)
    Weight capacity All movements
    185 kg (407.9 lbs)
    Footrest weight capacity
    250 kg (551.2 lbs)

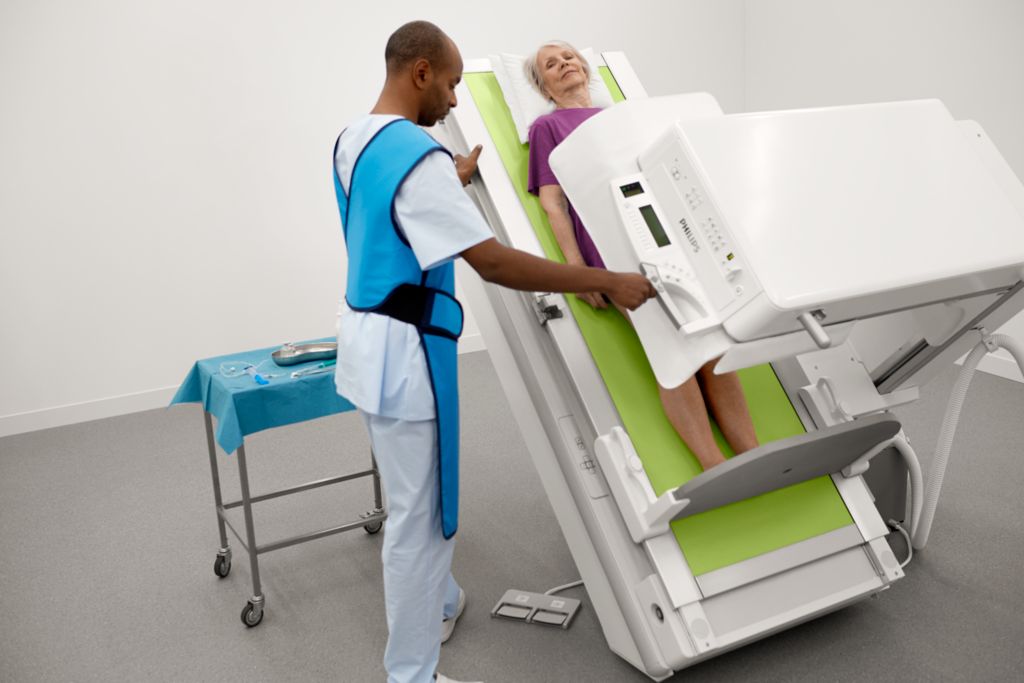

    Table tilt angle
    +90° – -30°, optional -45°/-85°
    Tabletop
    200 cm x 80 cm (78.7" x 31.5")
    Tabletop to detector housing clearance
    25 – 60 cm (9.8" – 23.6")
    Tabletop height
    83.3 cm (32.8")
    Detector for table Bucky
    SkyPlate 35 cm x 43 cm (14" x 17")
  • Dynamic Flat Detector
    Type
    Cesium Iodide (CsI)
    Detector size
    43 cm x 43 cm (17" x 17")
    Active area
    42 cm x 42.6 cm (16.5" x 16.8")
    Pixel size
    148 μm
    Image matrix size
    2880 pixel x 2881 pixel
    Acquisition mode continuous fluoroscopy
    Up to 30 fps
    Acquisition mode pulsed fluoroscopy with Grid Controlled Fluoroscopy (GCF)
    0.5 – 30 fps
    Acquisition mode pulsed fluoroscopy with Pulsed Controlled Fluoroscopy (PCF)
    0.5 – 6 fps
  • Generator
    Power
    65 kW, 80 kW optional
    Exposure Techniques
    Manual, Automatic, Intelligent Exp. (IQX) in-pulse control , Automatic kV
    Fluoroscopy Techniques
    In-pulse control with Grid or Pulsed Controlled Fluoroscopy
    Tube voltage exposure
    40 – 150 kV
    Tube voltage fluoroscopy
    40 – 125 kV

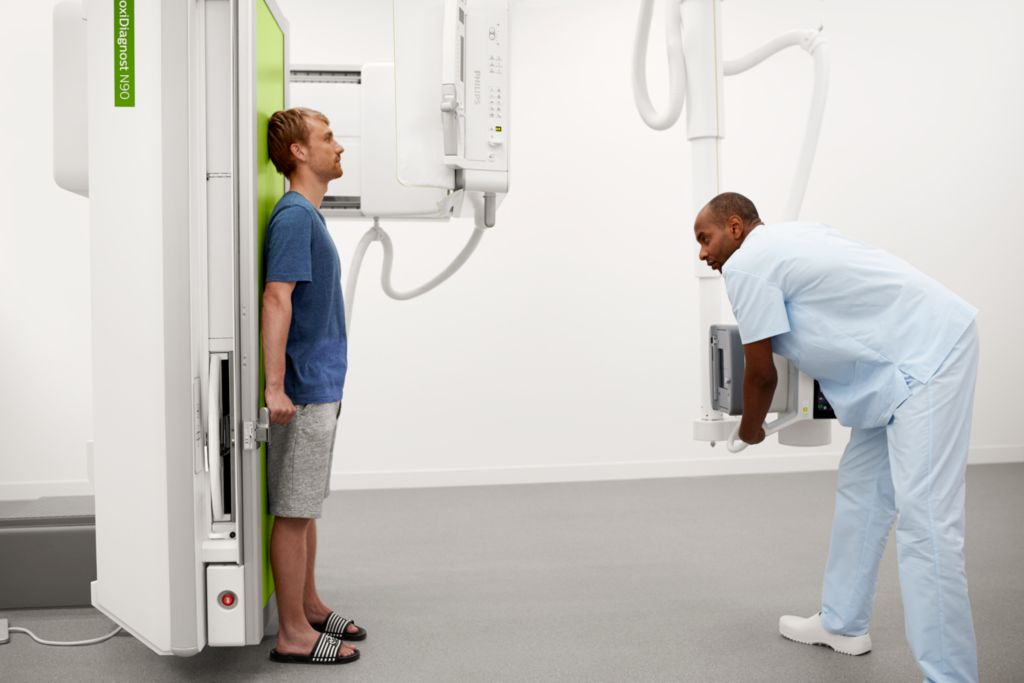

  • Vertical Stand (option)
    Vertical travel (motorized)
    30 – 180 cm (11.8 – 5'11")
    Detector
    Fixed 43 cm x 43 cm (17" x 17") or SkyPlate 35 cm x 43 cm (14" x 17")
    Tilting (motorized)
    Optional, -20° – +90°
  • Ceiling Suspension CSM (option)
    Type
    Four-part telescopic column
    Collimator
    Motorized, automatic
  • SkyPlate Detector Small (option)
    Type
    Digital CsI (Cesium Iodide) flat detector
    Detector Size
    24 cm x 30 cm (app. 10" x 12")
    Active area
    22.2 cm x 28.4 cm (8.7" x 11.2")
    Image Matrix Size
    1500 pixel x 1920 pixel
  • SkyPlate Detector Large (option)
    Type
    Digital CsI (Cesium Iodide) flat detector
    Detector Size
    35 cm x 43 cm (14" x 17")
    Active area
    34.5 cm x 42.1 cm (13.6" x 16.6")
    Image Matrix Size
    2330 pixel x 2846 pixel
  • Applicational Range
    Fluoroscopy
    Gastro intestinal, urinary studies, ERCP, fluoroscopy guided injections etc
    Radiography
    Skull, ribs, spine, pelvis, upper extremities, long spine, lung, abdomen etc
  • Eleva Tube Head
    Control buttons
    color coded control buttons; capacitive sensor for three-axis brake-release
    Data displayed includes
    Patient data, preview images, generator settings, live camera image (option)
    Full color LCD touch display
    30.7 cm (12.1")

Documentation
