Fluoroscopy 7000 N — ProxiDiagnost N90

DRF digital radiography and nearby fluoroscopy solution
706110Fluoroscopy systems
The versatile ProxiDiagnost N90 digital radiography-fluoroscopy (DRF) room is a compact 2-in-1 powerhouse, with premium Philips imaging innovation, designed to enhance your clinical confidence

Features

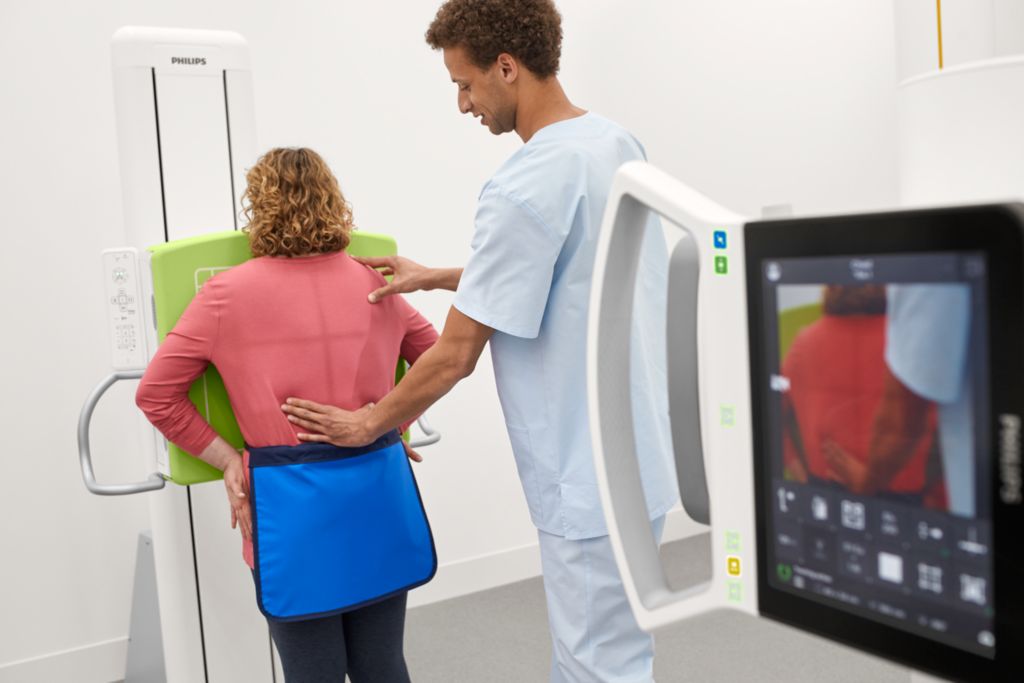

Eleva Tube Head¹ - Patient centered work
When equipped with a ceiling suspension ProxiDiagnost N90 features the intuitive Eleva Tube Head, a modern smart touch interface in the examimation room. It allows the user to quickly change the most vital parameters for rad imaging directly at the tube head. The Eleva Tube Head offers an optional live camera image for improved positioning support.
Eleva Tube Head¹ - Patient centered work
SkyFlow Plus - Grid-like contrast for free rad examinations
SkyFlow is the industry’s first AI-powered scatter correction algorithm technology for non-grid free exposures. When doing DR exams without a grid, Philips SkyFlow Plus produces images with grid-like contrast.
SkyFlow Plus - Grid-like contrast for free rad examinations

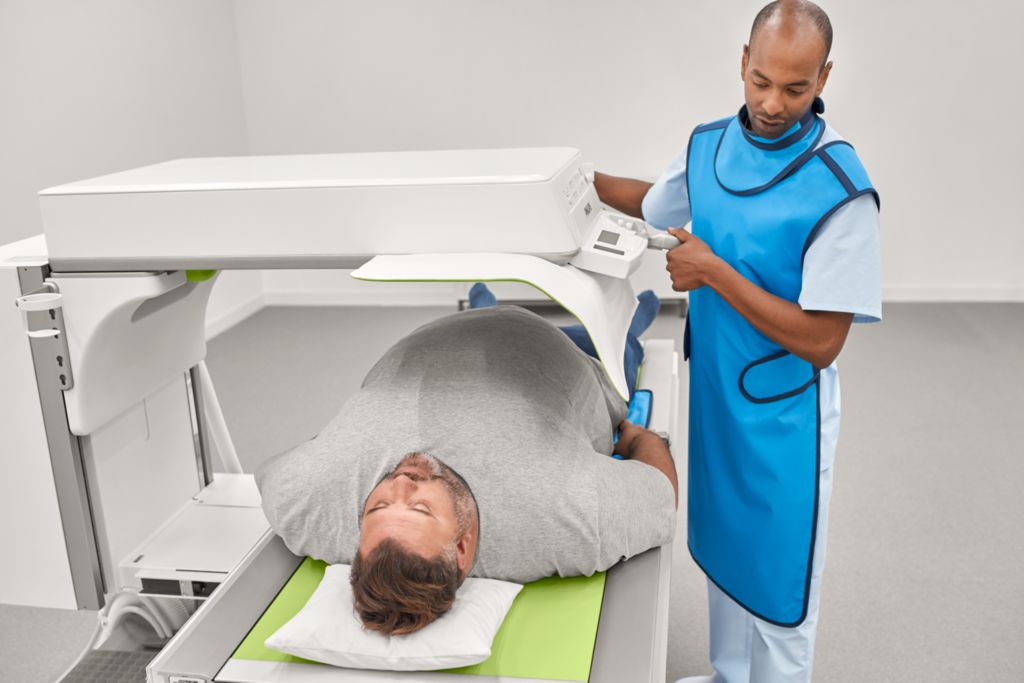

Bariatrics
Even the most challenging patients can benefit from ProxiDiagnost N90 with a 300 kg (661 lbs) table weight capacity plus features like GCF providing dedicated bariatric settings for efficient penetration and superb image quality.
Bariatrics
Specifications
  • Table Geometry
    Weight capacity Static
    300 kg (661 lbs)
    Weight capacity Tilting
    250 kg (551.2 lbs)
    Weight capacity All movements
    185 kg (407.9 lbs)
    Footrest weight capacity
    250 kg (551.2 lbs)

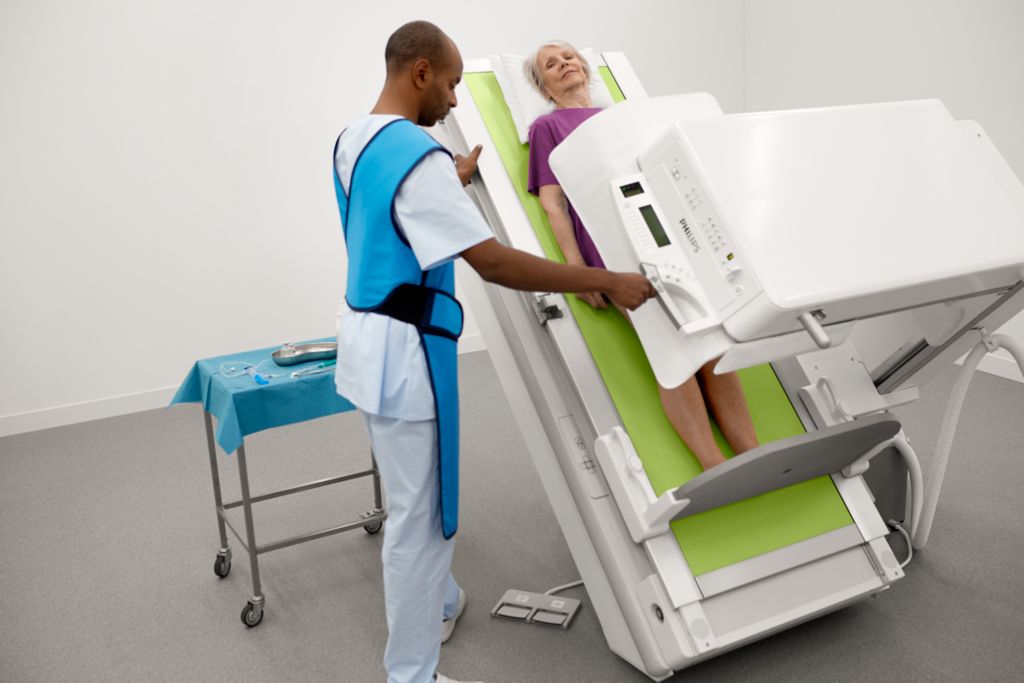

    Table tilt angle
    +90° – -30°, optional -45°/-85°
    Tabletop
    200 cm x 80 cm (78.7" x 31.5")
    Tabletop to detector housing clearance
    25 – 60 cm (9.8" – 23.6")
    Tabletop height
    83.3 cm (32.8")
    Detector for table Bucky
    SkyPlate 35 cm x 43 cm (14" x 17")
  • Dynamic Flat Detector
    Type
    Cesium Iodide (CsI)
    Detector size
    43 cm x 43 cm (17" x 17")
    Active area
    42 cm x 42.6 cm (16.5" x 16.8")
    Pixel size
    148 μm
    Image matrix size
    2880 pixel x 2881 pixel
    Acquisition mode continuous fluoroscopy
    Up to 30 fps
    Acquisition mode pulsed fluoroscopy with Grid Controlled Fluoroscopy (GCF)
    0.5 – 30 fps
    Acquisition mode pulsed fluoroscopy with Pulsed Controlled Fluoroscopy (PCF)
    0.5 – 6 fps
  • Generator
    Power
    65 kW, 80 kW optional
    Exposure Techniques
    Manual, Automatic, Intelligent Exp. (IQX) in-pulse control , Automatic kV
    Fluoroscopy Techniques
    In-pulse control with Grid or Pulsed Controlled Fluoroscopy
    Tube voltage exposure
    40 – 150 kV
    Tube voltage fluoroscopy
    40 – 125 kV

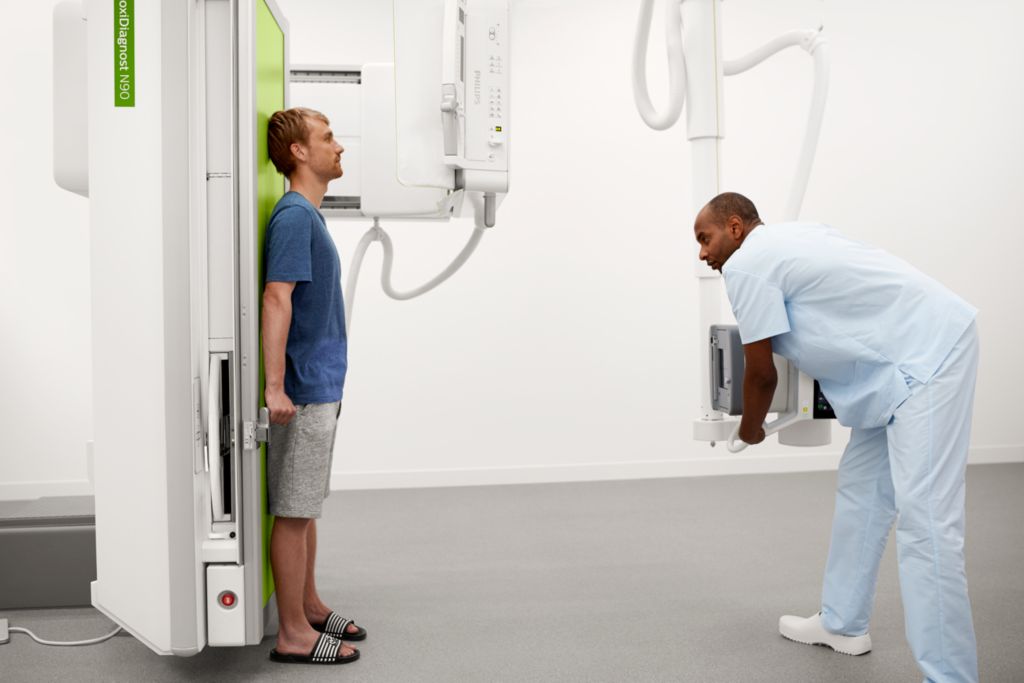

  • Vertical Stand (option)
    Vertical travel (motorized)
    30 – 180 cm (11.8 – 5'11")
    Detector
    Fixed 43 cm x 43 cm (17" x 17") or SkyPlate 35 cm x 43 cm (14" x 17")
    Tilting (motorized)
    Optional, -20° – +90°
  • Ceiling Suspension CSM (option)
    Type
    Four-part telescopic column
    Collimator
    Motorized, automatic
  • SkyPlate Detector Small (option)
    Type
    Digital CsI (Cesium Iodide) flat detector
    Detector Size
    24 cm x 30 cm (app. 10" x 12")
    Active area
    22.2 cm x 28.4 cm (8.7" x 11.2")
    Image Matrix Size
    1500 pixel x 1920 pixel
  • SkyPlate Detector Large (option)
    Type
    Digital CsI (Cesium Iodide) flat detector
    Detector Size
    35 cm x 43 cm (14" x 17")
    Active area
    34.5 cm x 42.1 cm (13.6" x 16.6")
    Image Matrix Size
    2330 pixel x 2846 pixel
  • Applicational Range

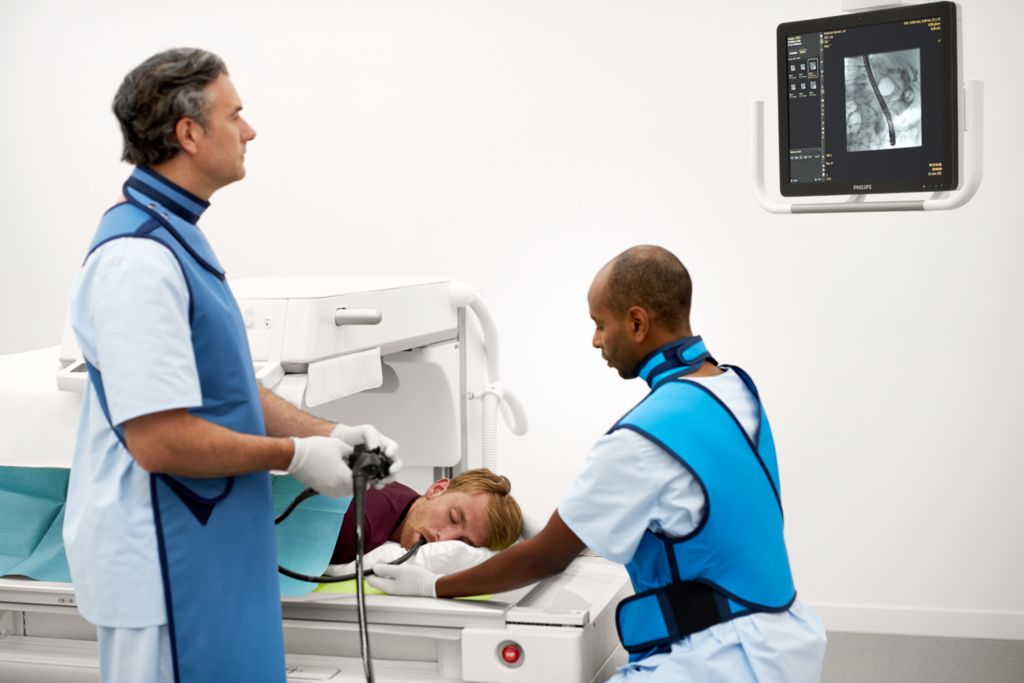

    Fluoroscopy
    Gastro intestinal, urinary studies, ERCP, fluoroscopy guided injections etc
    Radiography
    Skull, ribs, spine, pelvis, upper extremities, long spine, lung, abdomen etc
  • Eleva Tube Head
    Control buttons
    color coded control buttons; capacitive sensor for three-axis brake-release
    Data displayed includes
    Patient data, preview images, generator settings, live camera image (option)
    Full color LCD touch display
    30.7 cm (12.1")
