Radiography 7300 C

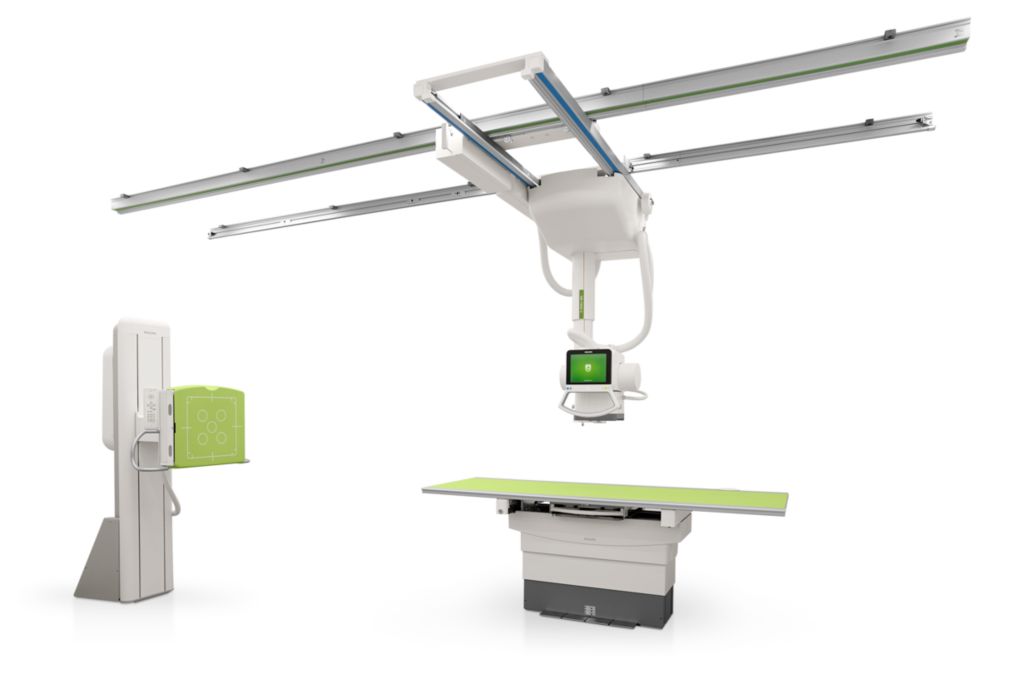

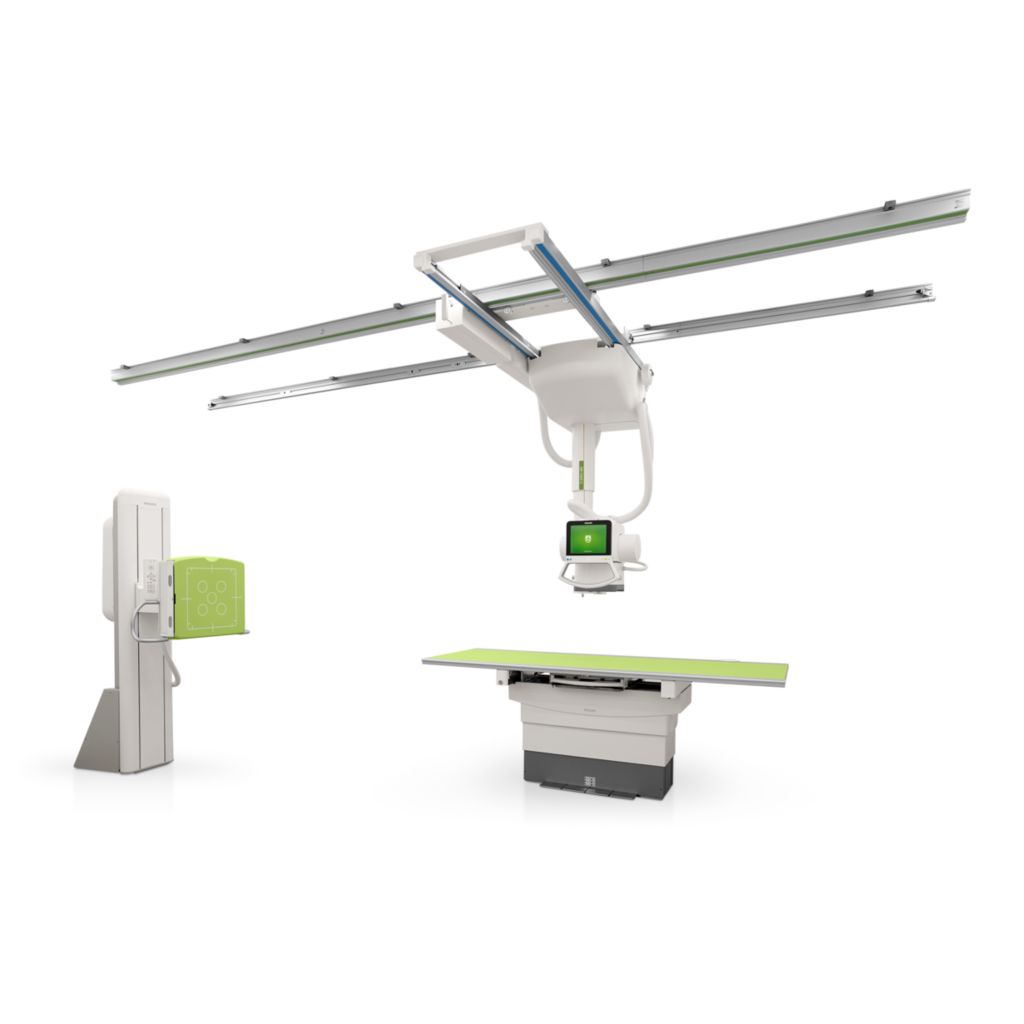

Ceiling-mounted digital radiography solution
Radiography 7300 C
Ceiling-mounted digital radiography solution
Fast throughput and diagnostic confidence are not mutually exclusive. The versatile Philips Radiography 7300 C digital radiography system allows you to achieve both.
You can comfortably see more patients per day(1), reduce time-consuming retakes, and focus more closely on your patients.

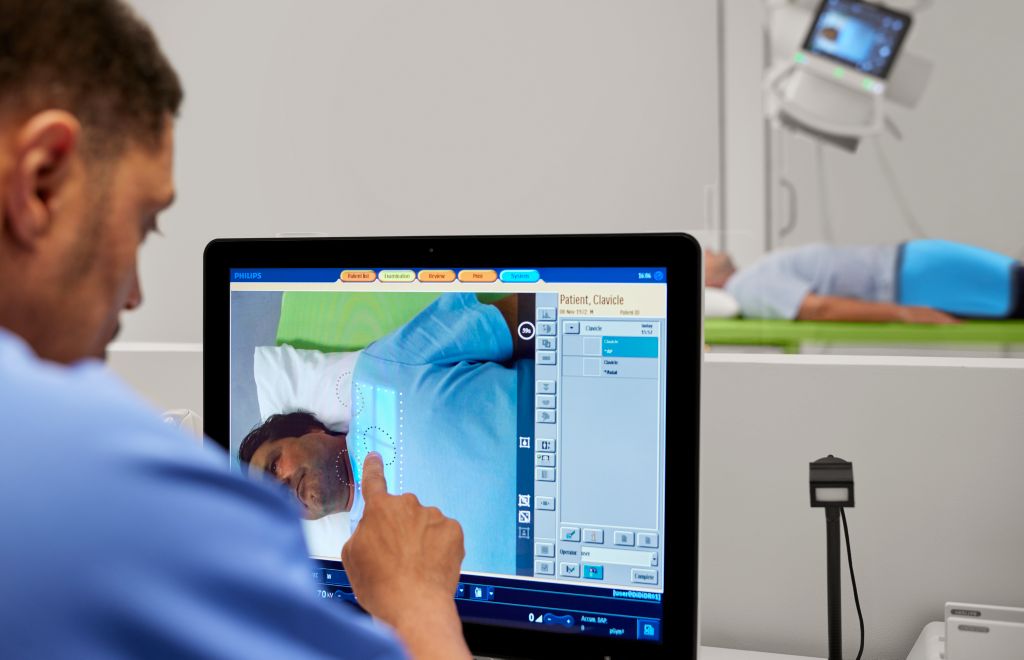

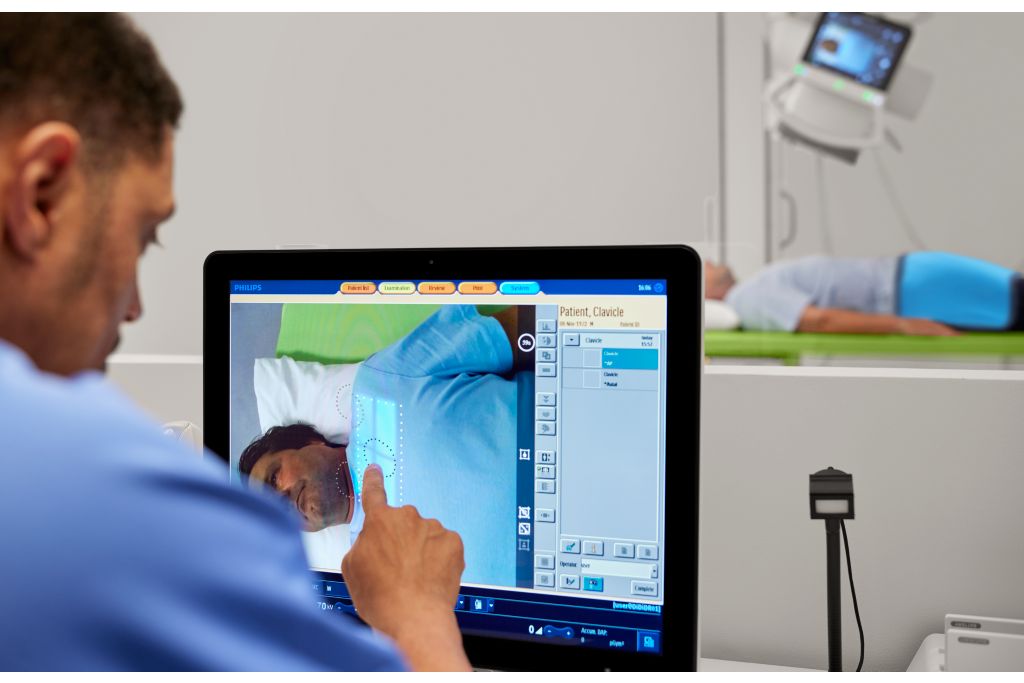

Smart Workflow, powerful AI-enabled productivity features, and automated examination technologies help assure rapid availability of high quality digital images for more confident diagnoses.
Features
Configured to meet your needs

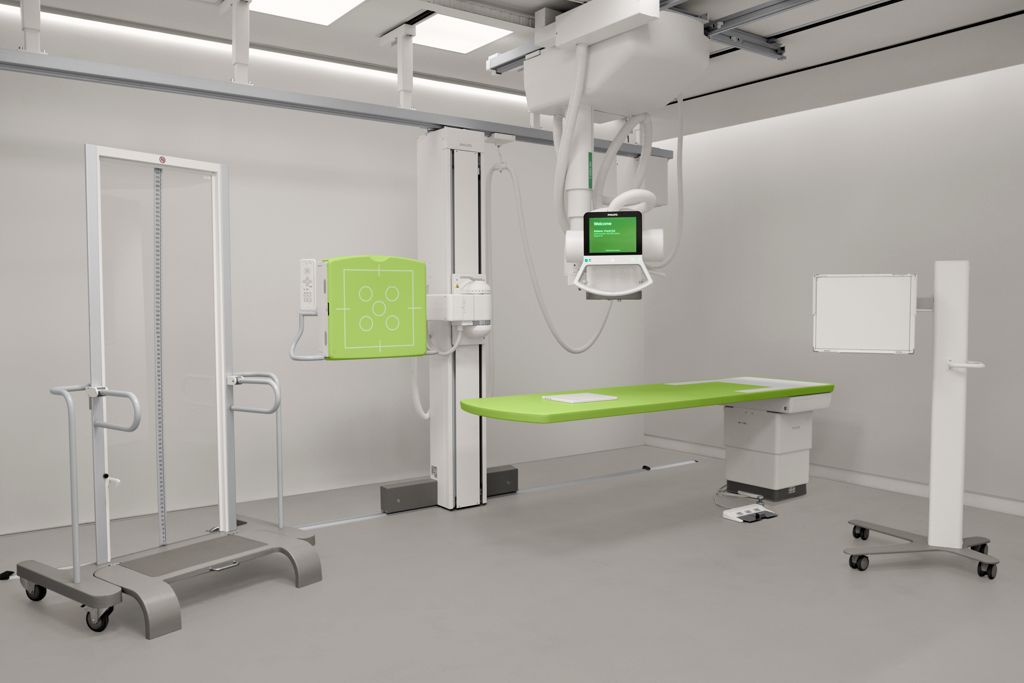

Philips Radiography 7300 C offers a variety of configuration options tailored to your clinical needs, room layout and budget. It gives you the opportunity to choose the configuration that best satisfies your departmental requirements. The system can even be configured specifically for upright chest exams, or for integration into emergency rooms and trauma bays.Premium, Pro, Plus, Value, or ER each bundle contains the imaging system of your choice along with selected components and applications.

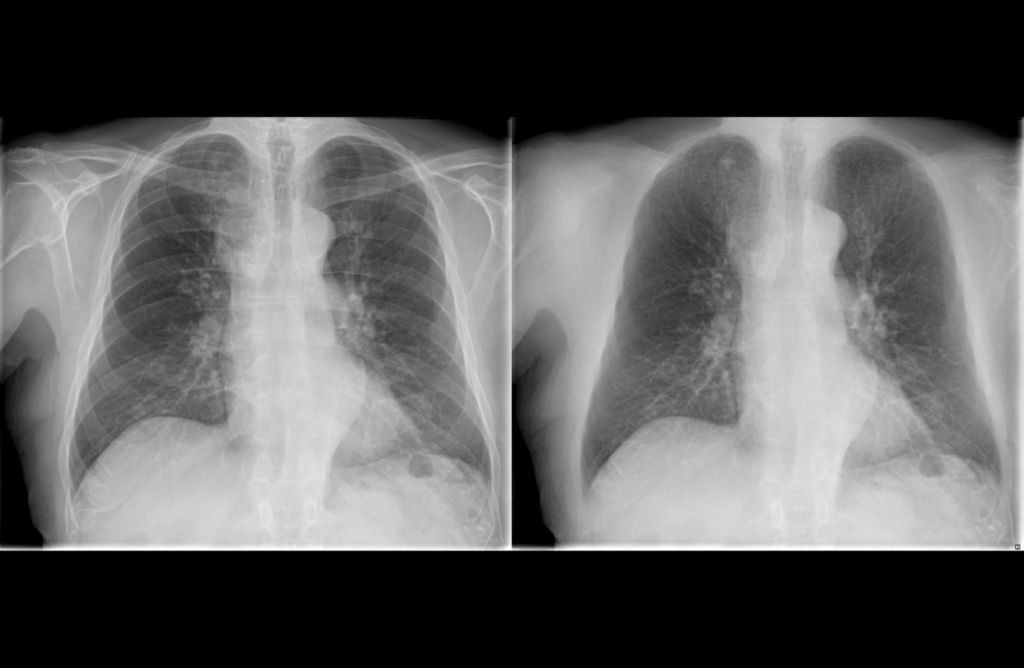

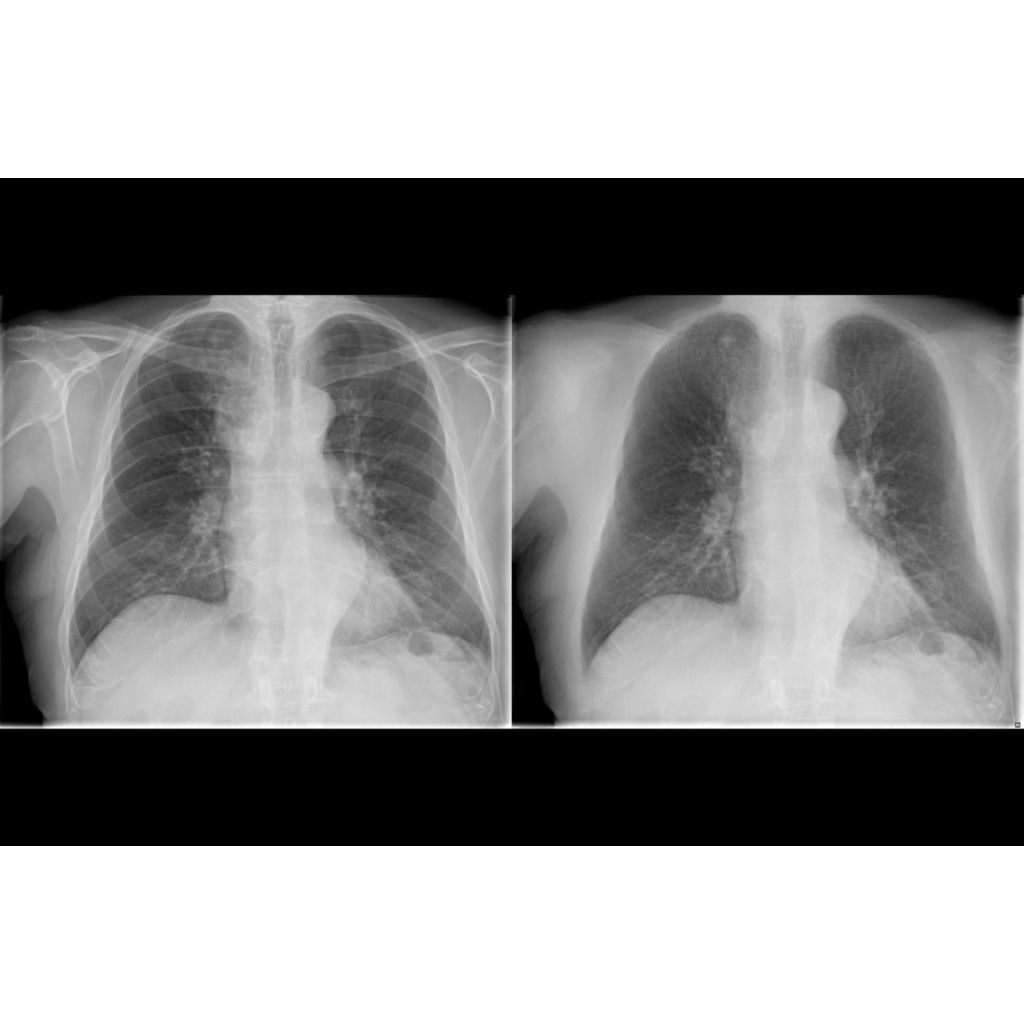

Improved lung nodule detection with Philips Bone Suppression
Philips Bone Suppression(6) is an innovative AI-enabled image enhancement technology designed to increase the clarity of chest radiographs and promote better clinical outcomes by suppressing bone structure on digital images for an unobstructed view of soft tissue. This clear view can help facilitate you have a more accurate image interpretation. As part of Philips Eleva platform, Bone Suppression is integrated into the regular system workflow.Philips Bone Suppression can improve actionable nodule detection by 16.8 %(6) without the need to expose the patient to additional X-ray dose.
Save time with Smart Workflow

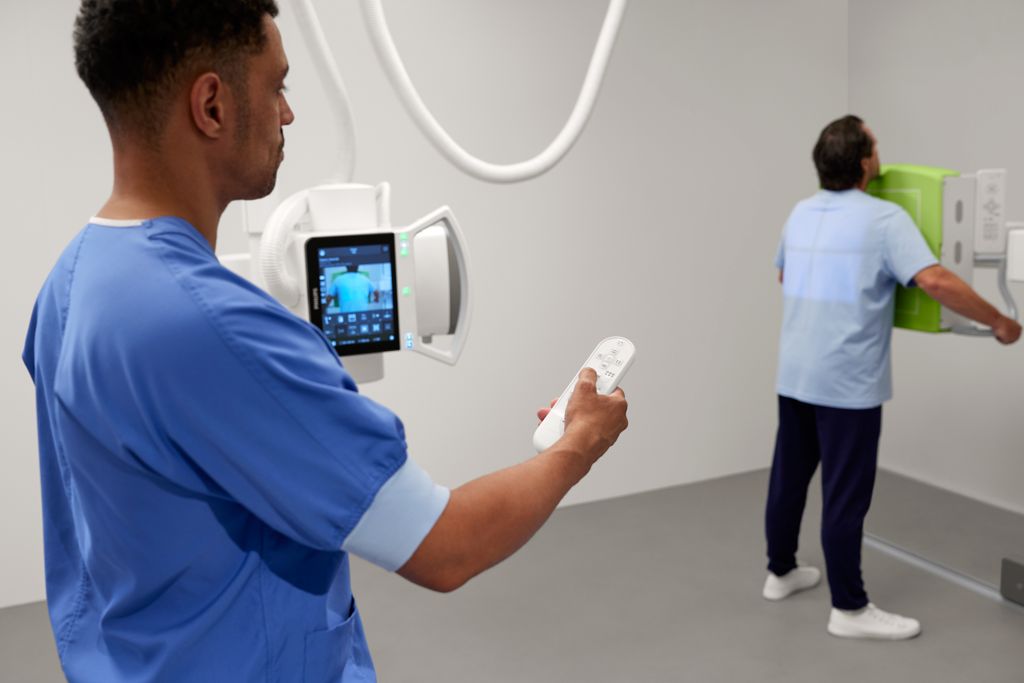

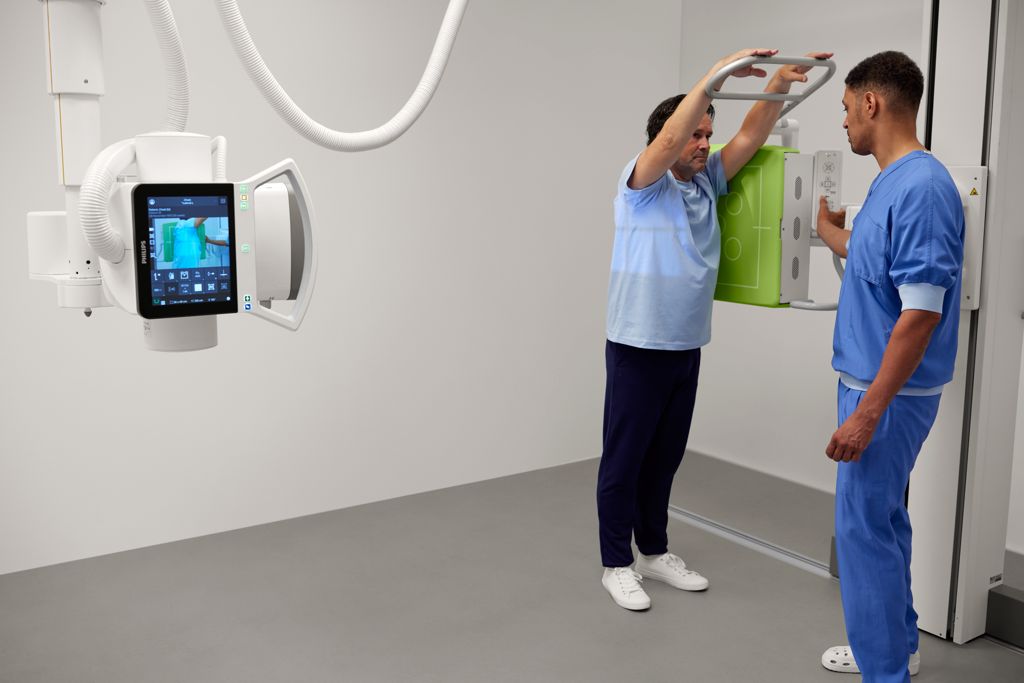

Philips developed AI-assisted Smart Collimation Thorax (2) algorithm adjusts detector height and proposes collimation for each chest upright patient individually based upon data from a 3D Camera(3). Smart Collimation Thorax reduces exam time up to 35 seconds resulting in potential time saving of 20 minutes daily for your medical team. (4)
Specifications

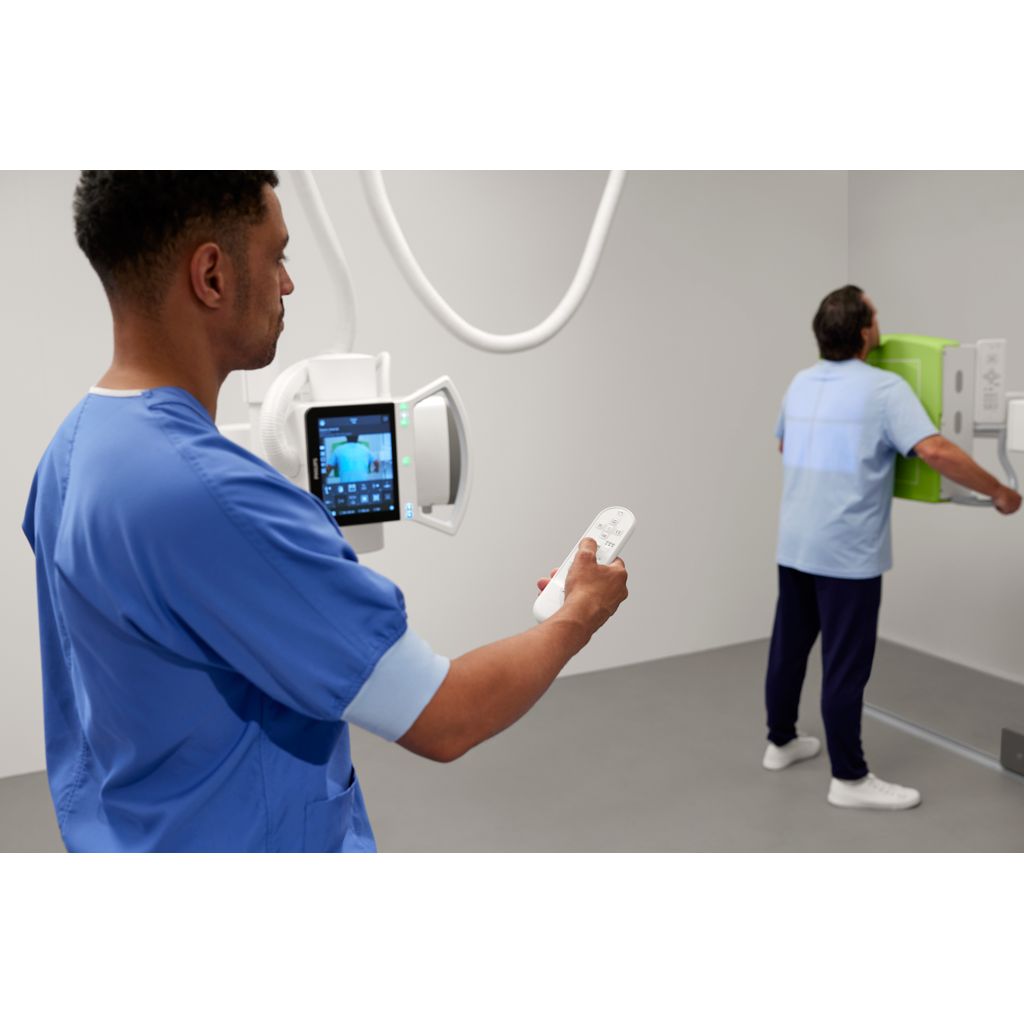

- Eleva Tube Head
- Full color LCD touch display width
- 30.7 cm (12.1")
- Minimum viewing angle in horizontal and vertical viewing field
- +/- 80°
- Control buttons
- 6 color-coded ctrl. buttons and a capacitive sensor for 3-axis brake release
- Data displayed at the Eleva Tube Head (amongst others)
- Collimation, AEC chambers, patient data, preview images, generator settings, live camera image

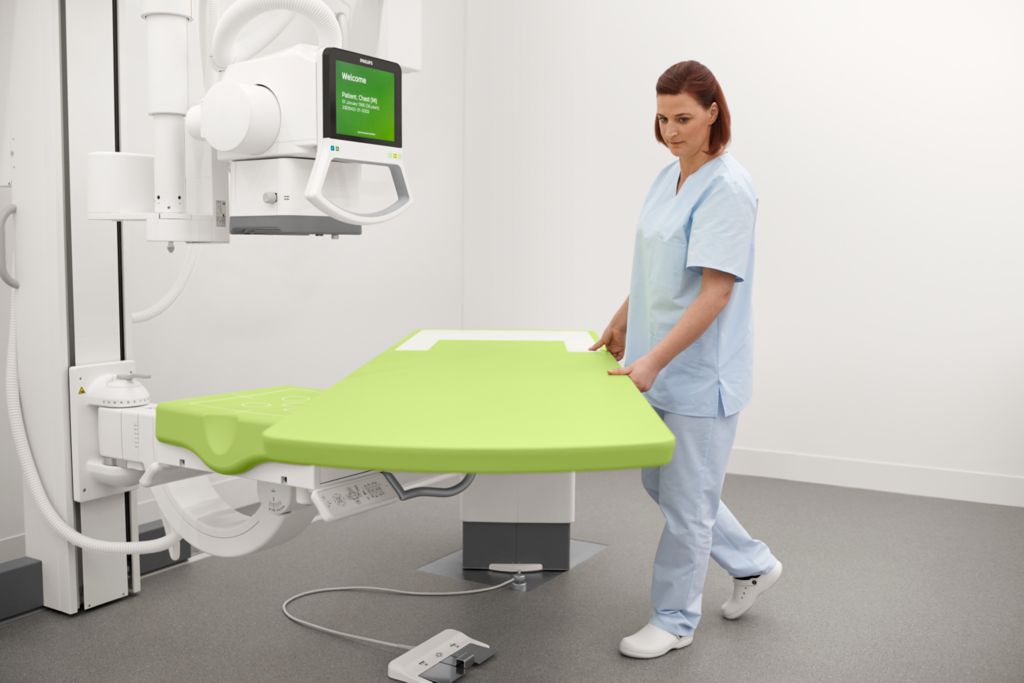

- Height adjustable table
- Height adjustment
- 51.5 cm to 91.5 cm (1' 8.3" to 3')
- Tabletop dimensions
- 240 cm × 75 cm (7' 10.5" × 2' 5.5")
- Tabletop travel range
- longitudinal +/- 60 cm (1' 11"") transverse +/- 12 cm (4.7"")
- Max. patient load
- 375 kg (826.7 lb)
- X-ray tube assembly
- Maximum voltage
- 150 kV
- Focal spot 0.6 mm
- maximum power 33 kW
- Focal spot 1.2 mm
- maximum power 100 kW

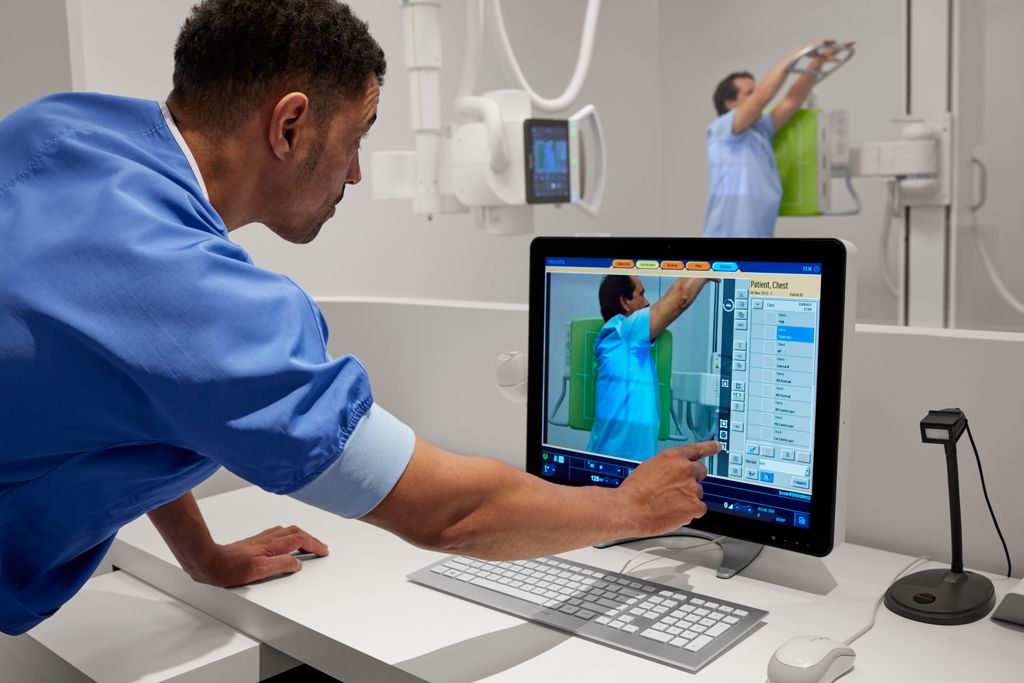

- Eleva workspot
- Hard drive
- 240 GB SSD total
- RAM storage capacity
- 16 GB
- Monitor
- 21.3" LCD color touch monitor
- Maximum calibrated brightness
- 400 cd/m2 +/- 10 %
- CD/DVD drive
- 24x CD reader/writer 8x DVD reader/writer
- Large SkyPlate detector
- Type
- Digital Cesium Iodite flat detector
- Detector size
- 43 cm × 43 cm (17" × 17")
- Active area
- 42 cm × 42.5 cm (13.6" × 16.6")
- Image matrix size
- 2,330 × 2,846 pixel
- Pixel size
- 148 μm
Disclaimer
(1)See 15 more patients/day, save 8 hrs. overtime/week, and avoid approx. 28 retakes/week (compared to the previous release of DigitalDiagnost and based on 100 patients per day. Actual results in other cases may vary)
(2)Smart Collimation Thorax is limited to upright thorax with adult chest views only
(3)Standard on Premium and Pro bundle configurations – optional for Plus, Value and ER bundles
(4)Compared to not using SCT on the Radiography 7300 C, validated by 12 clinicians in a Philips’ development environment. Daily time saving calculation based on 35 adult upright chest patients per day. Results may vary. The average time saving is 8.1s
(5)Compared to previous release, UNIQUE
(6)ClearRead Bone Suppression by Riverain Technologies Freedman M et al. Improved detection of lung nodules with novel software that suppresses the rib and clavicle shadows on chest radiographs. Radiology. 2011.
(7)Compared to its predecessor system DigitalDiagnost Rel. 4 with similar configuration. Based on use case scenario defined by COCIR for 12 hrs. standby / ready to scan (includes 8 hrs. working time to cover 84 radiographic exposures on an average), and 12 hrs. off/low power mode
(8)Compared to its predecessor system DigitalDiagnost Rel. 4 with similar configuration
