DigitalDiagnost Rel. 4.3
Digital radiography solutions
An X-ray system that meets your institution’s growing patient demands must provide a reliable solution for every situation, while also offering a lower cost of care. The Philips DigitalDiagnost Rel. 4.3 is a proven DR workhorse, with room configurations that support your staff, speed your workflow, and deliver value for your dollar.
Grid-like contrast
Lightweight wireless portable detector
Share it as you like
Features

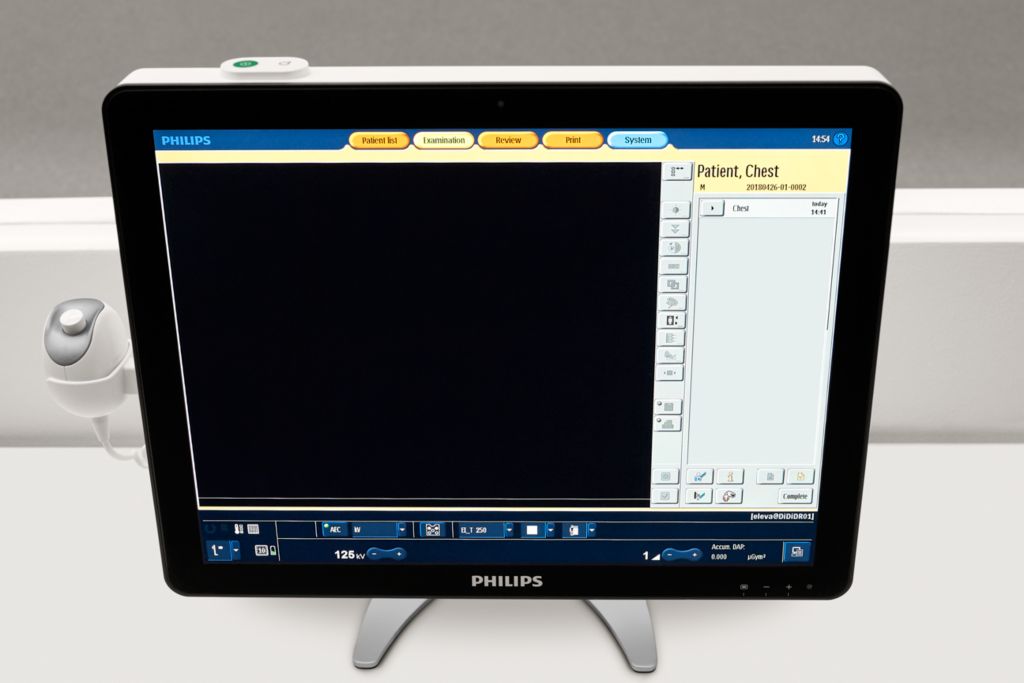

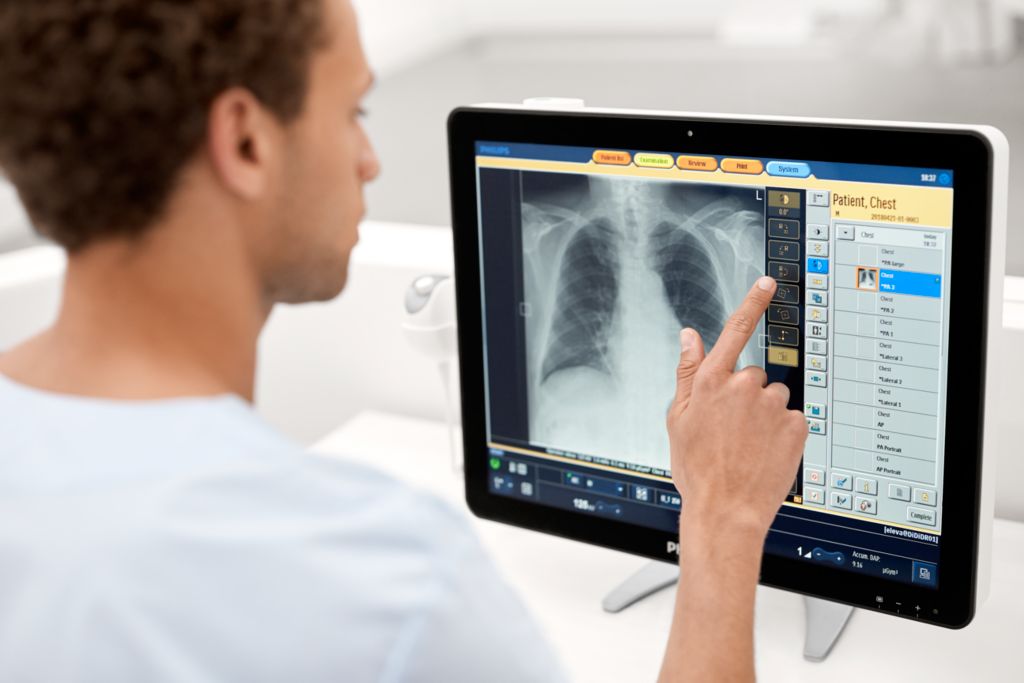

Eleva – the common platform
The premium Eleva Workspot makes workflow continuity and network communication easy. With a common user interface amongst all Philips digital radiography and R&F systems, staff training is fast and the system is easy to use, with a host of smart tools including enhanced exposure settings and immediate image processing.
UNIQUE 2¹ - Next generation image processing
UNIQUE 2 image processing delivers fast, outstanding digital radiography images. It significantly improves image quality like homogeneous black backgrounds, reduced noise, and automatic enhancement of small details.
Latest IT standards
Philips places critical importance on assuring that the DigitalDiagnost Rel. 4.3 is safe, secure and compliant for integration into any hospital network. This includes highlights like the embedded Windows 10 operating system, seamless integration into hospital IT infrastructure and PACS, Data encryption and many more.
Specifications
- Tube carrier
- Ceiling suspension CS
- Motorized ceiling suspended tube carrier with four-part telescopic column.
- Movements
- Longitudinal and transverse
- LCD display
- Wide 16.5cm (6.5”) LCD information display and control buttons for easy and quick handling
- Longitudinal travel
- 3.44 m (11’ 3.4”)/with rail extensions 6.14 m (20’ 1.7”)
- Transverse travel
- Standard version 1.5 m (4’ 11”)/Long version 3.22 m (10’ 6.7”)
- Vertical travel
- 1.65 m (5’ 4.1”)
- Tables
- Height-adjustable table TH
- Height-adj. table with a large range of movements and convenient handling.
- Tabletop
- Floating sandwich-design tabletop with carbon fiber overlay.
- Detector
- With fixed detector or a SkyPlate in the table tray
- Grid
- Oscillating or fixed grid
- Dimensions
- (l x w):240 x 75 cm (94.5” x 29.5”) and optional 240 x 85 cm (94.5” x 33.5”)
- Single side suspended table TH-S
- TH-S not available for Rel. 4.3
- X-ray transparent area
- 173 x 67 cm (68.1” x 26.4”)
- Height of tabletop above floor
- TH-S not available for Rel. 4.3
- Foot pedal
- Foot pedal operation allows close proximity to the patient.
- Table base
- TH-S not available for Rel. 4.3
- Max. patient weight
- Static load center 375 kg (826 lbs)
- Length of X-ray transparent area
- TH-S not available for Rel. 4.3
- Height adjustment
- 51.5 cm to 91.5 cm (20.3" to 36") above floor, motorized adjustment
- Vertical stands
- Angle of detector tilt
- Horizontal axis: -20° to +90, motorized tilting
- Vertical stand VS
- Motorized vertical stand with fixed detector or SkyPlate tray.
- Tiltable detector
- Optional, tilt angle: –20° to +90°, motorized tilting
- Grid
- Oscillating or fixed grid. Detector unit can store up to 2 grids.
- Exposure control
- Five automatic exposure control chambers.
- Controls
- Two control panels and remote control.
- Dimensions
- Height: 2.07 m (6’ 7.9“)
- Horizontal movement range
- Moveable vertical stand not available for Rel. 4.3
- Vertical movement of detector unit
- 30 cm to 1.80 m (11.8” to 5.1”) (central beam)
- Vertical movement range
- 30 cm to 1.80 m (11.8” to 5.1”) (central beam)
- Moveable vertical stand VM
- Moveable vertical stand not available for Rel. 4.3
- Swiveling range of multi-purpose arm
- Moveable vertical stand not available for Rel. 4.3
- Detectors
- Fixed detector
- Integrated into the TH table and vertical stand.
- Size
- 43 cm x 43 cm/ 17''x17''
- Resolution
- Up to 3.4 lp/mm, 148 μm pixel size
- SkyPlate
- Large SkyPlate/E 35cm x 43cm/14''x17'' Small SkyPlate 24cm x 30cm/10"x12“
- Charging
- Detector only charges when being placed in battery charger.
- Robust design
- Guarantees a drop height of 70 cm (28").
- Generator
- Mains voltage
- 380 V ±10%, 50/60 Hz, 3 phases 400 V ±10%, 50/60 Hz, 3 phases 480 V ±10%, 60 Hz, 3 phases
- Nominal power
- 65 kW or 80 kW
- Imaging solutions
- SkyFlow
- Scatter correction for a grid-less workflow to save time & X-ray dose.
- Philips Computed Radiography (PCR Eleva)
- We offer several CR solutions for different departmental set-ups.
- Eleva workspot
- 480 GB SSD/16 GB Ram/ 21" high quality LCD color touch screen.
- Software
- SkyPlate Sharing/BoneSuppression/Auto. image stitching/Clinical QC/etc.
- Tubes and generators
- X-ray tubes
- Max. tube voltage of 150 kV 0.6mm focal spot: 33KW 1.2mm focal spot: 100KW
- Generators
- Nominal power (IEC) of 65 kW or 80 kW.
- X-ray tube assembly
- Maximum voltage
- 150 kV
- Focal spot 0.6 mm
- Maximum power 33 kW
- Focal spot 1.2 mm
- Maximum power 100 kW
- Eleva workspot
- Hard drive
- 480 GB SSD total
- RAM storage capacity
- 16 GB
- Monitor
- 21.3" high quality LCD color touch screen
- Maximum calibrated brightness
- 400 cd/m2 +/- 10 %
- CD/DVD drive
- 24x CD reader/writer 8x DVD reader/writer
