SmartPath to Ingenia 3.0T Evolution
Step into the future with confidence
SmartPath to Ingenia 3.0T Evolution
Step into the future with confidence
With SmartPath you can convert your existing Ingenia system to an Ingenia 3.0T Evolution. It enables you to boost your performance with innovative SmartWorkflow solutions that include touchless patient sensing technology, in-room guidance on patient set-up and initiation of the exam at the patient’s side. Compressed SENSE allows you to scan up to 50% faster with virtually equal image quality, in both 2D and 3D scanning and for all anatomies.¹ Your SmartPath conversion also gives you access to the latest scanning techniques for confident diagnosis.
Clinical image gallery

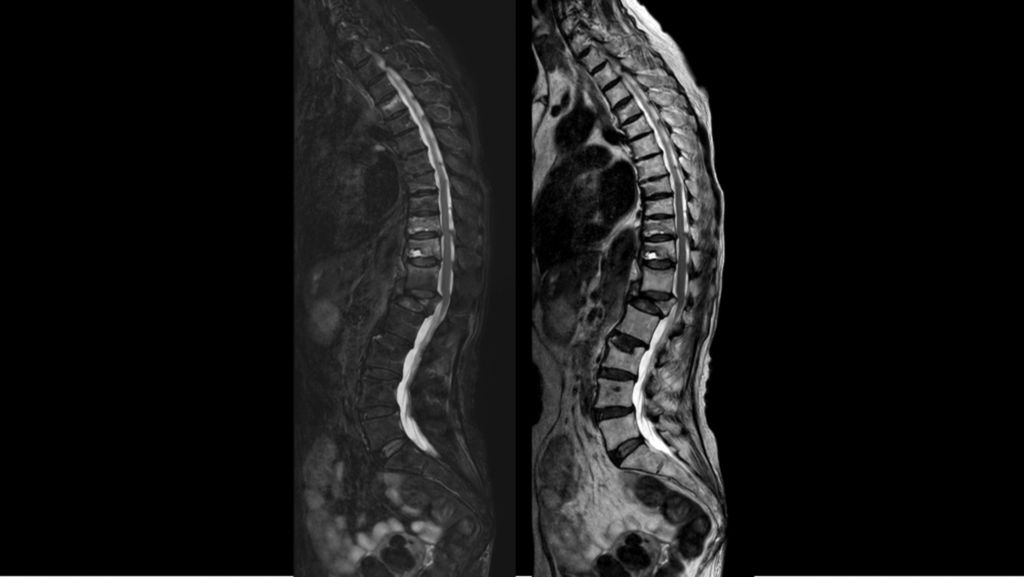

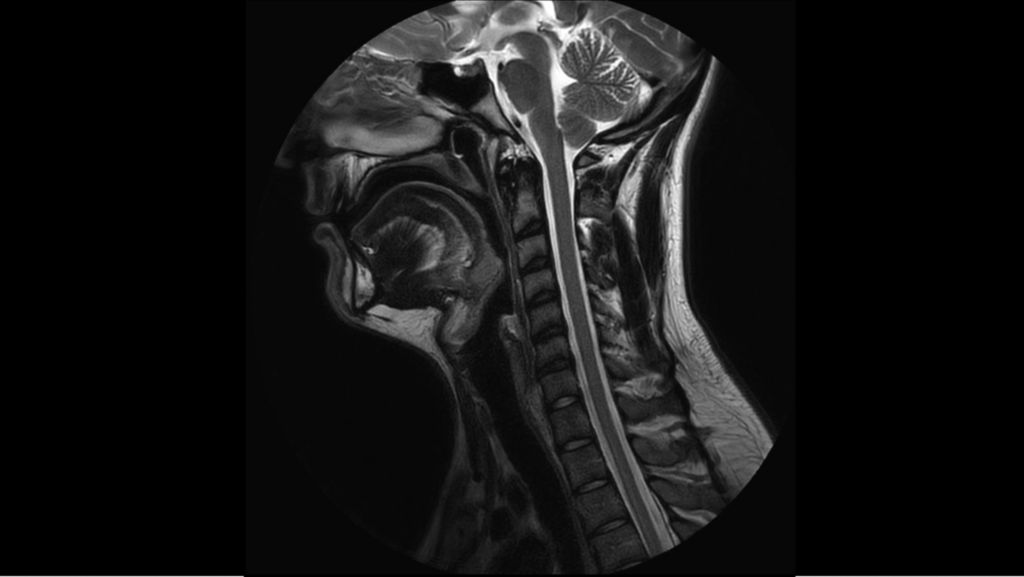

- MultiVane XD T2w TSE
- MultiVane XD T2w TSE

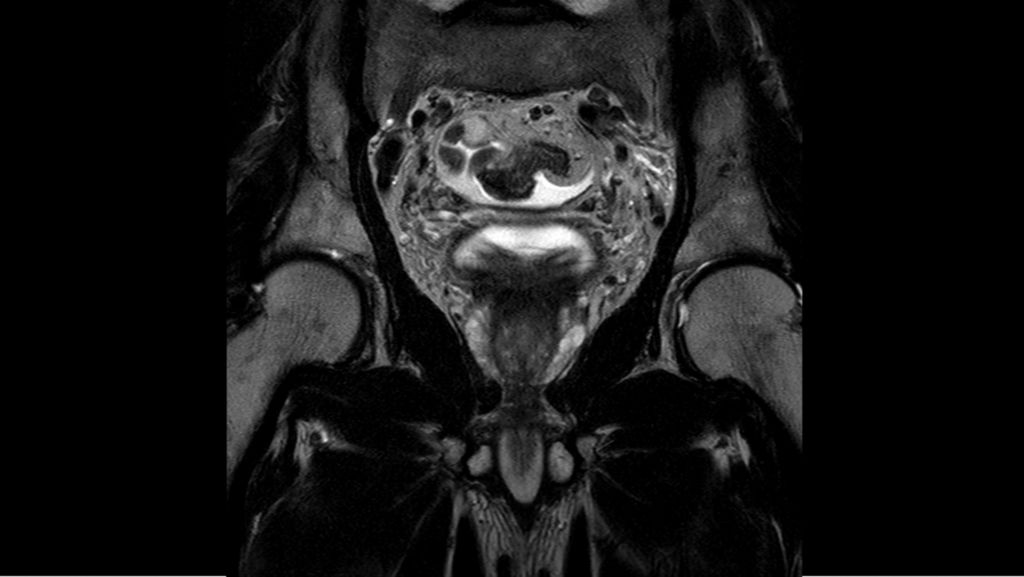

- PI-RADS T2w TSE

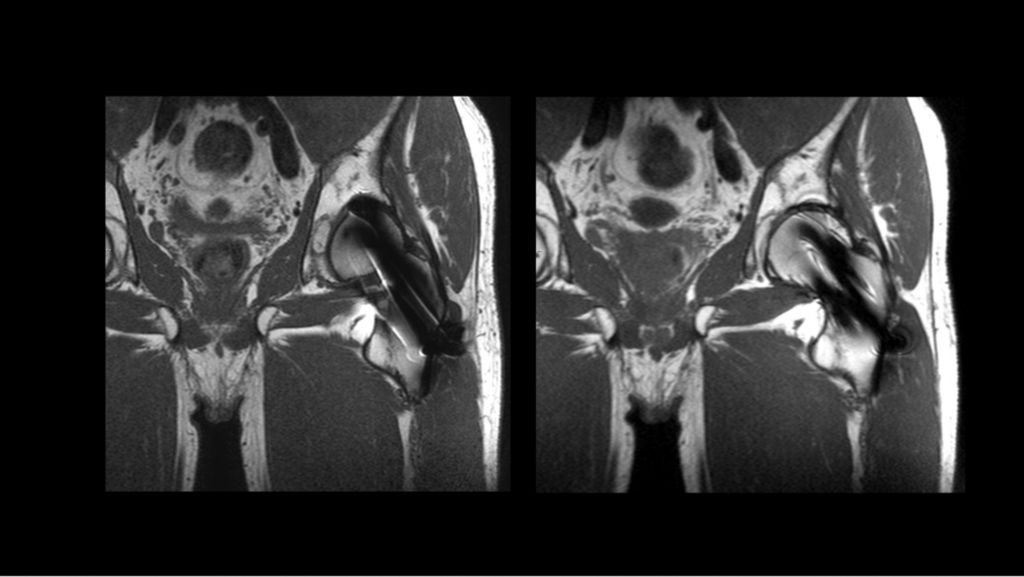

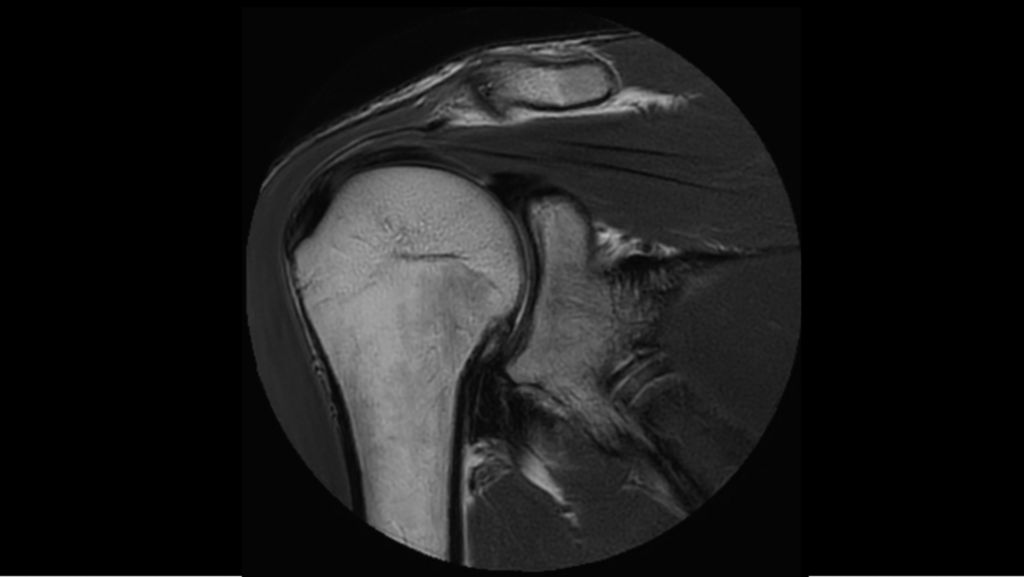

- T1w TSE with OMAR XD

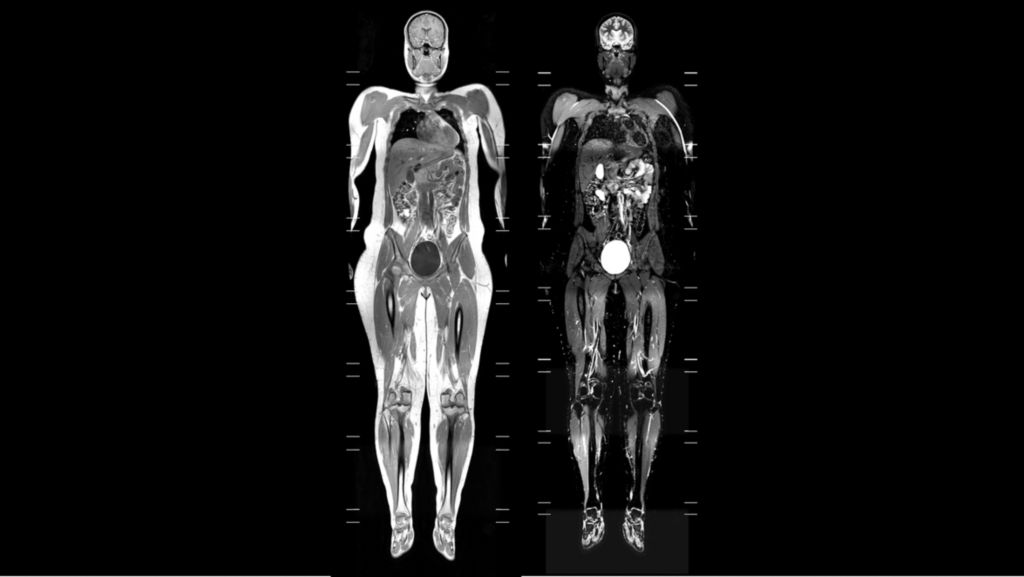

- Whole Body

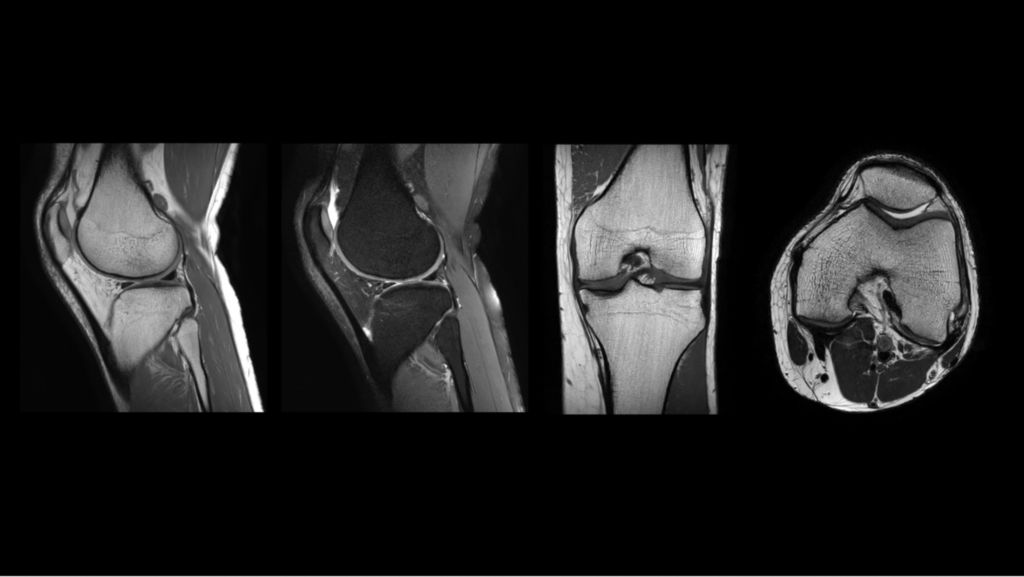

- Knee

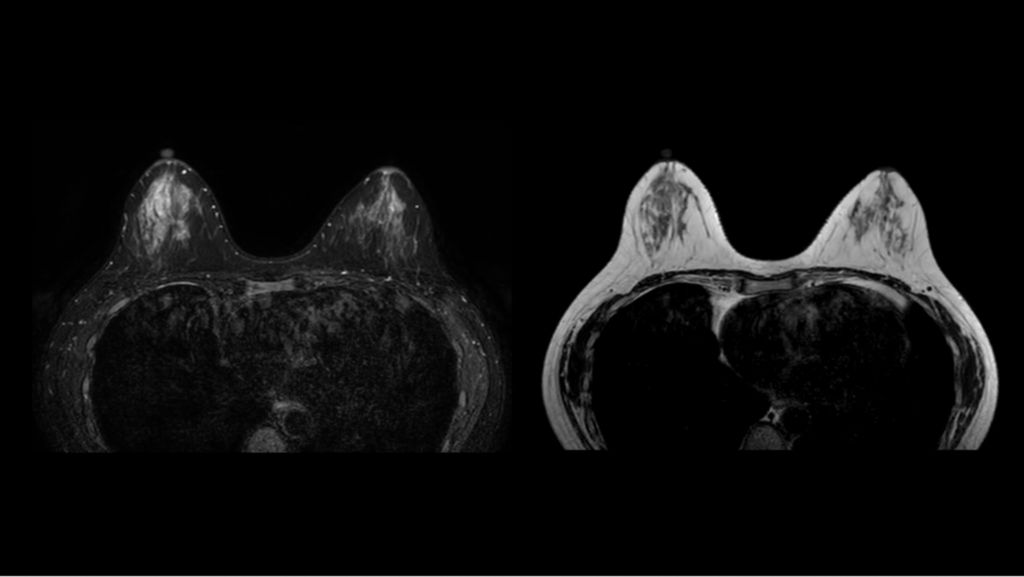

- mDIXON XD T2w TSE
- mDIXON XD and Compressed SENSE

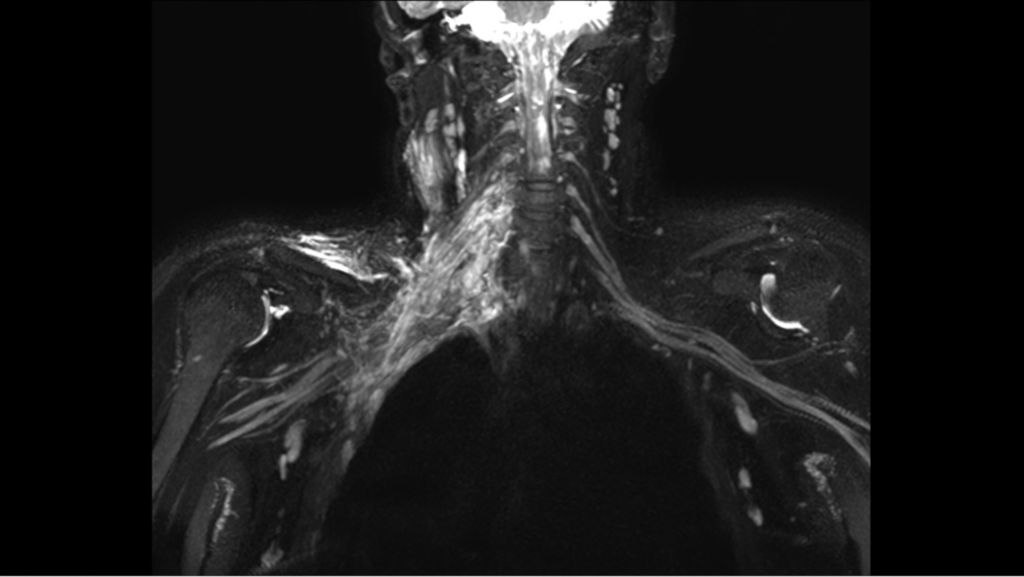

- 3D NerveVIEW

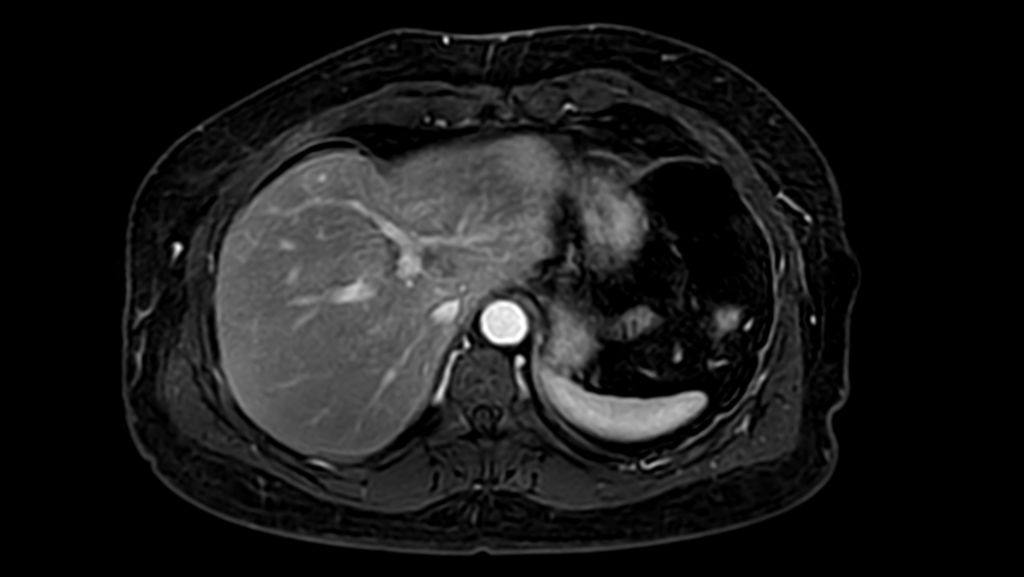

- 4D FreeBreathing

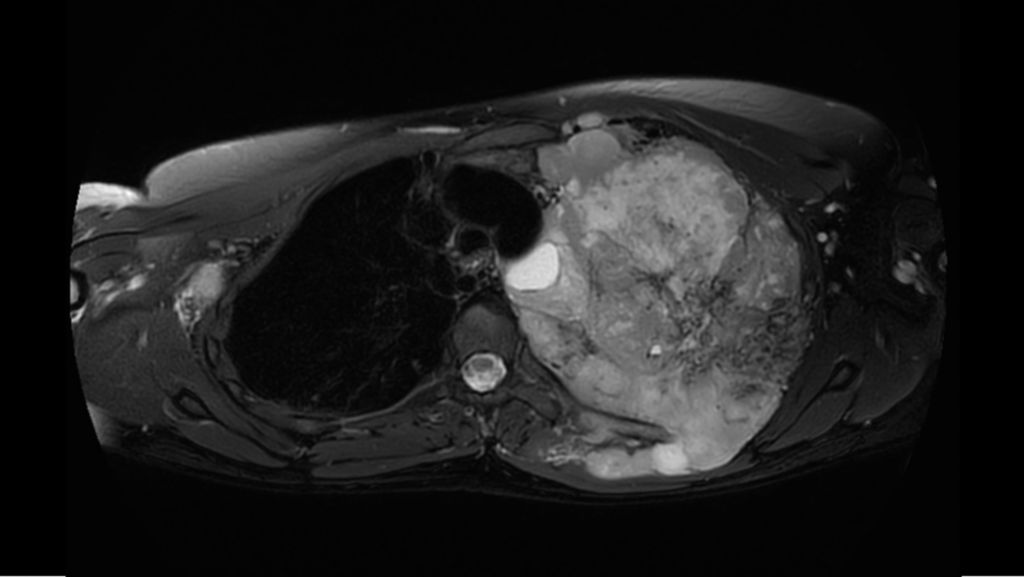

- MultiVane XD Free Breathing FatSat

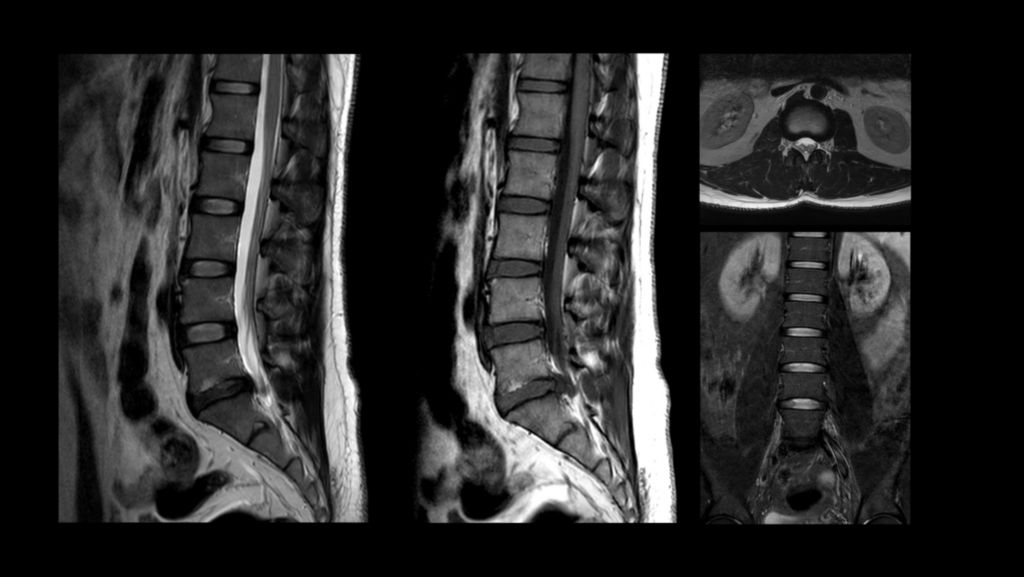

- Lumbar Spine
Features
Prevent issues before they occur
Scanner downtime can disrupt your schedule and delay patient care. We offer maintenance agreements that are suited to your needs, enabled by the latest service innovations and including an uptime guarantee. We prevent issues before they occur through proactive remote monitoring, remote diagnostics and remote and field service support. With e-Alerts, we monitor more than 500 parameters of your MR system from a distance, detecting and resolving issues without impacting your department’s operations.
Patient-centered productivity with SmartWorkflow solutions
The increasing use of MR to diagnose a variety of conditions and illnesses has led to demands for greater efficiency. Too often, it seems that productivity is at odds with giving patients the time and attention they desire. SmartWorkflow provides an end-to-end workflow solution supporting a better patient and staff experience, resulting in patient-centered productivity.
Guidance at your fingertips
Increase staff confidence and speed up patient set-up through automated real-time guidance and insights on the details of the current patient study. Achieve high quality results, independent from staff’s expertise level. VitalScreen provides guidance at your staff’s fingertips.
Specifications
- Xtend magnet system
- Magnet weight
- 4600 kg
- Bore design
- 70 cm
- Maximum FOV
- 55 cm
- Typical homogeneity at 45 cm DSV
- ≤ 0.9 ppm
- HeliumSave technology
- Yes (Zero boil-off)
- Cryogen boil-off rate under regular scanning conditions
- 0.0 l/hr
- Omega HP gradients
- Max. amplitude for each axis
- 45 mT/m
- Max. slew rate for each axis
- 200 T/m/s
- RF Receive
- Number of independent receive channels
- Channel independent
- Location of analog-to-digital converter (ADC)
- Inside the coil close to receive elements
- Signal chain from coil to reconstructor
- Fully digital
- dStream
- Yes
- SmartWorkflow
- Guided exam set-up
- Yes
- Auto patient centering
- Yes
- Touchless respiratory-triggering
- Yes
- In-room exam start
- Yes
- ScanWise Implant
- Yes
- Automated planning and scanning
- Yes
- Automated patient coaching
- Yes
- Automated post-processing
- Yes
Disclaimer
1. Compared to Philips scans without Compressed SENSE.
2. According to the definition of AI from the EU High-Level Expert Group.
3. Compared to using a standard mattress.
4. Check for compatibility with your Philips representative.
