SmartPath to Ingenia Elition 3.0T X
Step into the future with confidence
SmartPath to Ingenia Elition 3.0T X
Step into the future with confidence
With SmartPath you can convert your existing Ingenia system to an Ingenia Elition X MR system, setting new direction for clinical research in 3.0T imaging based on gradient- and RF designs. It enables you to boost your performance with innovative SmartWorkflow solutions that include touchless patient sensing technology, in-room guidance on patient set-up. Compressed SENSE allows you to scan up to 50% faster with virtually equal image quality.¹ Your SmartPath conversion also gives access to the latest scanning techniques for confident diagnosis.
Clinical image gallery
- Axial T2w TSE
- DWI b600
- SWIp
- 3D APT
- Axial DWI b15000
- 3D VIEW PDw SPAIR
- 3D VIEW FLAIR
- 3D T1w TFE
- Axial T2w TSE
- Coronal T1w mDIXON XD TSE
- Coronal T2w TSE

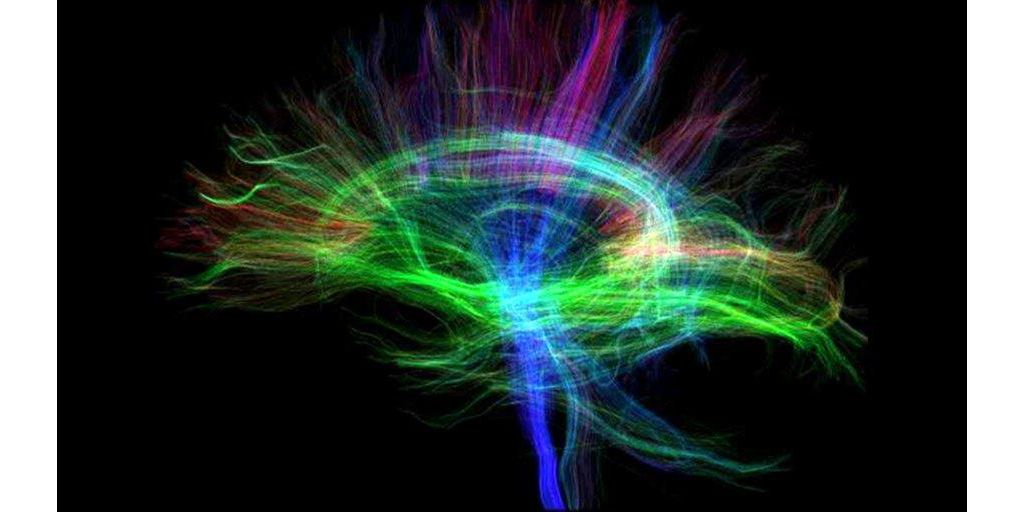

- DTI 128 directions
Features
New territories in neurofunctional MRI
Ingenia Elition Vega HP gradients deliver up to 23% higher temporal resolution in fMRI studies for excellent functional imaging at 3.0T². Ingenia Elition lets you unlock new territories in the field of neurofunctional MRI, unraveling the connections and functional set-up of the brain.
Guidance at your fingertips
Increase staff confidence and speed up patient set-up through automated real-time guidance and insights on the details of the current patient study. Achieve high quality results, independent from staff’s expertise level. VitalScreen provides guidance at your staff’s fingertips.
Up to 30% faster DWI images²
With Ingenia Elition’s high-performance gradients diffusion scans are up 30% faster while appearing sharper². An average of 70% higher contrast resolution can be achieved in diffusion imaging². SNR is further improved due to a TE up to 15% shorter in diffusion imaging².
Specifications
- Xtend magnet system
- Magnet weight
- 4800 kg
- Bore design
- 70 cm
- Maximum FOV
- 55 cm
- Typical homogeneity at 45 cm DSV
- ≤ 0.9 ppm
- HeliumSave technology
- Yes (Zero boil-off)
- Cryogen boil-off rate under regular scanning conditions
- 0.0 l/hr
- Vega HP gradients
- Max. amplitude for each axis
- 45 mT/m
- Max. slew rate for each axis
- 220 T/m/s
- RF Receive
- Number of independent receive channels
- Channel independent
- Location of analog-to-digital converter (ADC)
- Inside the coil close to receive elements
- Signal chain from coil to reconstructor
- Fully digital
- dStream
- Yes
- SmartWorkflow
- Guided exam set-up
- Yes
- Auto patient centering
- Yes
- Touchless respiratory-triggering
- Yes
- In-room exam start
- Yes
- ScanWise Implant
- Yes
- Automated planning and scanning
- Yes
- Automated patient coaching
- Yes
- Automated post-processing
- Yes
Disclaimer
1. Compared to Philips scans without Compressed SENSE.
2. Compared to Ingenia 3.0T Omega HP R5.3.
3. Compared to using a standard mattress.
4. Check for compatibility with your Philips representative.
5. According to the definition of AI from the EU High-Level Expert Group.
