Compact 5500 Series
Premium compact ultrasound system
Compact 5500 Series
Premium compact ultrasound system
Some compact ultrasound systems have capabilities as small as their size. Philips Compact Ultrasound System 5500 Series is different. It packs powerful performance into a compact design to help you quickly reach the answers you need. Available in general imaging, point of care, cardiac and OB/GYN configurations, the Compact 5500 Series includes many of the advances of Philips premium ultrasound and technology in a portable system with proven workflow for valuable insights at the bedside. In fact, it offers image quality comparable to Philips premium cart-based systems. Compact 5500 Series is compact without compromise.
Clinical image gallery
- Auto Measure shown using S5-1 transducer
- Endovaginal uterus
- Optic nerve
- Auto Measure shown using S5-1 transducer
- Cardiac plax view
- Thyroid MFI with the eL18-4 transducer
- Longitudinal thyroid lobe with nodule
- Ovarian blood flow with MFI using a C10-3v transducer
- Fetal face with V9-2 transducer and TrueVue
- Shoulder rotator cuff
- Cardiac transesophageal with mitral regurgitation
- Left ventricular outflow tract
- Longitudinal Liver with Inferior Vena Cava Hepatic Veins and Abdominal Aorta CC
- 2D image of uterus using V9-2

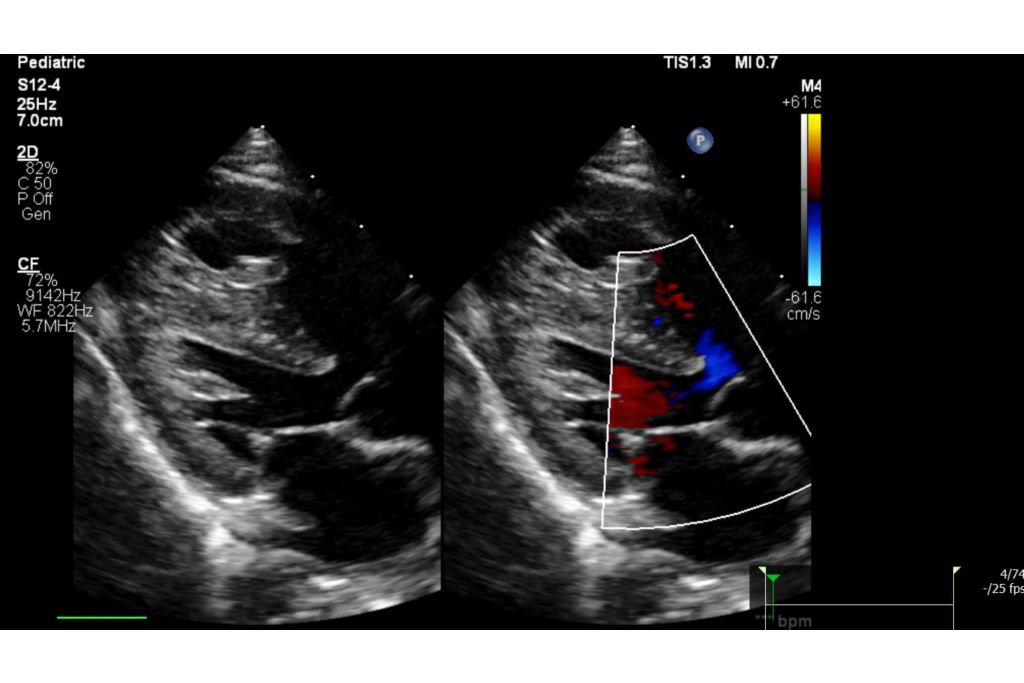

- PDA Closure Device with Color Compare using S12-4 transducer
- Fetal Face with TrueVue feature using a V6-2 transducer
- Brachial plexus nerves
- Fetal echo with 4 ch with color shown with the V9-2 transducer
- Longitudinal common carotid artery
- Fetal brain image with the eL18-4 transducer
- Fetal brain shown using V9-2 transducer
- Carotid artery-dual display
- Fetal profile shown using the V9-2 transducer
- Lung plueral lining
- Transverse liver with hepatic veins
- Cardiac apical four chamber view with mitral inflow

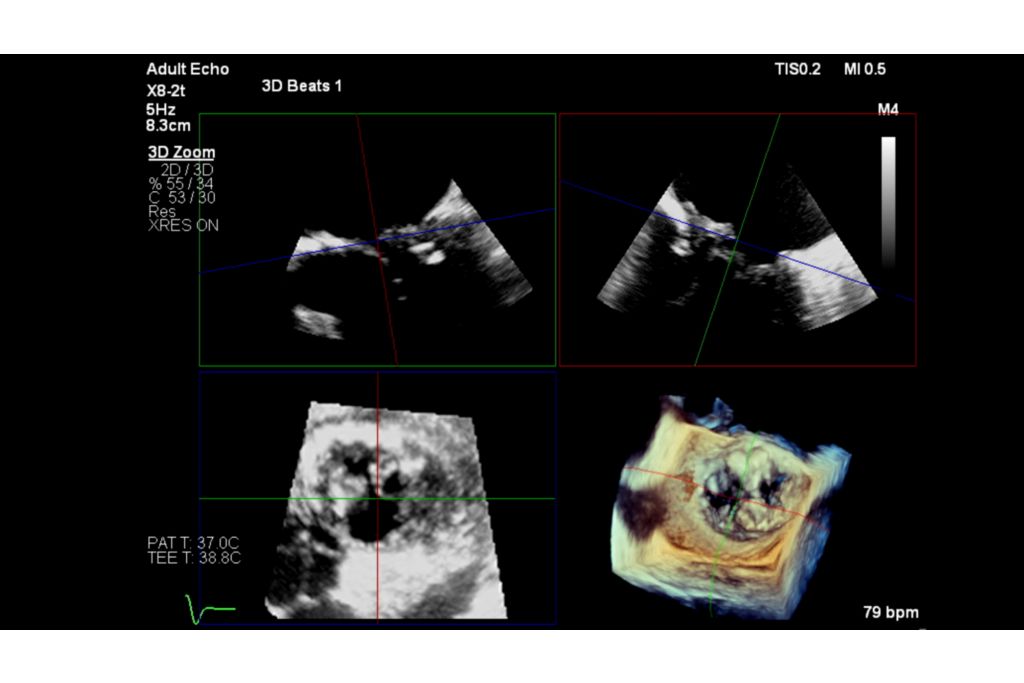

- Live 3D TEE shown with X8-2t
- Breast Tissue with Multiple Fibroadenomas
- Live 3D TEE shown with X8-2t
- eL18-4 umbilical cord Doppler
- 3D9-3v early OB with FlexVue
Features
Now your ultrasound system can do more than scan
Tap into wider expertise directly from the ultrasound system using Collaboration Live with multi-party[3] tele-ultrasound for access to other team members for decision support and training. Up to six users can quickly and securely talk, text, screen share and video stream directly from the ultrasound system for access to multiple clinical resources at a distance, allowing for faster time to diagnosis. Give patients access to your team’s full expertise, regardless of location. Recent studies determined that the use of Collaboration Live reduced exam time by 57%.[1]
See more, see clearly across clinical scenarios
Advanced transducer technology and AI-based solutions support consistency and high-quality results. See cardiac structure and function in real time with fast, reproducible and quantifiable results. AI-empowered Auto Measure offers consistent results and approximately 50% time-savings for routine cardiac 2D and Doppler measurements.[1,2] Auto Strain LV with automated EF and mid-layer strain provides one-button GLS measurement. For OB/GYN, visualize with fewer steps using the V9-2 one-transducer solution for first-, second- and third-trimester applications, as well as pelvic floor exams.[1]
Familiarity streamlines how you’re able to work

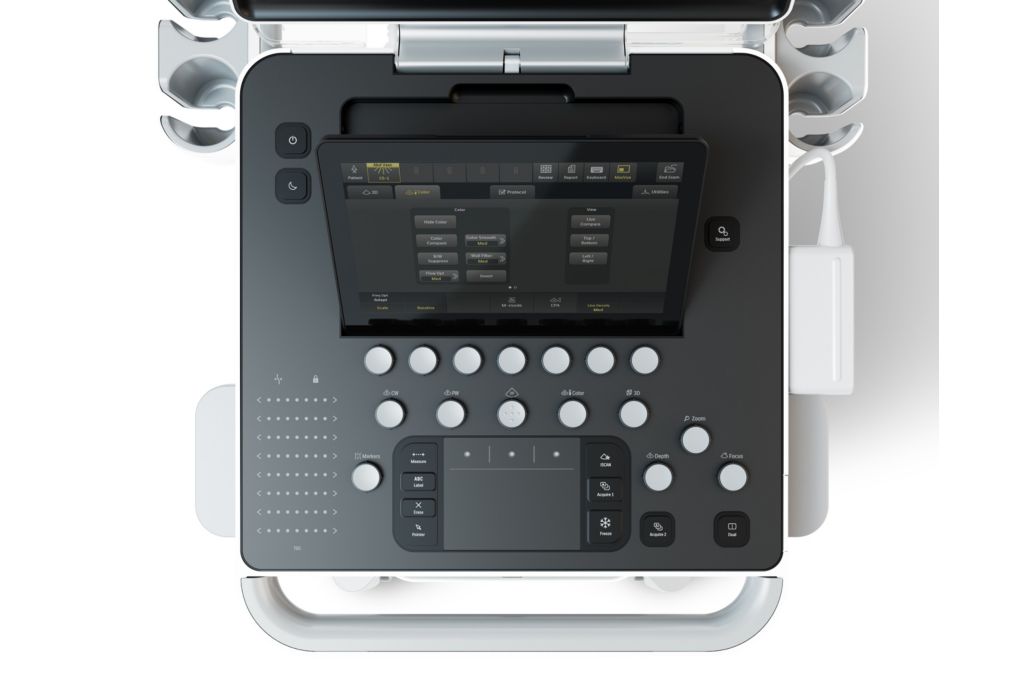

Leverage the shared architecture of Compact 5500 Series, Philips EPIQ and Affiniti ultrasound systems to potentially scan more patients, more quickly with proven workflow. Familiar user interfaces, touchscreens, features, workflow and remote service and updates support high productivity with the premium-level clarity you expect from Philips. 90% of users agree that the common UI and workflow shared with EPIQ and Affiniti may help reduce user training.[1]
Specifications
- Compact System
- Width
- 41.1 cm / 16.2 in
- Height
- 8.6 cm / 3.4 in
- Depth
- 40.6 cm / 16.0 in
- Compact Cart
- Cart base
- 48.8 cm x 48.8 cm / 19.2 in x 19.2 in
- Vertical adjustment
- 82 cm – 100.1 cm / 32.2 in - 39.3 in
- Wheels
- Four 5” locking swivel wheels
- rear two wheels include steering lock mechanism
