Women's healthcare

EPIQ 5

Ultrasound system for obstetrics and gynecology

EPIQ 5 is the new direction for premium ultrasound, featuring an uncompromised level of clinical performance to meet the challenges of today’s most demanding women’s health care practices.

EPIQ 5 is the new direction for premium ultrasound, featuring an uncompromised level of clinical performance to meet the challenges of today’s most demanding women’s health care practices.

Contact information

* This field is mandatory
*

Contact details

*
*
*

Company details

*
*
*
*
*

Inquiry details

By specifying your reason for contact we will be able to provide you with a better service.
*
*

Every image counts because every patient matters

Introducing EPIQ Evolution 3.0. EPIQ is the new direction for premium ultrasound, featuring an exceptional level of clinical performance, workflow, and advanced features to meet the challenges of today’s most demanding Ob/Gyn practices.



Learn More

Features
Advanced workflow || Superb image clarity, even in

Advanced workflow for superb ergonomics, amazing mobility

EPIQ 5 has completely reinvented the premium ultrasound user experience. Ease of use, workflow, ergonomics, and mobility. We’ve revolutionized how you interact with an ultrasound system from every standpoint, and kept it beautifully intuitive and very quiet.
Superb imaging during all trimesters || KBA3

Superb imaging during all trimesters

EPIQ’s suite of sophisticated transducers meets the needs of your most challenging gynecological surveys and first through third trimester exams.
PureWave

PureWave Imaging for technically difficult patients

Philips exclusive PureWave crystal technology is clinically proven to improve penetration in difficult-to-image patients. The pure, uniform PureWave crystals are up to 85% more efficient than conventional materials, resulting in exceptional performance. This technology allows for improved penetration and excellent detailed resolution.
nSIGHT Imaging

nSIGHT Imaging is a totally different approach to ultrasound

Philips proprietary nSIGHT Imaging architecture is a totally different approach to forming ultrasound images. Unlike conventional systems that form the image line by line, nSIGHT creates images with optimal resolution down to the pixel level. nSIGHT Imaging incorporates the use of a precision beamformer along with powerful massive parallel processing. This extraordinary architecture captures an enormous amount of acoustic data and then reconstructs in real time optimally focused beams, creating precise resolution for every pixel in the image.
iSCAN || Designed to reinvent the user

iSCAN for automatic image optimization

Real Time iSCAN (AutoSCAN) automatically optimizes gain and TGC to continuously provide a high-quality image.
Tablet-like touch interface || Designed to reinvent the user

Tablet-like touch interface for easier navigation

Navigate quickly to system functions with the tablet-like touch interface, with 40% less reach and 15% fewer steps to complete an exam.
TrueVue

TrueVue advanced 3D display

Philips TrueVue advanced 3D ultrasound display delivers amazing lifelike 3D images. TrueVue, with its internal light source gives clinicians the ability to manipulate light and shadow anywhere in the 3D volume.
Excellent ergonomics || KBA4

Excellent ergonomics may help reduce repetitive stress injuries

EPIQ's extended-range control panel and monitor can be articulated for proper ergonomic alignment whether sitting or standing. The large 21" wide screen monitor facilitates easy viewing in virtually any environment. EPIQ has four transducer connectors with ambient lighting for ease in transducer selection during an exam.
Amazing mobility

Amazing mobility helps you do studies everywhere

The EPIQ is the lightest in its class; it's easily transported on both carpet and tile. Place it in sleep mode, move it and boot up in seconds. The monitor folds down to reduce overall system height for transport, and the integrated cable hooks and catch tray are ideal for mobile studies.
Library quiet

Library quiet for small examination rooms

EPIQ is almost silent when running. A noise test determined that EPIQ runs at 37-41 dB, which is equivalent to the sound of a library. This is extremely welcome in small scanning/examination rooms.
MaxVue high definition display

MaxVue high definition display

At the touch of a button, MaxVue high-definition display brings extraordinary visualization of anatomy with 1,179,648 additional image pixels compared to a standard4:3 display format mode. MaxVue enhances ultrasound viewing and provides 38% more viewing area to optimize the display of dual, side/side, biplane, and scrolling imaging modes.

Specifications

System dimensions
System dimensions
Width
  • 60.6 cm
Height
  • 146-171.5 cm
Depth
  • 109.2 cm
Weight
  • 104.3 kg
Control panel
Control panel
Monitor size
  • 54.6 cm
Degrees of movement
  • 180 degrees
Height adjustment
  • 25.4 cm

Find the right transducer for your system



Ergonomic and lightweight, our broad range of transducers is available in multiple configurations, enabling better penetration with less artifacts. Learn more about our full range of transducers below, and detailed instructions on care and maintenance.



Product catalog     Care and cleaning

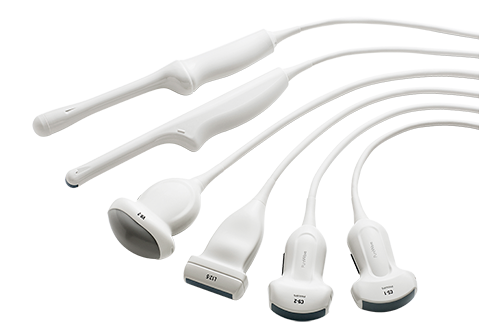

Transducer family image
