Features
CPR Quality

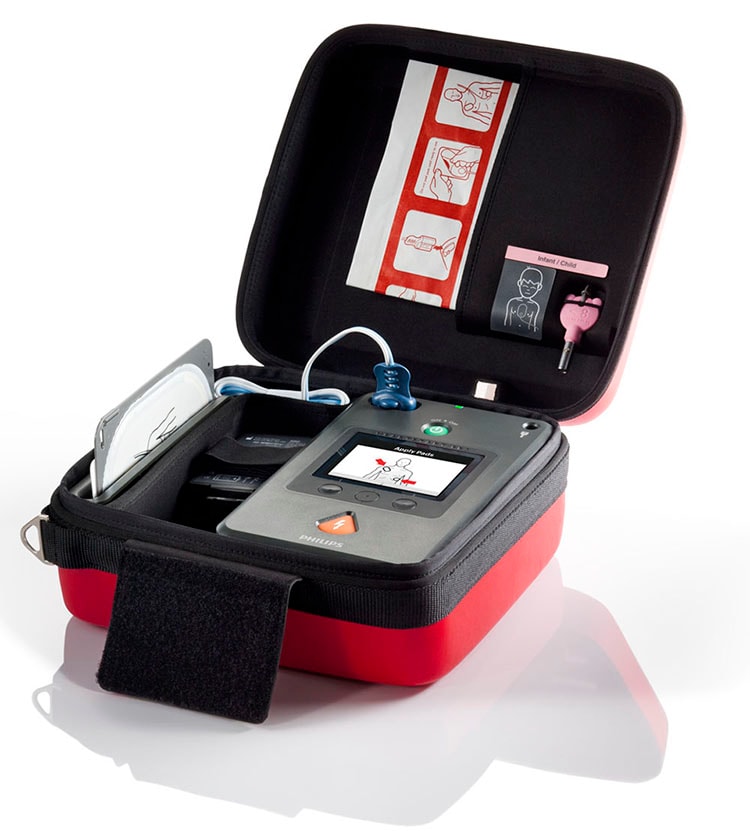

Case
Pads
Software
Battery
Specifications
- Defibrillator
-
Defibrillator Models - Models 861388 text display 861389 ECG and text display
Waveform - SMART Biphasic Truncated Exponential waveform parameters adjust as a function of patient impedance.
Shock delivery - Via defibrillator pads placed in the anterior-anterior position for adults, infants and children.
Indicators - High-res LCD, beeper, voice prompts, tones, speaker, connector socket
Advanced mode - Advanced mode Configurable using optional HeartStart Configure software
-
- ECG display
-
ECG display Screen - Screen LCD color display, 320 x 240 pixels 2.8˝ x 2.1˝ (7.2 cm x 5.4 cm)
Bandwidth - Bandwidth 1 Hz to 30 Hz (-3dB), nominal (non-diagnostic)
Monitored Lead - Monitored lead Lead II using anterior-anterior adult pads placement
-
- Environment/physical
-
Environment/physical Sealing - Meets IEC529 class IP55 with battery installed
Shock/drop - Meets MIL-STD-810F 516.5, Procedure IV (after a one-meter drop to any edge, corner, or surface in standby mode)
Temperature - Operating/standby: 32°–122°F (0°– 50°C)
Altitude - Meets IEC 60601-1:5.3 (1013 to 572 mbar (hPa), equivalent to air pressure from 0 to 15,000 feet; 0 to 4,572 meters) m
Vibration - Meets MIL-STD-810F 514.5 C-17
-
- Physical
-
Physical Size - 2.7˝ high x 5.3˝ wide x 8.7˝ deep (6.9 cm x 13.5 cm x 22.1 cm)
Weight - 3 lbs 8 oz (1.6 kg) with FR3 primary battery installed
-
- Environmental/Physical Requirements
-
Environmental/Physical Requirements Sealing - Meets IEC529 class IP55 with battery installed
Operating Temperature - Operating/standby: 32°–122°F (0°– 50°C)
Operating Altitude - Meets IEC 60601-1:5.3 (1013 to 572 mbar (hPa), equivalent to air pressure from 0 to 15,000 feet; 0 to 4,572 meters)
Shock/Drop Abuse Tolerance - Meets MIL-STD-810F 516.5, Procedure IV (after a one-meter drop to any edge, corner, or surface in standby mode)
Vibration - Meets MIL-STD-810F 514.5 C-17
-
- Patient analysis system
-
Patient analysis system ECG analysis - Evaluates impedance of pads for contact, ECG rhythm and signal quality
Quick Shock - Typically arms in 8 seconds from the end of the “Stop CPR” prompt
Sensitivity/specificity - Meets AAMI DF80 requirements and AHA recommendations for adult defib
SMART CPR - Evaluates key characteristics of presenting VF and determines initial therapy.
-
- FR3 primary battery
-
FR3 primary battery Type - Type 12 VDC, 4.7 Ah, lithium manganese dioxide Long-life primary cells
Capacity - Please consult User’s Manual for capacity specifications.
Standby life - 3 years minimum when stored under standby environmental conditions
Shelf life - 5 years
-
- SMART Pads III
-
SMART Pads III Application - Peel and place pads can be removed from packaging and stored in carry case.
-
- Infant/Child Key
-
Infant/Child Key Function - Selects therapy for infants or children under 55 lbs (25 kg) or 8 years old
-
- FR3 data card
-
FR3 data card Function - Function Stores a minimum of 8 hours of ECG, event, and voice recording.
-
- Automated and user-activated self-tests
-
Automated and user-activated self-tests Function - Places FR3 into a scenario-based training mode and simulates shock therapy
Type - 10.8 Volt, 4.5 Ah Li-ion battery
-
- Defibrillator
-
Defibrillator Models - Models 861388 text display 861389 ECG and text display
Waveform - SMART Biphasic Truncated Exponential waveform parameters adjust as a function of patient impedance.
-
- ECG display
-
ECG display Screen - Screen LCD color display, 320 x 240 pixels 2.8˝ x 2.1˝ (7.2 cm x 5.4 cm)
Bandwidth - Bandwidth 1 Hz to 30 Hz (-3dB), nominal (non-diagnostic)
-
- Defibrillator
-
Defibrillator Models - Models 861388 text display 861389 ECG and text display
Waveform - SMART Biphasic Truncated Exponential waveform parameters adjust as a function of patient impedance.
Shock delivery - Via defibrillator pads placed in the anterior-anterior position for adults, infants and children.
Indicators - High-res LCD, beeper, voice prompts, tones, speaker, connector socket
Advanced mode - Advanced mode Configurable using optional HeartStart Configure software
-
- ECG display
-
ECG display Screen - Screen LCD color display, 320 x 240 pixels 2.8˝ x 2.1˝ (7.2 cm x 5.4 cm)
Bandwidth - Bandwidth 1 Hz to 30 Hz (-3dB), nominal (non-diagnostic)
Monitored Lead - Monitored lead Lead II using anterior-anterior adult pads placement
-
- Environment/physical
-
Environment/physical Sealing - Meets IEC529 class IP55 with battery installed
Shock/drop - Meets MIL-STD-810F 516.5, Procedure IV (after a one-meter drop to any edge, corner, or surface in standby mode)
Temperature - Operating/standby: 32°–122°F (0°– 50°C)
Altitude - Meets IEC 60601-1:5.3 (1013 to 572 mbar (hPa), equivalent to air pressure from 0 to 15,000 feet; 0 to 4,572 meters) m
Vibration - Meets MIL-STD-810F 514.5 C-17
-
- Physical
-
Physical Size - 2.7˝ high x 5.3˝ wide x 8.7˝ deep (6.9 cm x 13.5 cm x 22.1 cm)
Weight - 3 lbs 8 oz (1.6 kg) with FR3 primary battery installed
-
- Environmental/Physical Requirements
-
Environmental/Physical Requirements Sealing - Meets IEC529 class IP55 with battery installed
Operating Temperature - Operating/standby: 32°–122°F (0°– 50°C)
Operating Altitude - Meets IEC 60601-1:5.3 (1013 to 572 mbar (hPa), equivalent to air pressure from 0 to 15,000 feet; 0 to 4,572 meters)
Shock/Drop Abuse Tolerance - Meets MIL-STD-810F 516.5, Procedure IV (after a one-meter drop to any edge, corner, or surface in standby mode)
Vibration - Meets MIL-STD-810F 514.5 C-17
-
- Patient analysis system
-
Patient analysis system ECG analysis - Evaluates impedance of pads for contact, ECG rhythm and signal quality
Quick Shock - Typically arms in 8 seconds from the end of the “Stop CPR” prompt
Sensitivity/specificity - Meets AAMI DF80 requirements and AHA recommendations for adult defib
SMART CPR - Evaluates key characteristics of presenting VF and determines initial therapy.
-
- FR3 primary battery
-
FR3 primary battery Type - Type 12 VDC, 4.7 Ah, lithium manganese dioxide Long-life primary cells
Capacity - Please consult User’s Manual for capacity specifications.
Standby life - 3 years minimum when stored under standby environmental conditions
Shelf life - 5 years
-
- SMART Pads III
-
SMART Pads III Application - Peel and place pads can be removed from packaging and stored in carry case.
-
- Infant/Child Key
-
Infant/Child Key Function - Selects therapy for infants or children under 55 lbs (25 kg) or 8 years old
-
- FR3 data card
-
FR3 data card Function - Function Stores a minimum of 8 hours of ECG, event, and voice recording.
-
- Automated and user-activated self-tests
-
Automated and user-activated self-tests Function - Places FR3 into a scenario-based training mode and simulates shock therapy
Type - 10.8 Volt, 4.5 Ah Li-ion battery
-
See all specifications
