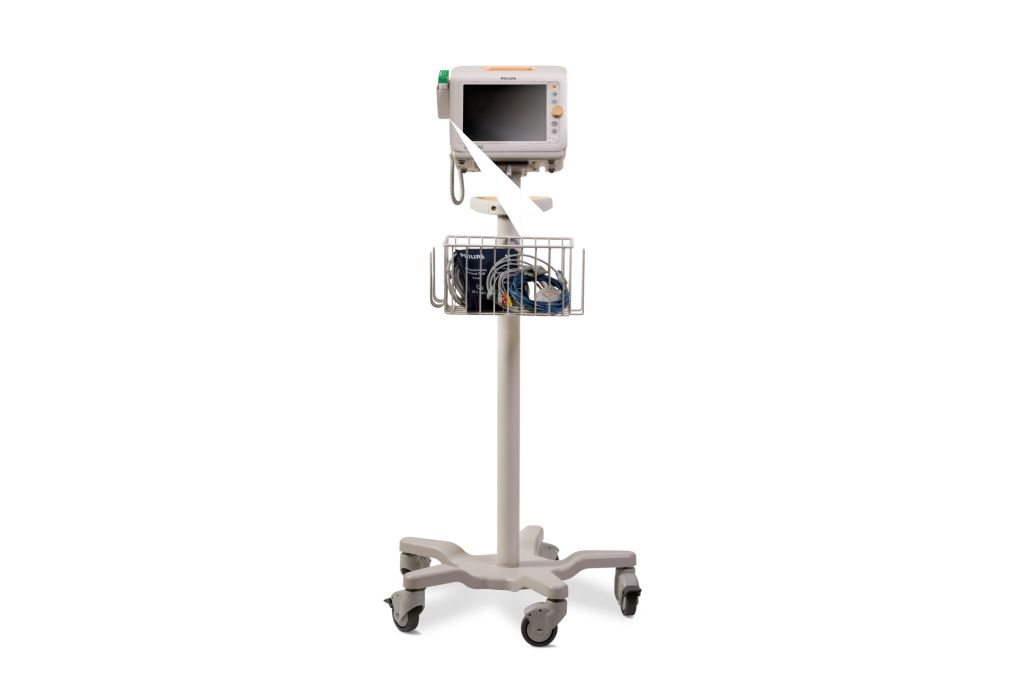

  • Product detail photograph
  • Product in use photograph
  • Product with accessory photograph

SureSigns VS4

Vital signs monitor
Patient monitoring
Expand vital signs monitoring with Philips SureSigns VS4. Respond to changing patient conditions by choosing between frequent vitals and spot check mode. Prompt urgent action with QuickAlerts and simplify workflow with QuickCapture and QuickCheck tools.

Features
Bright, color backlit screen shows key vital signs
Large color-coded numerics clearly show key vital signs. They are visible in dark and well lit rooms. Confirmation of export records is easily seen in green.
Communication enhancements to simplify data flow
This monitor features additional communication enhancements for your IT and network informatics teams and caregivers. Easily upgrade software and export data with the USB port. Communicate directly with your Electronic Health Record (EHR) system in HL7 format using the LAN/serial data connection.
NBP interval and spot check modes for more flexibility
Get more flexibility to respond to changing patient conditions by choosing between NBP interval mode and spot check mode in one device. Non-invasive blood pressure includes manual, auto interval, custom interval programs, and STAT modes.
Specifications
  • SureSigns VS4
    Dimensions
    26 (10.2) x 22 (8.6) x 14.5 (5.7) Cm/in.
    Weight
    3.1 (6.9) – exluding optional recorder Kg/lb
    Screen
    8.4 inch SVGA TFT-AM LCD display, 800 active pixels/line; resolution: 600 active lines/frame; viewing angle ±60 degrees
    Stepwise deflation pressure (Adult)
    Diastolic: 10-245 (1.3-32.7); Systolic: 30-270 (4.0-36.0); MAP: 20-255 (2.7-34.0) mmHg/kPa
    Stepwise deflation pressure (Pediatric)
    Systolic: 30-180 (4.0-24.0); Diastolic: 10-150 (1.3-20.0); MAP: 20-160 (2.7-21.3) mmHg/kPa
    Stepwise deflation pressure (Neonatal)
    Systolic: 30-130 (4.0-17.0); Diastolic: 10-100 (1.3-13.3); MAP: 20-120 (2.7-16.0) mmHg/kPa
    NBP measurement accuracy
    Maximum standard deviation: 8 mmHg; Maximum mean error: ±5mmHg
    Subsequent cuff inflation (in NBP interval mode only)
    The subsequent inflation pressure is determined automatically, depending on the previous measurement and patient type
    SpO2 measurement range
    0-100%; pulse rate measurement range 30-300 pbm. Accuracy depends on sensor
    SpO2
    Meets EN ISO 9919 standard
    Welch Allyn* Predictive Temperature
    Probe Sites: Oral, rectal, axillary; Range 26.7-43.3°C (80-110°F); Accuracy ±0.1°C (±0.2°F) in monitoring mode
    Covidien Tympanic Temperature
    • Range: 33°C-42°C (91.4°F-107.6°F)
    • Accuracy (overall range): ±0.2°C (±0.4°F)
    • Measurement response time: ≤2
    Covidien** Tympanic Temperature
    Equivalency modes: ear (no adjustment), oral (adjusted from ear), core (adjusted from ear), rectal (adjusted from ear)
    Battery
    Lithium ion: 10.8-11.1V (with a “202” form factor)
    Data Output
    HL7 format, via Ethernet port; serial data
    Patient type
    Adult, pediatric, neonatal

Documentation

Case Study: Philips SureSigns Vital S4 with IntelliBridge Enterprise
PDF|369.55 KB
