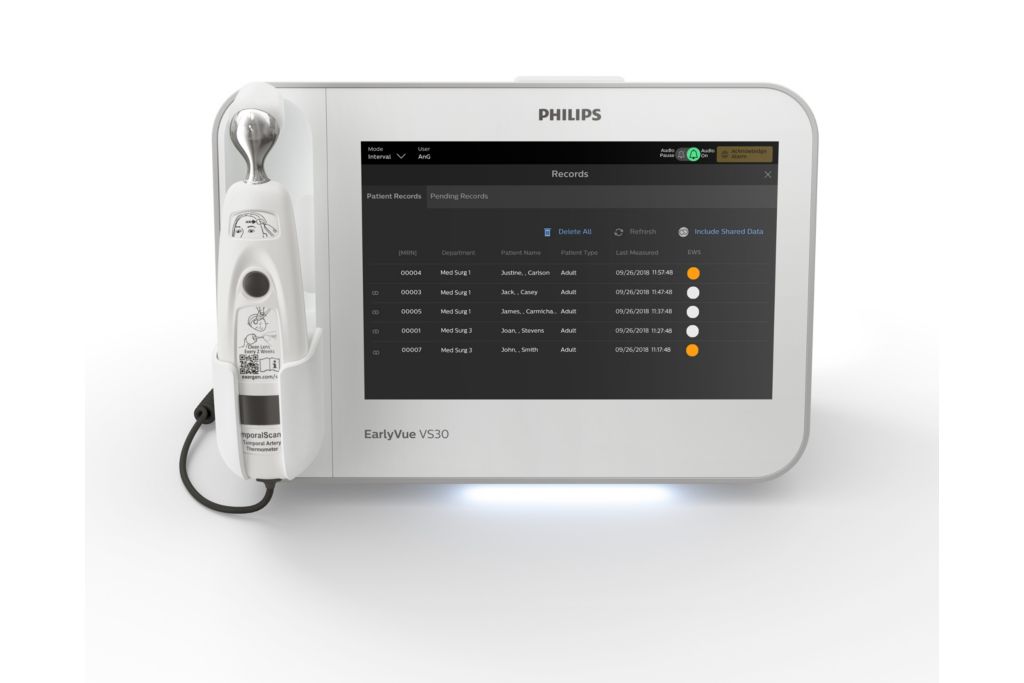

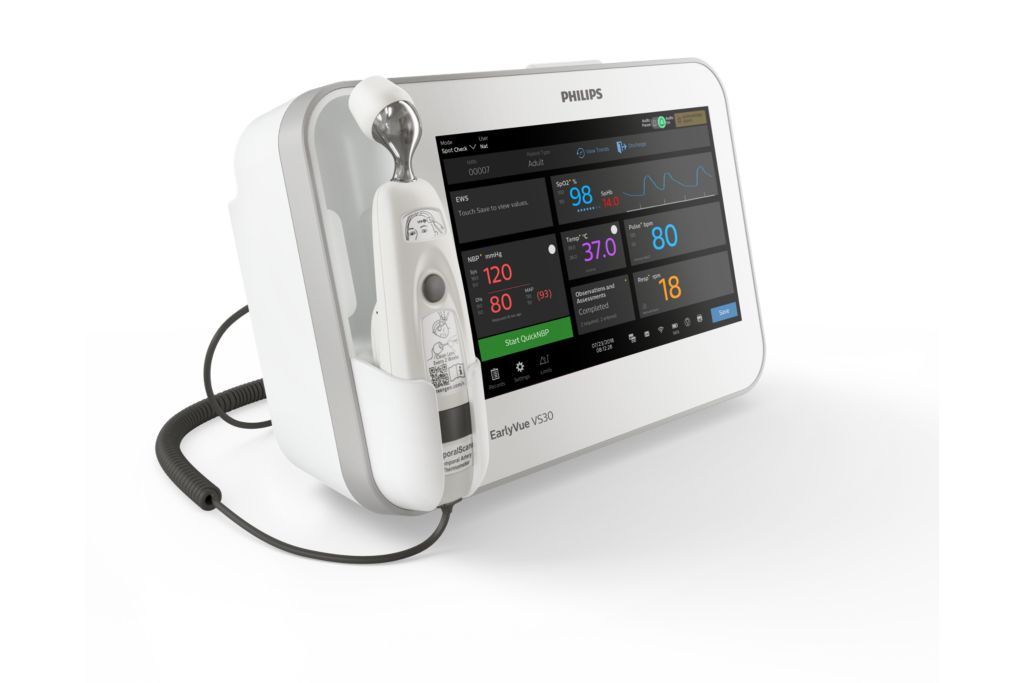

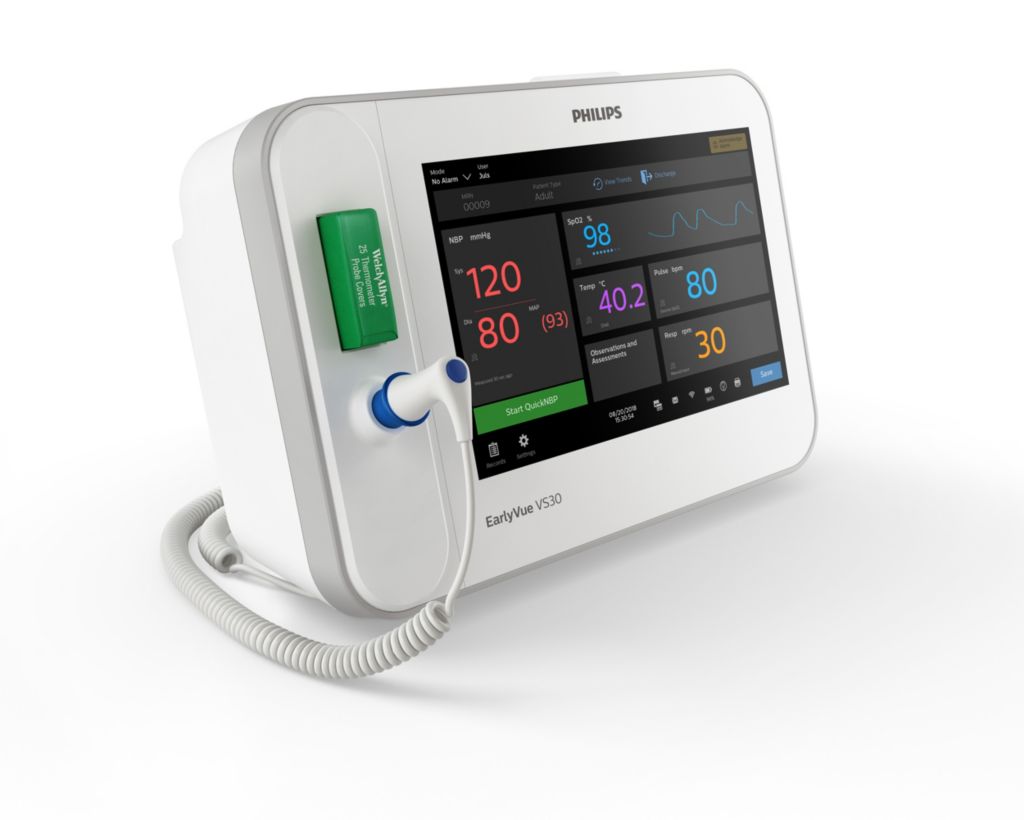

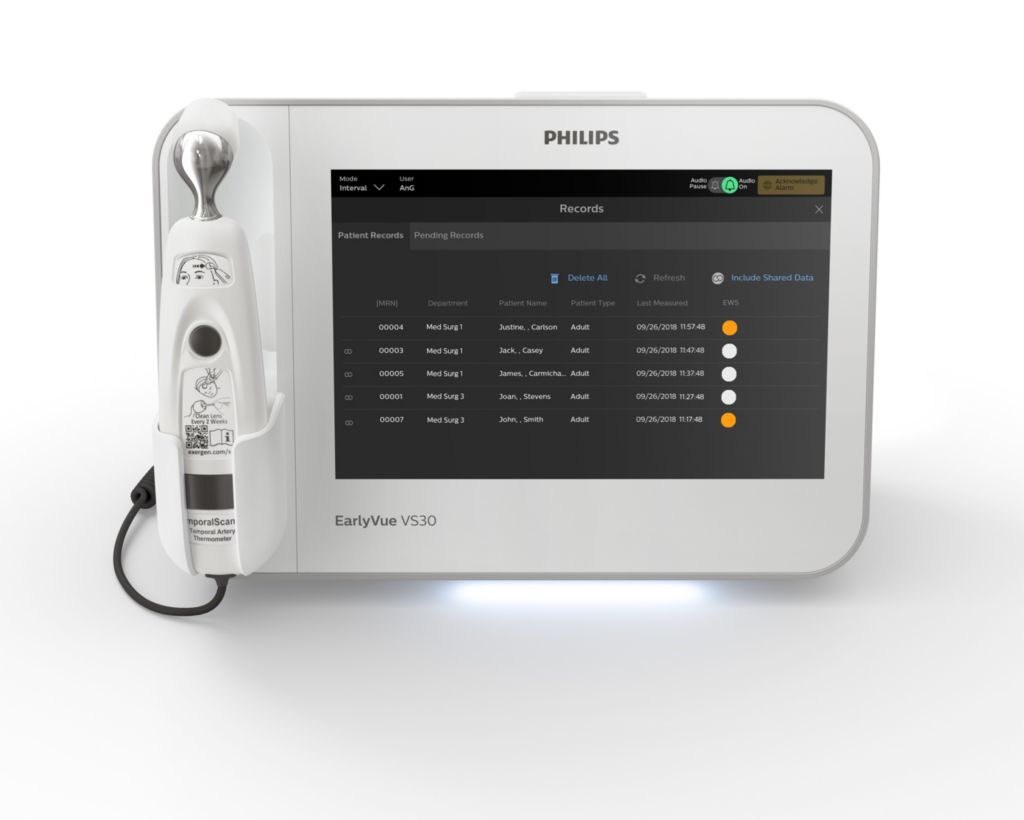

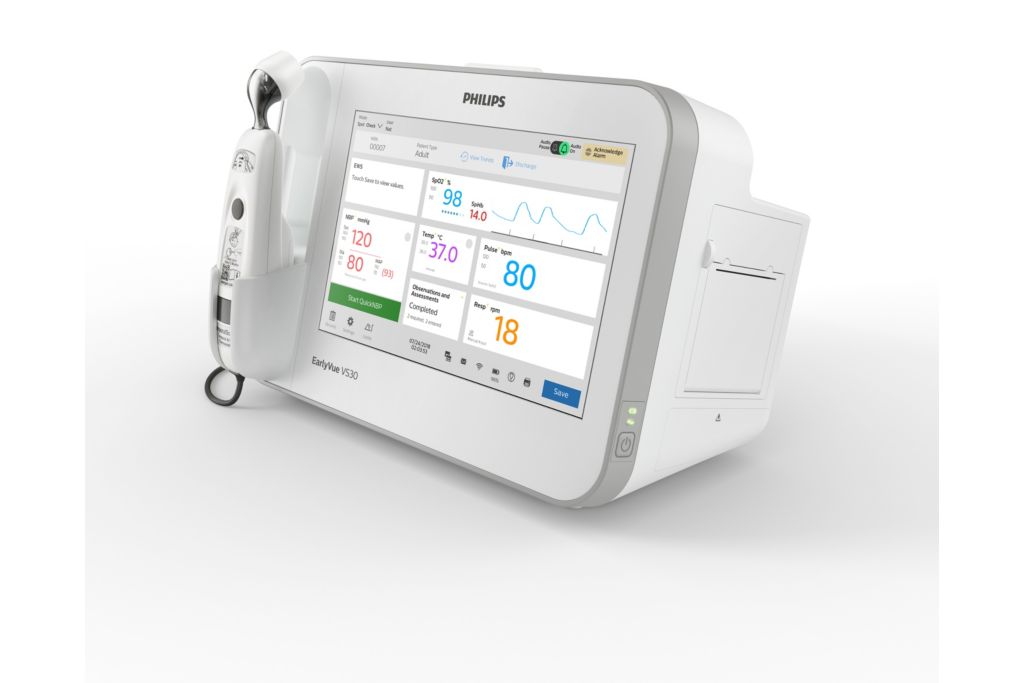

EarlyVue VS30
Vital signs monitor
EarlyVue VS30
Vital signs monitor

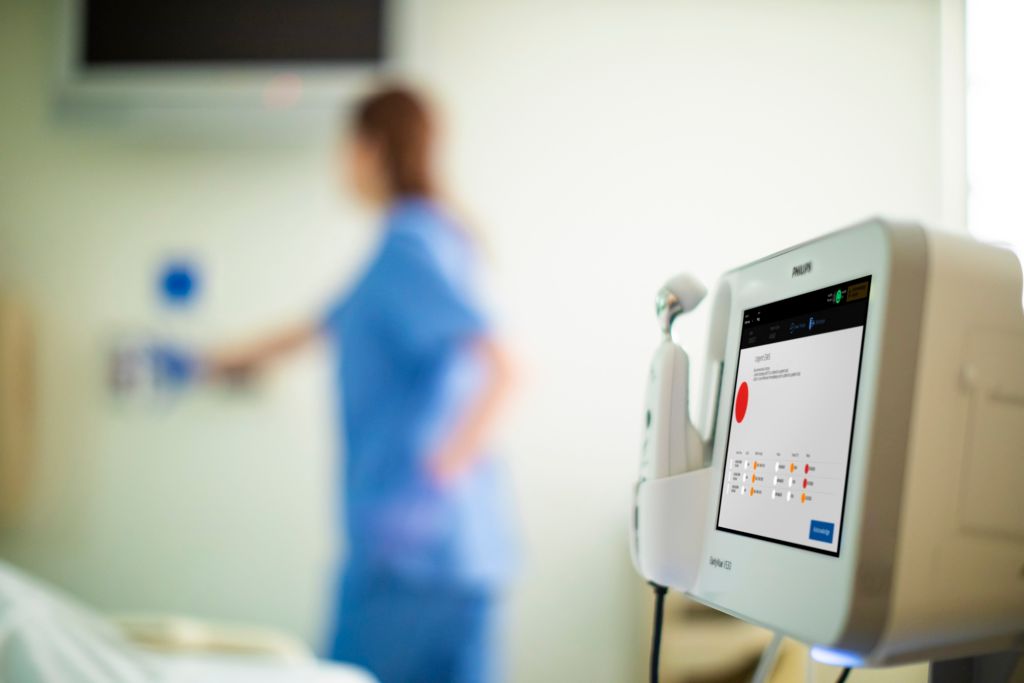

Philips EarlyVue VS30 vital signs monitor unleashes the power of automated Early Warning Scoring (EWS) to help you quickly pinpoint subtle signs of patient deterioration, and confidently deliver proactive care. Early detection, intelligent intervention.
Features
Connect to the EMR or HIS

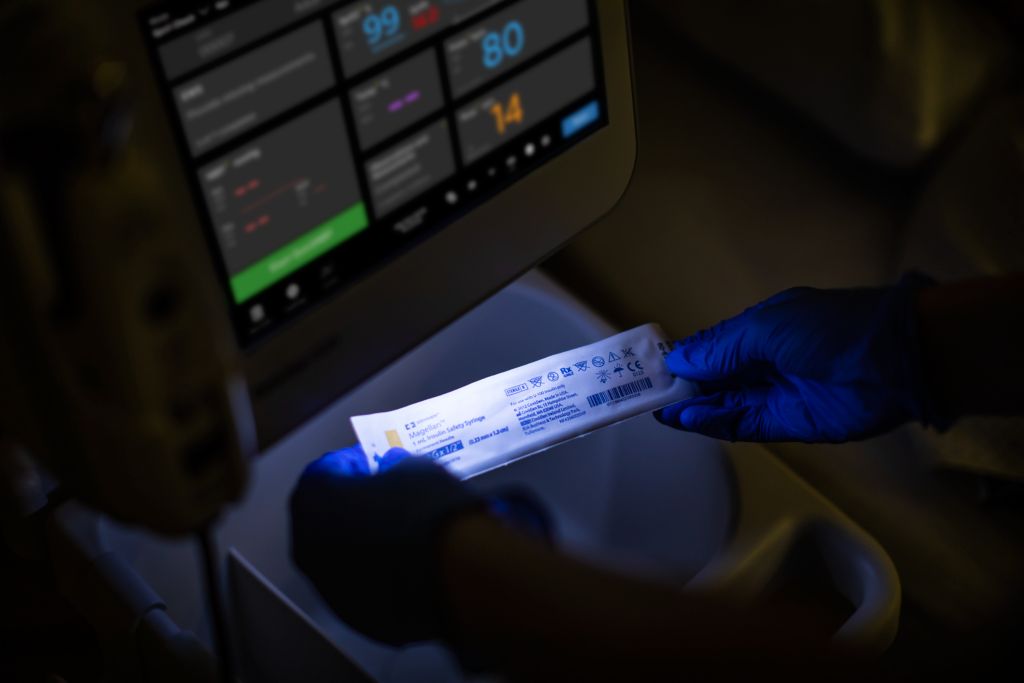

Auto-populate user and patient demographics with a license-free barcode scanner to reduce the potential for manual transcription errors.
EarlyVue VS30 streams patient data directly to your EMR or HIS via HL-7 or IntelliBridge Enterprise.
Put the flow in workflow
This vital signs monitor can be tailored to your hospital, your protocols and the way you work. Document full patient assessments with up to 35
customizable fields using QuickCapture. Automate EWS calculations to accelerate care with QuickAlerts. And simplify data flow to and from your hospital systems with the QuickCheck feature.

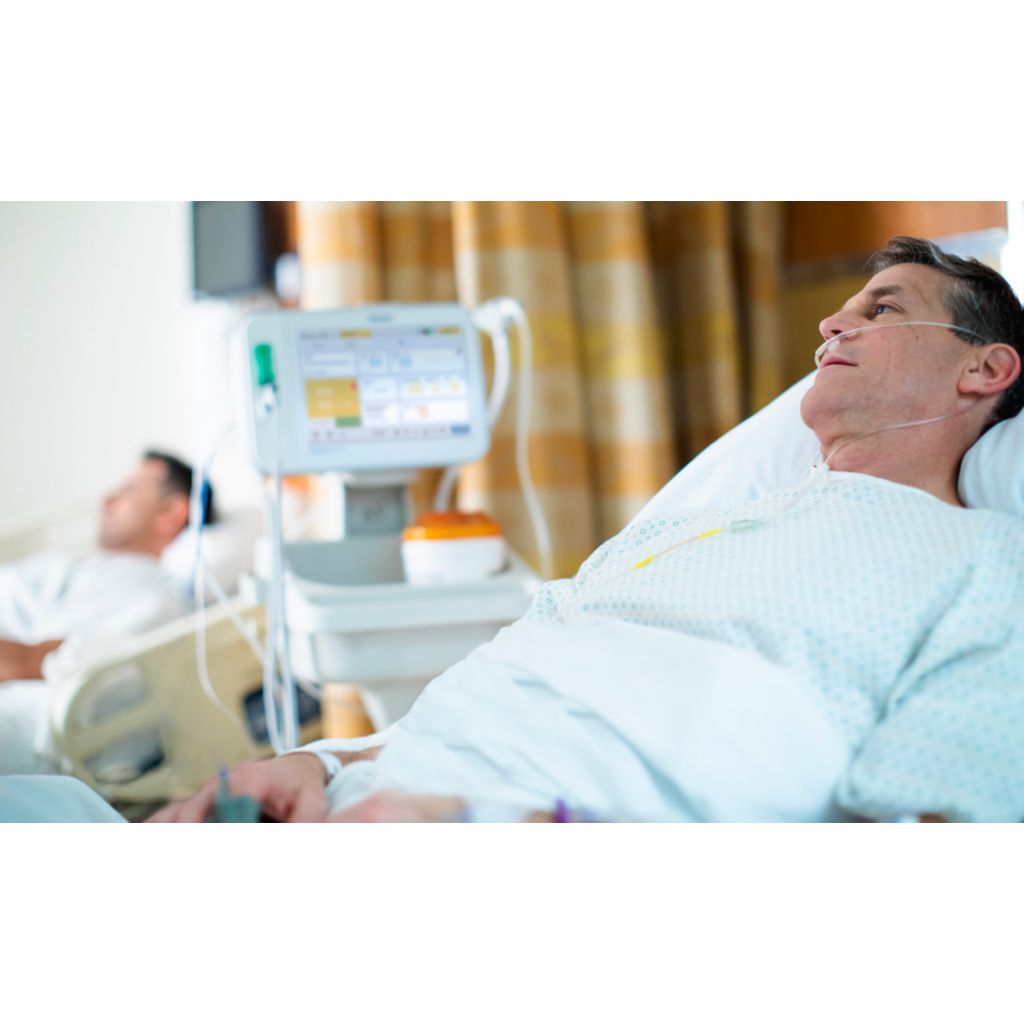

Monitor vital signs and more
When patient conditions require close attention, switch from spot check to automatic (programmable) interval monitoring of critical vital
signs. Monitor noninvasive blood pressure, SpO₂, pulse, CO₂ and respiration rate. Includes Masimo rainbow SETᵀᴹ options.
Specifications
- Physical specifications
- Width
- 33 cm (not to exceed)
- Height
- 23 cm (not to exceed)
- Depth
- 23 cm (not to exceed)
- Weight (fully options, with battery)
- 5 kg or less
- Battery, lithium ion, smart battery
- 11.1 V, 7800 mAh
- Battery operating time (new, fully charged)
- At least 6 hours
- Internal power supply
- 100 to 240 VAC
- Maximum output power consumption
- 60 W
- Frequency
- 50/60 Hz
- Display
- Screen type
- LCD with 5-wire resistive touchscreen
- Screen size
- 10.1 in
- Refresh frequency
- 60 Hz
- Resolution
- 216.96 x 135.6 mm
- Viewing angle
- ±85°

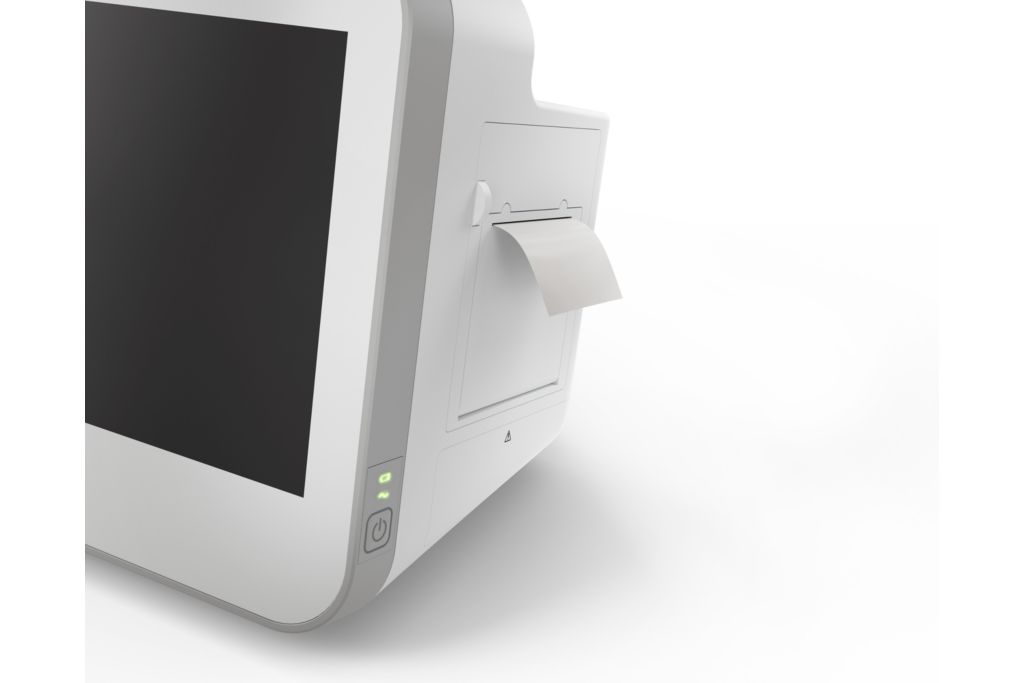

- Recorder
- Type
- Thermal
- Paper width
- 58 mm
- User selectable speeds
- 6.25, 12.5, 25, 50 mm/sec
- Environmental specifications
- Humidity, operating and storage for monitor
- 10% to 90% of RH (non-condensing)
- Humidity, operating and storage for monitor with recorder and paper
- 10% to 90% of RH
- Noninvasive blood pressure measurement
- Adult systolic range
- 30 to 270 mmHg
- Adult pulse rate range
- 40 to 300 bpm
- Pediatric systolic range
- 30 to 180 mmHg
- Pediatric pulse rate range
- 40 to 300 bpm
- Neonatal systolic range
- 30 to 130 mmHg
- Neonatal pulse rate range
- 40 to 300 bpm
- NBP interval choices
- Off, 1, 2, 3, 5, 10, 15, 30, 60, 90, or 120 minutes or STAT
- CO2 measurement
- Measurement range
- 0-150 mmHg
