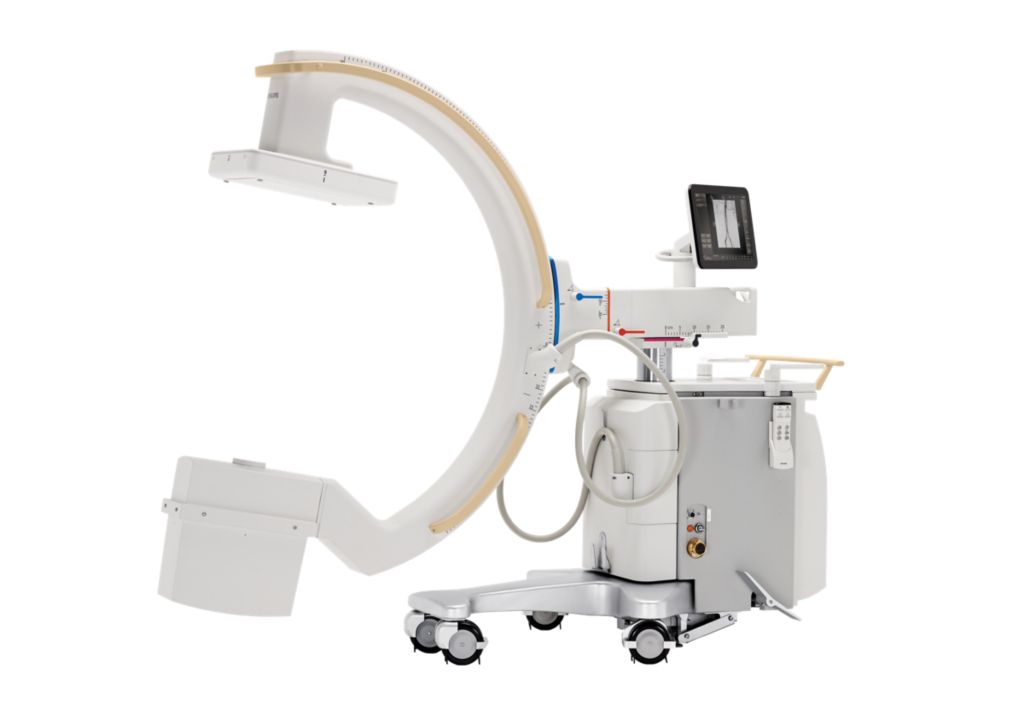

Veradius Unity Circular Edition
Refurbished Mobile C-arm with Flat Detector
  • Product detail photograph

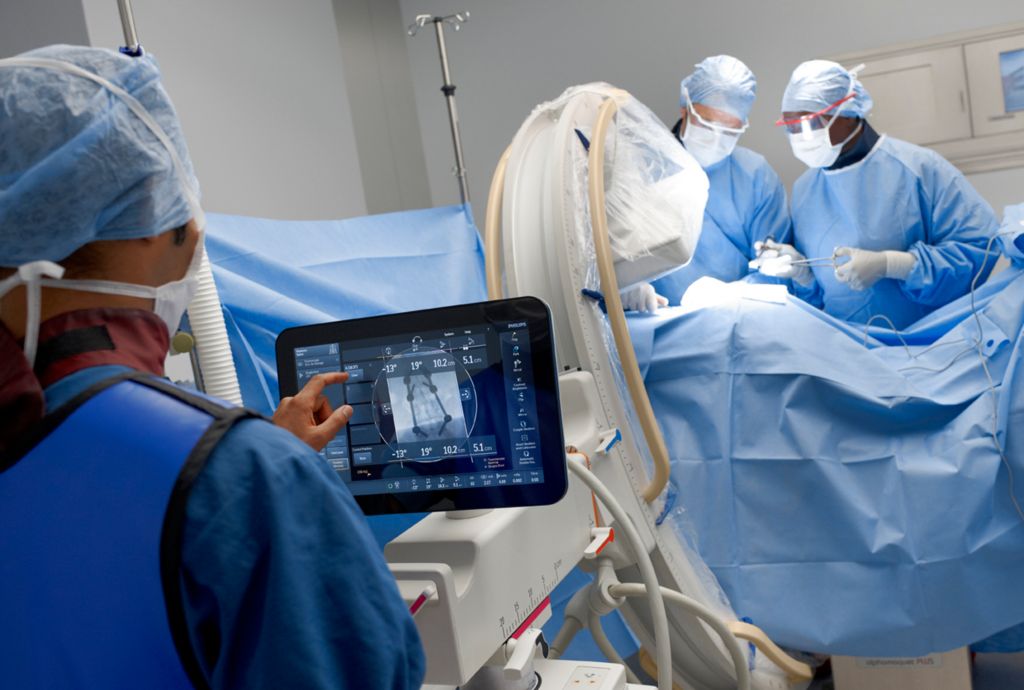

  • Emotional benefit photograph
  • Alternative product photograph
  • Alternative product photograph
  • Standard product photograph
  • Alternative product photograph

Veradius Unity Circular Edition

Refurbished Mobile C-arm with Flat Detector
When setting pedicle screws, a stent graft, or inserting a pacemaker lead, your Veradius Unity X-ray system provides images to support confident decision making. We have re-defined teamwork during surgical imaging so you can experience a new level of efficiency in surgical procedures.

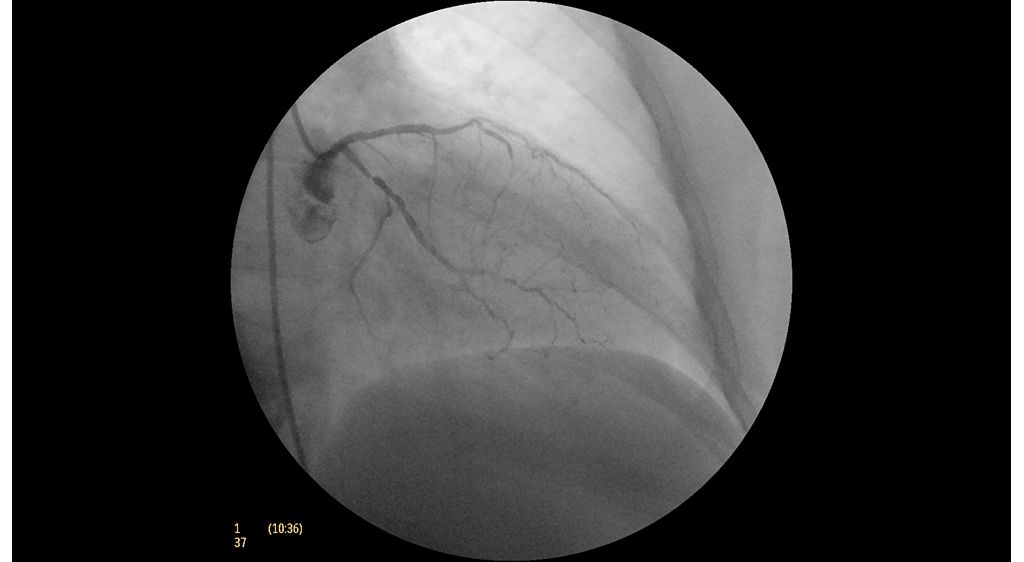

Clinical image gallery

  • Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
    Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
  • Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
    Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
  • Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
    Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
  • Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
    Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
  • Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
    Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
  • Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
    Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
  • Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
    Clinical Image Philips Veradius Unity Mobile C-arm with Flat Detector
Features
Increase confidence with superb image quality at excellent dose efficiency
To quantify the benefits of the Veradius Unity Mobile X-ray system in clinical practice, we put its novel design through a rigorous set of user tests. During the tests, 30 clinicians performed simulated procedures in a simulated OR environment. 80% of participants scored Veradius Unity as easier to use².
Increase confidence with superb image quality at excellent dose efficiency

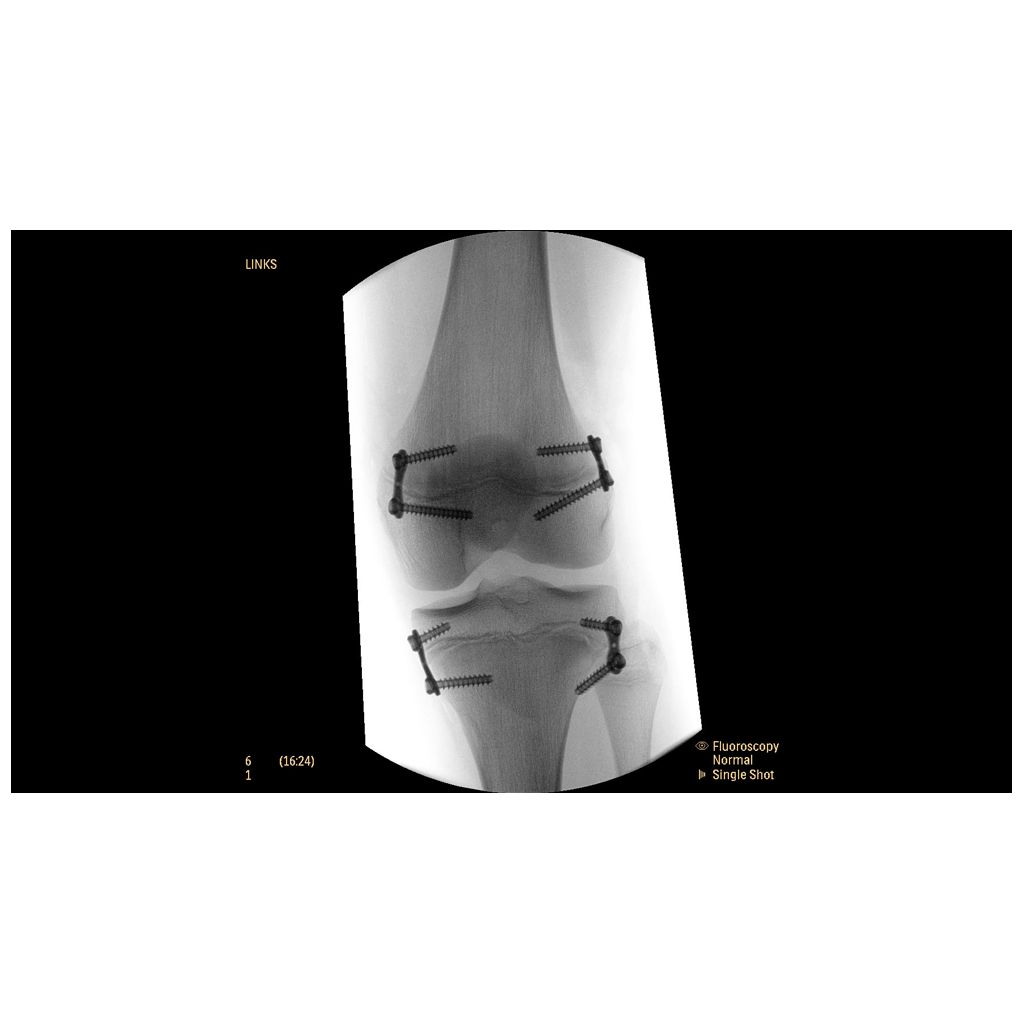

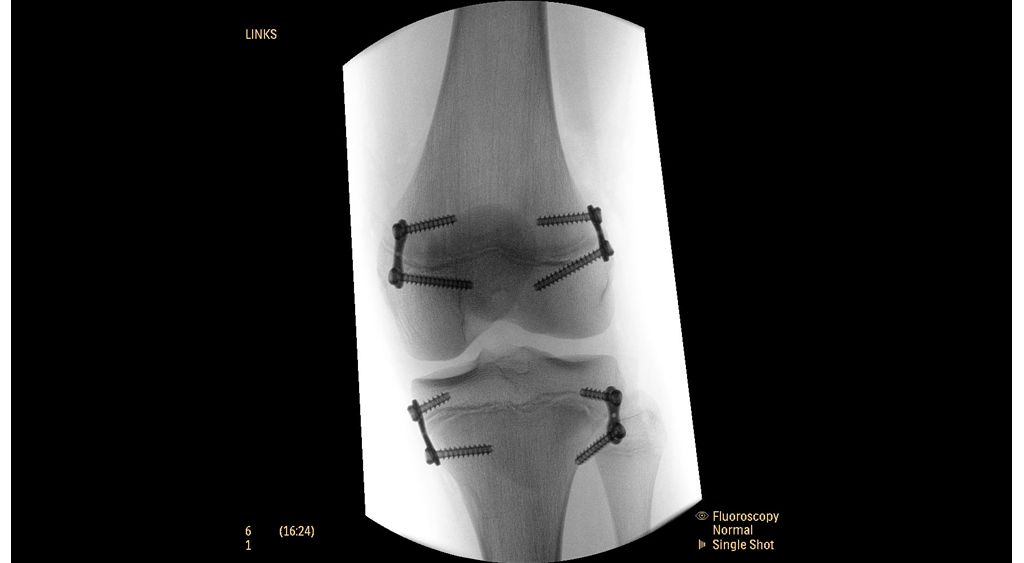

Enhanced imaging for metal objects
To reduce artifacts from metal objects, such as orthopedic implants, Metal Correction can be applied during imaging. It adjusts contrast and brightness of images to enhance image quality when metal objects are present in the field of view.
Enhanced imaging for metal objects
Outlining made simple (optional)
To easily mark a bifurcation or stent position on live fluoroscopy images, the Outlining tool allows you to draw on the touchscreen of the Mobile Viewing Station using a stylus pen or your finger. Press undo to correct.
Outlining made simple (optional)


Specifications
  • X-ray generation
    X-ray generator
    Monoblock 80 KHz high frequency generator
    X-ray tube
    Rotating Anode (tube)
    Maximum generator output
    15
  • Flat detector
    Flat detector
    Trixell amorphous silicon detector
    Matrix size
    1560x1420 pixels
    Detector Area
    26.2 cm/ 10.3 inch x 26.2 cm/ 10.3 inch
    Pixel pitch
    184
  • Connectivity
    WLAN
    optional
  • Geometry
    C-arc
    color coded, fully balanced
    C-arc depth
    73 cm/ 29 inch
    Source Image Distance
    99.3 cm/ 39 inch
    Angulation
    + 90 / - 50
    Lowest lateral position
    102.7 cm/ 40.4 inch


Documentation

Product Brochure Philips Veradius Unity Mobile C-arm with Flat Detector
PDF|286.54 KB
Disclaimer
¹ Referring to Sauro’s study results: Top 10% for ease of use is based on an average score of 83.5 on the System Usability Scale (SUS) by 15 users in an independent study, interacting with the C-arm software’s user interface. The SUS was developed by J.Sauro (See “A Practical Guide to the System Usability Scale: background, Benchmarks, & Best Practices, “by J. Sauro, 2011, Denver, CO, USA, Measuring Usability LLC.) Sauro’s study tested the ease of use of 500 consumer and commercial products and did not necessarily include mobile surgery C-arms.
² Referring to the UseLab GmbH user test: Results obtained during user tests performed in November 2013 by Use-Lab GmbH, an independent company. The tests involved 30 USA based clinicians (15 physicians teamed up with 15 nurses or X-ray technicians), who performed simulated procedures in a simulated OR environment. None of them had worked with a Philips C-arm or with each other before.
* Average cost savings compared to the purchase price of a similar new Philips system. Pricing depends on modality, product type, configuration, and other factors.
