Refinity
Short-tip rotational IVUS catheter
  • Standard Product Photograph

Refinity

Short-tip rotational IVUS catheter

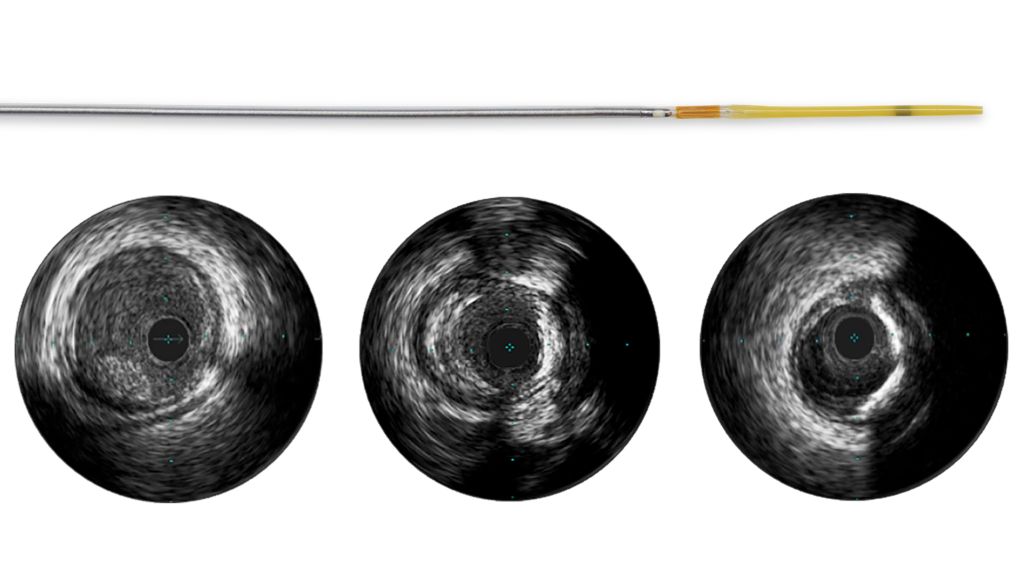

Philips’ next generation rotational IVUS catheter. With exceptional deliverability, it navigates through challenging lesions with ease. With 5F guide compatibility, it enables radial access and with 45 MHz high resolution image, it creates clear, crisp images for accurate vessel interpretation and lesion assessment.

Features

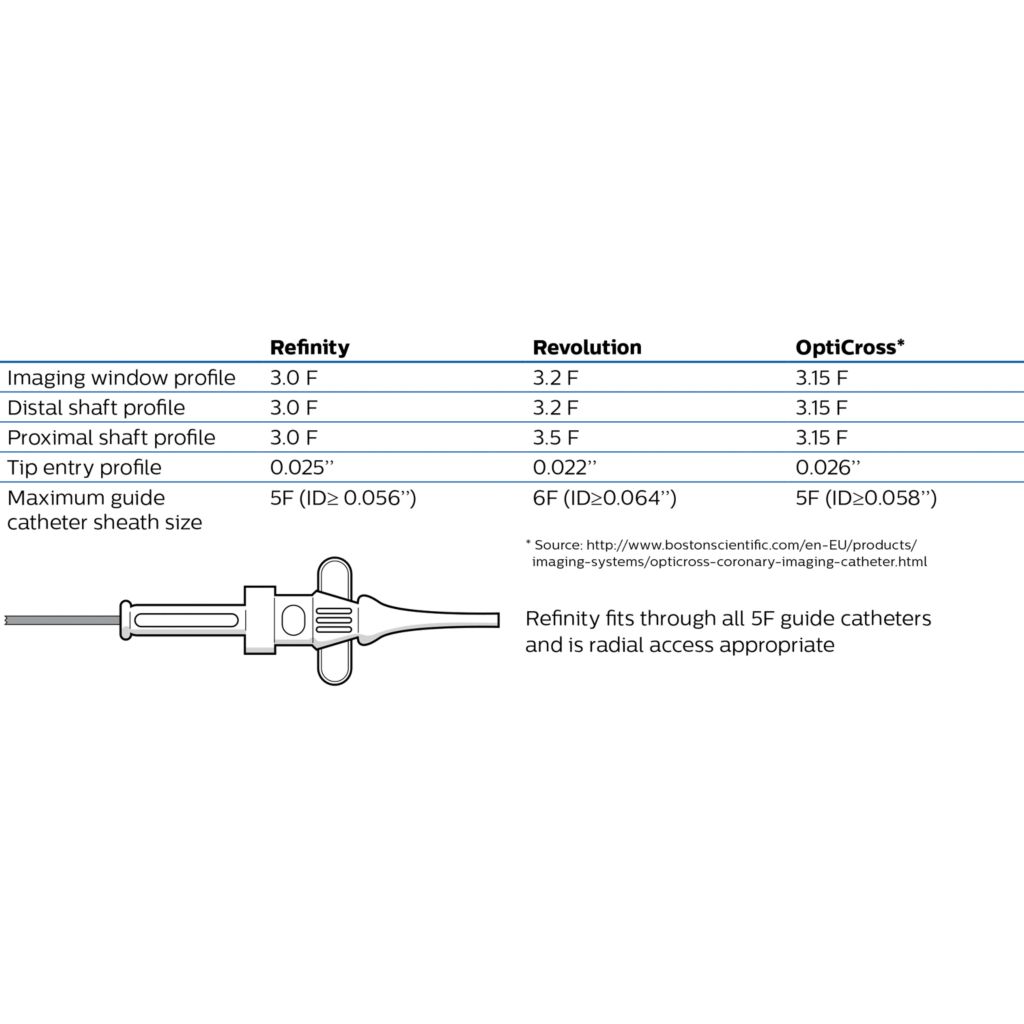

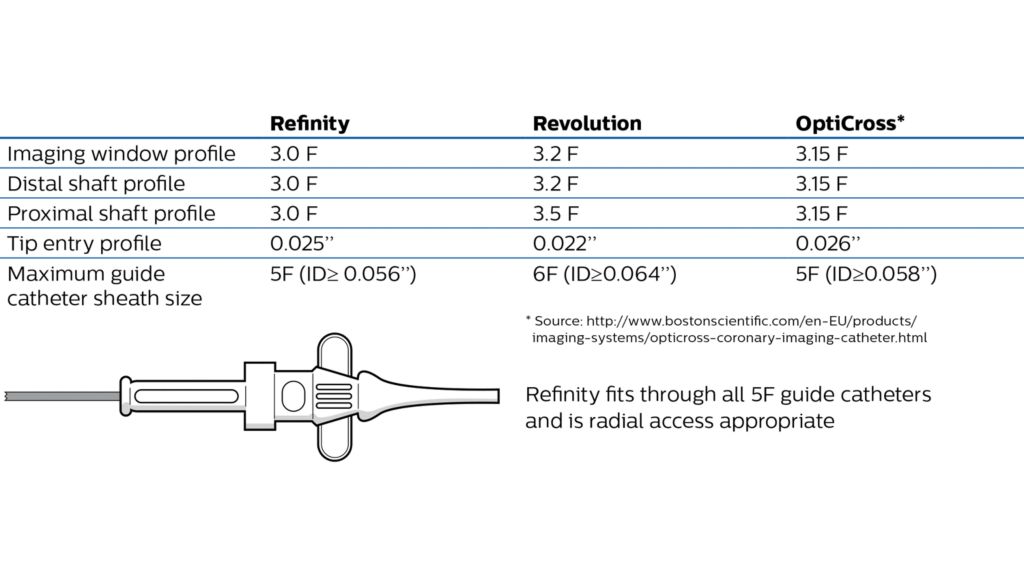

Low profile, 5F guide compatibility
Refinity fits through all 5F guide catheters and is radial access appropriate.
Low profile, 5F guide compatibility
Multi-modality platform
Philips provides choice of IVUS modalities and is the only company to offer digital and rotational devices for a variety of medical practices and divisions.
Multi-modality platform

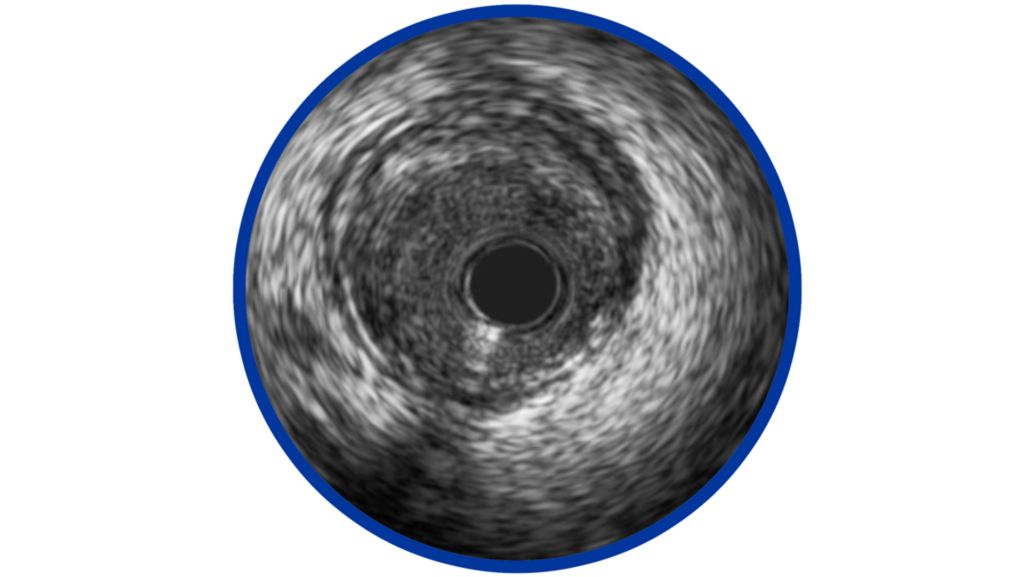

45 MHz-frequency imaging
A 45 MHz frequency produces crisp, sharp imaging for dependable interpretation and assessment of vessel morphology.
45 MHz-frequency imaging


Specifications
  • Catheter size specs
    Compatible guide catheter
    5 F (ID ≥ 0.056")
    Compatible guidewire
    0.014”
    Outer shaft diameter
    3.0 F
    Scanner diameter
    14 mm
    Working length
    135 mm
    Tip-to-tranducer length
    20.5 mm
    Ordering information
    Part # 89900

Documentation

SpinVision Data Sheet
PDF|651.08 KB
Product brochure
PDF|3.77 MB
Hi-Q imaging data sheet
PDF|567.56 KB
