Verrata
Pressure guide wire
HC989604186581Pressure and flow wires

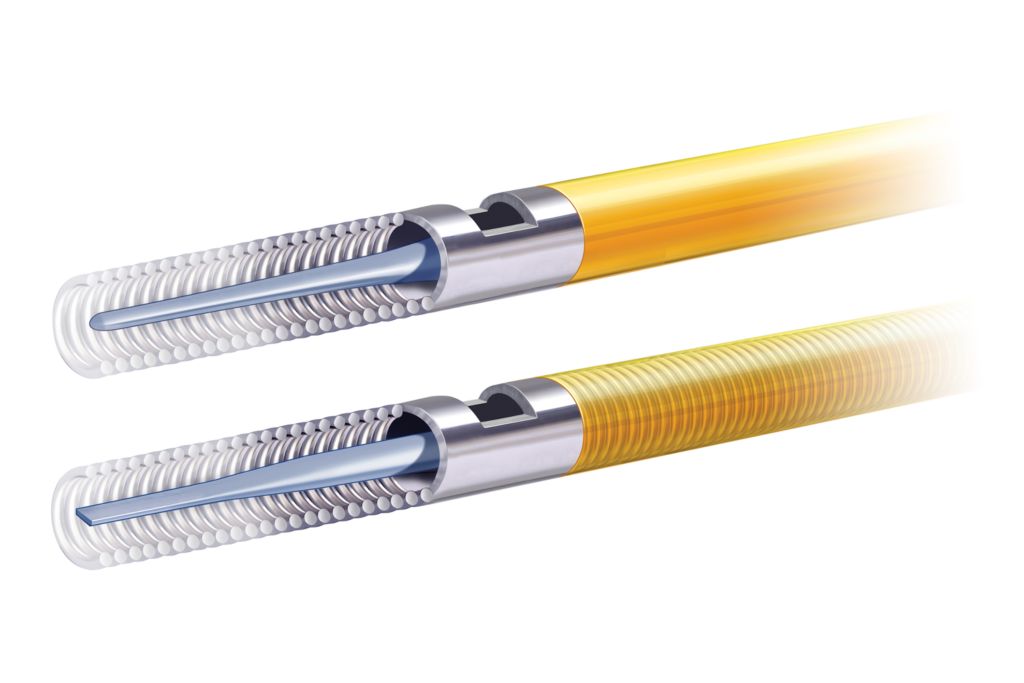

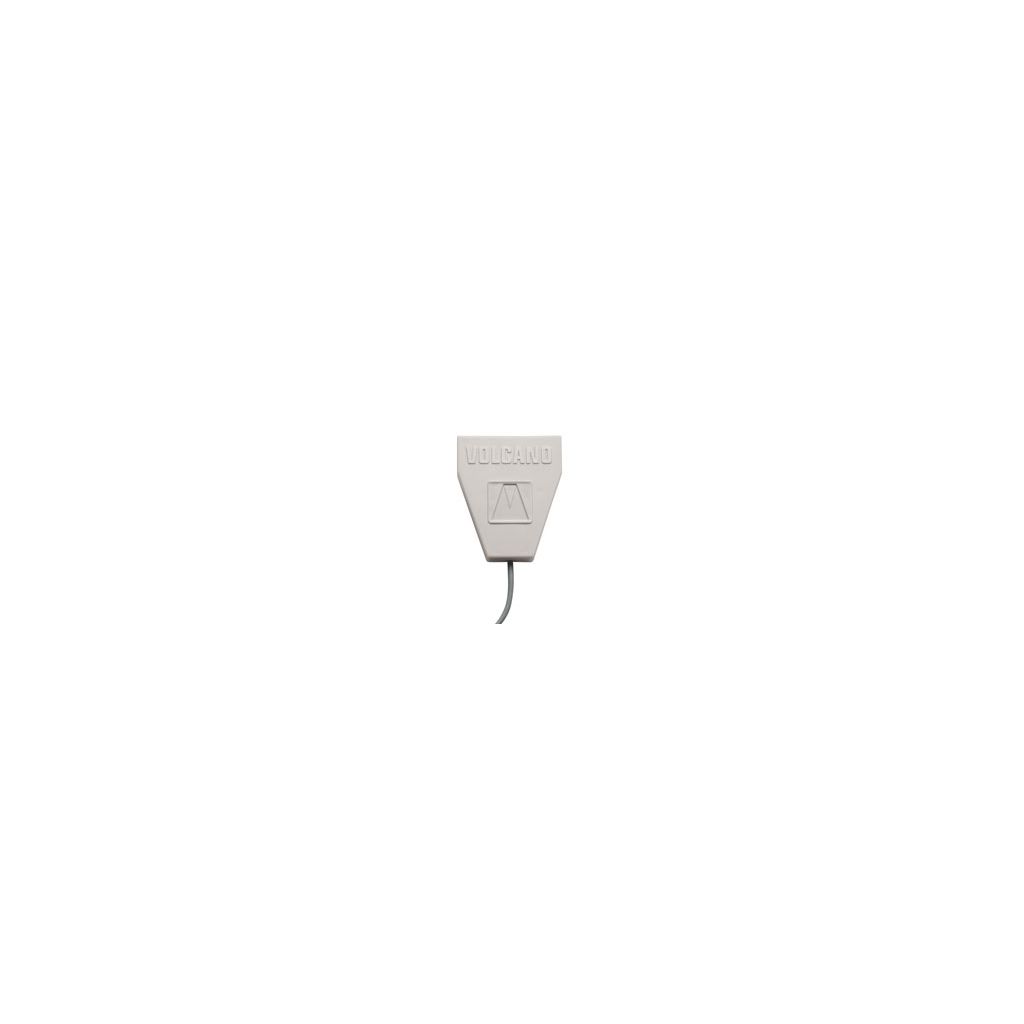

  • The Verrata features an industry standard flat-tip construction for easy tip shaping and tip shape retention. The pressure guide wire measures pressure when used with the SmartMap, s5 family, Core family and ComboMap systems. In addition, the pressure guide wire is packaged attached to the connector with a torque device to facilitate navigation through the vasculature.

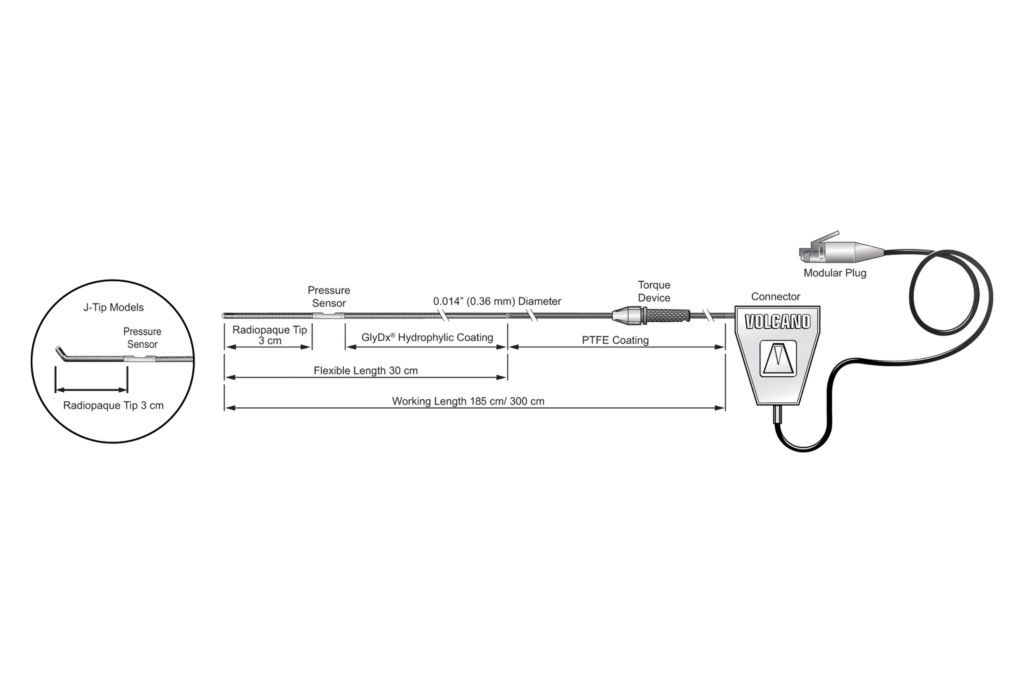

  • The Verrata’s preformed J-shaped tip is always directed toward the sensor, guarding against whipping artifact. The pressure guide wire is a steerable guide wire with a pressure transducer mounted 3 cm proximal to the tip and has a diameter of 0.014" (0.36 mm) and is available in lengths of 185 cm or 300 cm and also in straight or pre-shaped tips.
  • Standard product photograph

Verrata

Pressure guide wire
HC989604186581Pressure and flow wires
Experience the freedom of untethered steering from tip to clip. Many factors impact wire performance including tip design, wire support, and torque response. Fundamental to guide wire handling is the ability to maneuver the wire untethered. The Verrata pressure guide wire quickly disconnects and reliably reconnects, freeing physicians to steer like a frontline wire.*

Clinical image gallery

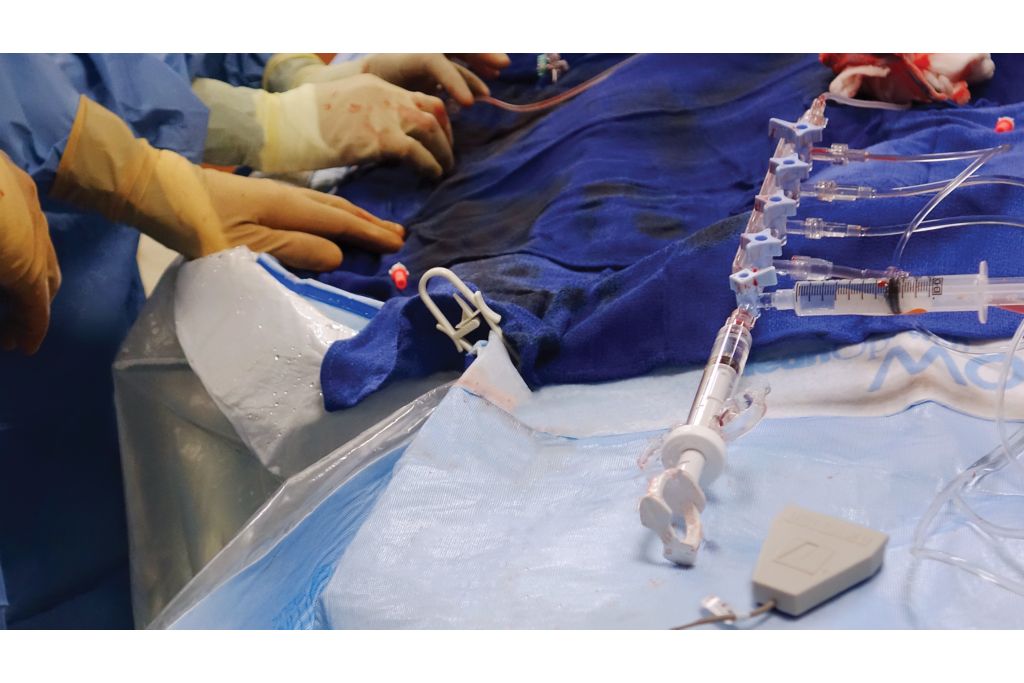

  • Reliably reconnect
    Reliably reconnect

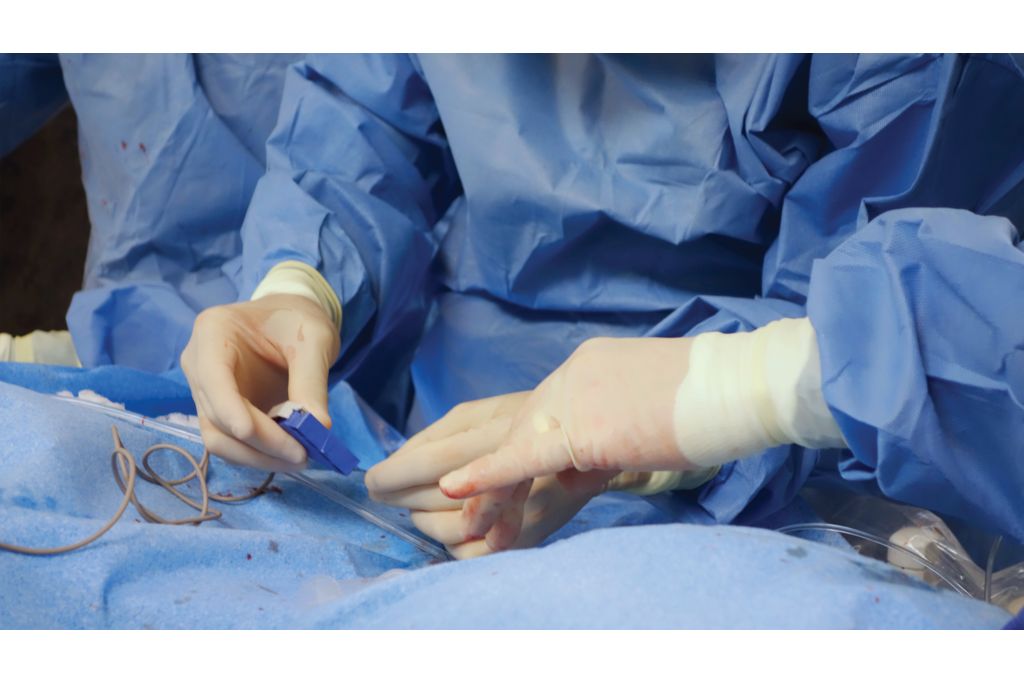

  • Untethered steering
    Untethered steering
Features
Fractional Flow Reserve measurement
Various clinical studies demonstrate that physiologic lesion assessment by FFR to guide routine PCI is superior to current angiography guided treatment. This measured ratio represents the potential decrease in coronary flow distal to the coronary stenosis.
Fractional Flow Reserve
iFR modality simplifies workflow
iFR modality simplifies workflow by providing a hyperemia-free measurement to assess lesion significance in as few as five heartbeats. Philips Volcano’s proprietary iFR modality has a robust body of clinical evidence with over 9,000 patients in numerous studies and peer-reviewed journal articles.*
iFR modality
Quickly disconnect, reliably reconnect
The ability to disconnect easily and reliably reconnect is one of the most impressive features of the Verrata pressure guide wire. Also, the pressure guide wire allows free wire rotation when connected.*
Easily disconnect & reconnect
Specifications
  • Model - 10185 P
    Length
    185 cm
    Tip
    Straight Tip
  • Model - 10185JP
    Length
    185 cm
    Tip
    J-tip
  • Model - 10300 P
    Length
    300 cm
    Tip
    Straight Tip
  • Model - 10300JP
    Length
    300 cm
    Tip
    J-tip

Related products

  • Verrata Plus Pressure guide wire
    Verrata Plus
    For over 20 years Philips has led the way in physiology, putting patients first through continuous innovation. Now introducing our 10ᵗʰ generation physiology wire: Verrata Plus.

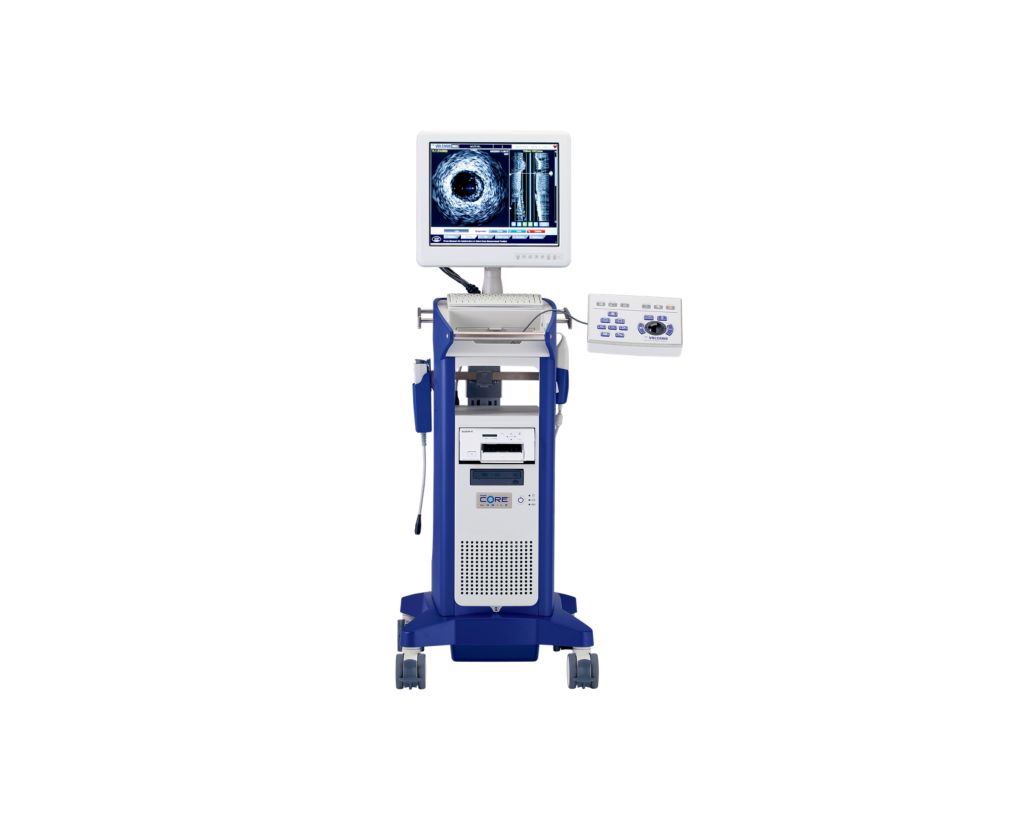

  • Core Precision guided therapy system
