Search terms

S8-3

Sector array transducer

Find similar products

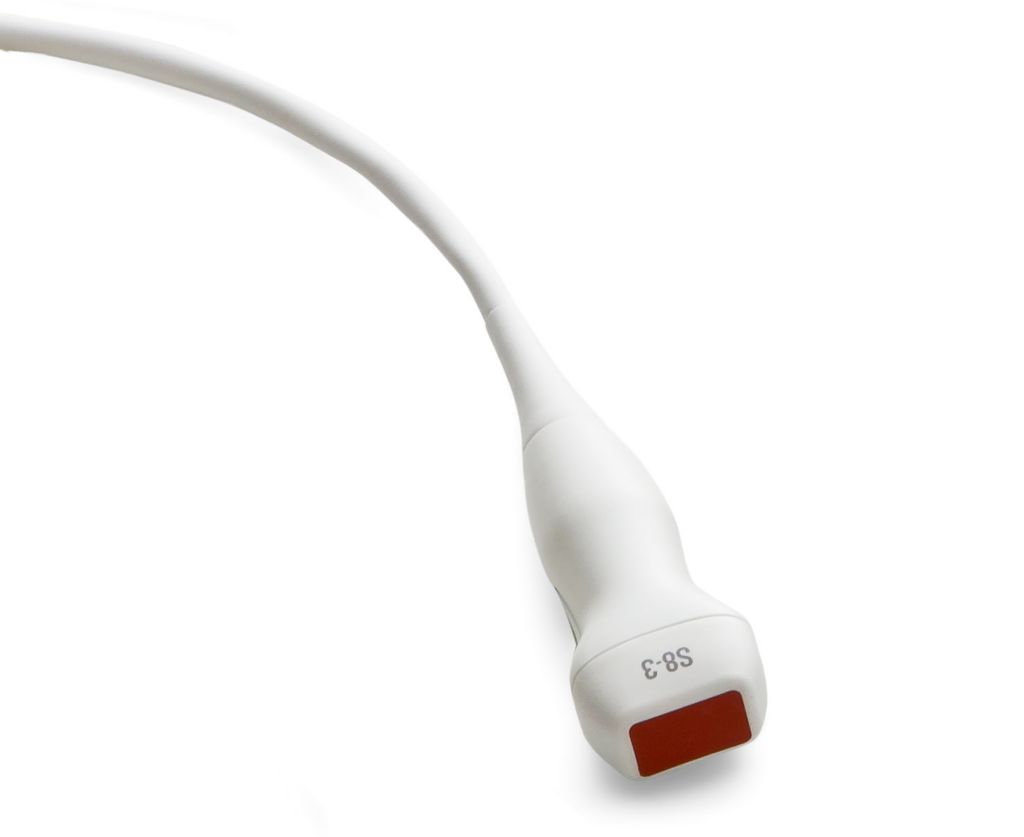

Learn more about the Philips S8-3 sector array transducer in the specification table below.

Contact us

Media Gallery

Features
Technology: -

Technology: -

Technology: -

Technology: -

Technology: -

Technology: -

Technology: -
Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96
Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Frequency range: 8-3 MHz
  • Technology: -
  • Number of elements: 96
  • Frequency range: 8-3 MHz
See all features
Technology: -

Technology: -

Technology: -

Technology: -

Technology: -

Technology: -

Technology: -
Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96

Number of elements: 96
Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Frequency range: 8-3 MHz

Specifications

Specifications
Specifications
Technology
  • -
Number of elements
  • 96
Frequency range
  • 8 - 3 MHz
Array Type
  • Sector
Aperture
  • 15.4 mm
Field of view
  • 90°
Volume of field of view
  • -
Modes
  • 2D, steerable PW Doppler, CW Doppler, High PRF Doppler, color Doppler, tissue Doppler, advanced XRES, and harmonic imaging
Applications
  • Adult and pediatric cardiac applications
Biopsy capable
  • No
Image Fusion Navigation capable
  • No
Physical dimensions
  • -
Specifications
Specifications
Technology
  • -
Number of elements
  • 96
See all specifications
Specifications
Specifications
Technology
  • -
Number of elements
  • 96
Frequency range
  • 8 - 3 MHz
Array Type
  • Sector
Aperture
  • 15.4 mm
Field of view
  • 90°
Volume of field of view
  • -
Modes
  • 2D, steerable PW Doppler, CW Doppler, High PRF Doppler, color Doppler, tissue Doppler, advanced XRES, and harmonic imaging
Applications
  • Adult and pediatric cardiac applications
Biopsy capable
  • No
Image Fusion Navigation capable
  • No
Physical dimensions
  • -
