S5-1 Transducer
Broadband Sector Array with PureWave Technology
Ultrasound
  • S5-1 with a ruler
  • Sonographer scanning technical difficult patient using S5-1 transducer

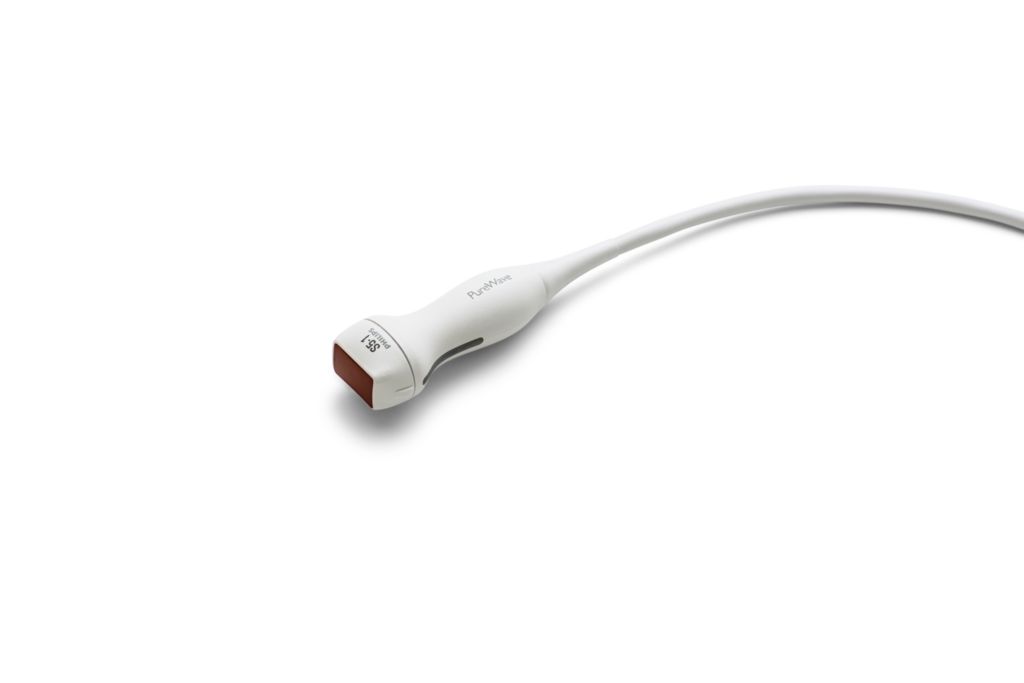

  • S5-1 transducer
  • S5-1 transducer
  • S5-1 Parasternal long axis with color doppler

S5-1 Transducer

Broadband Sector Array with PureWave Technology
Ultrasound
The S5-1 transducer with PureWave technology generates extended operating frequency range from 5 to 1 MHz. It supports imaging in 2D, contrast mode, coronary color, CW & PW Doppler, steerable pulsed wave, High-PRF, color doppler, tissue doppler and biopsy guide capabilities. It uses reoptimized xRes adaptive image processing to provide refined tissue pattern displays, with improved details, better edges and fine border definition. It supports adult echo, abdominal, pediatric echo and TCD applications.

Clinical image gallery

  • Affiniti CVx Doppler
    Affiniti CVx Doppler
  • S5-1 Adult Echo
    S5-1 Adult Echo
  • S5-1Transducer PLAX with Image Boost
    S5-1Transducer PLAX with Image Boost
  • Auto Measure shown using S5-1 transducer
    Auto Measure shown using S5-1 transducer
  • Parasternal short Axis LV
    Parasternal short Axis LV
  • Tissue Doppler Imaging
    Tissue Doppler Imaging
Specifications
  • Specifications
    Technology
    PureWave
    Number of elements
    80
    Frequency range
    5 - 1
    Array Type
    Sector
    Aperture
    20.3
    Field of view
    90°
    Volume of field of view
    -
    Applications
    Adult echo, abdominal, pediatric echo, and TCD applications
    Biopsy capable
    Yes
    Image Fusion Navigation capable
    No
Disclaimer
Available in select countries. Please consult your Philips representative for further details.
