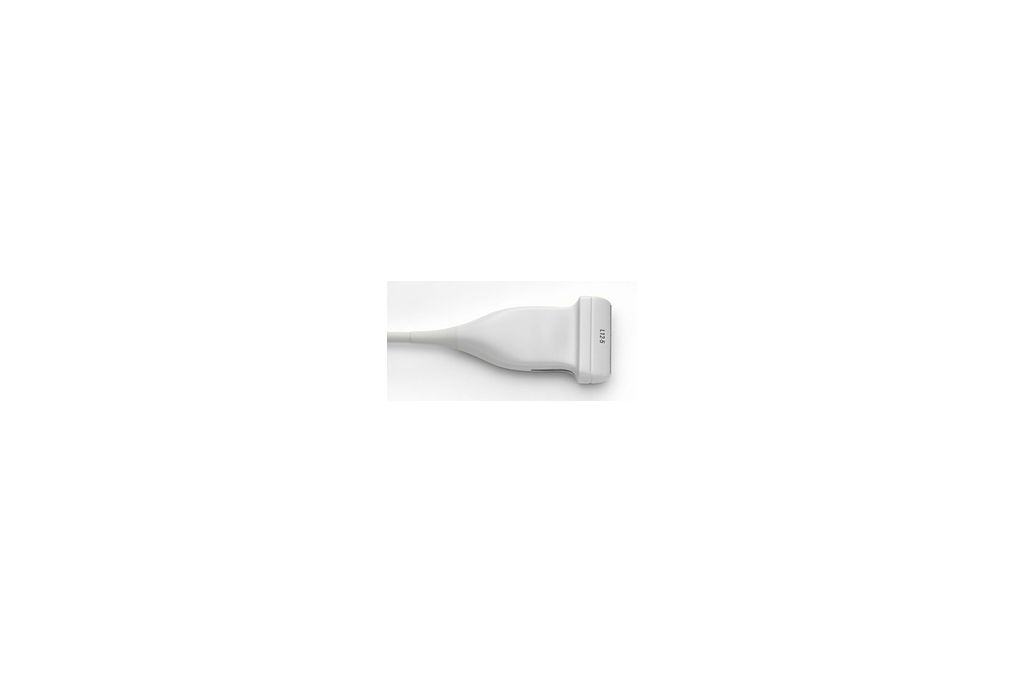

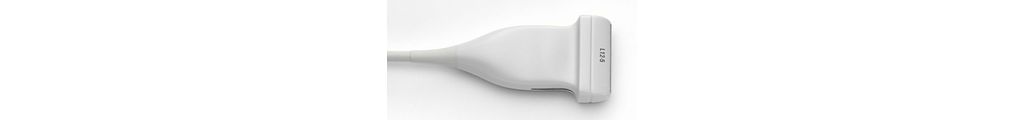

L12-5 50 mm

Linear array transducer

Find similar products

Learn more about the Philips L12-5 50 mm linear array transducer in the specification table below.

Specifications

Specifications
Specifications
Technology
  • [200 ch.]
Number of elements
  • 256 [200 ch.]
Frequency range
  • 12-5 MHz [200 ch.]
Array Type
  • Linear [200 ch.]
Aperture
  • 50mm- [200 ch.]
Field of view
  • [200 ch.]
Volume of field of view
  • [200 ch.]
Modes
  • 2D, steerable pulsed wave and color Doppler, color power angio (CPA), SonoCT, variable XRES, and multivariate harmonic imaging [200 ch.]
Applications
  • Breast, thyroid and superficial small parts; musculoskeletal tendon, abdomen bowel, and vascular applications [200 ch.]
Biopsy capable
  • Yes [200 ch.]
Image Fusion Navigation capable
  • Yes [200 ch.]
Physical dimensions
  • Cable length: 78 in/198 cm [200 ch.]
Specifications
Specifications
Technology
  • [200 ch.]
Number of elements
  • 256 [200 ch.]
See all specifications
Specifications
Specifications
Technology
  • [200 ch.]
Number of elements
  • 256 [200 ch.]
Frequency range
  • 12-5 MHz [200 ch.]
Array Type
  • Linear [200 ch.]
Aperture
  • 50mm- [200 ch.]
Field of view
  • [200 ch.]
Volume of field of view
  • [200 ch.]
Modes
  • 2D, steerable pulsed wave and color Doppler, color power angio (CPA), SonoCT, variable XRES, and multivariate harmonic imaging [200 ch.]
Applications
  • Breast, thyroid and superficial small parts; musculoskeletal tendon, abdomen bowel, and vascular applications [200 ch.]
Biopsy capable
  • Yes [200 ch.]
Image Fusion Navigation capable
  • Yes [200 ch.]
Physical dimensions
  • Cable length: 78 in/198 cm [200 ch.]
