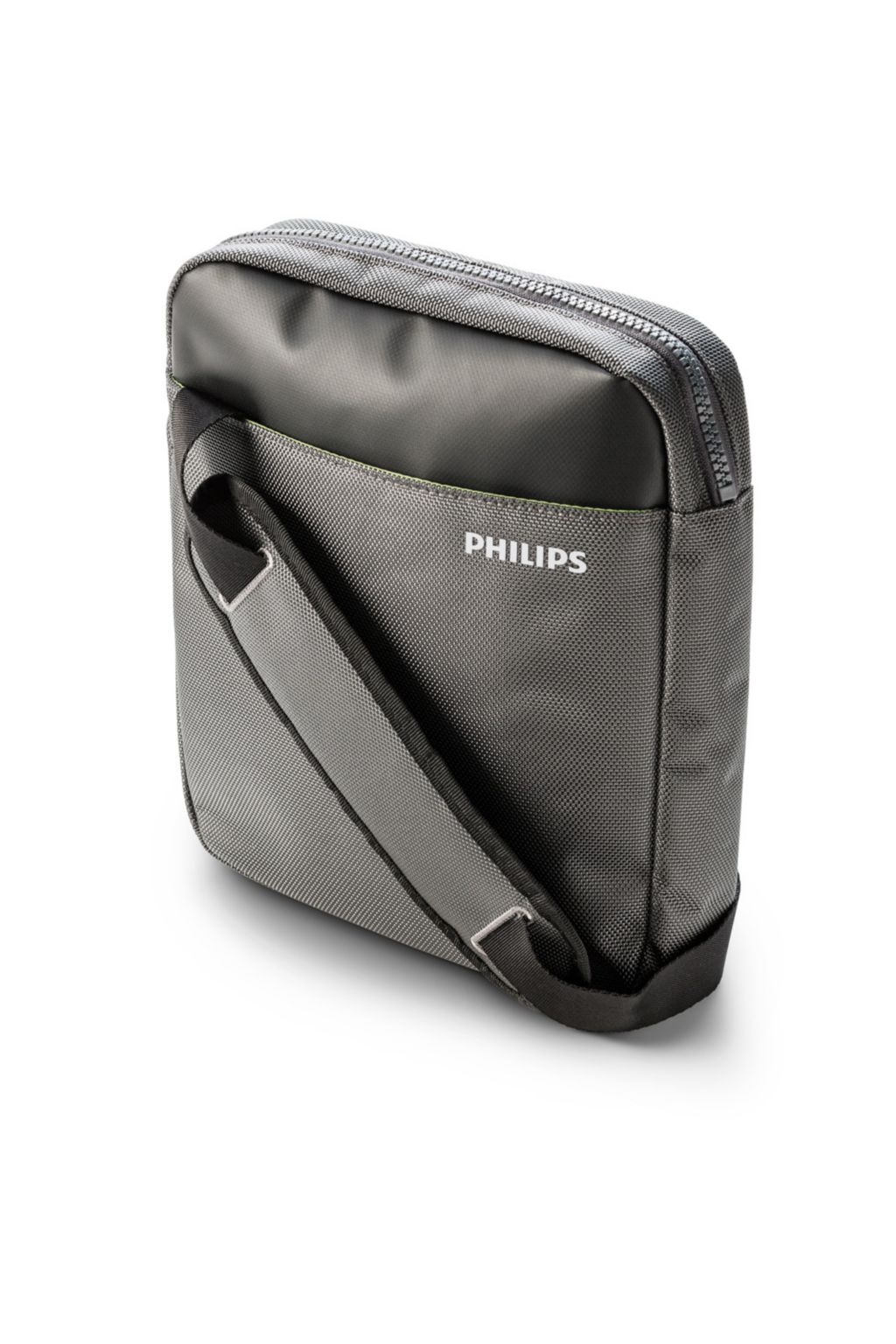

  • Carry bag

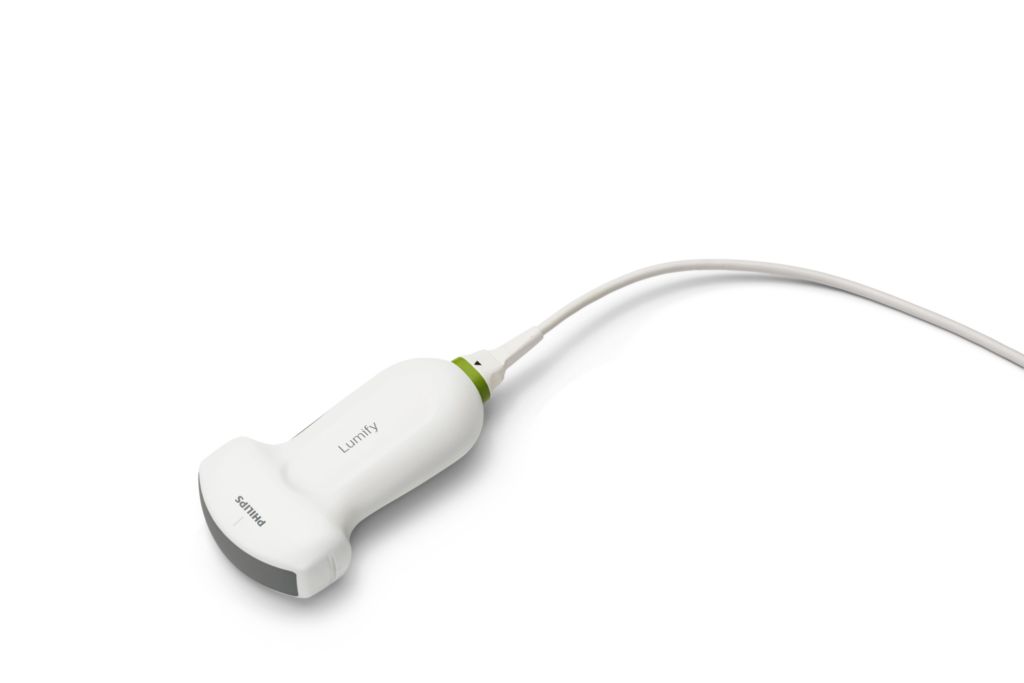

  • Lumify C5-2 transducer
  • Lumify C5-2 transducer
  • Lumify iOS C5-2 ruler
  • Learn about Philips exceptional hand-held ultrasound solution by watching the Philips Lumify product training transducer video
  • Lumify video
  • Phililps Lumify integrated tele-ultrasound powered by Reacts

Lumify C5-2 Transducer Android

Curved Array Transducer
Ultrasound
- 5 to 2 MHz extended operating frequency range - 50mm radius of curvature - 2D, Pulsed Wave and color Doppler, M-mode, advanced XRES and multivariate harmonic imaging, SonoCT - High resolution imaging for deeper applications: abdominal, gall bladder, OB/GYN and lung imaging preset optimizations

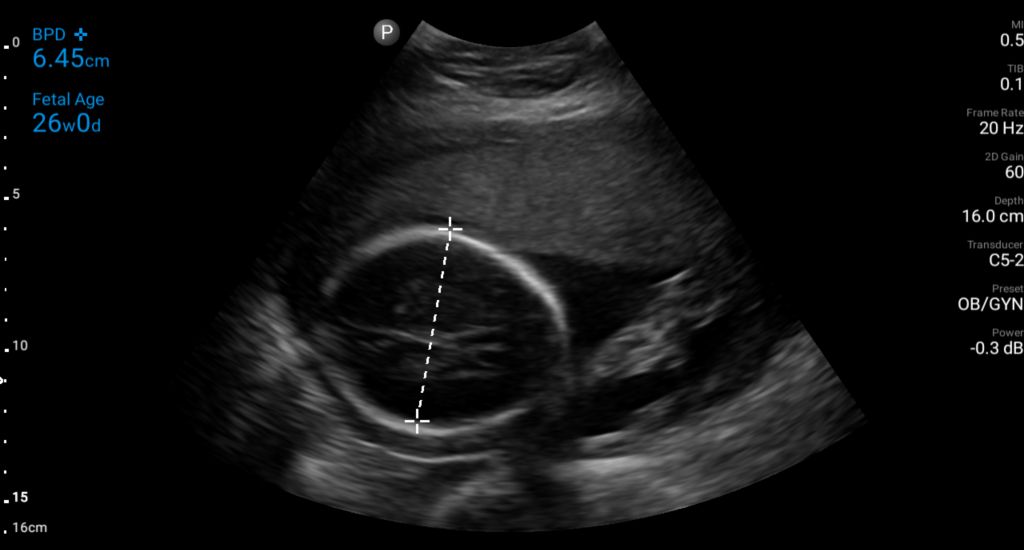

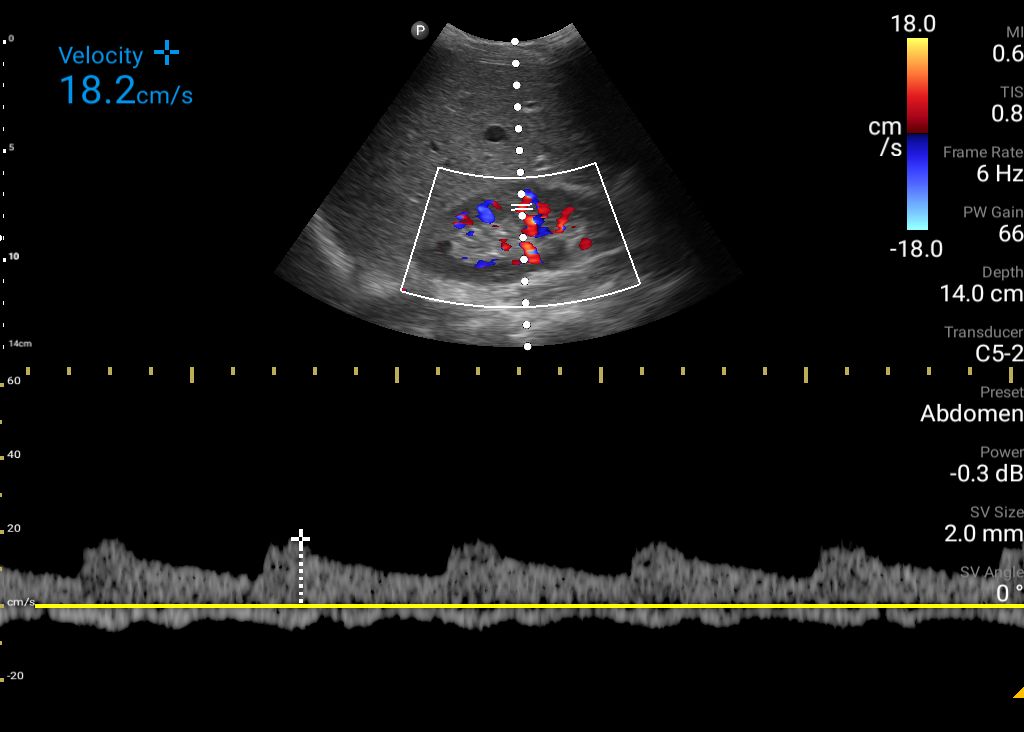

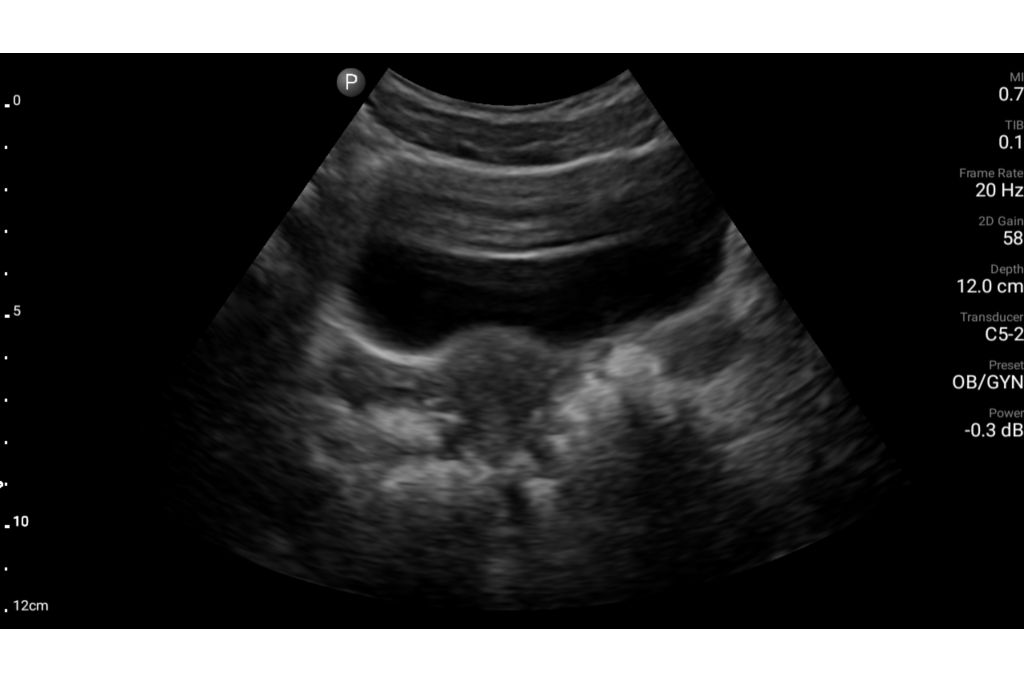

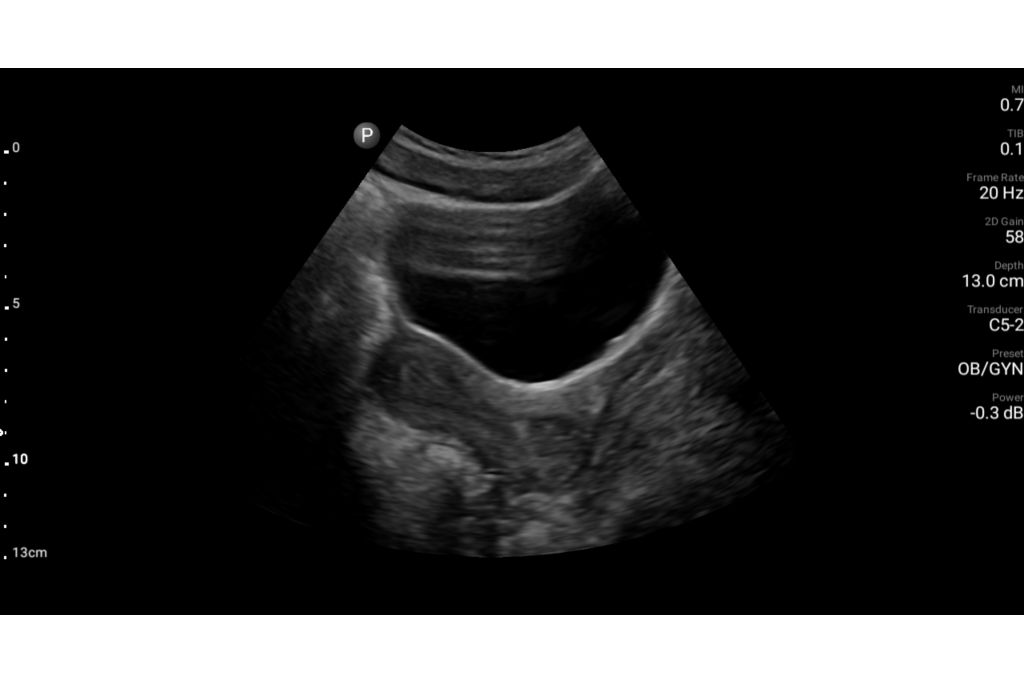

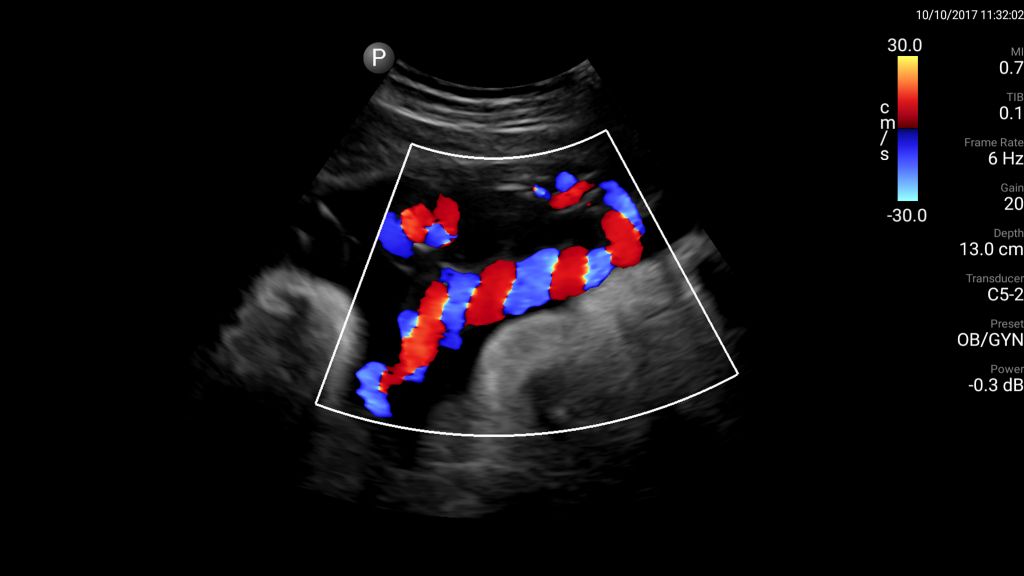

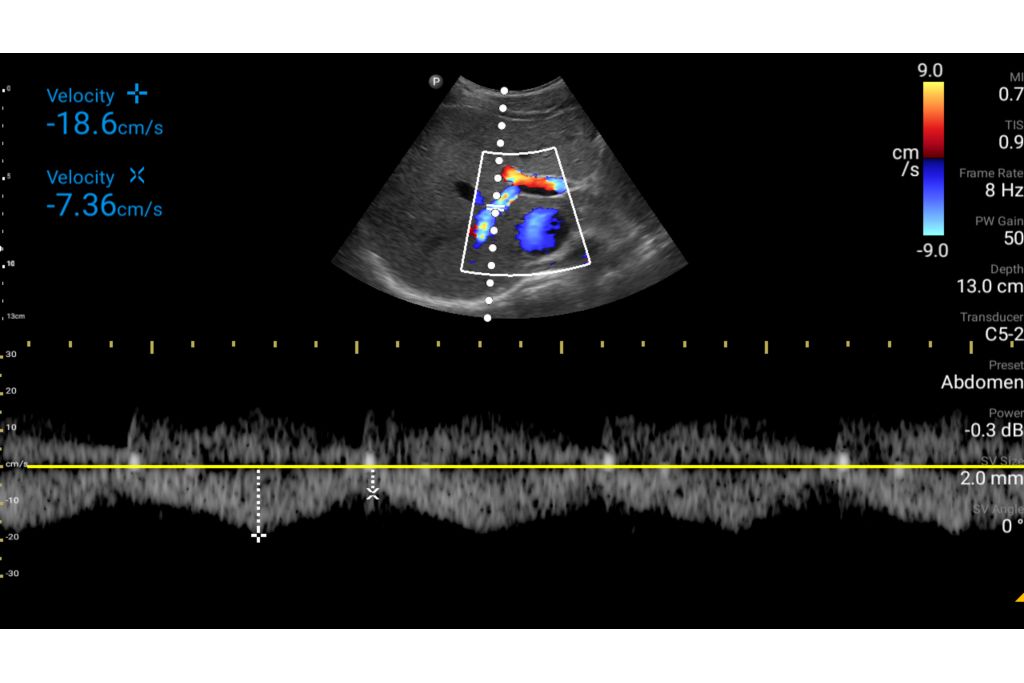

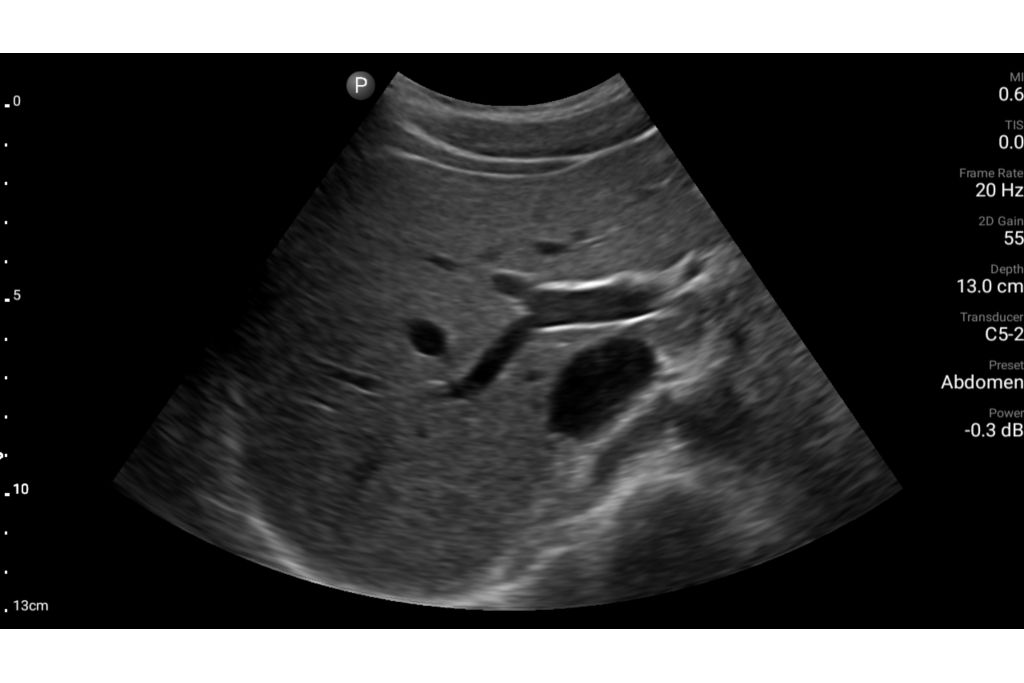

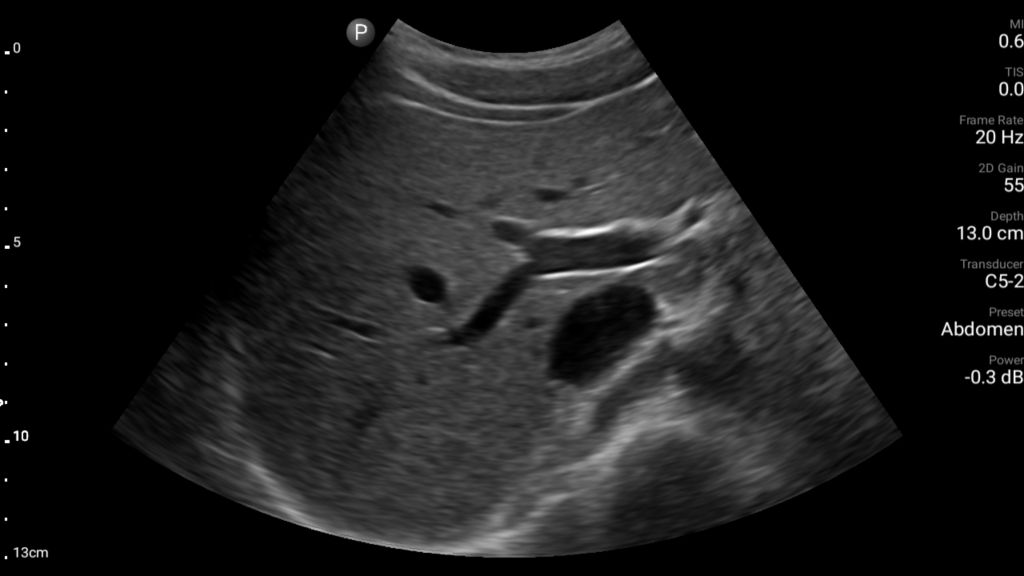

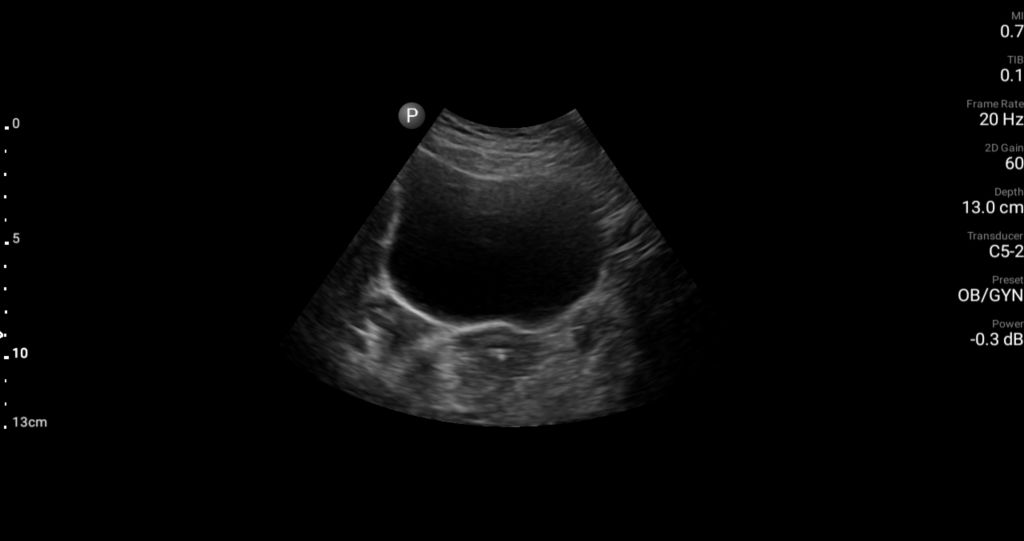

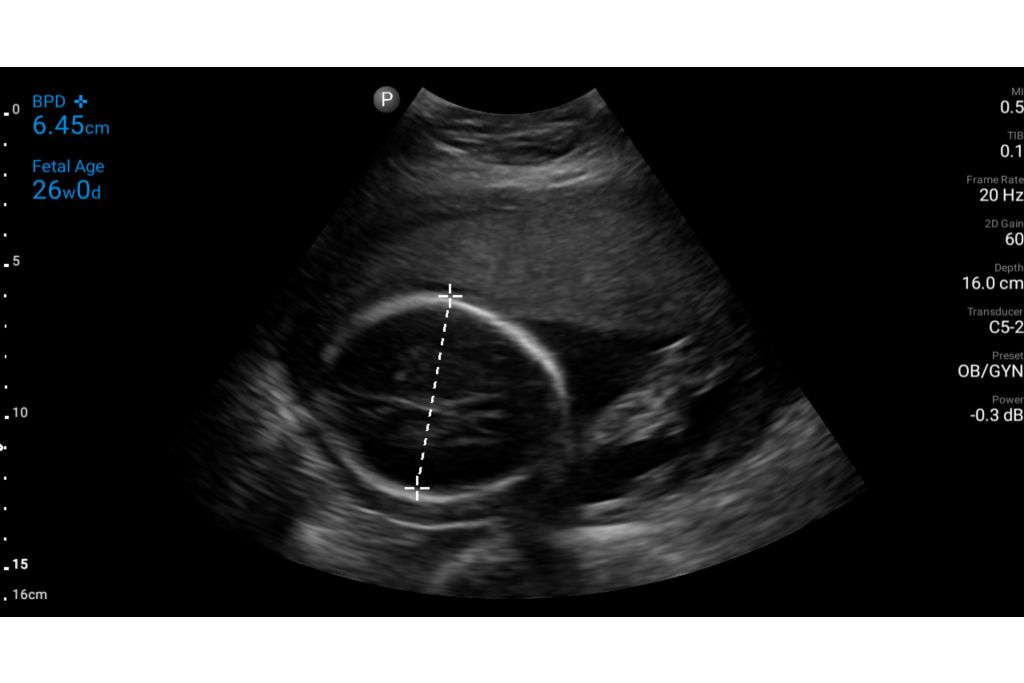

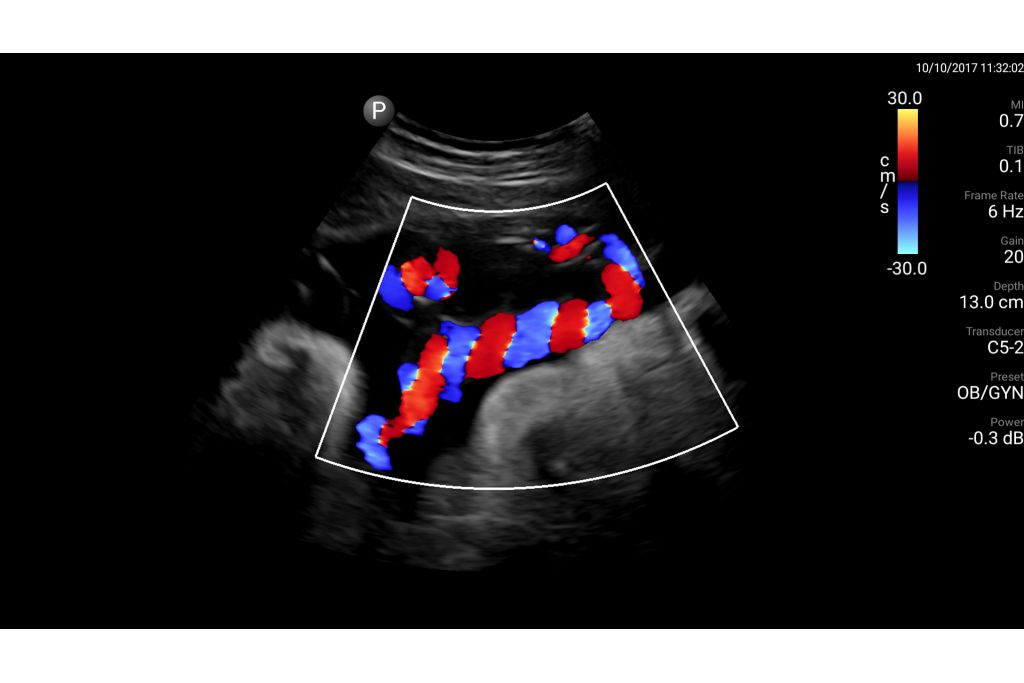

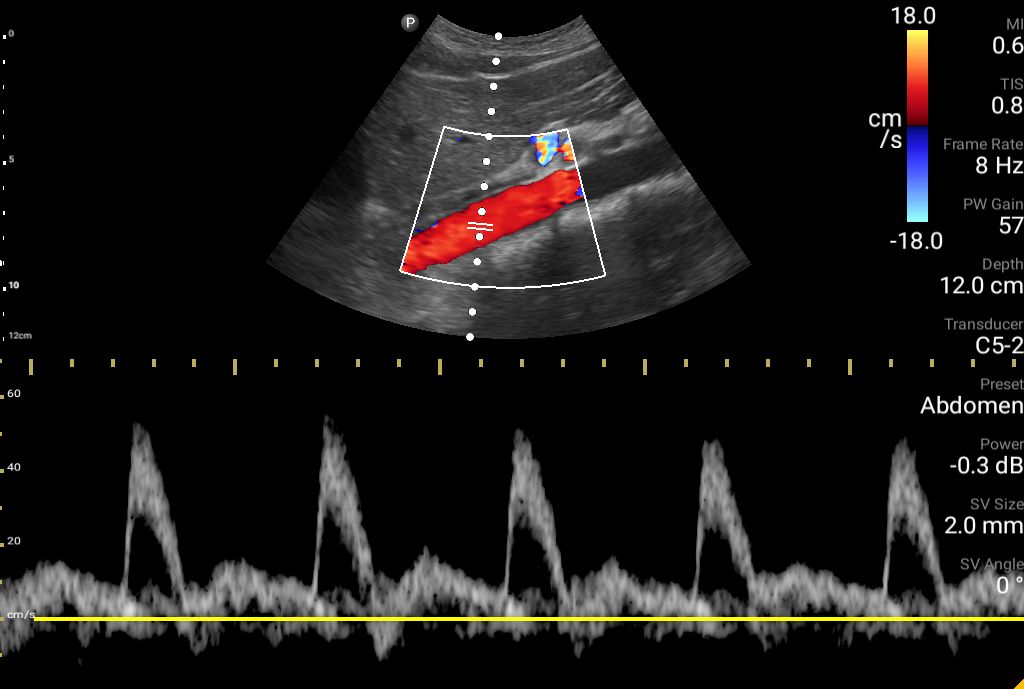

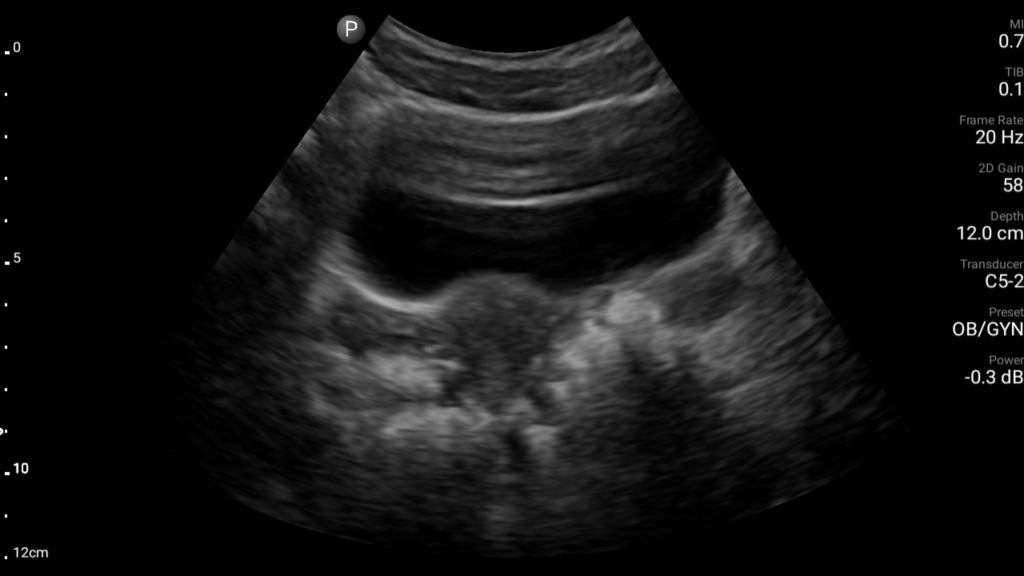

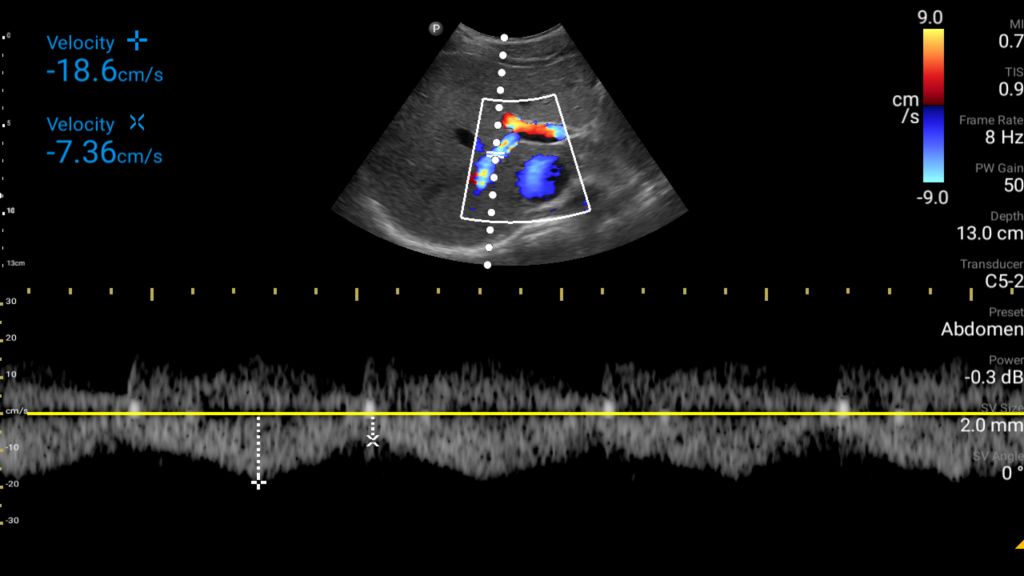

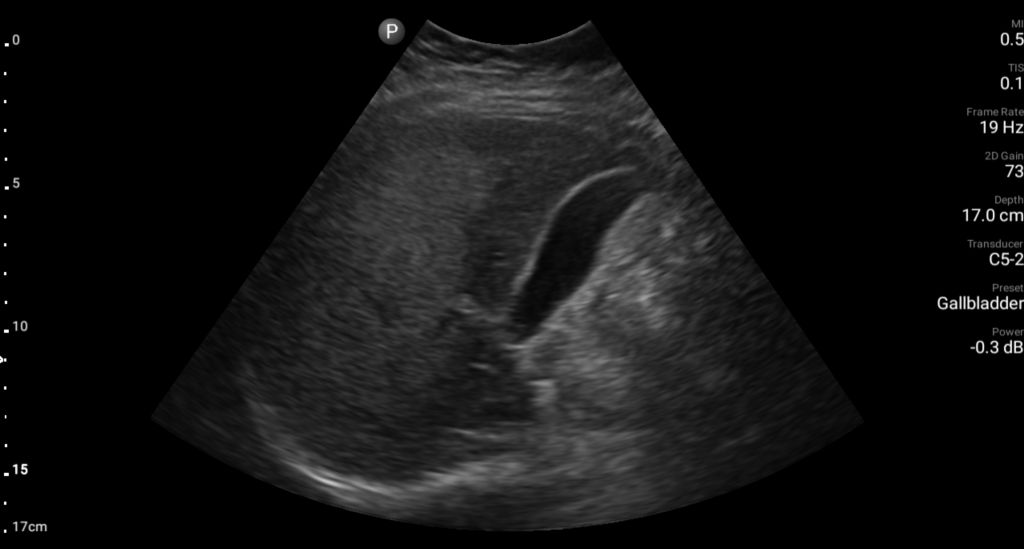

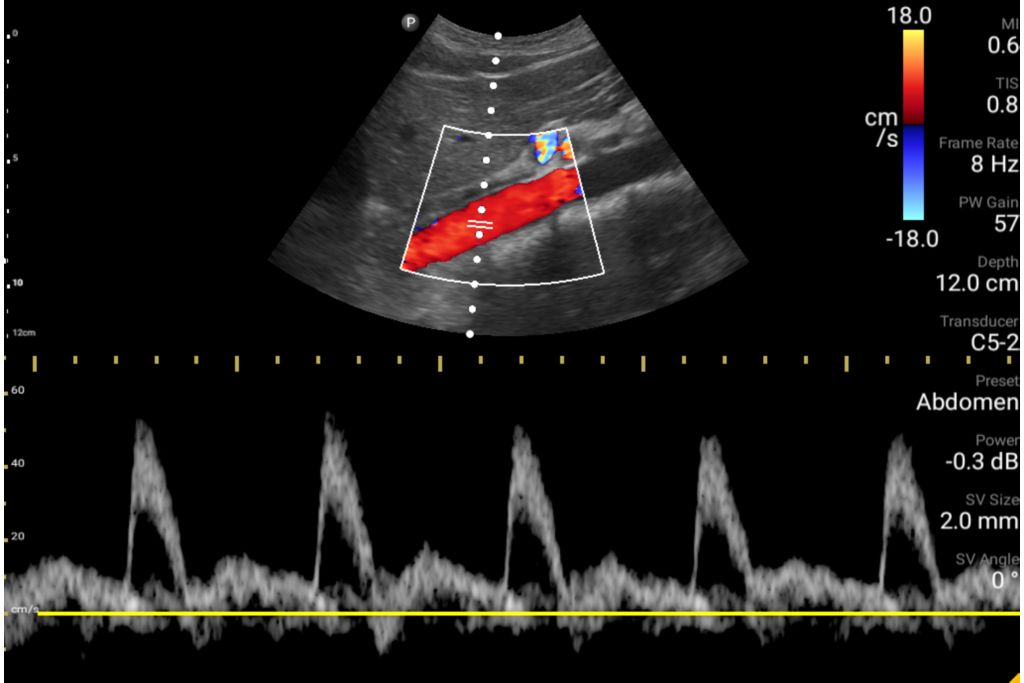

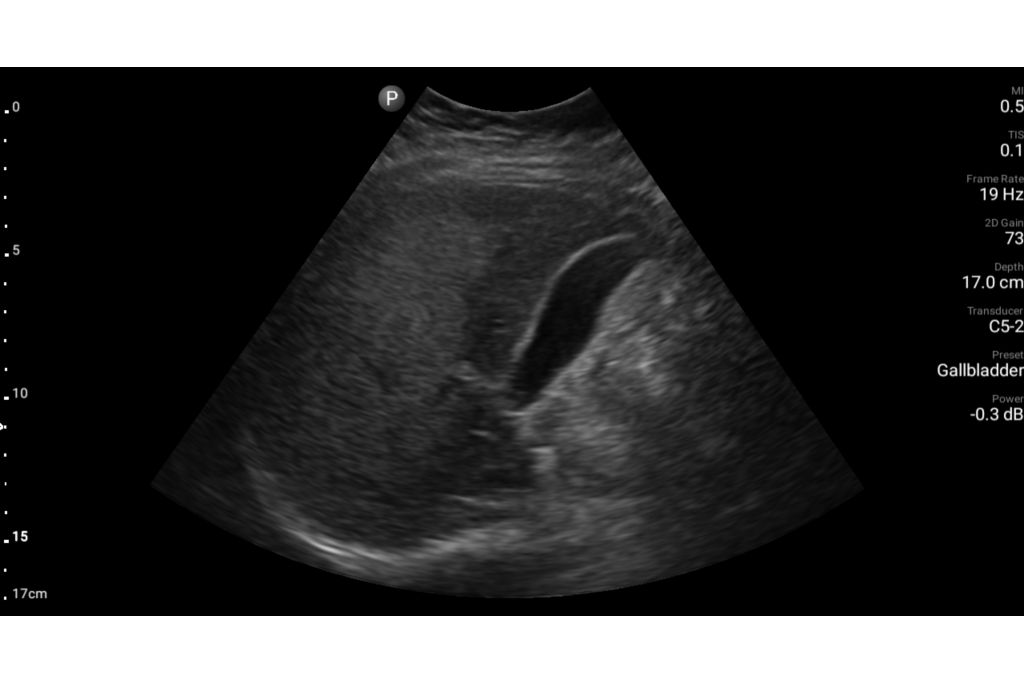

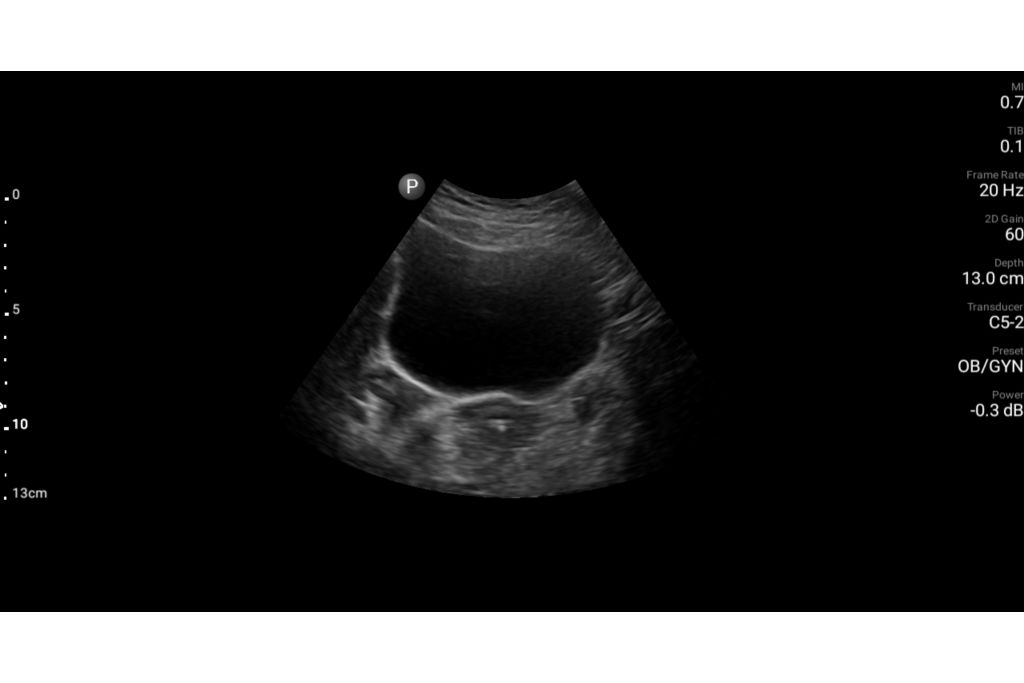

Clinical image gallery

Features
Lumify is ready when you are.
With up to 7.5 hours of continuous scanning capabilities, it offers ongoing clarity in the most urgent situations.
Continuous Scanning:
Built for versatility.
Lumify features a detachable cable that offers the flexibility to replace damaged cables, and keep up with ever-evolving digital devices.
Future-proof Cable:
Ergonomic transducers.
Weighing less than 136 grams, Lumify’s battery-free transducers give you lightweight control for ease-of-use and the ultimate advantage in portability.
Lightweight Portability:
Specifications
  • Specifications
    Field of view
    67.5°
    Applications
    Abdomen, Gallbladder, Lung, OB/GYN
    Bandwidth
    5-2 MHz
    Footprint
    25.5mm
    Scan depth
    Up to 30 cm
    Imaging features
    2D, Pulsed Wave and color Doppler, M-mode, advanced XRES and multivariate harmonic imaging, SonoCT
    Imaging features
    • 2D, Pulsed Wave and color Doppler, M-mode, advanced xRes
    • and multivariate harmonic imaging, SonoCT
  • Specifications
    Aperture
    61
    Biopsy capable
    Yes
  • Contains in the box
    Outright Lumify purchase includes:
    Carry case, Manual
