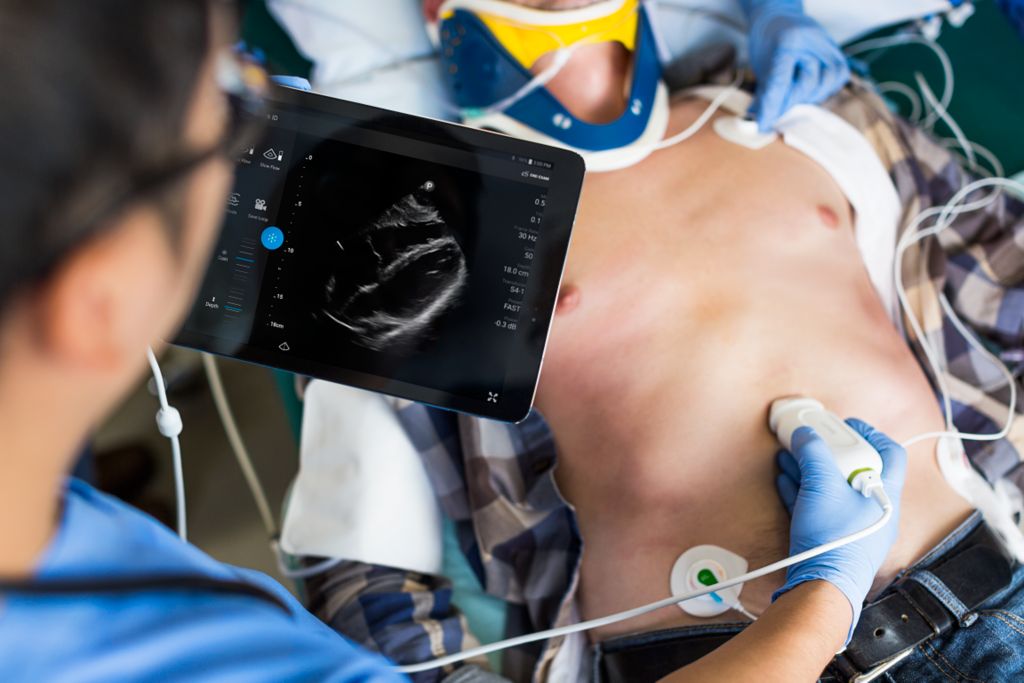

  • Lumify S4-1 mild trauma in use

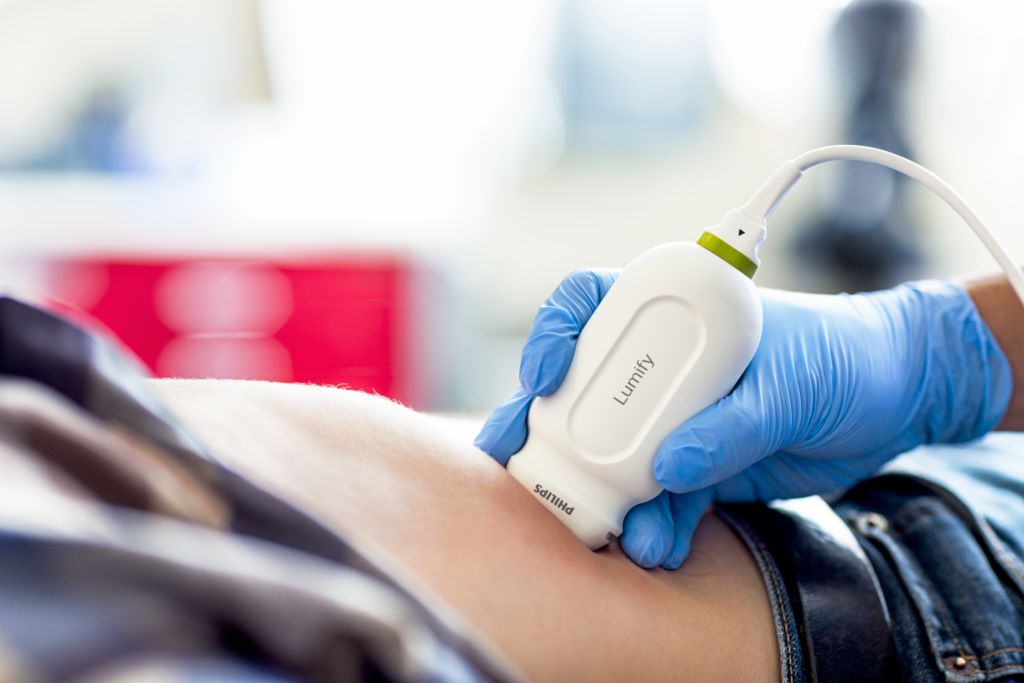

  • Lumify S4-1 in use

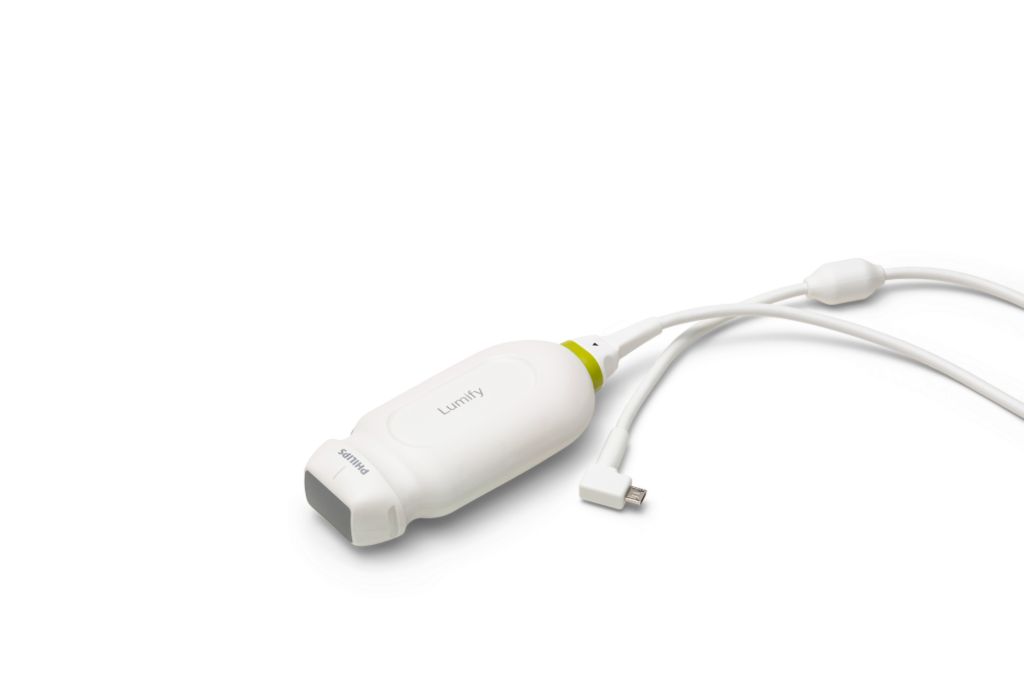

  • Lumify S4-1
  • Carry bag
  • Lumify S4-1

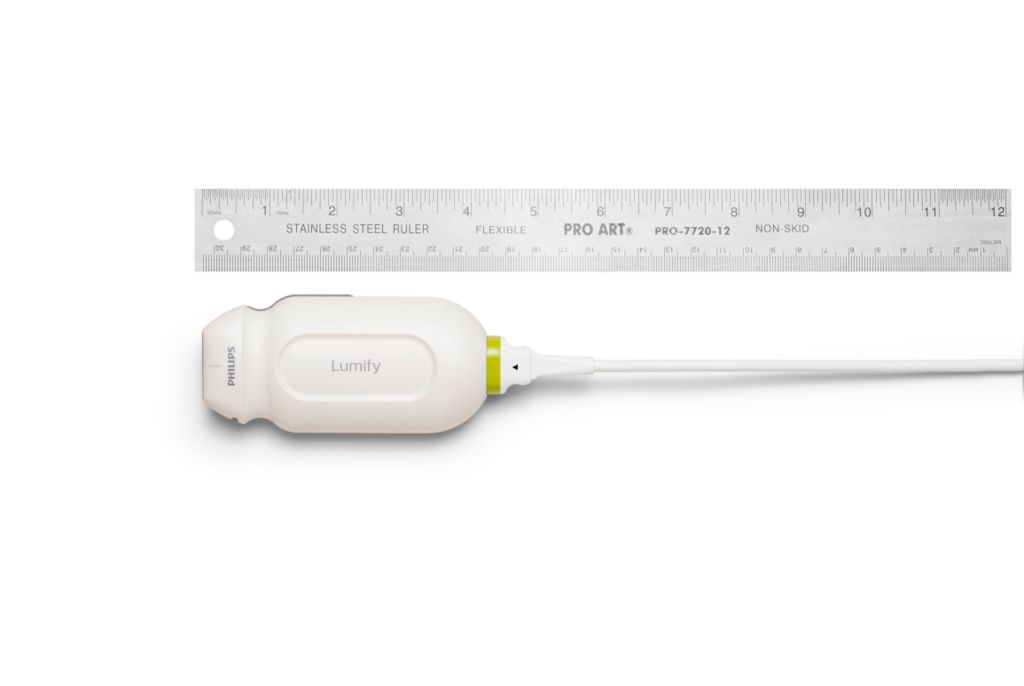

  • Lumify S4-1 ruler
  • Learn about Philips exceptional hand-held ultrasound solution by watching the Philips Lumify product training transducer video
  • Lumify video
  • Phililps Lumify integrated tele-ultrasound powered by Reacts

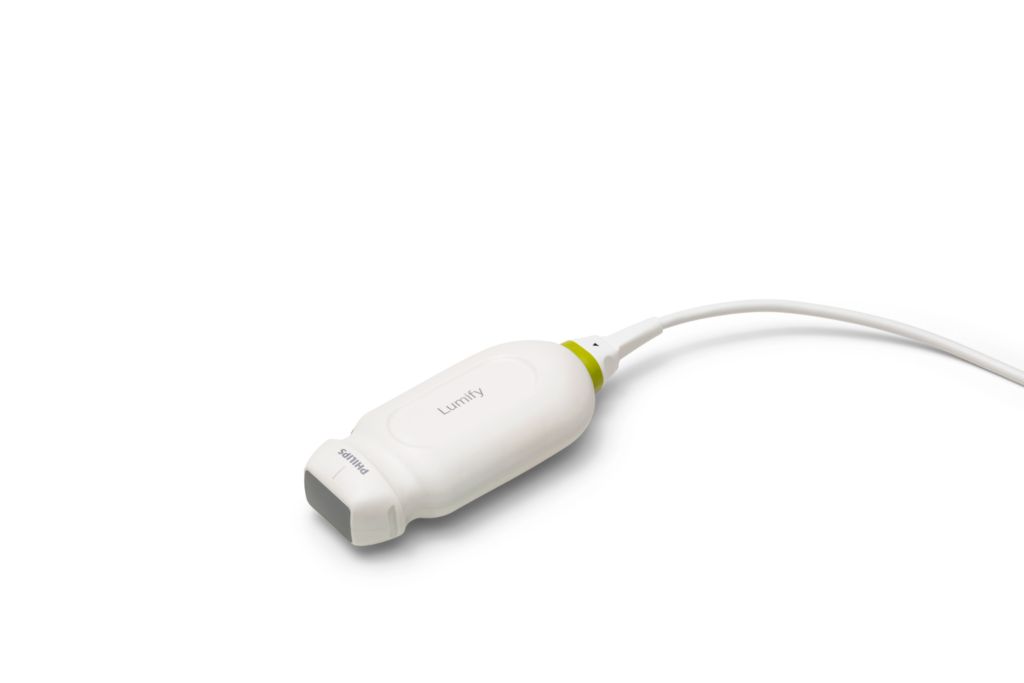

Lumify S4-1 Transducer Android

Phased Array Transducer

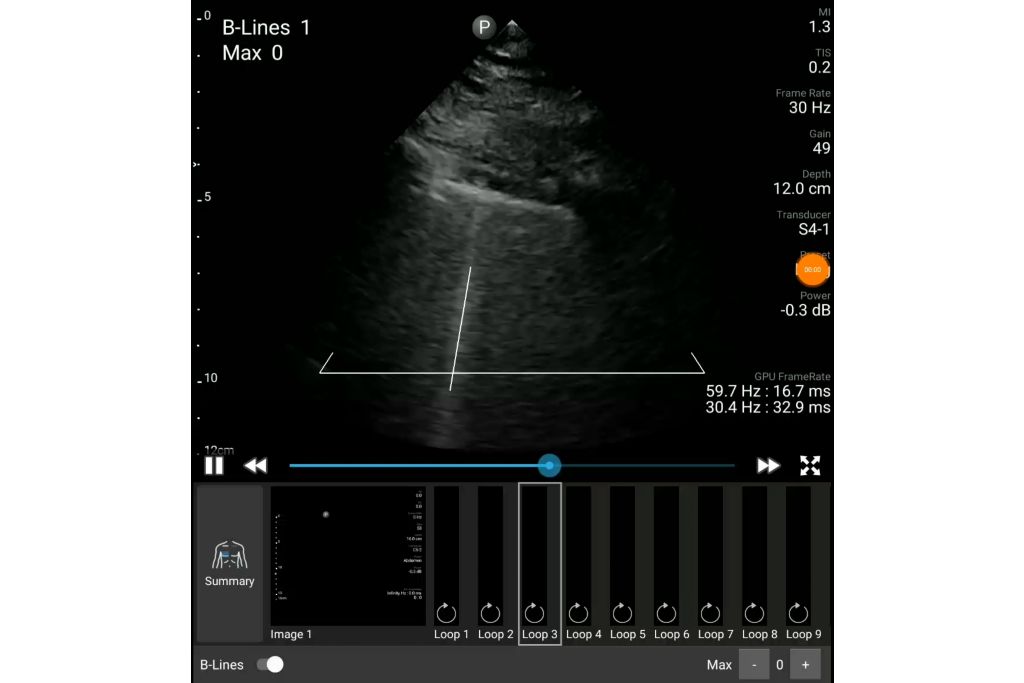

- 4 to 1 MHz extended operating frequency range - 2D, Pulsed Wave and color Doppler, M-mode, advanced XRES, multivariate harmonic imaging and B-line detection in lung imaging - High resolution imaging for abdominal and cardiac applications: cardiac, OB/GYN, lung, abdomen and FAST imaging preset optimizations

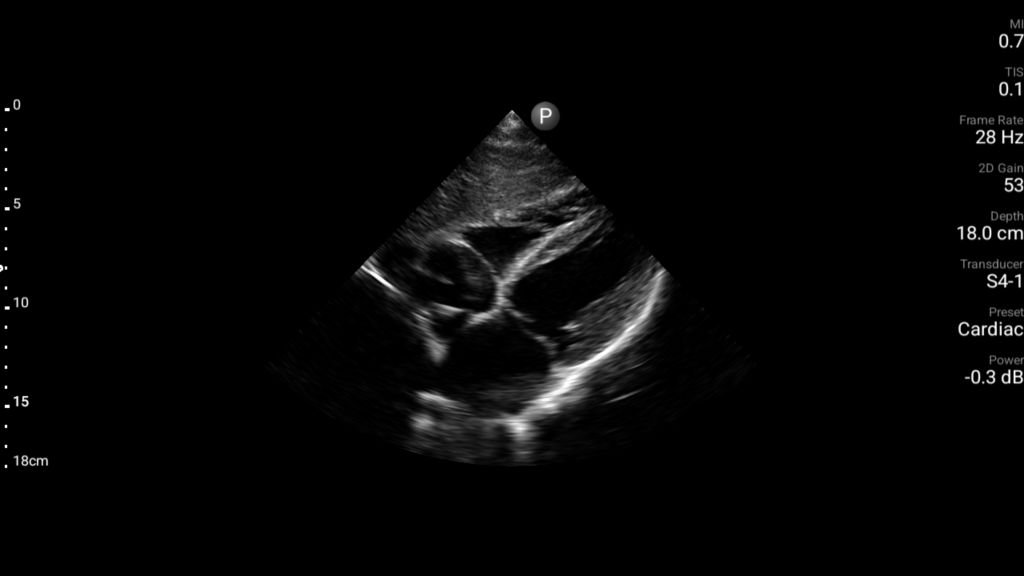

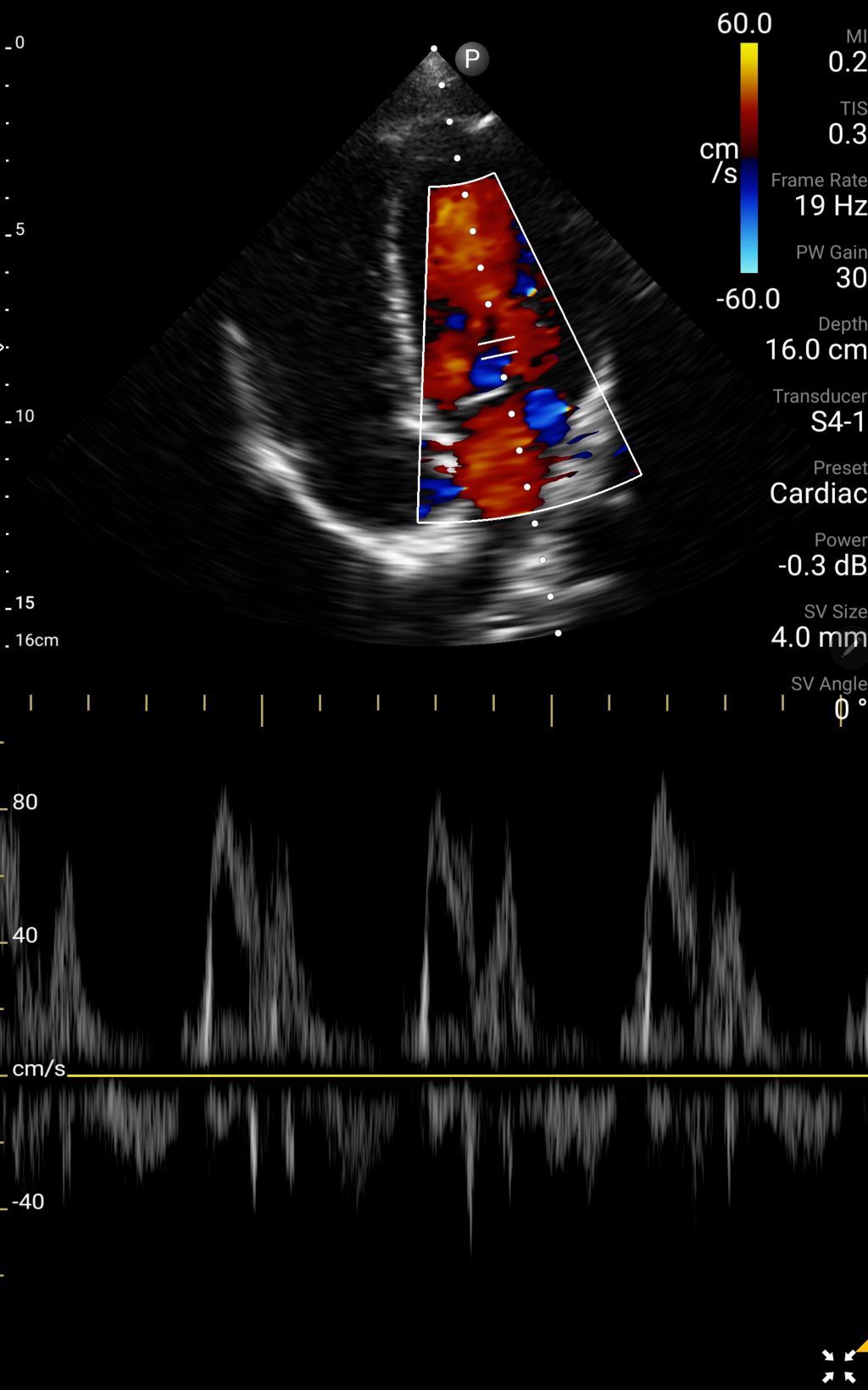

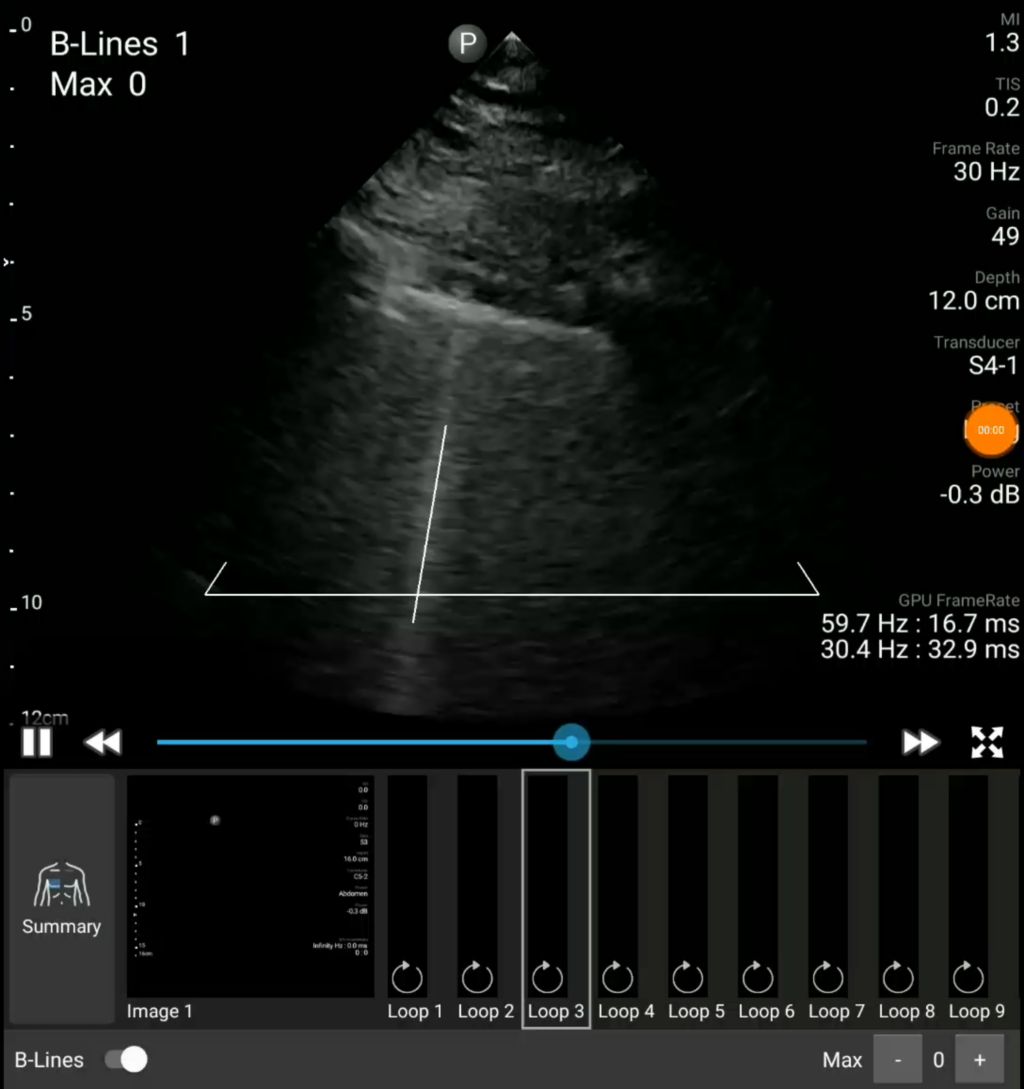

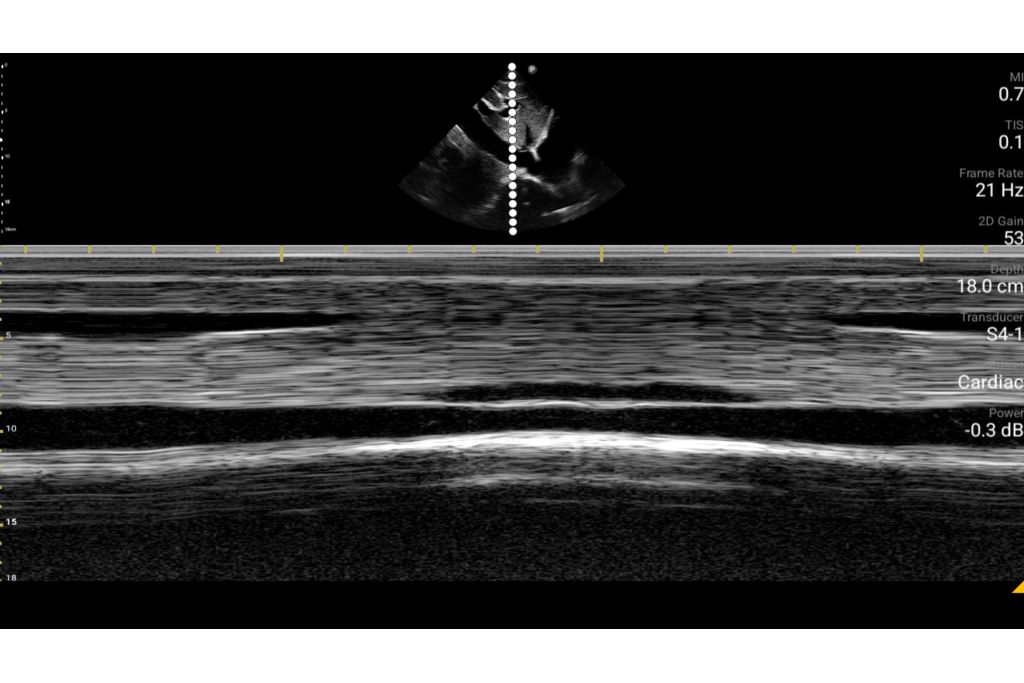

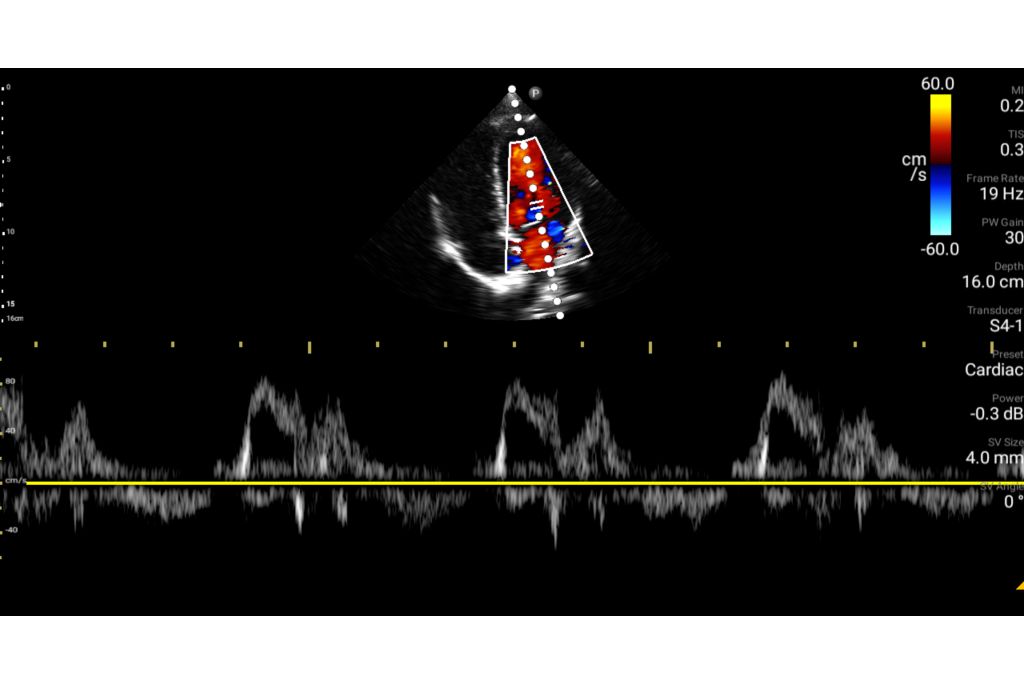

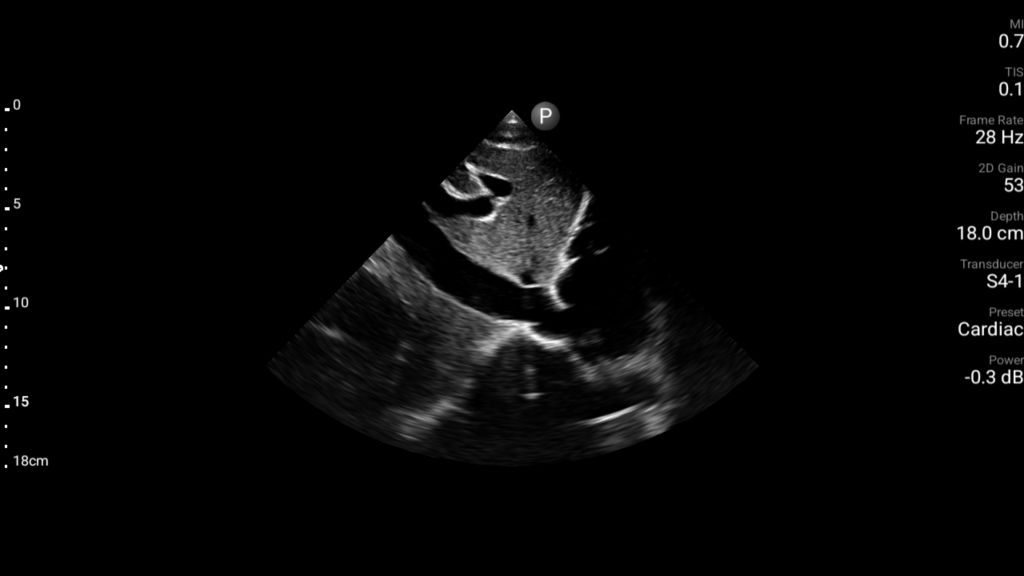

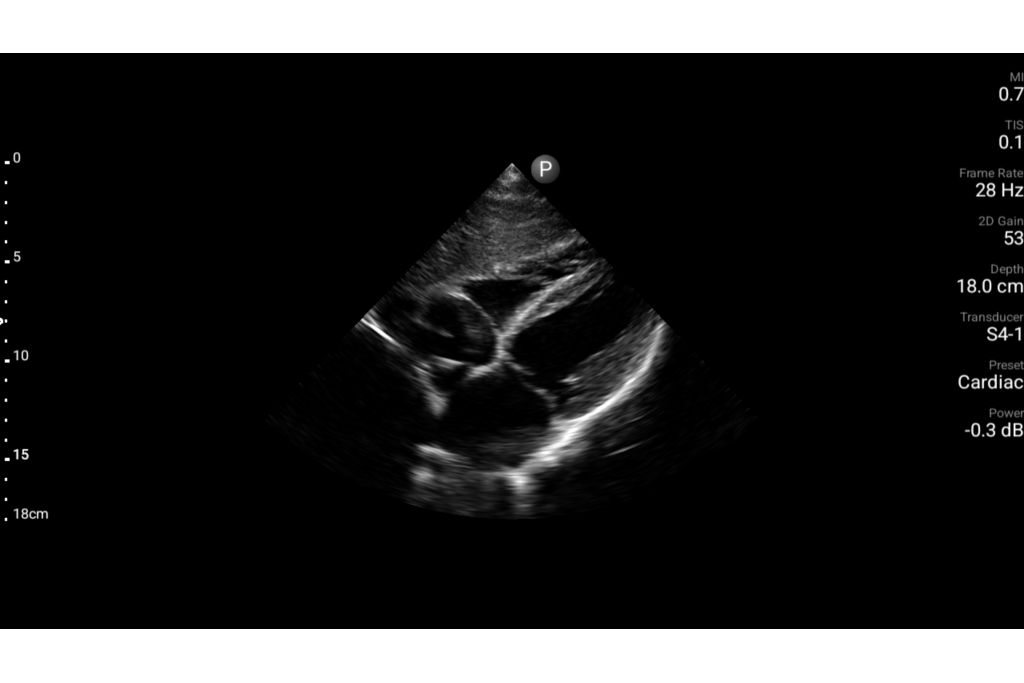

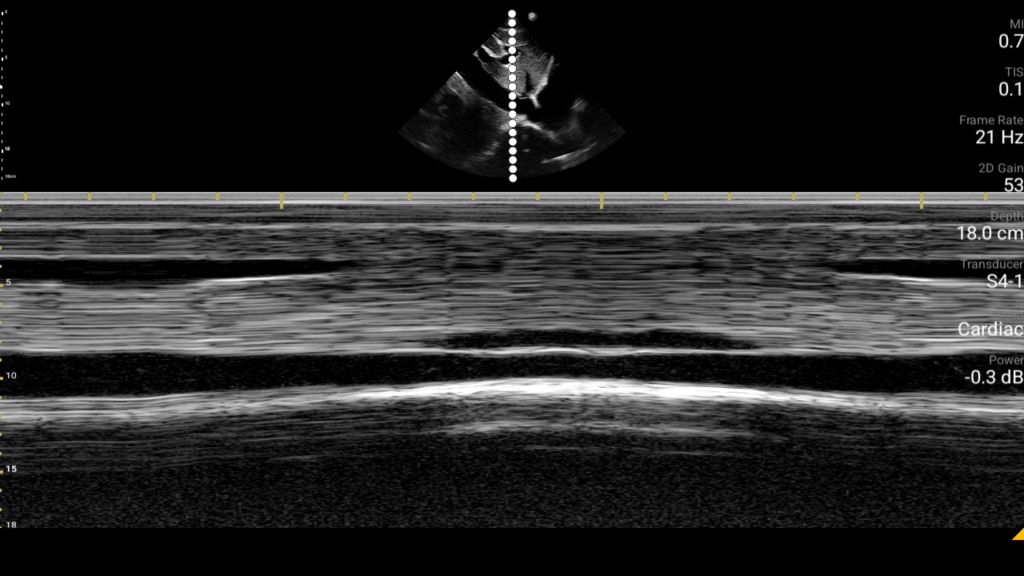

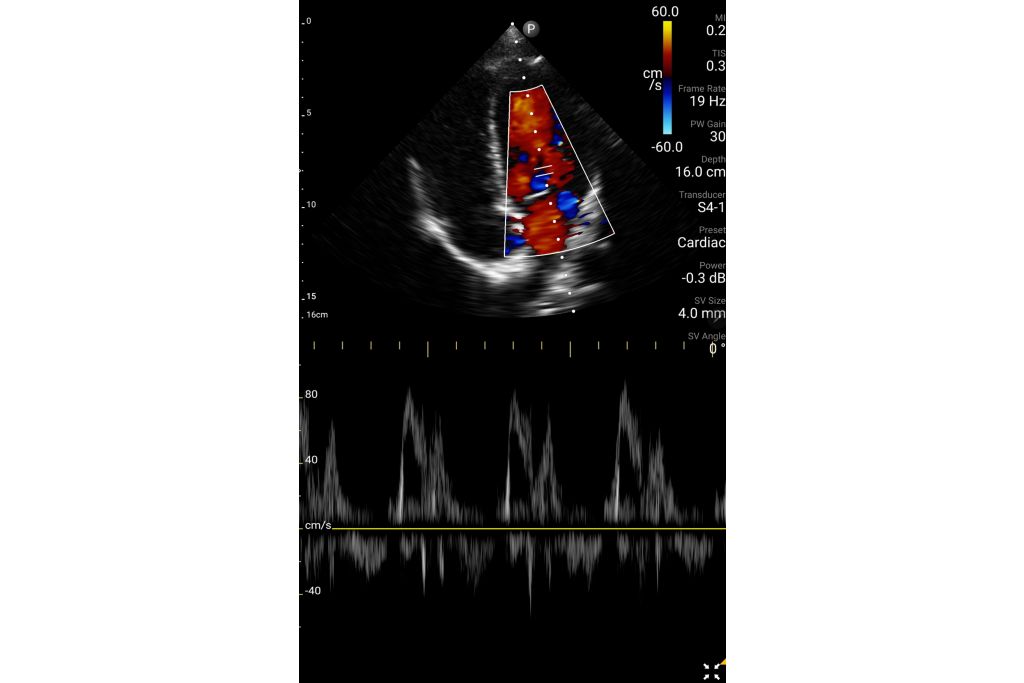

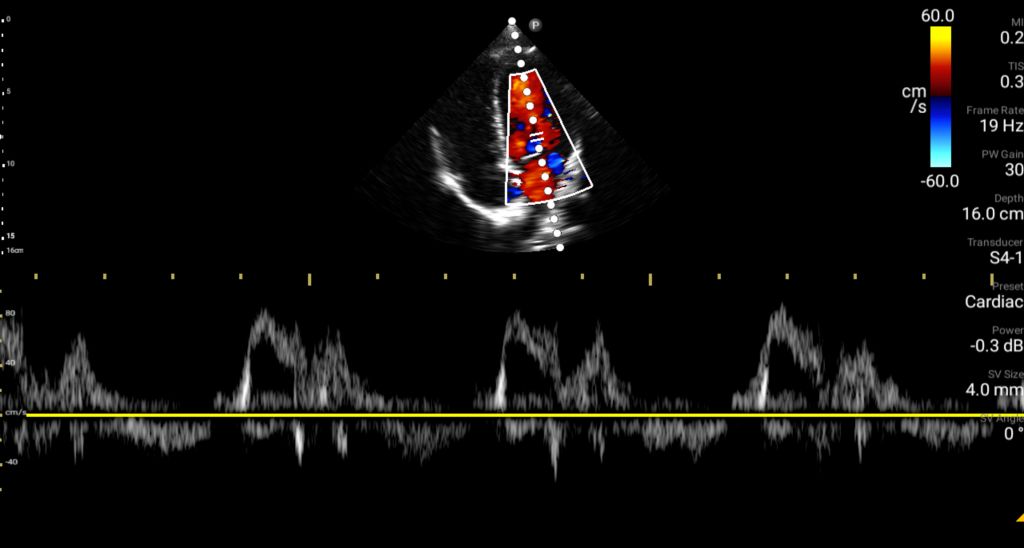

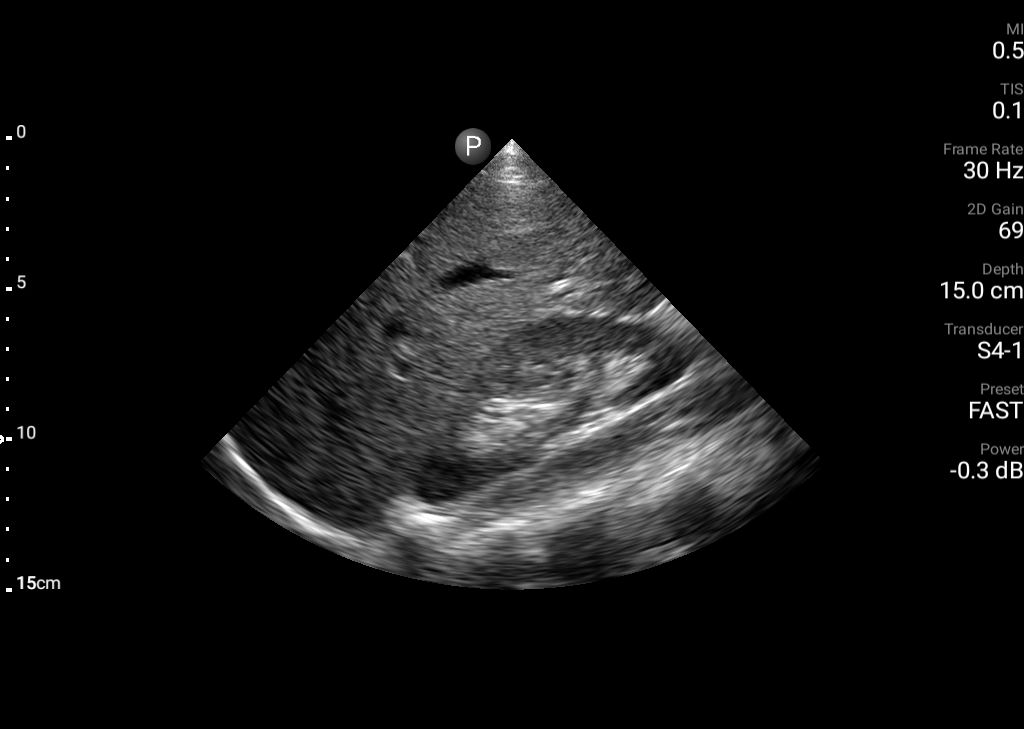

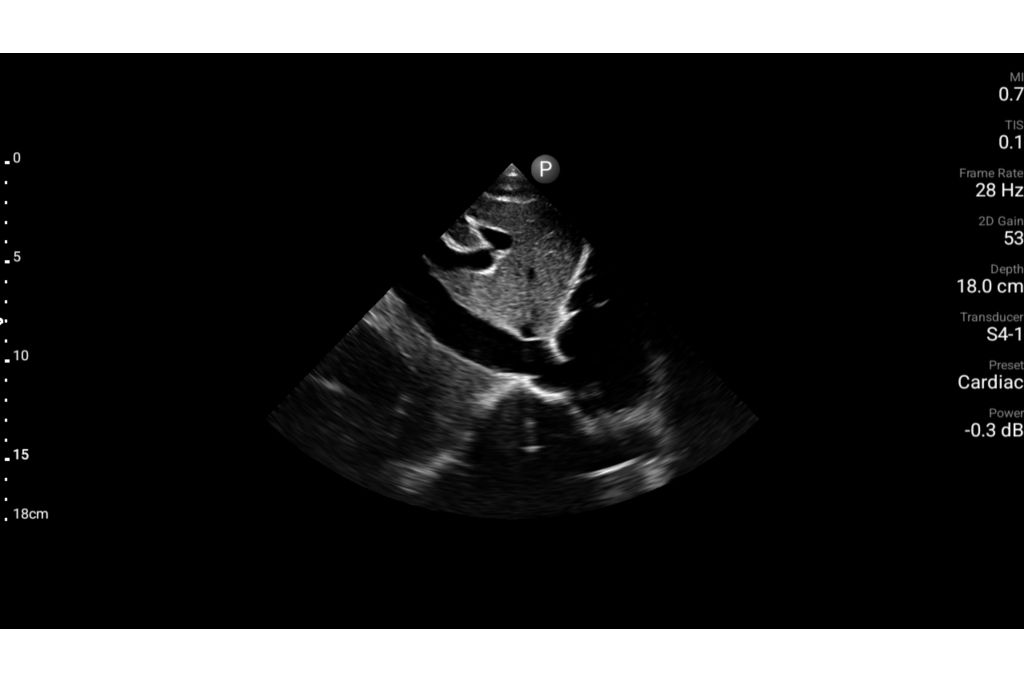

Clinical image gallery

Features
Lumify is ready when you are.
With up to 7.5 hours of continuous scanning capabilities, it offers ongoing clarity in the most urgent situations.
Continuous Scanning:
Built for versatility.
Lumify features a detachable cable that offers the flexibility to replace damaged cables, and keep up with ever-evolving digital devices.
Future-proof Cable:
Ergonomic transducers.
Weighing less than 136 grams, Lumify’s battery-free transducers give you lightweight control for ease-of-use and the ultimate advantage in portability.
Lightweight Portability:


Specifications
  • Specifications
    Field of view
    90°
    Applications
    Abdomen, Cardiac, FAST, Lung, OB/GYN
    Bandwidth
    4-1 MHz
    Footprint
    25.5mm
    Scan depth
    Up to 30 cm
    Imaging features
    • 2D, Pulsed Wave and color Doppler, M-mode, advanced xRes,
    • multivariate harmonic imaging and B-line detection in lung imaging
  • Specifications
    Aperture
    21
    Biopsy capable
    Yes
  • Contains in the box
    Outright Lumify purchase includes:
    Carry case, Manual
