Tempus ALS Monitor/Defibrillator

Tempus ALS

Monitor/Defibrillator

Find similar products

The Tempus ALS¹ is a modern approach to prehospital monitoring and defibrillation. The Tempus Pro monitor and Tempus LS-Manual defibrillator³ work together to create a powerful, trustworthy solution that empowers caregivers to focus on the patient, unburdened by their equipment.

Contact us
Features
Flexible range of parameters
Powerful, flexible monitoring and resuscitation

Powerful, flexible monitoring and resuscitation

With its user-friendly layout, the lightweight (7 lbs) Tempus Pro monitor provides a range of monitoring parameters including: 12-lead ECG to monitor, arrhythmia, ST elevation and QT segment with alarms, capnography, noninvasive blood pressure, Masimo rainbowᵀᴹ SETᵀᴹ options, up to four lines of invasive pressure, and up to two lines of temperature². Tempus LS-Manual is small enough (4.4 lbs)to be stored in a first-in bag.
Universal standards
Flexibility to grow with you

Flexibility to grow with you

The Tempus ALS was designed with growth in mind to accommodate your needs and budget. By adopting universal technology standards and connectors, the Tempus ALS is built to grow with you as your needs evolve. USB and wireless interfaces allow expanded monitoring and diagnostics to include video laryngoscopy and ultrasound without adding additional standalone devices.
Multiple communication protocols
Wired or wireless connections

Wired or wireless connections

Proprietary communication technologies mean data can be stored, viewed and shared in multiple ways. And extra features, such as the customizable summary record of care, can be integrated into an ePCR, shared via email or exported to a USB – meaning that you can get the data you need, how you need it.
Quick, basic ultrasound
Ultrasound and vascular exams

Ultrasound and vascular exams

An optional plug-in transducer (3.5 MHz for general purpose or 7.5 MHz for line placement or vascular exams) can extend the capabilities of the Tempus Pro platform to include ultrasound for basic field assessment. Create FAST exam reports (transmitted in real time or post-event) for automatic inclusion in the record of care.⁵

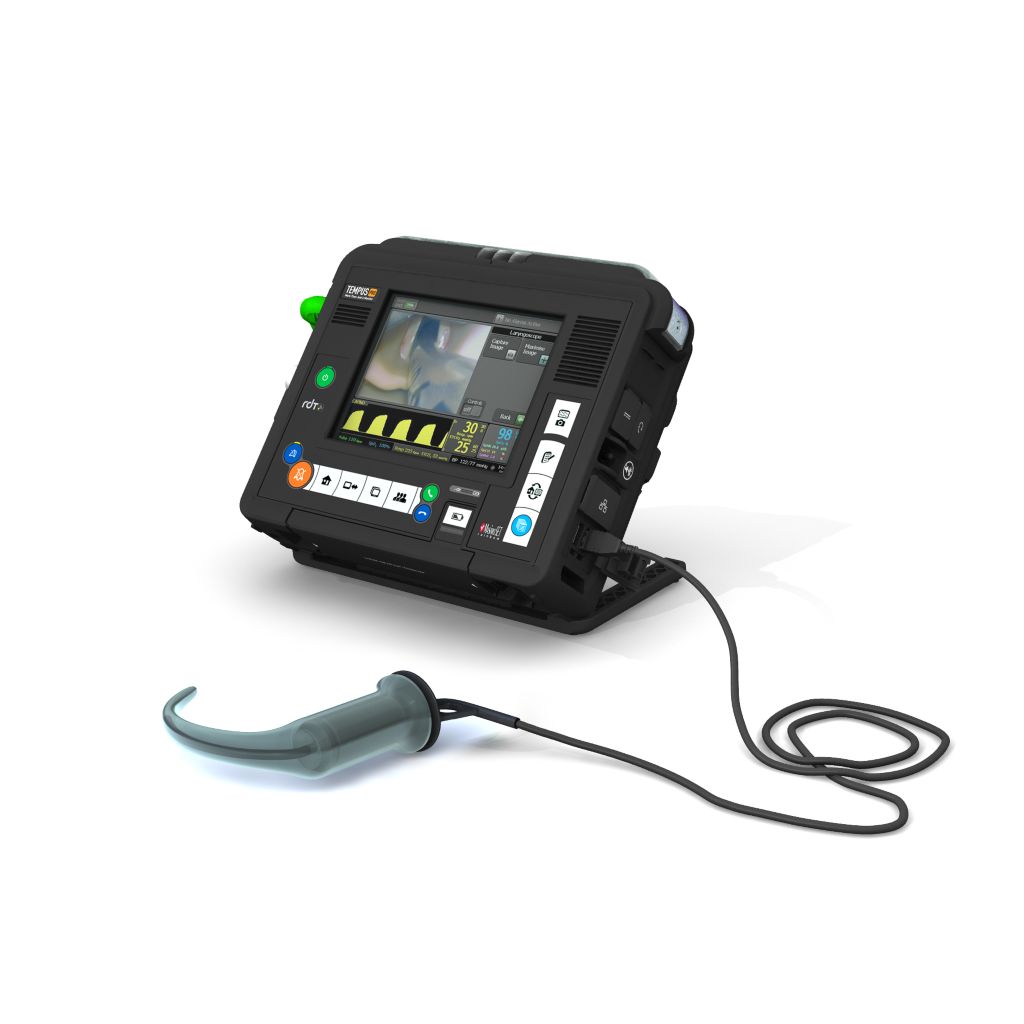

Laryngoscopy support
Video laryngoscopy on site

Video laryngoscopy on site

An optional plug-in Karl Storz-C-MAC® video laryngoscope imager offers video laryngoscopy support during airway management. Disposable Macintosh and D-Blades allow visualization of laryngoscope images on the Tempus Pro display, capturing still images for transmission to the patient record. View vitals, including capnography and SpO₂, while intubating the patient.
Power in a small package
Ready to use when you need it

Ready to use when you need it

The Tempus Pro Li-ion battery allows at least 10 hours and 45 minutes of use with the display brightness at 60%. Rated at IP66, you can take it where you need it, even in challenging conditions. And with both wired and wireless connections (Cat5, Wi-Fi, 3G and Bluetooth), you can count on secure, real-time data transmission even when communications are poor.⁶

Specifications

Physical characteristics
Physical characteristics
Weight
  • 4 lbs
Physical dimensions
Physical dimensions
Tempus Pro size
  • Standalone size: 10.3" wide x 8.5" high x 3.9" deep
Tempus Pro weight
  • Standalone weight (printer version): 7 lbs. with battery (without accessories)
Tempus LS-Manual size
  • Standalone size: 7.9" wide x 6.5" high x 2.8" deep (excluding rear clip)
Tempus LS-Manual weight
  • Standalone weight: 4.3 lbs. with battery (without accessories)
Control interface
Control interface
Event button
  • Quickly add drugs, fluids, therapies and interventions to the patent record
Tempus LS-Manual interface
  • Clearly labeled buttons
Tempus Pro alarms
Tempus Pro alarms
Alarms
  • Adjustable <lt/>= 85 dBA at 1 m
Alarm indicator
  • 360° alarm visible indicator lights
User configurable
  • Visual and audible alarms
Display
Display
Format
  • User-selectable display formats
Modes
  • High-contrast, NVG compatible
Tempus Pro
  • Color 6.5" 640x480 pixels, 130 klux daylight readable display
Tempus LS-Manual
  • Color 5.7", 640x480 pixels
On-screen trends & events
On-screen trends & events
Graphical and tabular format
  • All vital signs parameters
Records
  • Summary record of care of drugs, fluids, therapies and interventions
Battery and power
Battery and power
Tempus Pro operating time⁴
  • Min 10.75 hours (display brightness=60%) or min 11.5 hrs (display brightness = 30%)⁵
Tempus LS-Manual monitoring time
  • Greater than 12 hours ECG monitoring from a fully charged battery
Tempus LS-Manual operating time
  • At least 300 shocks at 200 J from fully charged battery
Tempus LS-Manual and Pro battery type
  • Rechargeable, user-replaceable lithium-ion battery

Documentation

Brochure (2)

Brochure

Specification (1)

Specification

  • ¹ Tempus ALS is a modular monitor/defibrillator system consisting of Tempus Pro monitor and Tempus LS-Manual defibrillator.
  • ² Optional, additional feature.
  • ³ Tempus LS-Manual (manual mode only) is 510(k) cleared. Tempus LS (AED & manual mode) is not available for sale in the US
  • ⁴ Test done without printing
  • ⁵ With ECG, Sp02, EtCO2, temperature (x2) and NBP every 15 minutes and display active 50% of the time; max 14 hours with battery saving mode activated
  • ⁶ Reliable data transmission (EDS) data is streamed automatically during the initial assessment and transport of the patient using Enhanced Data Service (EDS) protocol. EDS is designed to ensure effective data transfer even when the underlying connectivity.
  • ⁷ Depending on network availability, there may be a 2-3 second delay between display of the data on the Tempus Pro and display of the same data on IntelliSpace Corsium
  • C-MAC is the property of Karl Storz
  • Bluetooth is licensed by the Blu etooth SIG.
  • Masimo rainbowᵀᴹ SET®, PVI®, SpHb®, SpMet®, SpCO® and SpOCᵀᴹ are the property of Masimo Inc.
  • Oridion and Microstream are trademarks of Medtronic.
