5-Leadset, DIN-to-tab adapter, Limb IEC
Lead Set
HC989803192191ECG

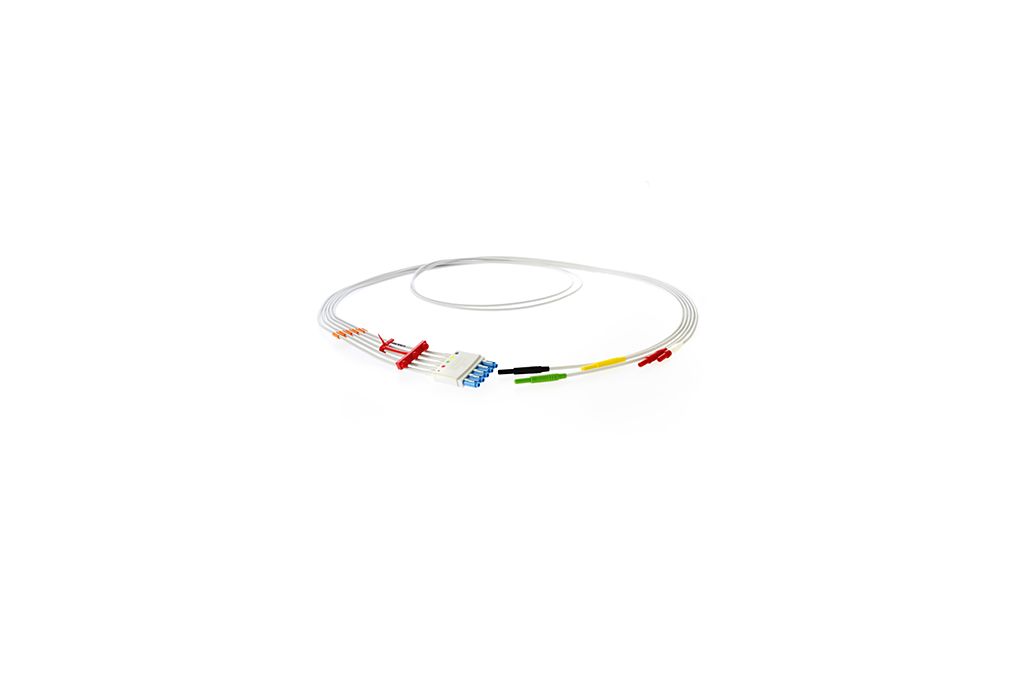

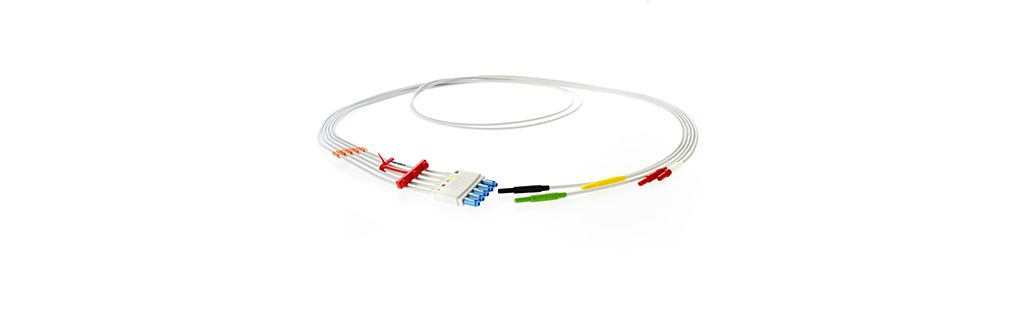

  • Standard product photograph

5-Leadset, DIN-to-tab adapter, Limb IEC

Lead Set
HC989803192191ECG
5 Lead Set Safety DIN 42802 IEC, Limb. Mono color wires with full color coded Din connectors. Packaged 1 set per bag. Cable length: (2x 1,6m (5,3 ft), 3x 1m (3,3ft). For use with adapters 989803193821 and trunk cables M1668A or M1663A and M1949A

Specifications
  • Product details
    Product Category
    ECG
    Patient Application
    Child; Adult
    Application Site
    Limb
    Lead Set Length
    1.0 m/1.6m
    Product Type
    Lead Set
    Number of Leads
    5
    Shielded
    Yes
    Electrode Attachment Method
    DIN
    Color Coding
    IEC
    Single-Patient Use OR Multi-Patient Use
    Multi-Patient Use
    Latex-free
    Yes
    Sterile or Non-Sterile
    Non-Sterile
    Minimum Shelf Life
    None
    Packaging Unit
    1
    CE Certified
    Yes
    Use with Philips medical instruments
    M3001A, M3001AL, M3002A, M8102A, M8105A

Documentation

User Manual Philips 5-Leadset, DIN-to-tab adapter, Limb IEC Lead Set
PDF|3.59 MB
