Visions PV .014P RX

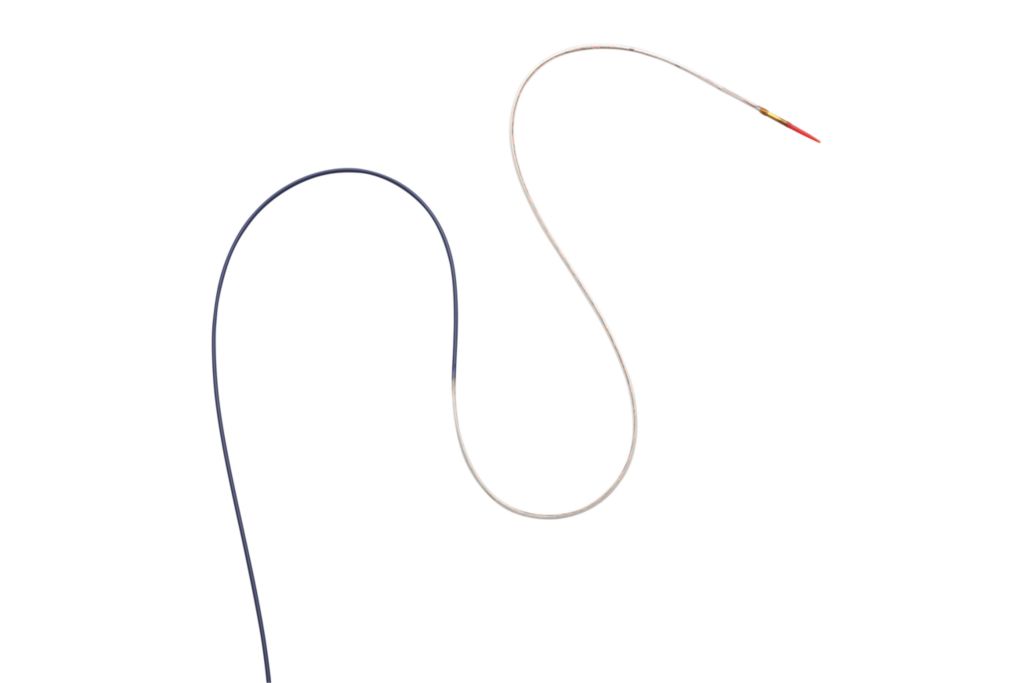

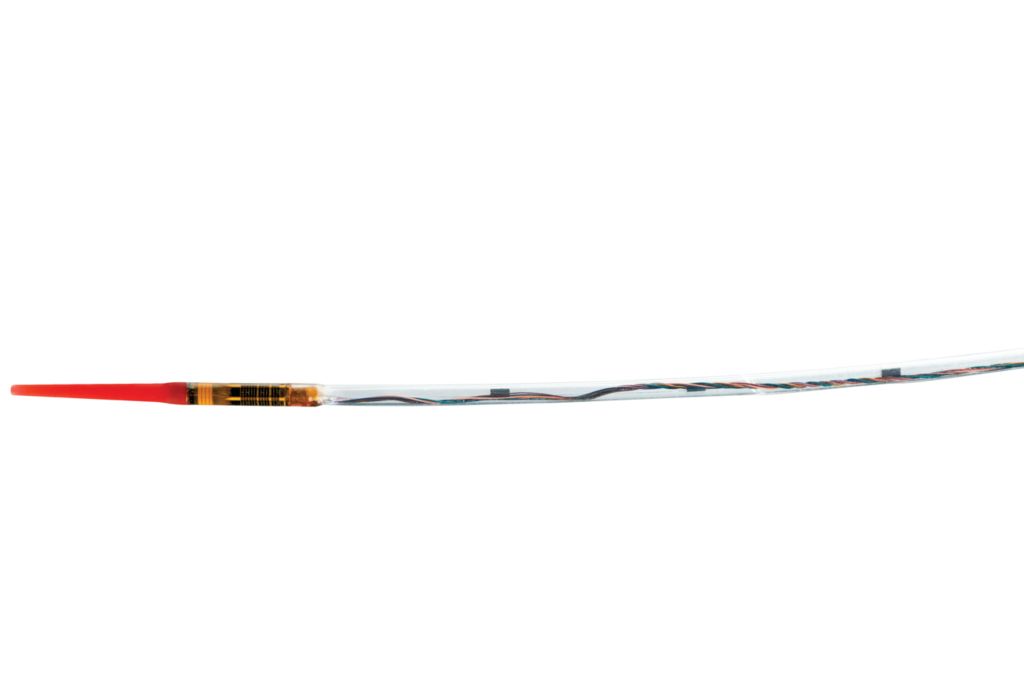

  • Product detail photograph
  • Product detail photograph
  • Product detail photograph

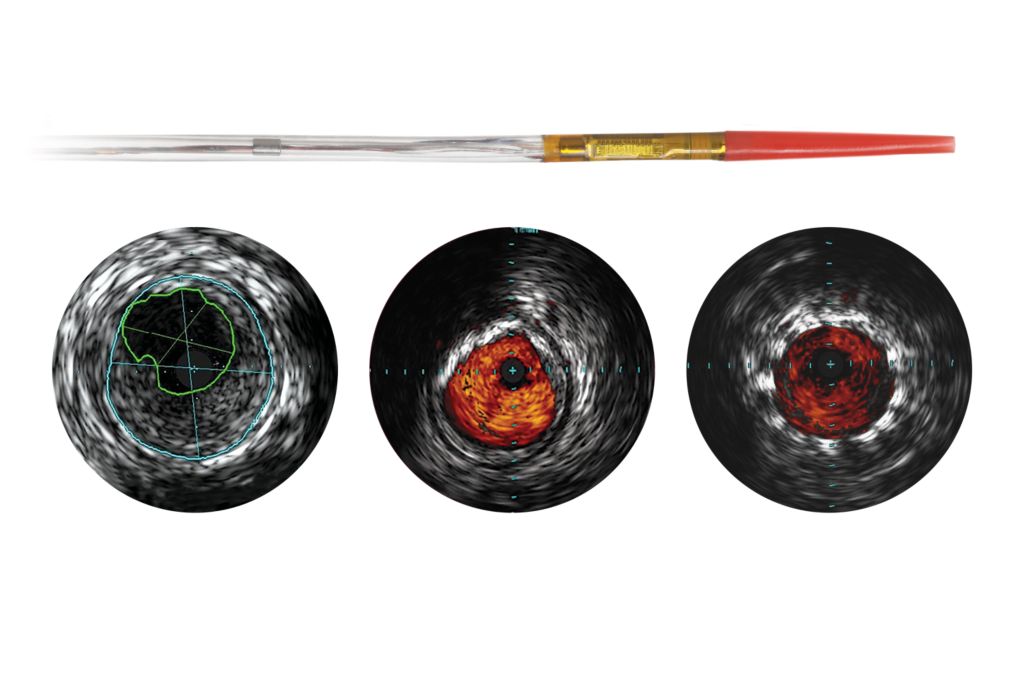

  • Standard Product Photo Philips Volcano Visions PV .014P RX Digital IVUS catheter

Visions PV .014P RX

The Visions PV .014P RX digital IVUS catheter has a 55% stiffer shaft than Eagle Eye Platinum and PV .014P digital IVUS catheters to facilitate greater pushability while preserving the equivalent level of trackability.¹ IVUS provides detailed and accurate assessment of lumen size, vessel size, plaque morphology and key anatomical landmarks.

Clinical image gallery

Features

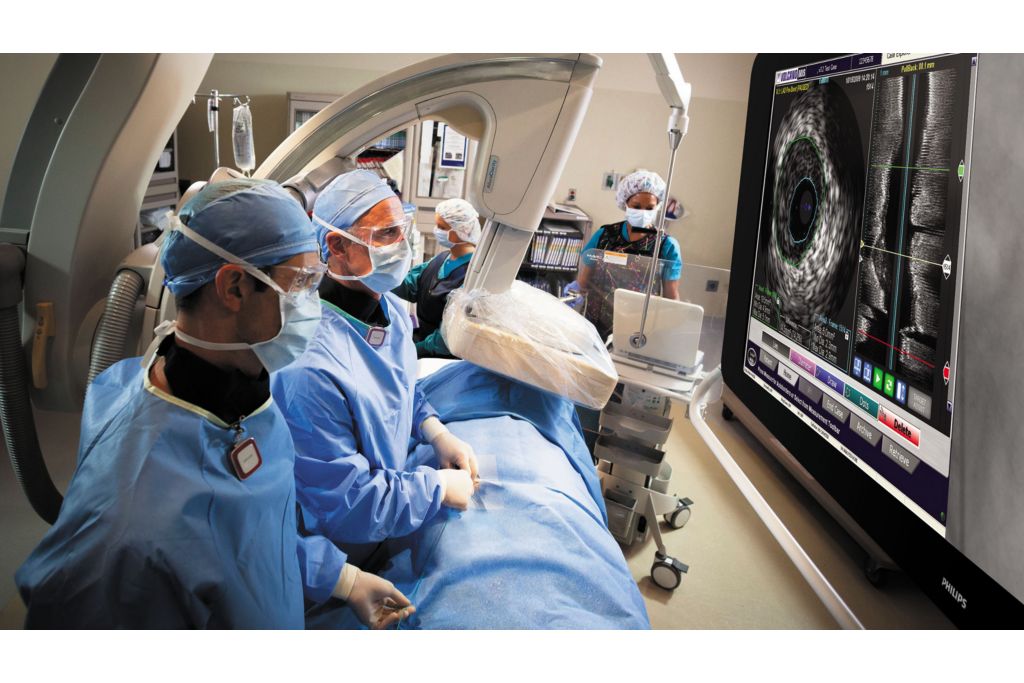

Helps confirm treatment results
IVUS imaging helps to confirm treatment results, including the completeness of treatment, the apposition and expansion of stent placement, and whether or not the patient requires a thrombolytic drip. ChromaFlo imaging, for example, can be used to show evidence of stent apposition by illustrating the absence of flow.
Helps confirm treatment results

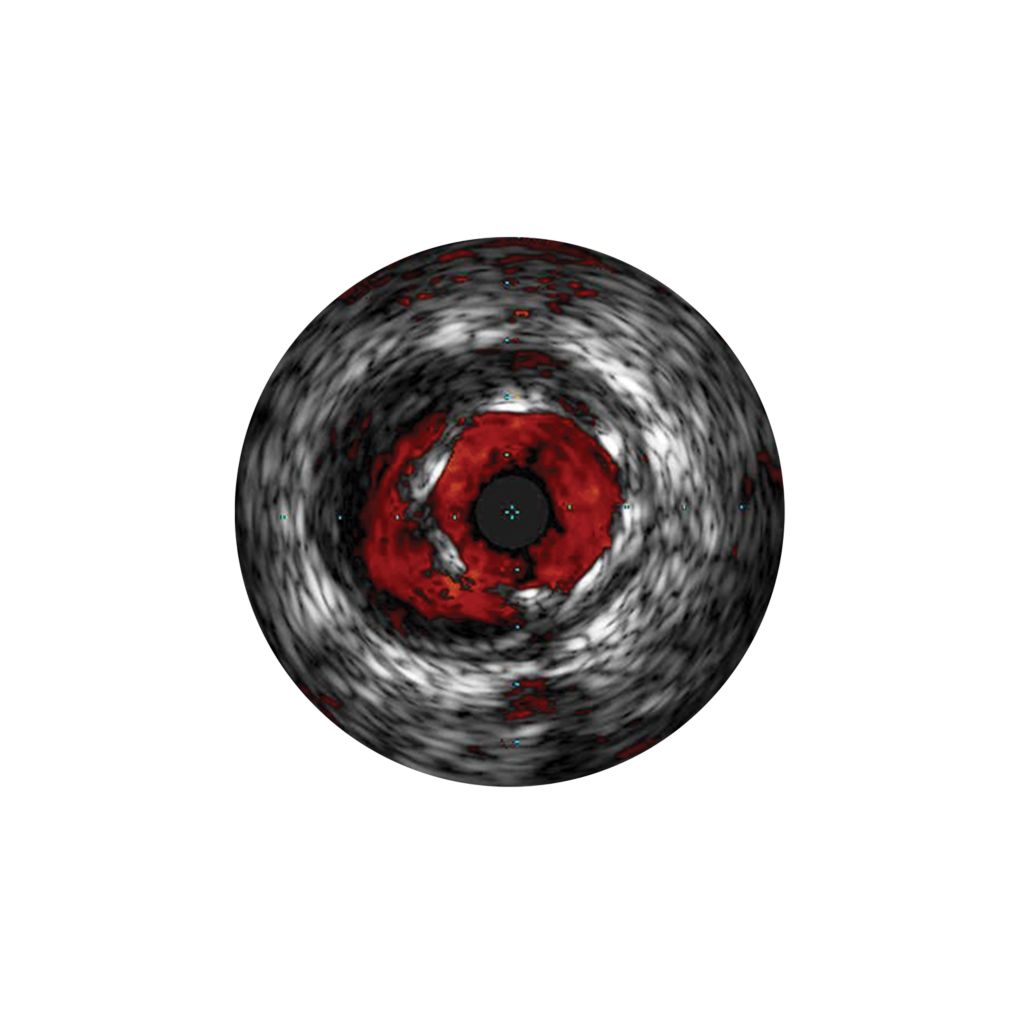

ChromaFlo stent apposition assessment
ChromaFlo highlights blood flow red for easy assessment of stent apposition, lumen size, and more. Appropriate for peripheral and coronary vessels, including left main, bifurcations, superficial femoral artery, and iliac. It is designed to make lumen size and stent apposition instantly recognizable and helps identify branches, dissections, and plaque in bifurcations.
ChromaFlo stent apposition assessment

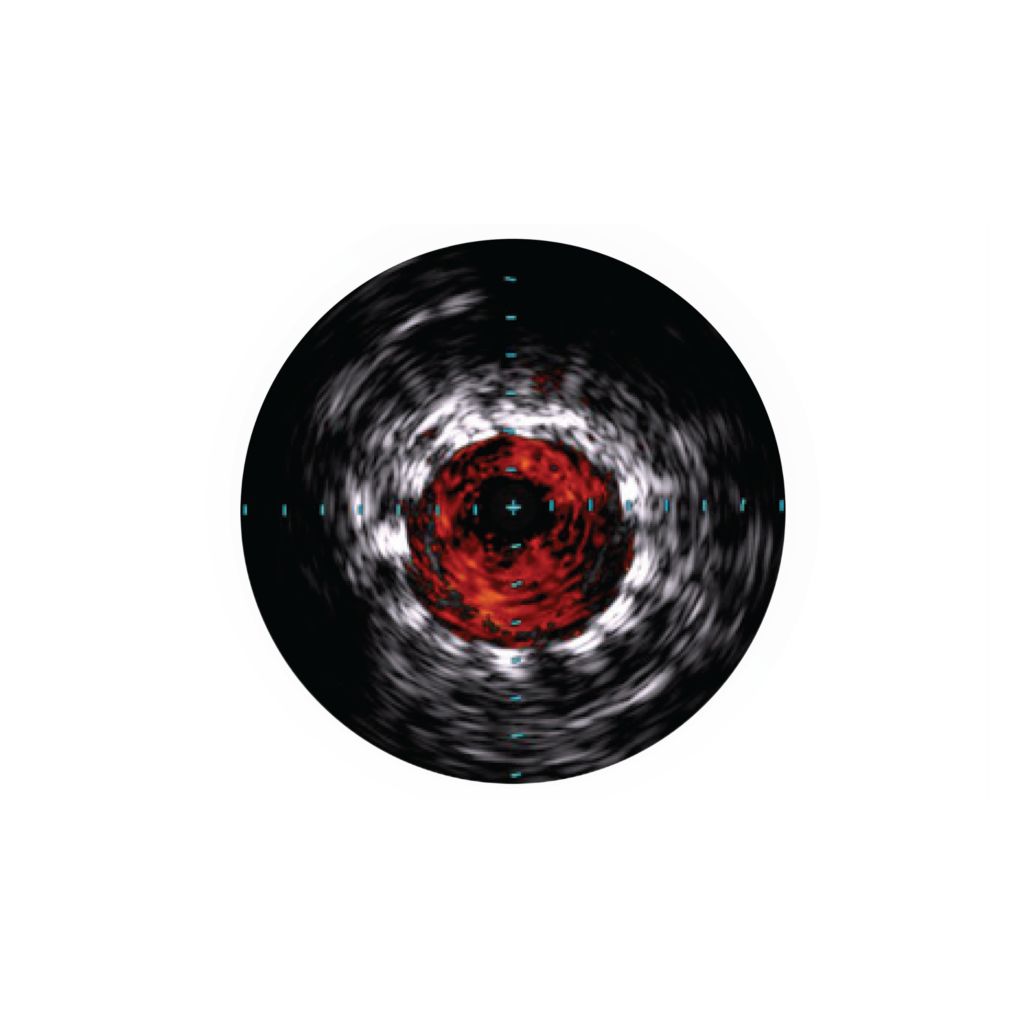

IVUS helps with disease assessment
IVUS imaging helps physicians assess disease markers, including plaque burden percentage, lesion location and morphology, calcium volume, and the presence of thrombus. It also provides analysis of crucial parameters—like luminal cross-sectional measurements—and aids in disease diagnosis.
IVUS helps with disease assessment

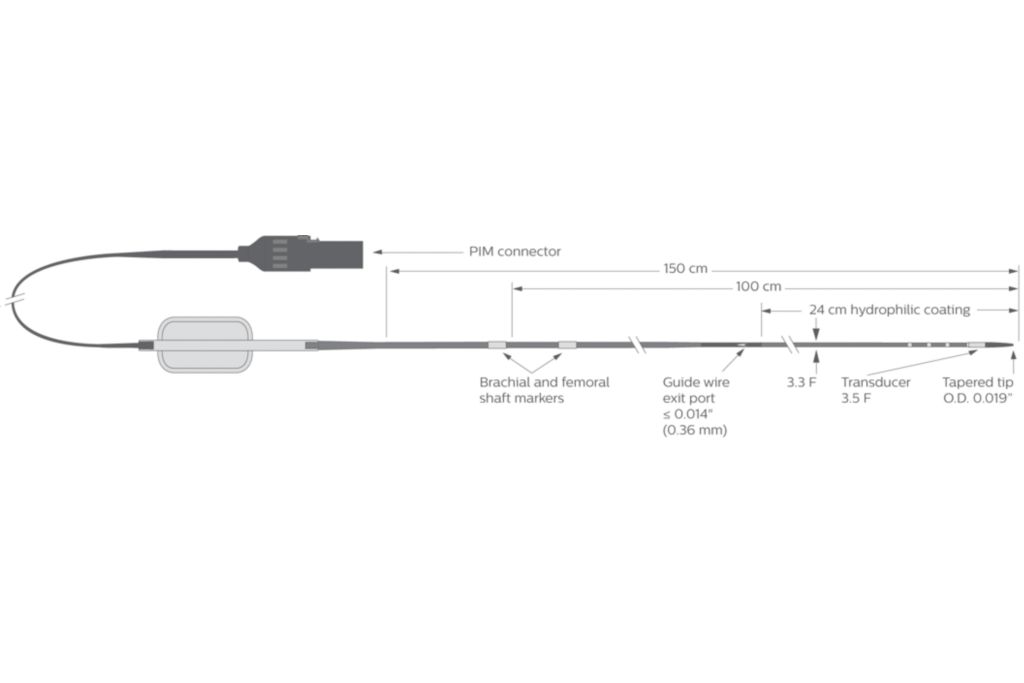

Specifications
  • Technical Specifications
    Minimum guide catheter
    5 F (I.D. ≥ .056”)
    Maximum guide wire
    0.014”
    Maximum imaging diameter
    20 mm
    Working length
    150 cm
    Frequency
    20 MHz

Documentation

Vision PV .014P RX Digital IVUS catheter product brochure
PDF|1.02 MB

Related products

  • Visions PV .018  Digital IVUS catheter
    As an adjunct to conventional angiographic interventions, the Visions PV .018 digital IVUS catheter evaluates vascular morphology in blood vessels and provides cross-sectional imaging of these vessels. With a 135 cm working length and 24 mm max imaging diameter for 0.018” guide wire interventional procedures, the device aids in peripheral artery disease diagnosis and guides clinicians toward the correct therapy for the patient’s unique needs.
  • Visions PV .035 Digital IVUS catheter
    As an adjunct to conventional angiographic interventions, the Visions PV .035 digital IVUS catheter evaluates vascular morphology in blood vessels and provides cross-sectional imaging of these vessels. With a 90 cm length and 60 mm max imaging diameter for 0.035” guide wire interventional procedures, the device aids in peripheral artery disease diagnosis and venous disease and guides clinicians toward the correct therapy for the patient’s unique needs.
Disclaimer
1. Data on file
2. Nair A, Margolis M, Kuban B, Vince D. Automated Coronary Plaque Characterisation with Intravascular Ultrasound Backscatter: Ex Vivo Validation. EuroIntervention. 2007; 3: 113-120
* Safety and effectiveness of VH IVUS for use in the characterization of vascular lesions and tissue types has not been established
Product availability is subject to country regulatory clearance. Please contact your local sales representative to check the availability in your country.
