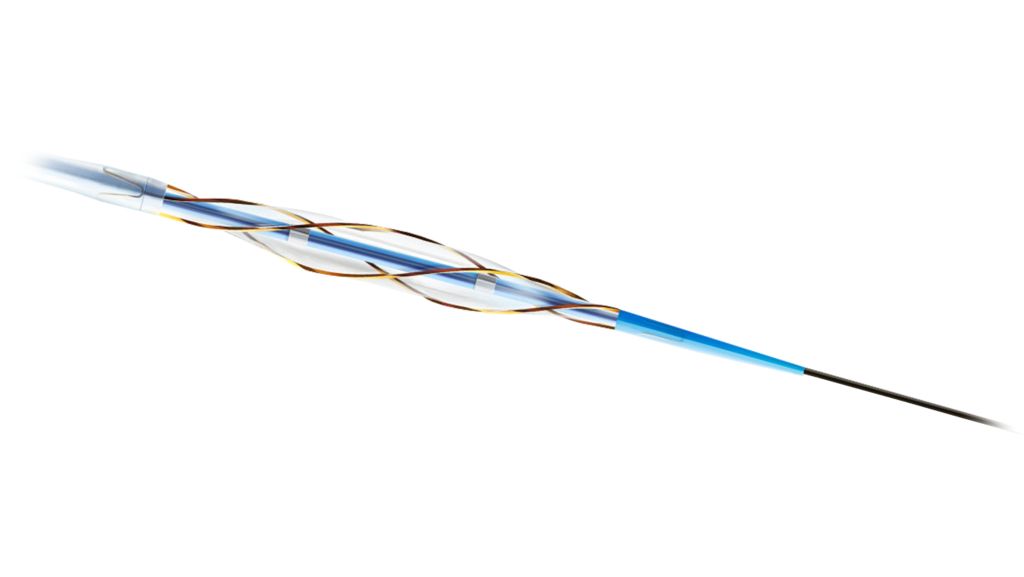

AngioSculpt RX PTCA Scoring balloon catheter

AngioSculpt RX PTCA

Scoring balloon catheter

Find similar products

AngioSculpt RX PTCA scoring balloon catheter significantly alters the landscape for treating CAD, offering the advanced performance that only an innovative clinical solution can provide. The AngioSculpt RX PTCA scoring balloon catheter is the only specialty scoring device indicated for ISR and complex type-C lesions.

Contact us
  • 1. Mooney M, Teirstein P, Moses J et al. Final results from the U.S. multi-center trial of the AngioSculpt Scoring Balloon Catheter for the treatment of complex coronary artery lesions. Am J Cardiol. 2006;98(8 suppl):121M
  • 2. AngioSculpt Test Plan ST-1197 (2008), on file at AngioScore, Inc.
  • 3. Fonseca A, Costa JR, Abizaid A, et al. Intravascular ultrasound assessment of the novel AngioSculpt Scoring Balloon Catheter for the treatment of complex coronary lesions. J Invasive Cardiol. 2008;20:21-27.
  • AngioSculpt PTCA important safety information
  • The AngioSculpt scoring balloon catheter is indicated for use in the treatment of hemodynamically significant coronary artery stenosis, including in-stent restenosis and complex type C lesions, for the purpose of improving myocardial perfusion.
  • The AngioSculpt catheter should not be used for coronary artery lesions unsuitable for treatment by percutaneous revascularization, and coronary artery spasm in the absence of a significant stenosis.
  • Possible adverse effects include, but are not limited to: death; heart attack (acute myocardial infarction); total occlusion of the treated artery; coronary artery dissection, perforation, rupture, or injury; pericardial tamponade; no/slow reflow of treated vessel; emergency coronary artery bypass (CABG); emergency percutaneous coronary intervention; CVA/stroke; pseudoaneurysm; restenosis of the dilated vessel; unstable chest pain (angina); thromboembolism or retained device components; irregular heart rhythm (arrhythmias, including life-threatening ventricular arrhythmias); severe low (hypotension)/high (hypertension) blood pressure; coronary artery spasm; hemorrhage or hematoma; need for blood transfusion; surgical repair or vascular access site; creation of a pathway for blood flow between the artery and the vein in the groin (arteriovenous fistula); drug reactions, allergic reactions to x-ray dye (contrast medium); and infection.
  • This information is not intended to replace a discussion with your healthcare provider on the benefits and risks of this procedure to you.
  • Caution: Federal law restricts the devices referenced on this site to sale by or on the order of a physician.
Features
Advanced molded, tapered tip
Advanced molded, tapered tip

Advanced molded, tapered tip

New tip designed for improved delivery.
Precision: Edges locked in
Precision: Edges locked in

Precision: Edges locked in

Achieve proper placement as AngioSculpt's rectangular scoring edges lock the device in place. AngioSculpt has minimal device slippage or “watermelon seeding,” even in ISR.¹
Power: ~15 – 25x scoring force
Power: ~15 – 25x scoring force

Power: ~15 – 25x scoring force

AngioSculpt RX PTCA has an enhanced mechanical advantage. The leading edges are designed to drive outward expansion with up to 15–25 times the force of conventional balloons.² The helical nitinol scoring element creates a large luminal expansion for stent implantation.³
Safety: ~1x force post-scoring
Safety: ~1x force post-scoring

Safety: ~1x force post-scoring

Get predictable results with AngioSculpt RX PTCA. Post-scoring, outward forces are designed to be equivalent to that of a conventional balloon. AngioSculpt RX PTCA has a low dissection rate of 13.6% (majority were non-flow limiting).¹

Specifications

Model number 2200-2006
Model number 2200-2006
Balloon diameter
  • 2 mm
Balloon length
  • 6 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F
Model number 2200-2010
Model number 2200-2010
Balloon diameter
  • 2 mm
Balloon length
  • 10 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F
Model number 2200-2015
Model number 2200-2015
Balloon diameter
  • 2 mm
Balloon length
  • 15 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F
Model number 2200-2506
Model number 2200-2506
Balloon diameter
  • 2.5 mm
Balloon length
  • 6 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F
Model number 2200-2510
Model number 2200-2510
Balloon diameter
  • 2.5 mm
Balloon length
  • 10 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F
Model number 2200-2515
Model number 2200-2515
Balloon diameter
  • 2.5 mm
Balloon length
  • 15 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014in
Guide catheter compatibility
  • 6F
Model number 2200-3006
Model number 2200-3006
Balloon diameter
  • 3 mm
Balloon length
  • 6 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F
Model number 2200-3010
Model number 2200-3010
Balloon diameter
  • 3 mm
Balloon length
  • 10 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F
Model number 2200-3015
Model number 2200-3015
Balloon diameter
  • 3 mm
Balloon length
  • 15 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F
Model number 2200-3506
Model number 2200-3506
Balloon diameter
  • 3.5 mm
Balloon length
  • 6 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F
Model number 2200-3510
Model number 2200-3510
Balloon diameter
  • 3.5 mm
Balloon length
  • 10 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F
Model number 2200-3515
Model number 2200-3515
Balloon diameter
  • 3.5 mm
Balloon length
  • 15 mm
Catheter length
  • 137 cm
Guidewire compatibility
  • 0.014 in
Guide catheter compatibility
  • 6F

Documentation

Brochure (1)

Brochure

  • 1. Mooney M, Teirstein P, Moses J et al. Final results from the U.S. multi-center trial of the AngioSculpt Scoring Balloon Catheter for the treatment of complex coronary artery lesions. Am J Cardiol. 2006;98(8 suppl):121M
  • 2. AngioSculpt Test Plan ST-1197 (2008), on file at AngioScore, Inc.
  • 3. Fonseca A, Costa JR, Abizaid A, et al. Intravascular ultrasound assessment of the novel AngioSculpt Scoring Balloon Catheter for the treatment of complex coronary lesions. J Invasive Cardiol. 2008;20:21-27.
  • AngioSculpt PTCA important safety information
  • The AngioSculpt scoring balloon catheter is indicated for use in the treatment of hemodynamically significant coronary artery stenosis, including in-stent restenosis and complex type C lesions, for the purpose of improving myocardial perfusion.
  • The AngioSculpt catheter should not be used for coronary artery lesions unsuitable for treatment by percutaneous revascularization, and coronary artery spasm in the absence of a significant stenosis.
  • Possible adverse effects include, but are not limited to: death; heart attack (acute myocardial infarction); total occlusion of the treated artery; coronary artery dissection, perforation, rupture, or injury; pericardial tamponade; no/slow reflow of treated vessel; emergency coronary artery bypass (CABG); emergency percutaneous coronary intervention; CVA/stroke; pseudoaneurysm; restenosis of the dilated vessel; unstable chest pain (angina); thromboembolism or retained device components; irregular heart rhythm (arrhythmias, including life-threatening ventricular arrhythmias); severe low (hypotension)/high (hypertension) blood pressure; coronary artery spasm; hemorrhage or hematoma; need for blood transfusion; surgical repair or vascular access site; creation of a pathway for blood flow between the artery and the vein in the groin (arteriovenous fistula); drug reactions, allergic reactions to x-ray dye (contrast medium); and infection.
  • This information is not intended to replace a discussion with your healthcare provider on the benefits and risks of this procedure to you.
  • Caution: Federal law restricts the devices referenced on this site to sale by or on the order of a physician.
