Quick-Cross Extreme
Support catheter
Quick-Cross Extreme
Support catheter
Designed to support the most extreme cases, the Quick-Cross Extreme support catheter platform has a new level of strength. The stainless steel braid provides enhanced strength, torque and pushability. It includes three evenly spaced radiopaque markers assisting in the assessment of lesion geometry and enabling confirmation of catheter positioning.
Stainless steel braid
Three, evenly spaced radiopaque markers
Hydrophilic coating
Features

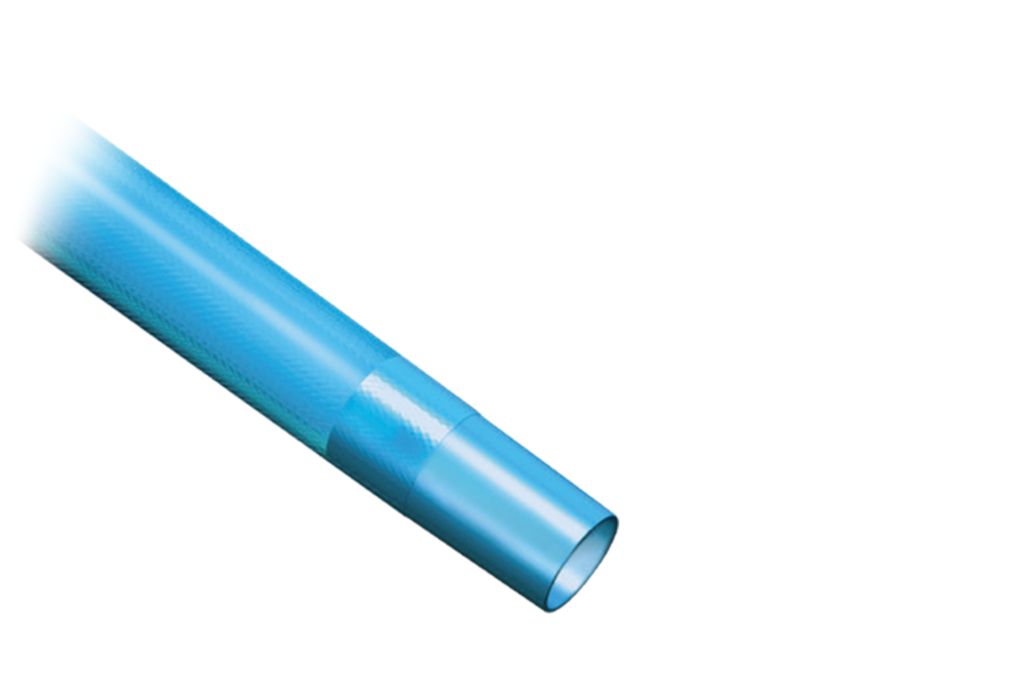

Stainless steel braid
Provides additional strength, torque and pushability.
Three radiopaque markers
Distinct radiopaque markers confirm catheter positioning.
Hydrophilic coating
Hydrophilic coating for smooth tracking.
Specifications
- Model number 518-084
- Distal tip profile
- 1.9F / 0.025"
- Distal shaft outer diameter
- 0.034"
- Working length
- 135 cm
- Guidewire compatibility
- 0.014"
- Guide compatibility
- 5F
- Sheath compatibility
- 4F
- Proximal shaft diameter
- 0.042"
- Radiopaque marker spacing
- 15 mm
- Model number 518-086
- Distal tip profile
- 1.9F / 0.025"
- Distal shaft outer diameter
- 0.034"
- Working length
- 150 cm
- Guidewire compatibility
- 0.014"
- Guide compatibility
- 5F
- Sheath compatibility
- 4F
- Proximal shaft diameter
- 0.042"
- Radiopaque marker spacing
- 15 mm
- Model number 518-088
- Distal tip profile
- 2.1F / 0.028"
- Distal shaft outer diameter
- 0.038"
- Working length
- 90 cm
- Guidewire compatibility
- 0.018"
- Guide compatibility
- 5F
- Sheath compatibility
- 4F
- Proximal shaft diameter
- 0.044"
- Radiopaque marker spacing
- 15 mm
- Model number 518-090
- Distal tip profile
- 2.1F / 0.028"
- Distal shaft outer diameter
- 0.038"
- Working length
- 135 cm
- Guidewire compatibility
- 0.018"
- Guide compatibility
- 5F
- Sheath compatibility
- 4F
- Proximal shaft diameter
- 0.044"
- Radiopaque marker spacing
- 15mm
- Model number 518-092
- Distal tip profile
- 2.1F / 0.028"
- Distal shaft outer diameter
- 0.038"
- Working length
- 150 cm
- Guidewire compatibility
- 0.018"
- Guide compatibility
- 5F
- Sheath compatibility
- 4F
- Proximal shaft diameter
- 0.044"
- Radiopaque marker spacing
- 15 mm
- Model number 518-076
- Distal tip profile
- 3.2F / 0.042"
- Distal shaft outer diameter
- 0.052"
- Working length
- 65 cm
- Guidewire compatibility
- 0.035"
- Guide compatibility
- N/A
- Sheath compatibility
- 5F
- Proximal shaft diameter
- 0.059"
- Radiopaque marker spacing
- 50 mm
- Model number 518-078
- Distal tip profile
- 3.2F / 0.042"
- Distal shaft outer diameter
- 0.052”
- Working length
- 90 cm
- Guidewire compatibility
- 0.035"
- Guide compatibility
- N/A
- Sheath compatibility
- 5F
- Proximal shaft diameter
- 0.059"
- Radiopaque marker spacing
- 50 mm
- Model number 518-080
- Distal tip profile
- 3.2F / 0.042"
- Distal shaft outer diameter
- 0.052"
- Working length
- 135 cm
- Guidewire compatibility
- 0.035"
- Guide compatibility
- N/A
- Sheath compatibility
- 5F
- Proximal shaft diameter
- 0.059"
- Radiopaque marker spacing
- 50 mm
- Model number 518-082
- Distal tip profile
- 3.2F / 0.042"
- Distal shaft outer diameter
- 0.052"
- Working length
- 150 cm
- Guidewire compatibility
- 0.035"
- Guide compatibility
- N/A
- Sheath compatibility
- 5F
- Proximal shaft diameter
- 0.059"
- Radiopaque marker spacing
- 50 mm
