Radiotranslucent Socket Leadwires ECG grabber IEC/AAMI, radiolucent
Lead Set
HCM1649AECG

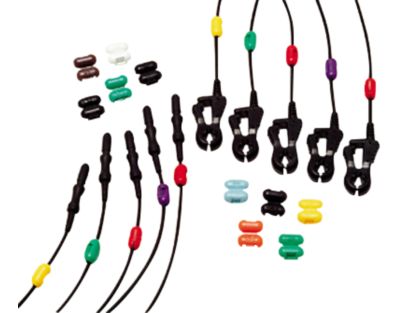

  • Standard product photograph

Radiotranslucent Socket Leadwires ECG grabber IEC/AAMI, radiolucent

Lead Set
HCM1649AECG
Unshielded black 5 lead set with safety grabber connectors. Grabber termination, radiolucent, 5 individual wires. AAMI and IEC color coding for 3 and 5 lead monitoring with Philips CMS trunk cables: M1668A and M1669A. Packaged with 5 individual wires.

Specifications
  • ECG Lead Set
    Patient Application
    Neonate; Child; Adult
    Application Site
    Limb
    Lead Set Length
    1.4 m (4.6')
    Number of Leads
    5
    Shielded
    No
    Electrode Attachment Method
    Grabber
    Color Coding
    AAMI/IEC
  • Product details
    Use with Non-Philips Healthcare Equipment
    No
    Use with Philips Healthcare Equipment
    862231, 862439, 862108, M2601B, M3002A, M8102A, M8105A
    Product Category
    ECG
    Product Type
    Lead Set
    CE Certified
    Yes
    Single-Patient Use OR Multi-Patient Use
    Multi-Patient Use
    Package Weight
    .150
    Not manufactured with natural rubber latex
    Yes
    Packaging Unit
    1 lead set
    Sterile OR Non-Sterile
    Non-Sterile
    Minimum Shelf Life
    None
    Use with Other Supplies
    M1663A; M1949A

Documentation

Enhancing ECG quality application note
PDF|312.73 KB
