6+4 lead ECG trunk AAMI/IEC 2.7m, Patient cable sets
Trunk Cable
HCM1665AECG

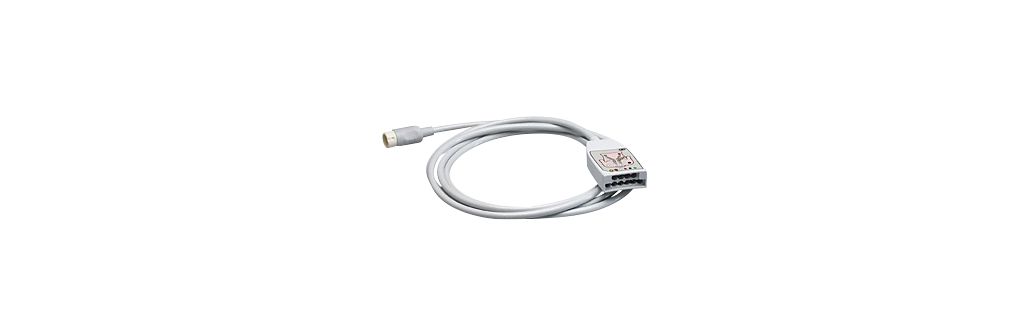

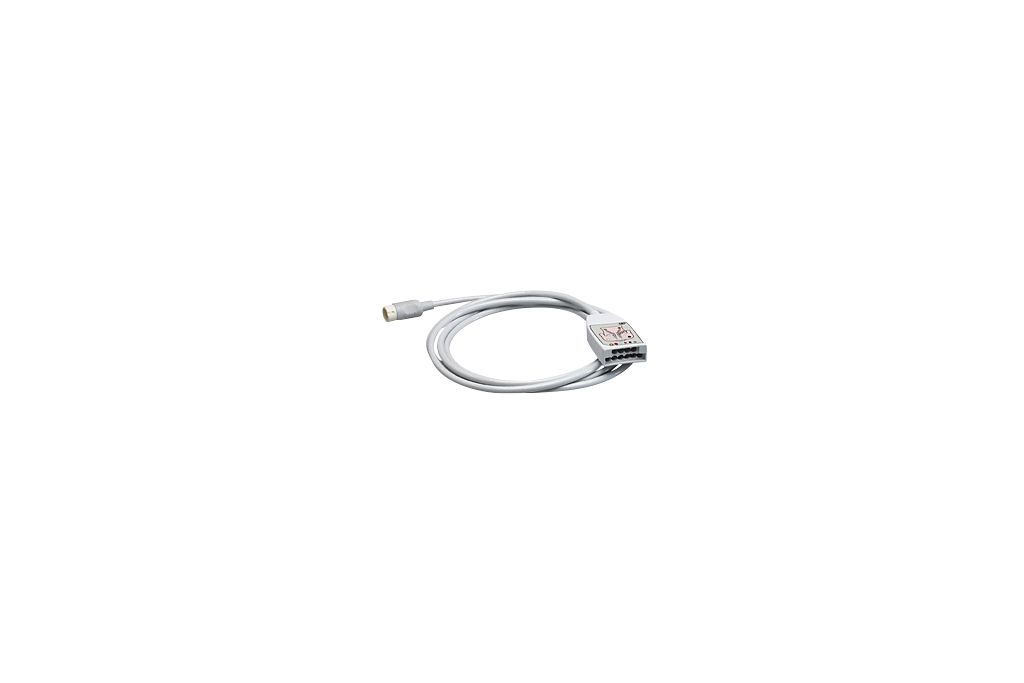

  • Standard product photograph

6+4 lead ECG trunk AAMI/IEC 2.7m, Patient cable sets

Trunk Cable
HCM1665AECG
6+4 (10 lead) lead ECG trunk cable, AAMI/IEC 2.7m with 12-pin ECG input connector for connection to 6 lead telemetry lead set to IntelliVue patient monitor. Trunk can be used for either color code system. 1 trunk cable per bag. Cable length = 2.7m (9ft.). Use with led sets: M1680A, M1532A, M1682A, M1537A, M1684A, M1557A, M1681A, M1533A, M1683A, M1538A, M1685A, M1558A. AAMI and IEC labels included.

Specifications
  • ECG Trunk Cable
    Cable Length
    2.7 m (8.9')
    Number of Leads
    6+4
    Shielded
    Yes
    Number of Pins
    12-Pin
    Color Coding
    AAMI/IEC
  • Product details
    Use with Philips Healthcare Equipment
    M3000A, M3001A/C12, M3001A/C18, M3002A/C12, M8102A/C12, M8105A/C12
    Product Category
    ECG
    Use with Non-Philips Healthcare Equipment
    No
    Product Type
    Trunk Cable
    CE Certified
    Yes
    Single-Patient Use OR Multi-Patient Use
    Multi-Patient Use
    Package Weight
    .250
    Not manufactured with natural rubber latex
    Yes
    Packaging Unit
    1 cable
    Sterile OR Non-Sterile
    Non-Sterile
    Minimum Shelf Life
    None
    Use with Other Supplies
    M1680A; M1532A; M1682A; M1537A; M1684A; M1557A; M1681A; M1533A; M1683A; M1538A; M1685A; M1558A

Documentation

Enhancing ECG quality application note
PDF|312.73 KB
Disclaimer
Product may not be available in all geographies, please check with your Philips representative for complete portfolio availability.
