3 lead ECG Trunk AAMI/IEC 2.7m AAMI/IEC 2.7m
Trunk Cable
HCM1669AECG

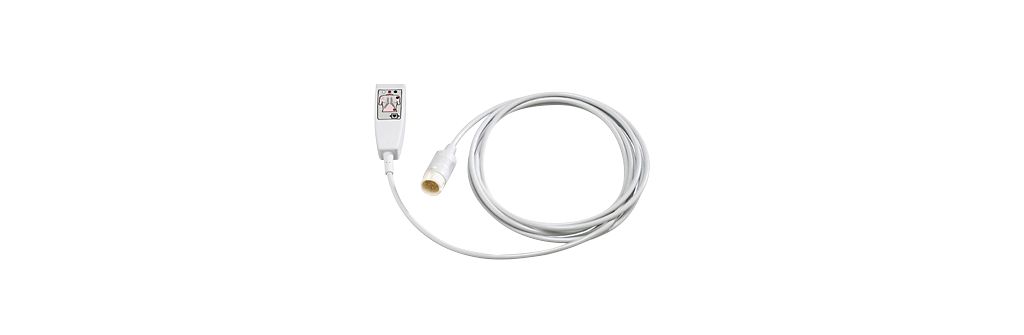

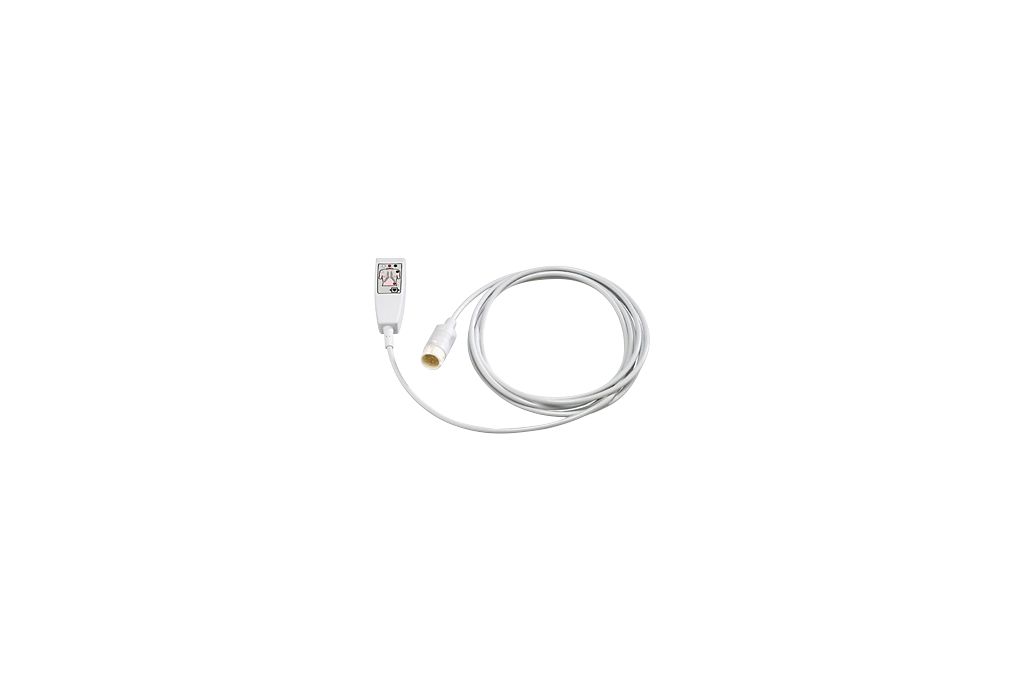

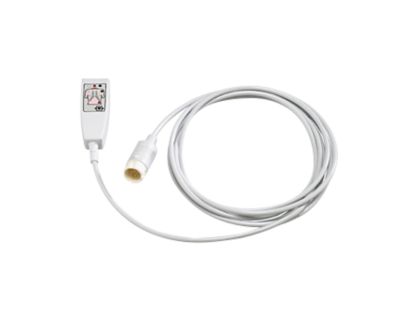

  • Alternative product photograph
  • Standard product photograph

3 lead ECG Trunk AAMI/IEC 2.7m AAMI/IEC 2.7m

Trunk Cable
HCM1669AECG
3 lead ECG patient shielded trunk cable, AAMI/IEC 2.7m with 12-pin ECG input connector, for connection to 3 lead telemetry lead set to IntelliVue patient monitor. Trunk can be used for either color code system. 1 trunk cable per bag. Cable length = 2.7m (9 ft.). Replaces older trunk cables: M1500A, M1510A, M1540C, M1550C, M1560C, M1570C. Use with new lead sets: M1671A, M1672A, M1673A, M1674A, M1675A, M1678A, M1622A, M1624A, M1678A, M1626A. AAMI and IEC labels included.

Specifications
  • ECG Trunk Cable
    Cable Length
    2.7 m (8.9')
    Number of Leads
    3
    Shielded
    Yes
    Number of Pins
    12-Pin
    Color Coding
    AAMI/IEC
  • Product details
    Product Category
    ECG
    Use with Philips Healthcare Equipment
    M1001A, M1001B, M1002B, M3000A, M3001A, M3002A, M8105A, M8102A, M4735A, M3535A, M3536A, M3536M, 863063, 863064, 863065, 863066, 863068, 863077, M4735A
    Use with Non-Philips Healthcare Equipment
    No
    Product Type
    Trunk Cable
    CE Certified
    Yes
    Single-Patient Use OR Multi-Patient Use
    Multi-Patient Use
    Package Weight
    .200
    Not manufactured with natural rubber latex
    Yes
    Packaging Unit
    1 pack = 1 cable
    Sterile OR Non-Sterile
    Non-Sterile
    Minimum Shelf Life
    None
    Use with Other Supplies
    M1671A; M1672A; M1673A; M1674A; M1675A; M1678A; M1622A; M1624A; M1678A; M1626A

Documentation

Enhancing ECG quality application note
PDF|312.73 KB
Disclaimer
Product may not be available in all geographies, please check with your Philips representative for complete portfolio availability.
