3 lead set Grabber AAMI OR lead set, orange-colored head
Lead Set
ECG

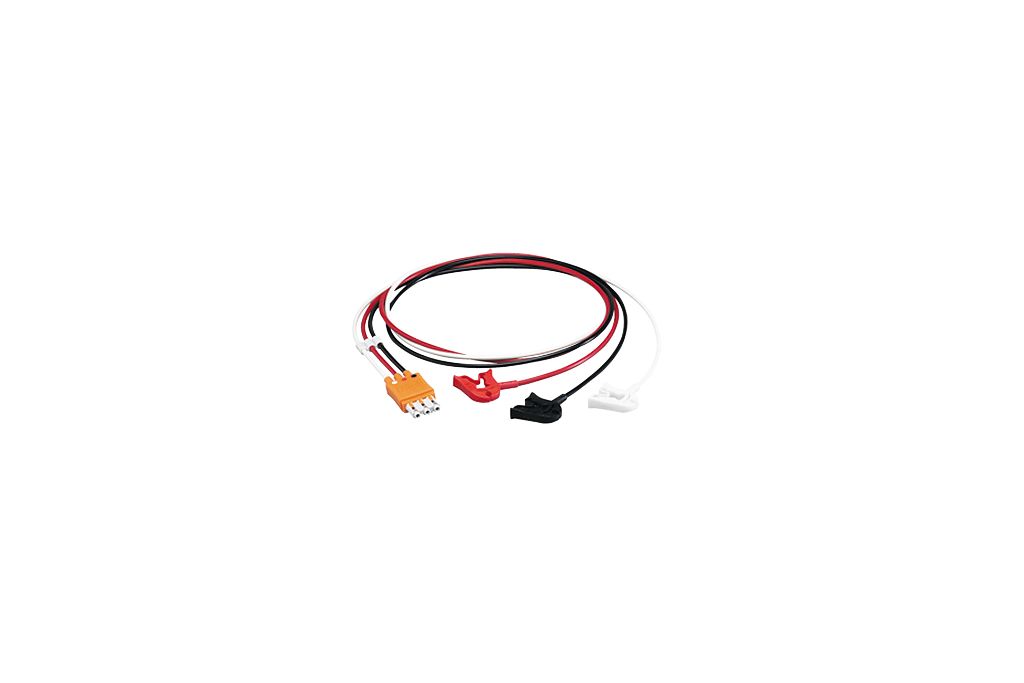

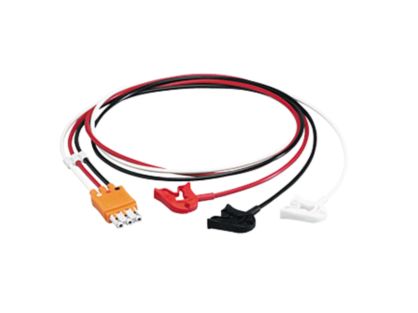

  • Standard product photograph

3 lead set Grabber AAMI OR lead set, orange-colored head

Lead Set
ECG
Grabber terminated OR lead sets have built-in ESU filters and are designed for use in the OR. Respiration cannot be measured. Full color coded wire lead set with easy to manage wires. Packaged 1 set per bag. Orange colored lead block for easy OR lead identification. Replaces old M1601A lead set. Must be used with new trunk cable designs M1668A, M1669A, M1663A, M1949A.

Specifications
  • ECG Lead Set
    Patient Application
    Child; Adult
    Application Site
    Limb
    Lead Set Length
    1.0 m (3.3')
    Number of Leads
    3
    Shielded
    Yes for Operating Room (ESU protection)
    Electrode Attachment Method
    Grabber
    Color Coding
    AAMI
  • Product details
    Use with Philips Healthcare Equipment
    M3000A, M3001A, M3002A, M8102A, M8105A, M1001B, M1002B, 863063, 863064, 863065, 863066, 863068, 863077, M3535A, M3536A, M3536M, M4735A
    Product Category
    ECG
    Use with Non-Philips Healthcare Equipment
    No
    Product Type
    Lead Set
    Single-Patient Use OR Multi-Patient Use
    Multi-Patient Use
    CE Certified
    Yes
    Package Weight
    .200
    Packaging Unit
    1 lead set
    Not manufactured with natural rubber latex
    Yes
    Sterile OR Non-Sterile
    Non-Sterile
    Minimum Shelf Life
    None
    Use with Other Supplies
    M1668A; M1669A; M1663A; M1949A

Documentation

Enhancing ECG quality application note
PDF|312.73 KB
Disclaimer
Product may not be available in all geographies, please check with your Philips representative for complete portfolio availability.
