5 lead set Grabber AAMI OR

Lead Set

Product number:

M1973A

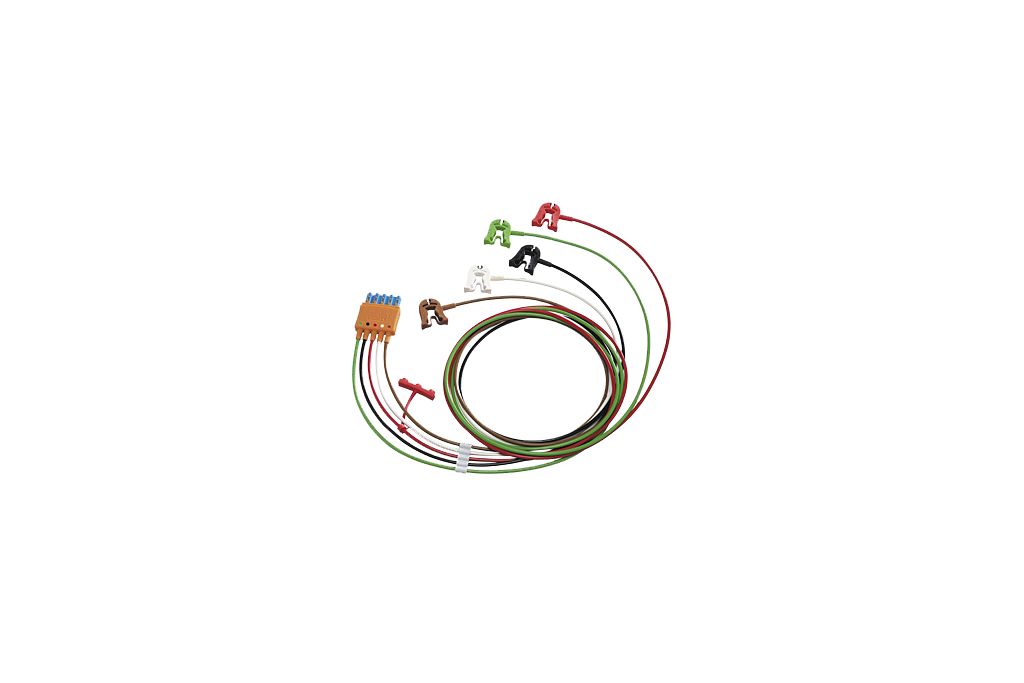

5 lead set shielded grabber AAMI OR. Full color coded wire trunk lead set with easy to manage wires, color orange. Packaged 1 set per bag. Cable length: 1.6m (5.3ft). Must be used with new trunk cable designs: M1668A, M1669A, M1663A, and M1949A. Replaces M1621A.

Contact us

Contact information

* This field is mandatory
*

Contact details

*
*
*

Company details

*
*
*
*
*

Inquiry details

By specifying your reason for contact we will be able to provide you with a better service.
*
*

What does this mean?

Specifications

Product details
Product details
Use with Non-Philips Healthcare Equipment
  • No
Product Category
  • ECG
Use with Philips Healthcare Equipment
  • M3000A, M3001A, M3002A, M8102A, M8105A, M1001B, M1002B, 863063, 863064, 863065, 863066, 863068, 863077, M3535A, M3536A, M3536M, M4735A
Product Type
  • Lead Set
CE Certified
  • Yes
Single-Patient Use OR Multi-Patient Use
  • Multi-Patient Use
Package Weight
  • .160 kg
Not manufactured with natural rubber latex
  • Yes
Packaging Unit
  • 1 pack = 1 cable
Minimum Shelf Life
  • None
Sterile OR Non-Sterile
  • Non-Sterile
Use with Other Supplies
  • M1668A; M1669A; M1663A; M1949A
ECG Lead Set
ECG Lead Set
Patient Application
  • Child; Adult
Application Site
  • Limb
Lead Set Length
  • 1.9 m (6.2')
Number of Leads
  • 5
Shielded
  • Yes for Operating Room (ESU protection)
Electrode Attachment Method
  • Grabber
Color Coding
  • AAMI
