IntelliVue MP90 Flatscreen Mounting solution

IntelliVue MP90 Flatscreen ITD Wall Mounts

Mounting solution

Find similar products

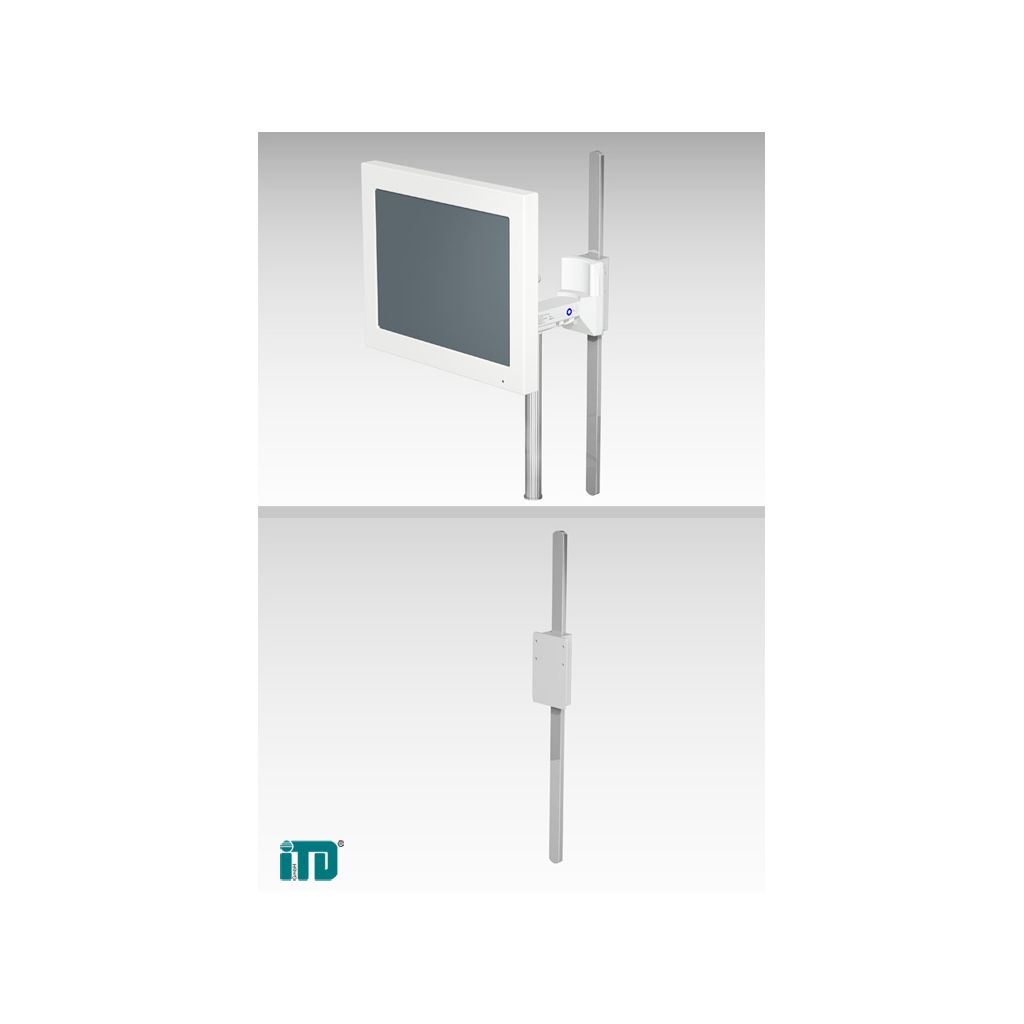

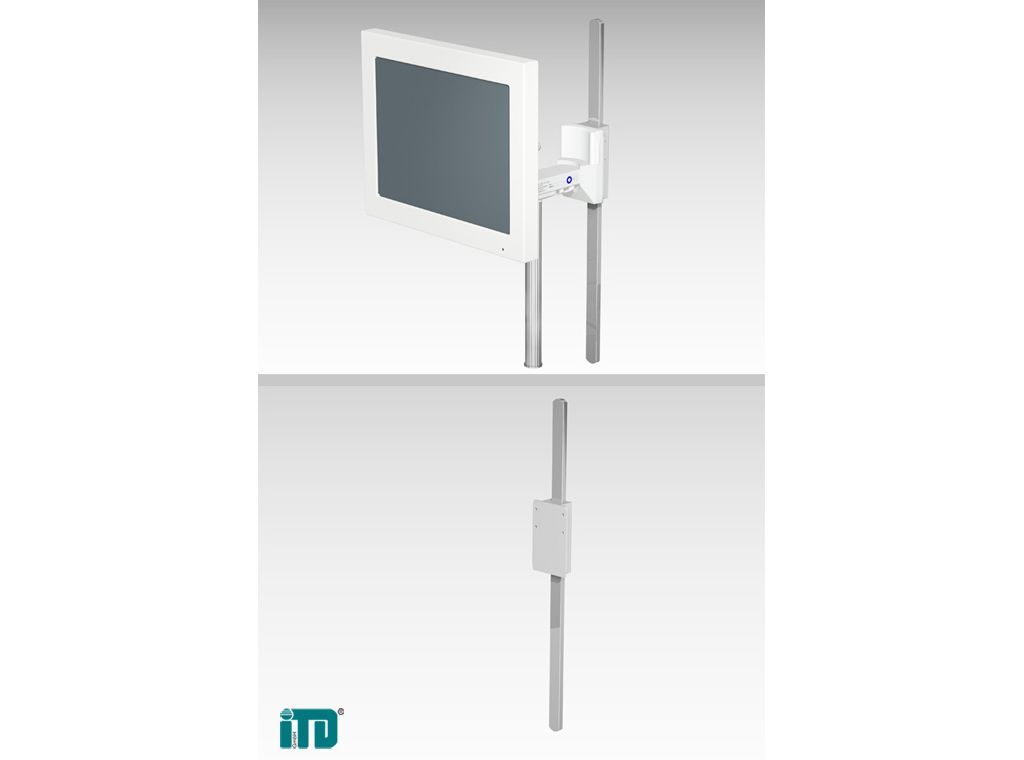

Learn more about the options available to mount the IntelliVue MP90 on a wall.

Contact us

Media Gallery

Features
Rigid arm for ITD support extrusion i... || 1
Rigid arm for ITD support extrusion

Rigid arm for ITD support extrusion

ITD part no. TS 6155.4 consists of; Adapter for ITD support extrusion; rigid arm length 188 mm; tilt and swivel adapter for flat screen; post support for external rack length 288 mm.
Single support arm for ITD support ex... || 1
Single support arm for ITD support extrusion

Single support arm for ITD support extrusion

ITD part no. TS 6178.4 consists of; adapter for ITD support extrusion; single support arm length 280 mm; tilt and swivel adapter for flat screen; post support for external rack length 288 mm (Additional information; TÜV Product Service tested / Finish: RAL 7035 light grey powder coated / Support post: aluminium natural anodized / Max. load: 35 kg / 77 lbs)
Single support arm: Mounting Kit || 1
Single support arm: Mounting Kit

Single support arm: Mounting Kit

ITD part no. TS6265.4 Kit Includes; Adapter for standard runner; support arm length 269 mm; post support for external rack; tilt and swivel adapter for flat screen (Additional information; TÜV Product Service tested / Max. load: 23 kg / 50.6 lbs / Finish: RAL 7035 light grey powder coated / Post support: aluminium natural anodized)
Gas pressure spring-jointed arm for h... || 1
Gas pressure spring-jointed arm for horizontal standard runner (ITD part no. ZV 9687.1)

Gas pressure spring-jointed arm for horizontal standard runner (ITD part no. ZV 9687.1)

ITD part no. ZV 9687.1 consists of; Adapter for horizontal standard runner; gas pressure spring-jointed arm length 300 mm; tilt and swivel adapter for flat screen; post support for external rack length 300 mm
Gas pressure spring-jointed arm for h... || 1
Gas pressure spring-jointed arm for horizontal standard runner (ITD part no. ZV 9688.1)

Gas pressure spring-jointed arm for horizontal standard runner (ITD part no. ZV 9688.1)

ITD part no. ZV 9688.1 consists of; Adapter for horizontal standard runner; gas pressure spring-jointed arm length 400 mm; tilt and swivel adapter for flat screen; post support for external rack length 300 mm (Additional information: TÜV Product Service tested / Finish: RAL 7035 light grey powder coated / Support post: aluminium natural anodized / Max. load: 15 kg / 33 lbs)
Gas pressure spring-jointed arm for I... || 1
Gas pressure spring-jointed arm for ITD support extrusion (ITD part no. ZV 9689.1)

Gas pressure spring-jointed arm for ITD support extrusion (ITD part no. ZV 9689.1)

ITD part no. ZV 9689.1 consists of; Adapter for ITD support extrusion; gas pressure spring-jointed arm length 300 mm; tilt and swivel adapter for flat screen; post support for external rack length 300 mm
Gas pressure spring-jointed arm for I... || 1
Gas pressure spring-jointed arm for ITD support extrusion (ITD part no. ZV 9690.1)

Gas pressure spring-jointed arm for ITD support extrusion (ITD part no. ZV 9690.1)

ITD part no. ZV 9690.1 consists of; Adapter for ITD support extrusion; gas pressure spring-jointed arm length 400 mm; tilt and swivel adapter for flat screen; post support for external rack length 300 mm
Gas pressure spring-jointed arm for G... || 1
Gas pressure spring-jointed arm for GCX wall channel (ITD part no. ZV 9691.1)

Gas pressure spring-jointed arm for GCX wall channel (ITD part no. ZV 9691.1)

ITD part no. ZV 9691.1 consists of; Adapter for wall support extrusion; gas pressure spring-jointed arm length 300 mm; tilt and swivel adapter for flat screen; post support for external rack length 300 mm
Gas pressure spring-jointed arm for G... || 1
Gas pressure spring-jointed arm for GCX wall channel (ITD part no. ZV 9692.1)

Gas pressure spring-jointed arm for GCX wall channel (ITD part no. ZV 9692.1)

ITD part no. ZV 9692.1 consists of; Adapter for wall support extrusion; gas pressure spring-jointed arm length 400 mm; tilt and swivel for flat screen; post support for external rack length 300 mm (Additional information: TÜV Product Service tested / Finish: RAL 7035 light grey powder coated / Support post: aluminium natural anodized / Max. load: 15 kg / 33 lbs)
Adapter for attaching arms with ITD s... || 1
Adapter for vertical standard runner

Adapter for vertical standard runner

ITD part no. TS 0213.9 Additional information: Finish: aluminium natural anodized / Max. load: 35 kg / 77 lbs
  • Rigid arm for ITD support extrusion i... || 1
  • Single support arm for ITD support ex... || 1
  • Single support arm: Mounting Kit || 1
  • Gas pressure spring-jointed arm for h... || 1
See all features
Rigid arm for ITD support extrusion i... || 1
Rigid arm for ITD support extrusion

Rigid arm for ITD support extrusion

ITD part no. TS 6155.4 consists of; Adapter for ITD support extrusion; rigid arm length 188 mm; tilt and swivel adapter for flat screen; post support for external rack length 288 mm.
Single support arm for ITD support ex... || 1
Single support arm for ITD support extrusion

Single support arm for ITD support extrusion

ITD part no. TS 6178.4 consists of; adapter for ITD support extrusion; single support arm length 280 mm; tilt and swivel adapter for flat screen; post support for external rack length 288 mm (Additional information; TÜV Product Service tested / Finish: RAL 7035 light grey powder coated / Support post: aluminium natural anodized / Max. load: 35 kg / 77 lbs)
Single support arm: Mounting Kit || 1
Single support arm: Mounting Kit

Single support arm: Mounting Kit

ITD part no. TS6265.4 Kit Includes; Adapter for standard runner; support arm length 269 mm; post support for external rack; tilt and swivel adapter for flat screen (Additional information; TÜV Product Service tested / Max. load: 23 kg / 50.6 lbs / Finish: RAL 7035 light grey powder coated / Post support: aluminium natural anodized)
Gas pressure spring-jointed arm for h... || 1
Gas pressure spring-jointed arm for horizontal standard runner (ITD part no. ZV 9687.1)

Gas pressure spring-jointed arm for horizontal standard runner (ITD part no. ZV 9687.1)

ITD part no. ZV 9687.1 consists of; Adapter for horizontal standard runner; gas pressure spring-jointed arm length 300 mm; tilt and swivel adapter for flat screen; post support for external rack length 300 mm
Gas pressure spring-jointed arm for h... || 1
Gas pressure spring-jointed arm for horizontal standard runner (ITD part no. ZV 9688.1)

Gas pressure spring-jointed arm for horizontal standard runner (ITD part no. ZV 9688.1)

ITD part no. ZV 9688.1 consists of; Adapter for horizontal standard runner; gas pressure spring-jointed arm length 400 mm; tilt and swivel adapter for flat screen; post support for external rack length 300 mm (Additional information: TÜV Product Service tested / Finish: RAL 7035 light grey powder coated / Support post: aluminium natural anodized / Max. load: 15 kg / 33 lbs)
Gas pressure spring-jointed arm for I... || 1
Gas pressure spring-jointed arm for ITD support extrusion (ITD part no. ZV 9689.1)

Gas pressure spring-jointed arm for ITD support extrusion (ITD part no. ZV 9689.1)

ITD part no. ZV 9689.1 consists of; Adapter for ITD support extrusion; gas pressure spring-jointed arm length 300 mm; tilt and swivel adapter for flat screen; post support for external rack length 300 mm
Gas pressure spring-jointed arm for I... || 1
Gas pressure spring-jointed arm for ITD support extrusion (ITD part no. ZV 9690.1)

Gas pressure spring-jointed arm for ITD support extrusion (ITD part no. ZV 9690.1)

ITD part no. ZV 9690.1 consists of; Adapter for ITD support extrusion; gas pressure spring-jointed arm length 400 mm; tilt and swivel adapter for flat screen; post support for external rack length 300 mm
Gas pressure spring-jointed arm for G... || 1
Gas pressure spring-jointed arm for GCX wall channel (ITD part no. ZV 9691.1)

Gas pressure spring-jointed arm for GCX wall channel (ITD part no. ZV 9691.1)

ITD part no. ZV 9691.1 consists of; Adapter for wall support extrusion; gas pressure spring-jointed arm length 300 mm; tilt and swivel adapter for flat screen; post support for external rack length 300 mm
Gas pressure spring-jointed arm for G... || 1
Gas pressure spring-jointed arm for GCX wall channel (ITD part no. ZV 9692.1)

Gas pressure spring-jointed arm for GCX wall channel (ITD part no. ZV 9692.1)

ITD part no. ZV 9692.1 consists of; Adapter for wall support extrusion; gas pressure spring-jointed arm length 400 mm; tilt and swivel for flat screen; post support for external rack length 300 mm (Additional information: TÜV Product Service tested / Finish: RAL 7035 light grey powder coated / Support post: aluminium natural anodized / Max. load: 15 kg / 33 lbs)
Adapter for attaching arms with ITD s... || 1
Adapter for vertical standard runner

Adapter for vertical standard runner

ITD part no. TS 0213.9 Additional information: Finish: aluminium natural anodized / Max. load: 35 kg / 77 lbs

Contact Information:

ITD GmbH
Innovation Technik Design
Grünwalder Weg 13a
82008 Unterhaching
Germany
URL: www.itd-cart.com
Phone: +49.89.614425-0:
Fax: +49.89.614425-20
