IntelliVue MP60/MP70 ITD Variable Height Wall Mount
Mounting solution
HCMNT103Stands and mounts
Learn more about the height adjustable arms available for IntelliVue MP60/70 monitors.
Features

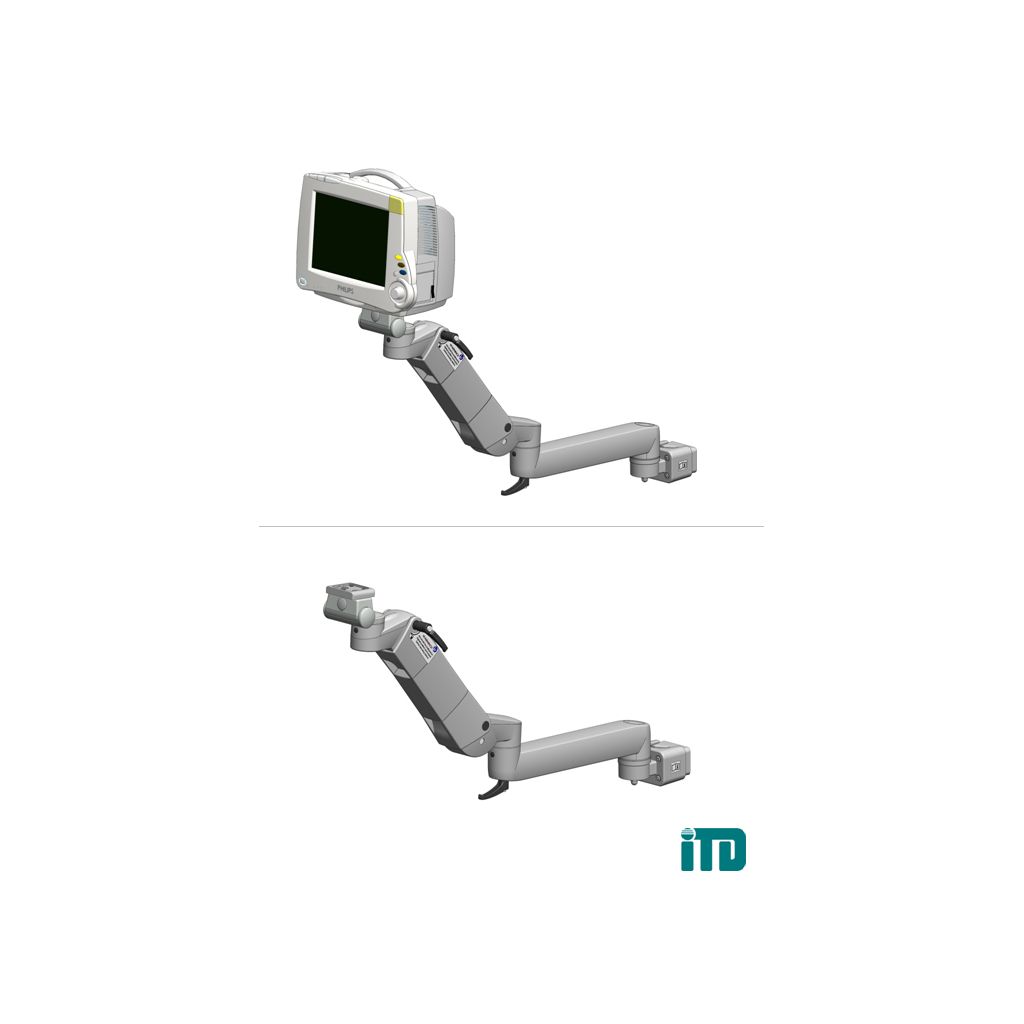

Height, adjustable arm on GCX wall channel
ITD part no. HA.2102.903 and ITD part no. HA.2154.903 Kits include:
Adapter for GCX wall channel; arm, length 300mm (for ITD part no. HA.2102.903) and 400mm (for ITD part no. HA.2154.903); tilt and swivel unit with an adapter for Philips IntelliVue MP60/70.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 8 kg / 17,6 lbs; maximum load: 14 kg / 30,8 lbs; maximum load, tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit and height adjustable arm: RAL 7035 light grey, powder-coated; finish, adapter GCX wall channel: galvanized; there is also the possibility to mount an additional down-post (HA.1005.991) for an external rack.)
Height, adjustable arm on ITD support extrusion
ITD part no. HA.2042.903 and ITD part no. HA.2043.903 Kits include:
Adapter for ITD support extrusion; arm, length 300mm (for ITD part no. HA.2042.903) and 400mm (for ITD part no. HA.2043.903); tilt and swivel unit with an adapter for Philips IntelliVue MP60/70.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 8 kg / 17,6 lbs;
maximum load: 14 kg / 30,8 lbs; maximum load, tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm and adapter for ITD support extrusion: RAL 7035 light grey, powder-coated; there is also the possibility to mount an additional down-post (HA.1005.991) for an external rack.)
Height, adjustable arm with extension on support bar D 25-42mm
ITD part no. HA.2091.903 and ITD part no. HA.2092.903 Kits include:
Adapter for support bar D 25-42mm; arm, length 300mm (for ITD part no. HA.2091.903) and 400mm (for ITD part no. HA.2092.903); extension, length 350mm; tilt and swivel unit with an adapter for Philips IntelliVue MP60/70.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 8 kg / 17,6 lbs; maximum load: 14 kg / 30,8 lbs; maximum load, tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm, extension and adapter for support bar: RAL 7035 light grey, powder-coated
There is also the possibility to mount an additional down-post (HA.1005.991) for an external rack.)
