IntelliVue MP20/30 ITD Variable Height Wall Mount
Mounting solution
IntelliVue MP20/30 ITD Variable Height Wall Mount
Mounting solution
Learn more about the height adjustable arms available for Philips IntelliVue MP20/30 monitors.
Features

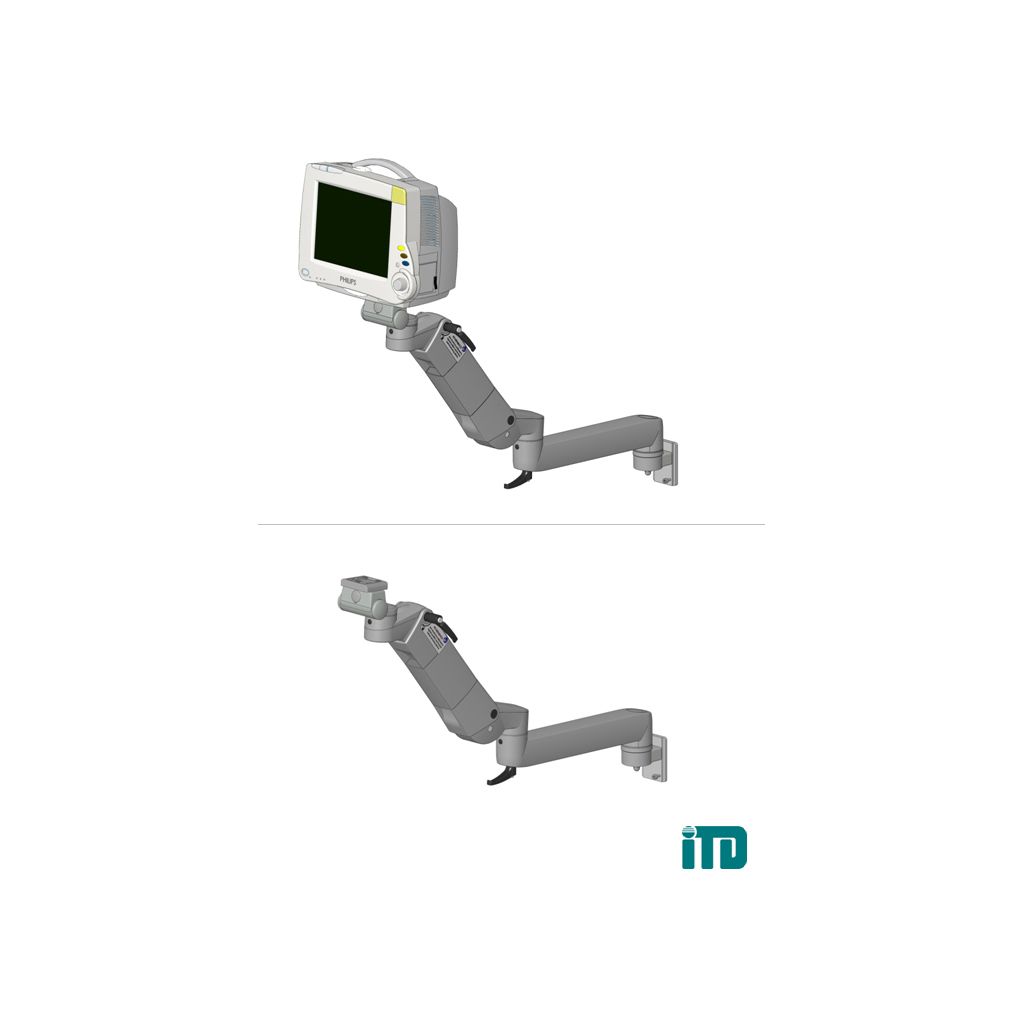

Height, adjustable arm on ITD support extrusion: Mounting kit
ITD part no. HA.2036.903 and ITD part no. HA.2037.903 Kits include:
Adapter for ITD support extrusion; arm, length 300mm (for ITD part no. HA.2036.903) and 400mm (for ITD part no. HA.2037.903); tilt and swivel unit with an adapter for Philips IntelliVue MP20/30.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 3 kg / 6,6 lbs;
maximum load: 10 kg / 22 lbs;
maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit, height adjustable arm and adapter for ITD support extrusion: RAL 7035 light grey, powder-coated.)

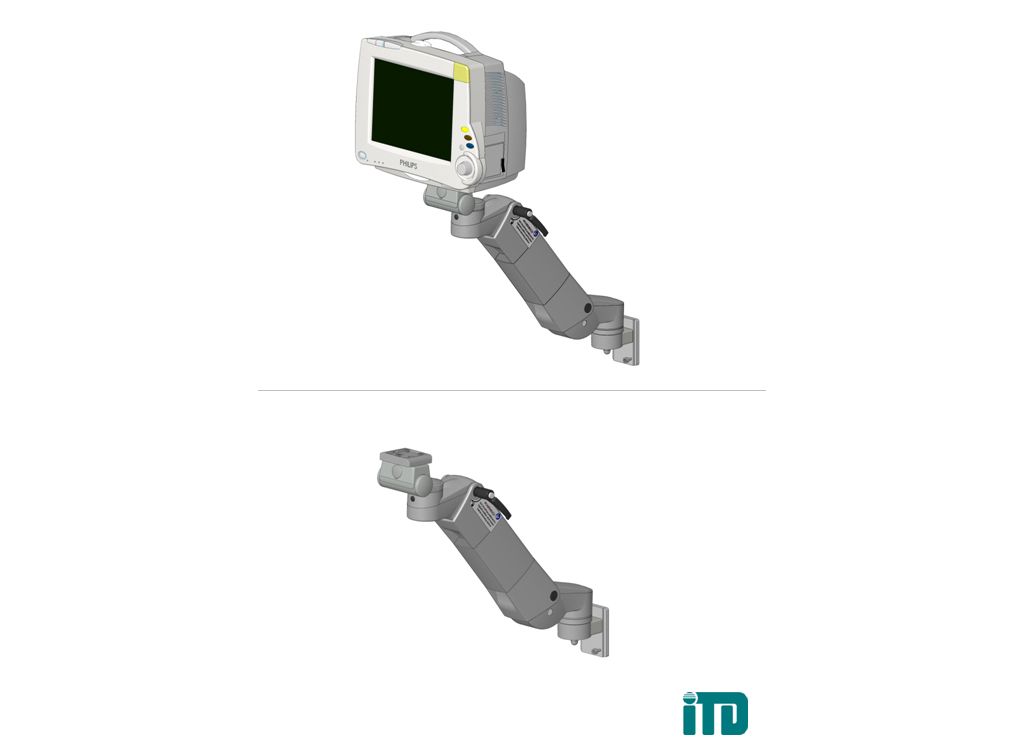

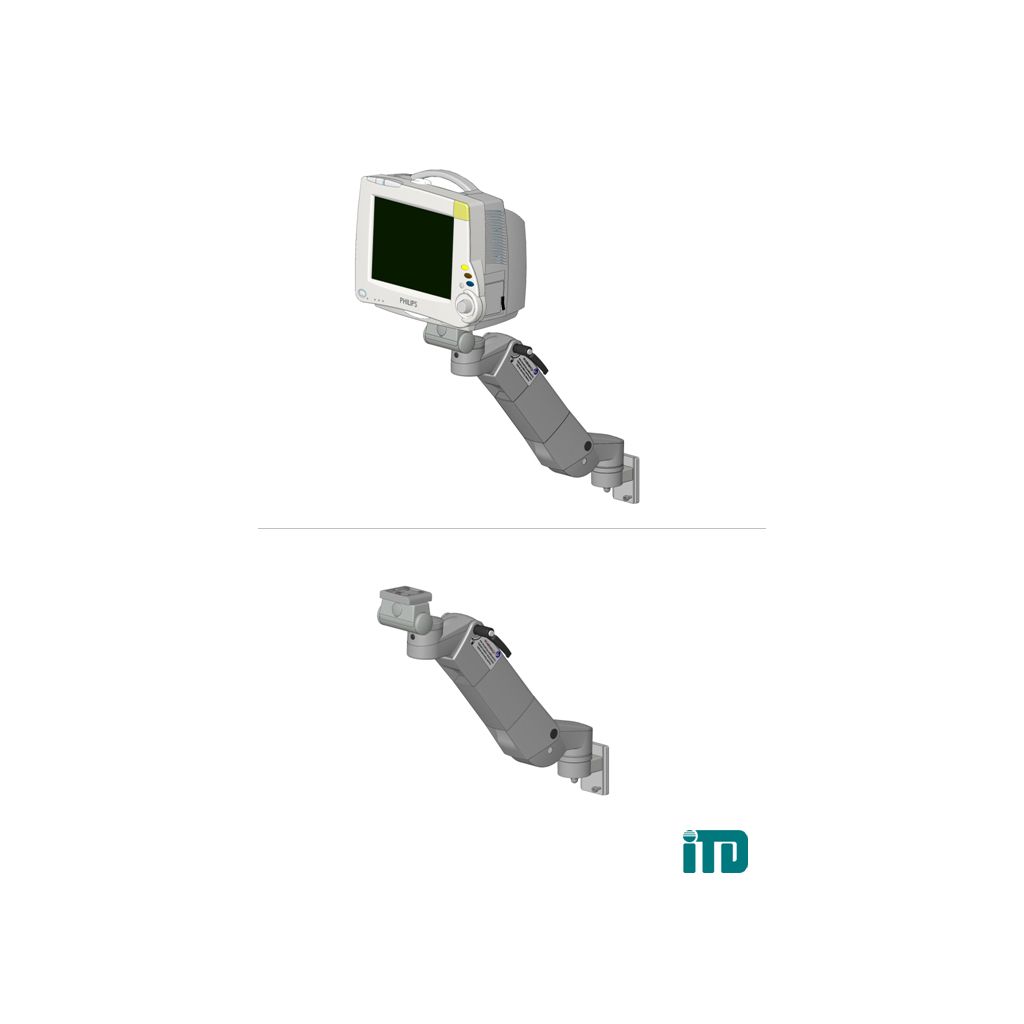

Height, adjustable arm on GCX wall channel: Mounting kit
ITD part no. HA.2152.903 and ITD part no. HA.2153.903 Kits include:
Adapter for GCX wall channel; arm, length 300mm (for ITD part no. HA.2152.903) and 400mm (for ITD part no. HA.2153.903); tilt and swivel unit with an adapter for Philips IntelliVue MP20/30.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit and height adjustable arm: RAL 7035 light grey, powder-coated.)
Finish, adapter GCX wall channel: galvanized

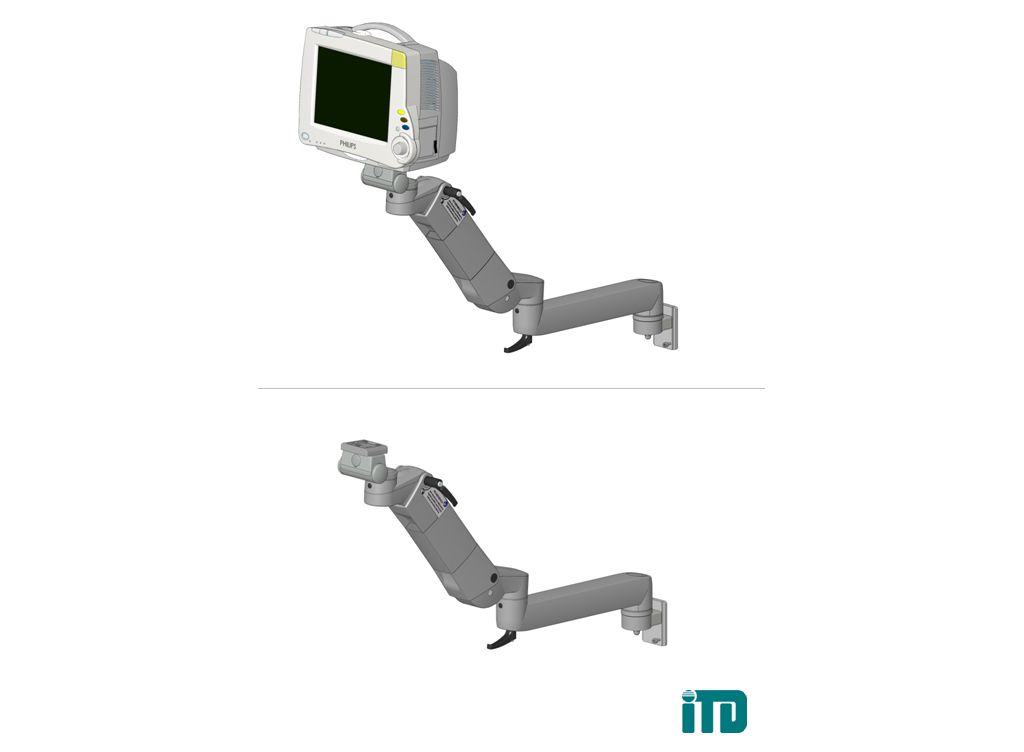

Height, adjustable arm with extension on GCX wall channel: Mounting kit
ITD part no. HA.2163.903 and ITD part no. HA.2164.903 Kits include:
Adapter for GCX wall channel; arm, length 300mm (for ITD part no. HA.2163.903) and 400mm (for ITD part no. HA.2164.903); extension, length 350mm; tilt and swivel unit with an adapter for Philips IntelliVue MP20/30.
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit, height adjustable arm and extension: RAL 7035 light grey, powder-coated; finish, adapter GCX wall channel: galvanized.)
