IntelliVue MP5/MP5T GCX VHM-25™ Wall Channel Mount
Mounting solution
HCMNT205Stands and mounts
IntelliVue MP5/MP5T GCX VHM-25™ Wall Channel Mount
Mounting solution
HCMNT205Stands and mounts
Learn more about the options available to mount the IntelliVue MP5 patient monitoring system on a VHM-25™.
Features

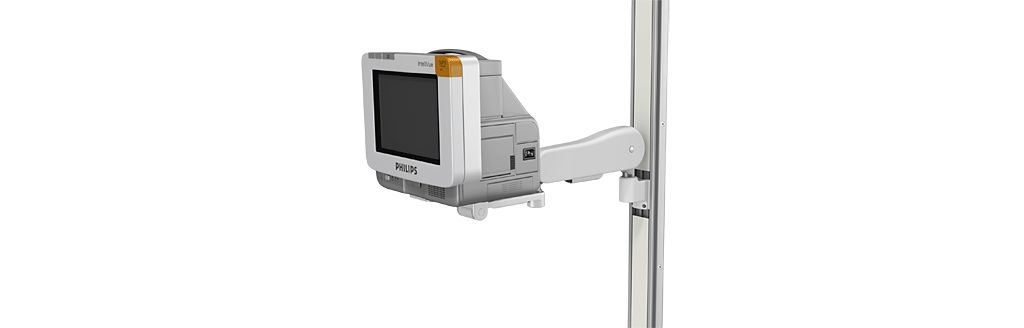

Philips IntelliVue MP5 VHM-25™ Wall Channel Mounting Kits
GCX P/N: AG-0021-50 Kit Includes: VHM-25™ Variable height support arm provides height-adjustable mounting in a highly cleanable, space-saving design; allows vertical and lateral positioning, and tilt/swivel adjustment; 20 lb / 9.1 kg maximum weight; 12" / 30.5 cm height adjustment; 14.8" / 37.6 cm horizontal reach; compatible with quick release table top mounting hardware; product weight: 4.6 lbs/2.1 kg.

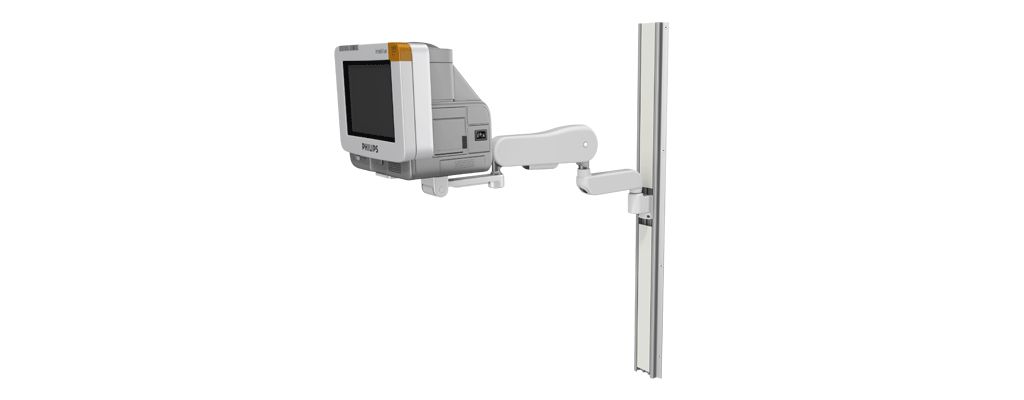

Philips IntelliVue MP5 VHM-25™ Wall Channel Mounting Kits
GCX P/N: AG-0021-51 Kit Includes: VHM-25™ Variable height support arm provides height-adjustable mounting in a highly cleanable, space-saving design; allows vertical and lateral positioning, and tilt/swivel adjustment; secondary extension arm provides greater range of motion and horizontal reach; 20 lb / 9.1 kg maximum weight; 12" / 30.5 cm height adjustment; 20" / 50.8 cm horizontal reach; compatible with quick release table top mounting hardware; product weight: 6.4 lbs / 2.9 kg.
