Avalon FM40 and FM50 GCX Flat Screen Countertop Mount
Mounting solution
Avalon FM40 and FM50 GCX Flat Screen Countertop Mount
Mounting solution
Learn more about the options available to mount one or two Remote Displays for the Philips Avalon FM40/50 Fetal Monitor.
Features

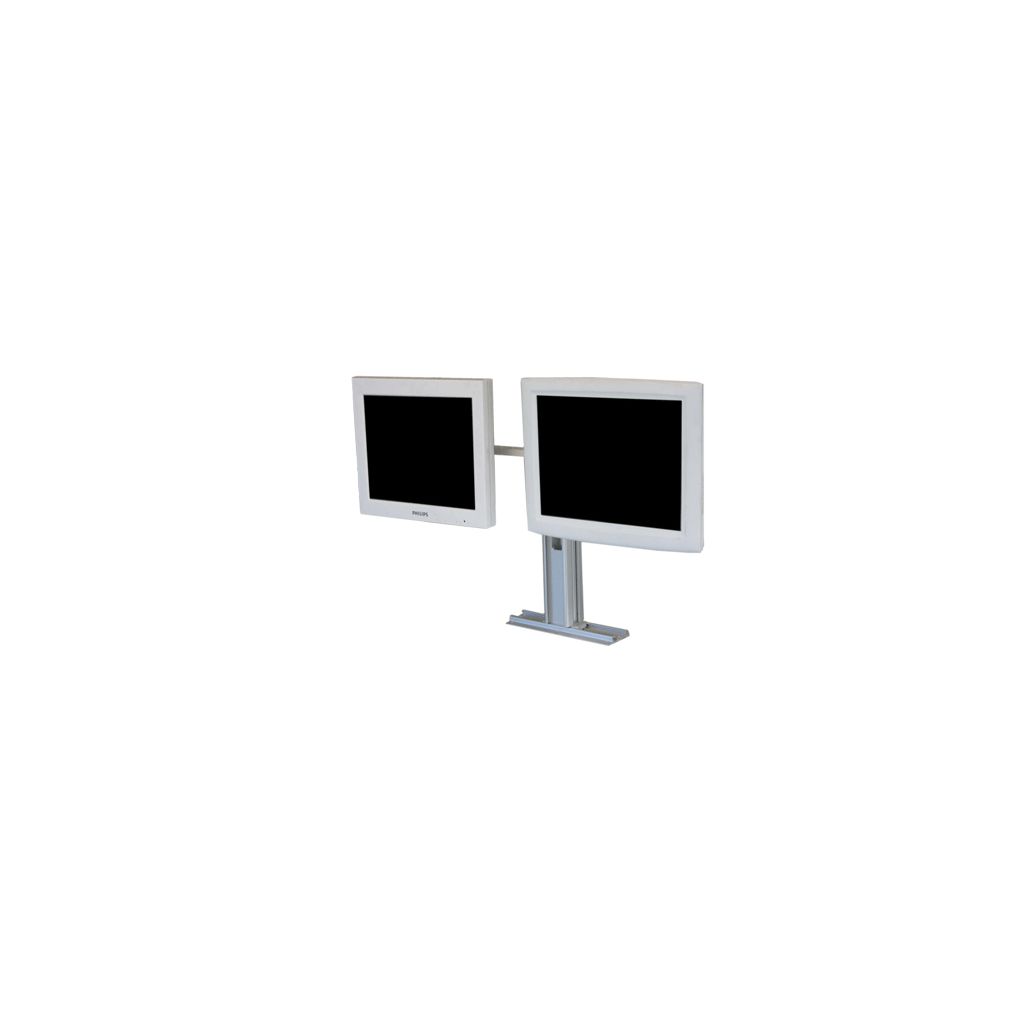

Avalon Fetal Monitor FM40/50 Dual Remote Display: Countertop Mounting Kit
GCX P/N: PH-0057-04 Kit includes: 13" (33cm) Horizontal Channel and Backing Plate for mounting to a flat horizontal surface; 18" (46cm) Column with Baseplate to mount in Horizontal Channel; Dual Flat Screen Mount allows independent tilt and swivel adjustment for each screen;
spacing between screens is adjustable; for VESA-compatible flat screens up to 18" (45cm) diagonal width, and 32 lbs (14.6 kg) total weight,
75/100 mm VESA Flat Panel Mounting Adapter.
Avalon Fetal Monitor FM40/50 Single Remote Display: Countertop Mounting Kit
GCX P/N: PH-0057-04 Kit includes: 13" (33cm) Horizontal Channel and Backing Plate for mounting to a flat horizontal surface; 18" (46cm) Column with Baseplate to mount in Horizontal Channel; Dual Flat Screen Mount allows independent tilt and swivel adjustment for each screen; spacing between screens is adjustable; for VESA-compatible flat screens up to 18" (45cm) diagonal width, and 32 lbs (14.6 kg) total weight;
75/100 mm VESA Flat Panel Mounting Adapter.

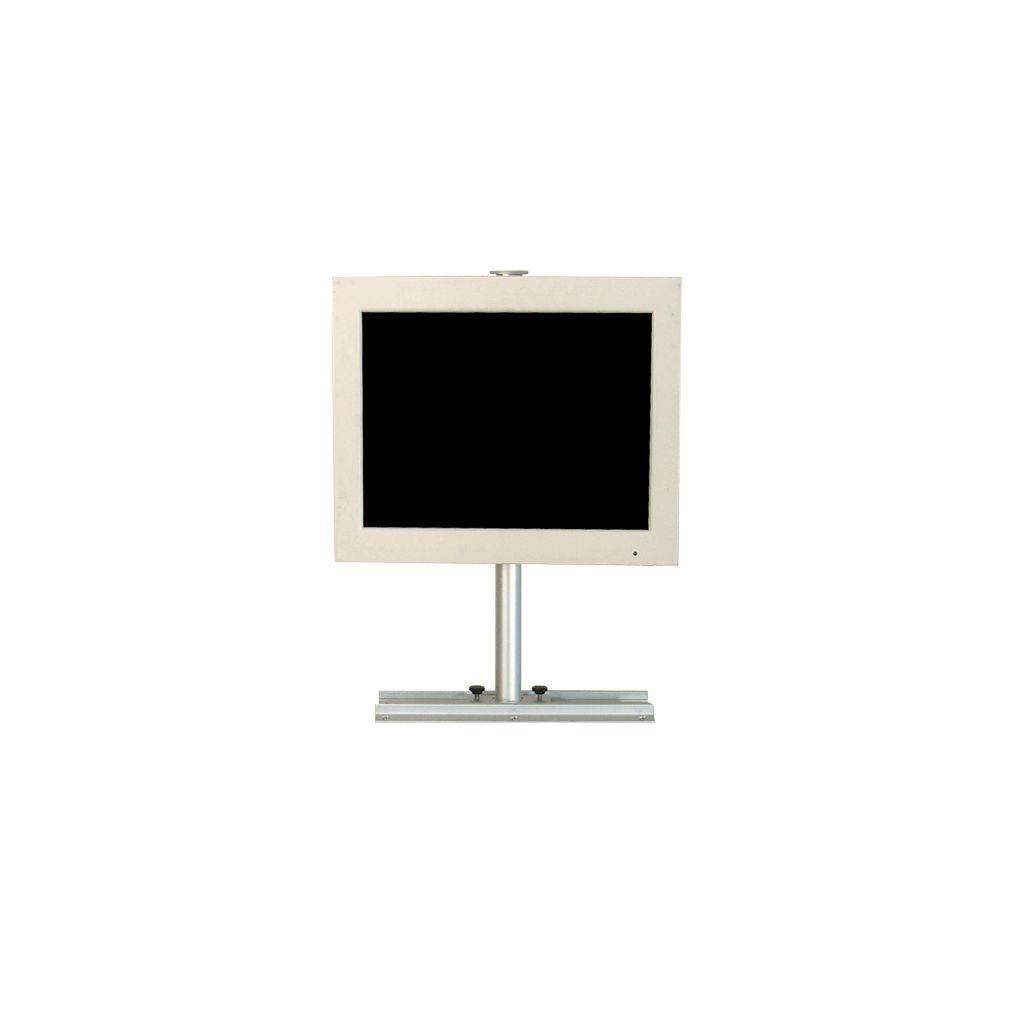

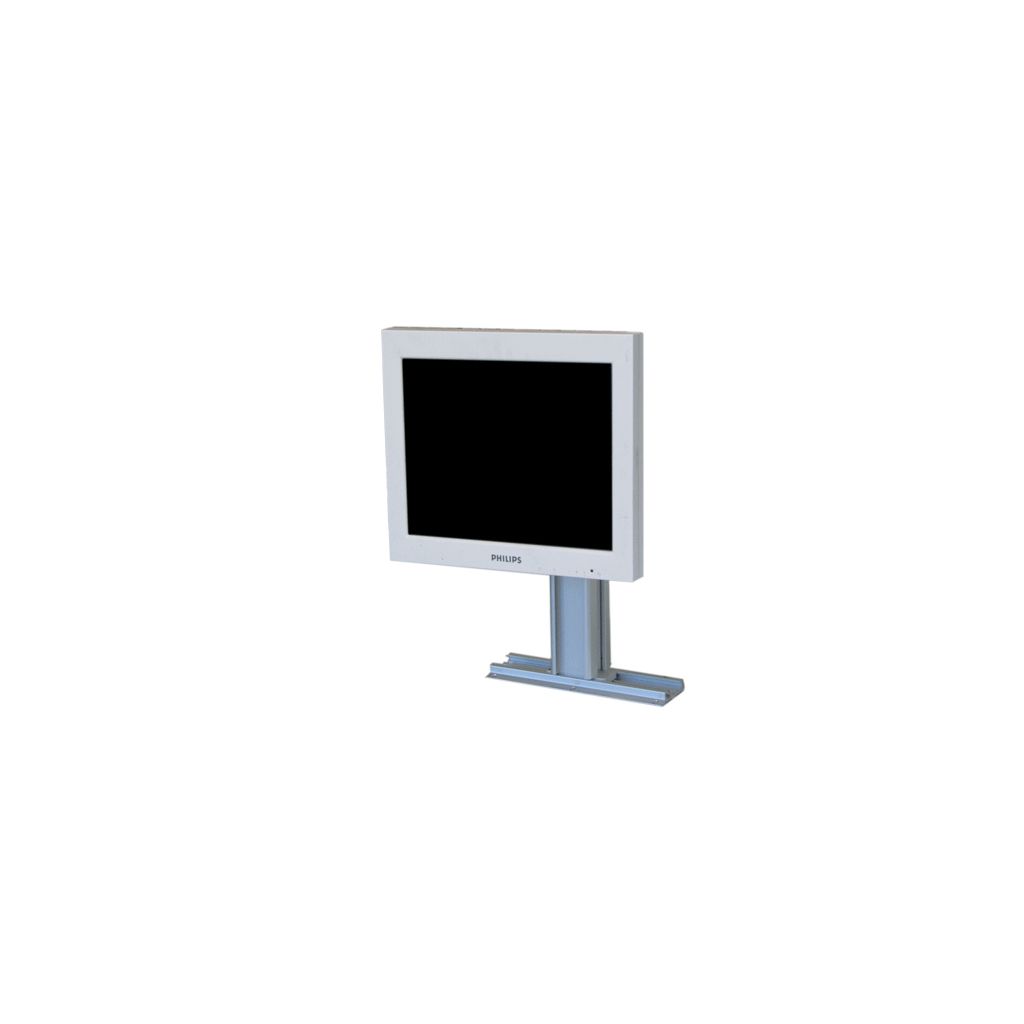

Avalon Fetal Monitor FM40/50 Single Remote Display: Countertop Mounting Kit
GCX P/N: PH-0057-05 Kit includes: 13" (33cm) Horizontal Channel and Backing Plate for mounting to a flat horizontal surface; 18" (46cm) Column with Baseplate to mount in Horizontal Channel; height-adjustable Flat Screen Mount allows tilt and swivel adjustment. For VESA-compatible flat screens up to 18" (45cm) diagonal width, and 16 lbs (7.3 kg) total weight;
75/100 mm VESA Flat Panel Mounting Adapter.
