Single pivot arm (325mm) mounting options, for IntelliVue MP5 for IntelliVue

Mounting solution

Stands and mounts

Learn more about single pivot arm (325mm) wall mounting options, from ITD, for the IntelliVue MP5 patient monitors.

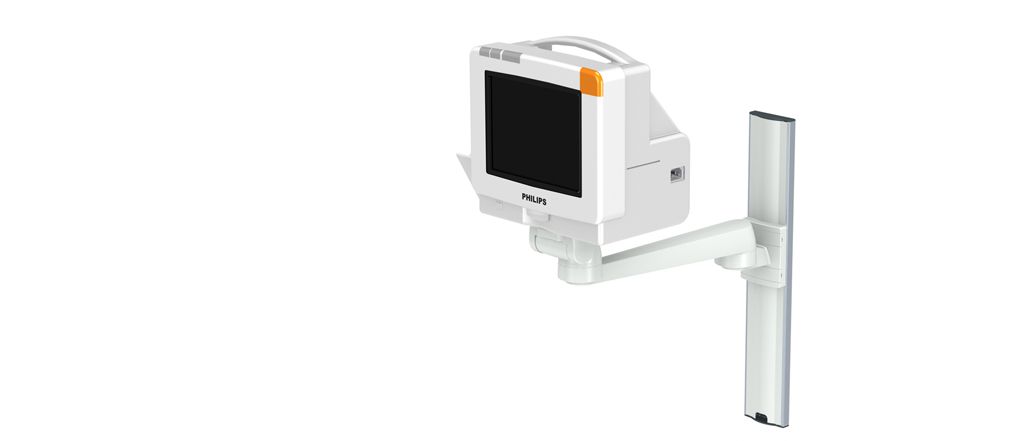

Single pivot arm on ITD support extrusion

Single pivot arm on horizontal standard runner

Rapid mounting

Features

ITD part number: TH.2117.991

Single pivot arm on ITD support extrusion. The mounting kit includes: adapter for ITD support extrusions, arm length 325mm, tilt and swivel unit with an adapter for IntelliVue MP5 patient monitors.

ITD part number: TH.2161.991

Single pivot arm on horizontal standard runner. The mounting kit includes: adapter for ITD horizontal standard runner, arm length 325mm, tilt and swivel unit with an adapter for IntelliVue MP5 patient monitors.

ITD part number: TH.2119.991

Single pivot arm on horizontal standard runner, rapid mounting. The mounting kit includes: adapter for ITD horizontal standard runner rapid mounting; arm length 325mm; tilt and swivel unit with an adapter for IntelliVue MP5 patient monitors.

Specifications

Specifications
Tested to
DIN EN 60601-1:2006
Maximum load, arm
23 kg (50.6 lbs)
Maximum load, tilt and swivel unit
14 kg (30.8 lbs)
Finish
RAL 7035; light grey, powder coated

Documentation

Installation note for ITD pivot arm for IntelliVue monitors

PDF|1.95 MB
