Double pivot arm
Mounting solution
Double pivot arm
Mounting solution
Learn more about double pivot arm (250mm+250mm) wall mounting options, from ITD, for the IntelliVue MP20 and MP30 patient monitors.
Features
ITD part number: TH.2218.991

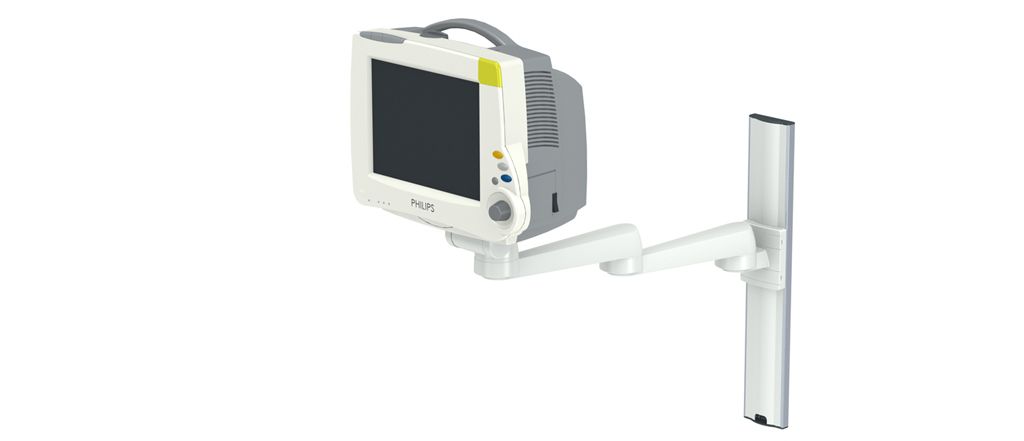

Double pivot arm on horizontal standard runner, rapid mounting. The mounting kit includes: adapter for ITD horizontal standard runner rapid mounting; arm length 250mm+250mm; tilt and swivel unit with an adapter for IntelliVue MP20 and MP30 patient monitors.
ITD part no. TH.2220.991
Double pivot arm on pole, with diameter 35-38mm. The mounting kit includes: adapter for pole D 35-38mm, arm length 250mm+250mm; tilt and swivel unit with an adapter for IntelliVue MP20 and MP30 patient monitors.
ITD part number: TH.2252.991
Double pivot arm on horizontal standard runner. The mounting kit includes: adapter for ITD horizontal standard runner, arm length 250mm+250mm, tilt and swivel unit with an adapter for IntelliVue MP20 and MP30 patient monitors.
Specifications
- Specifications
- Tested to
- DIN EN 60601-1:2006
- Maximum load, arm
- 18 kg (39.6 lbs)
- Maximum load, tilt and swivel unit
- 14 kg (30.8 lbs)
- Finish
- RAL 7035; light grey, powder coated
