Intellivue MX800 Wall Mounting GCX Pivot Arm Wall Mounts

ITD part no. HA.2171.903 Kit includes: Adapter for horizontal standard runner; Arm, length 400mm; tilt and swivel unit with an adapter for a Philips IntelliVue MX800. (Additional information: DIN EN 60601-1:2006 tested; minimum load: 11 kg / 24 lbs; maximum load: 20 kg / 44 lbs; maximum load, tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm and adapter for horizontal standard runner: RAL 7035 light grey, powder-coated. There is also the possibility to mount an additional down-post (HA.1005.991) for external rack, or a keyboard holder (HA.1024.991))

ITD part no. HA.2096.903 Kit includes: Adapter for ITD support extrusion; Arm, length 400mm; tilt and swivel unit with an adapter for a Philips IntelliVue MX800. (Additional information: DIN EN 60601-1:2006 tested; minimum load: 11 kg / 24 lbs; maximum load: 20 kg / 44 lbs; maximum load, tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm and adapter for ITD support extrusion: RAL 7035 light grey, powder-coated. There is also the possibility to mount an additional down-post (HA.1005.991) for an external rack, or a keyboard holder (HA.1024.991))

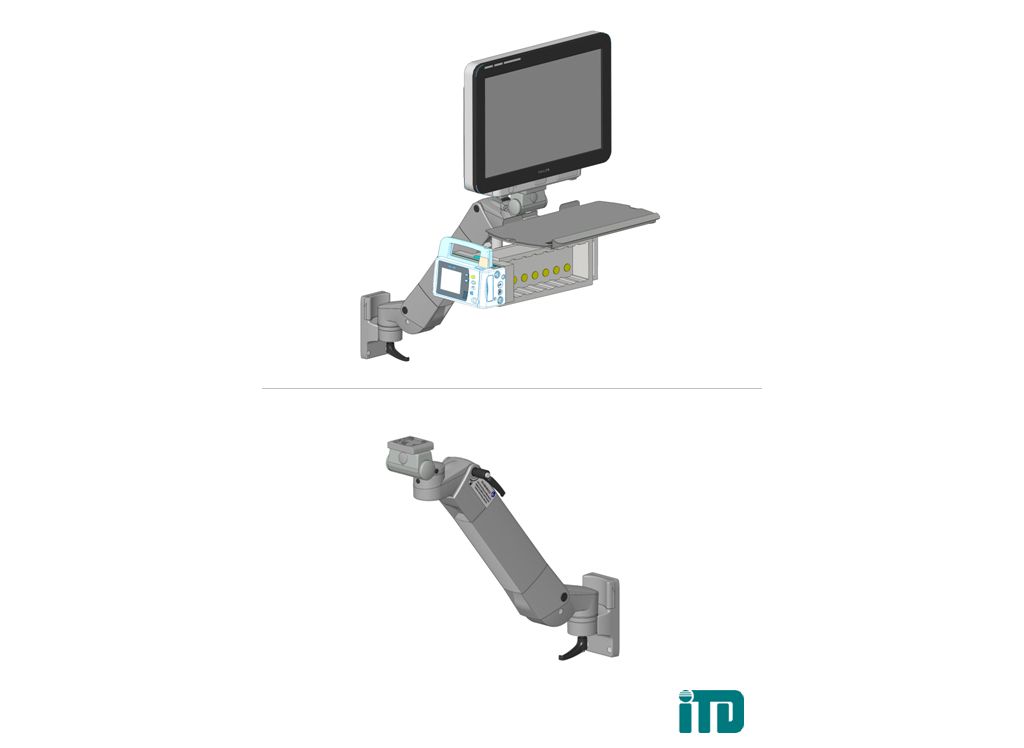

ITD part no. HA.2173.903 Kit includes: Adapter for GCX wall channel; arm length 400mm; tilt and swivel unit with an adapter for a Philips IntelliVue MX800 (Additional information: DIN EN 60601-1:2006 tested; minimum load: 11 kg / 24 lbs; maximum load: 20 kg / 44 lbs; maximum load, tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit and height adjustable arm: RAL 7035 light grey, powder-coated; finish, adapter GCX wall channel: galvanized. There is also the possibility to mount an additional down-post (HA.1005.991) for external rack, or a keyboard holder (HA.1024.991))
