Intellivue MX800 Wall Mounting GCX Variable Height Wall Mounting
Mounting solution
  • Product detail photograph
  • Product detail photograph
  • Product detail photograph
  • Product detail photograph
  • Standard product photograph

Intellivue MX800 Wall Mounting GCX Variable Height Wall Mounting

Mounting solution
Learn more about the options available to mount the IntelliVue MX800patient monitoring system on a wall.

Features

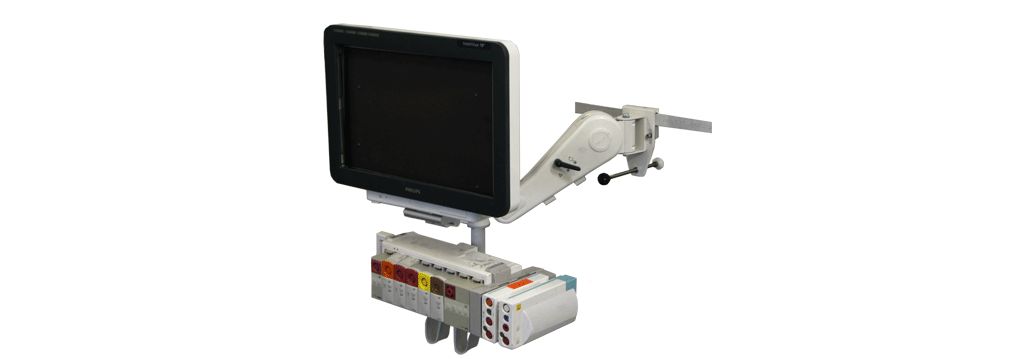

Pivot Arm Wall Mounting Kit
GCX P/N: AG-0018-21 Kit Includes: 12" (30.5 cm) M Series Pivot Arm with Down Post for Flexible Module Server (FMS). Allows lateral positioning and provides tilt/swivel adjustments. Cable management features include a cavity below the arm with cable covers and a "pass through" channel slide; MX800 Mounting Adapter; Channel Cover Channel sold separately
Pivot Arm Wall Mounting Kit || 1

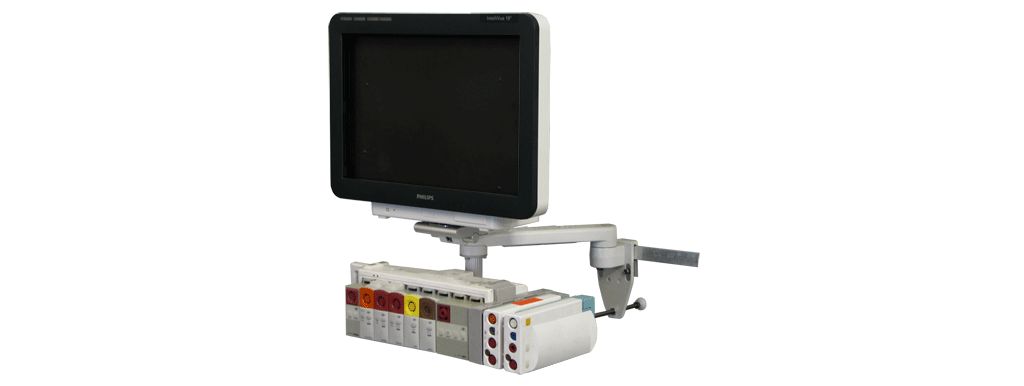

Pivot Arm Wall Mounting Kit for 10 x 25 mm rails
GCX P/N: AG-0018-23 Kit Includes: 12" (30.5 cm) M Series Pivot Arm with Down Post for Flexible Module Server (FMS). Allows lateral positioning and provides tilt/swivel adjustments. Cable management features include a cavity below the arm with cable covers; MX800 Mounting Adapter; Attaches to horizontal rails that are 8-10mm x 25-30mm.
Pivot Arm Wall Mounting Kit for 10 x ... || 1

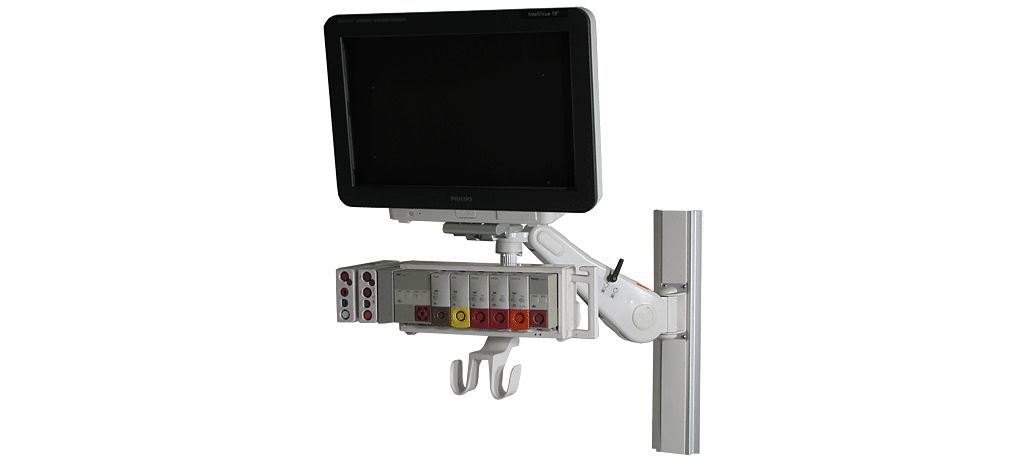

VHM™ Variable Height Wall Mounting Kit for 10x25 mm Rails
GCX P/N: AG-0018-27 Kit Includes: VHM™ Variable height support arm with Down Post for Flexible Module Server (FMS). Allows vertical and lateral positioning plus provides tilt/swivel adjustments; Adapts to rails 8-10 mm x 25x30 mm; MX800 Mounting Adapter
VHM™ Variable Height Wall Mounting Ki... || 1


Documentation

Product Brochure Philips Intellivue MX800 Wall Mounting Mounting solution GCX Variable Height Wall Mounting
PDF|932.42 KB
Product Brochure Philips Intellivue MX800 Wall Mounting Mounting solution
PDF|930.32 KB
Product Brochure Philips IntelliVue MP60/MP70 Mounting solution
PDF|1.67 MB
Product Brochure Philips Intellivue MX800 Wall Mounting Mounting solution GCX Variable Height Wall Mounting
PDF|741.54 KB
