Intellivue MX800 ITD Variable Height Wall Mounting
Mounting solution
Intellivue MX800 ITD Variable Height Wall Mounting
Mounting solution
Learn more about the height adjustable arms on ITD support extrusion available for Intellivue MX800 Wall Mounting.
Features
Mounting Kit (ITD part no. HA.2096.903)

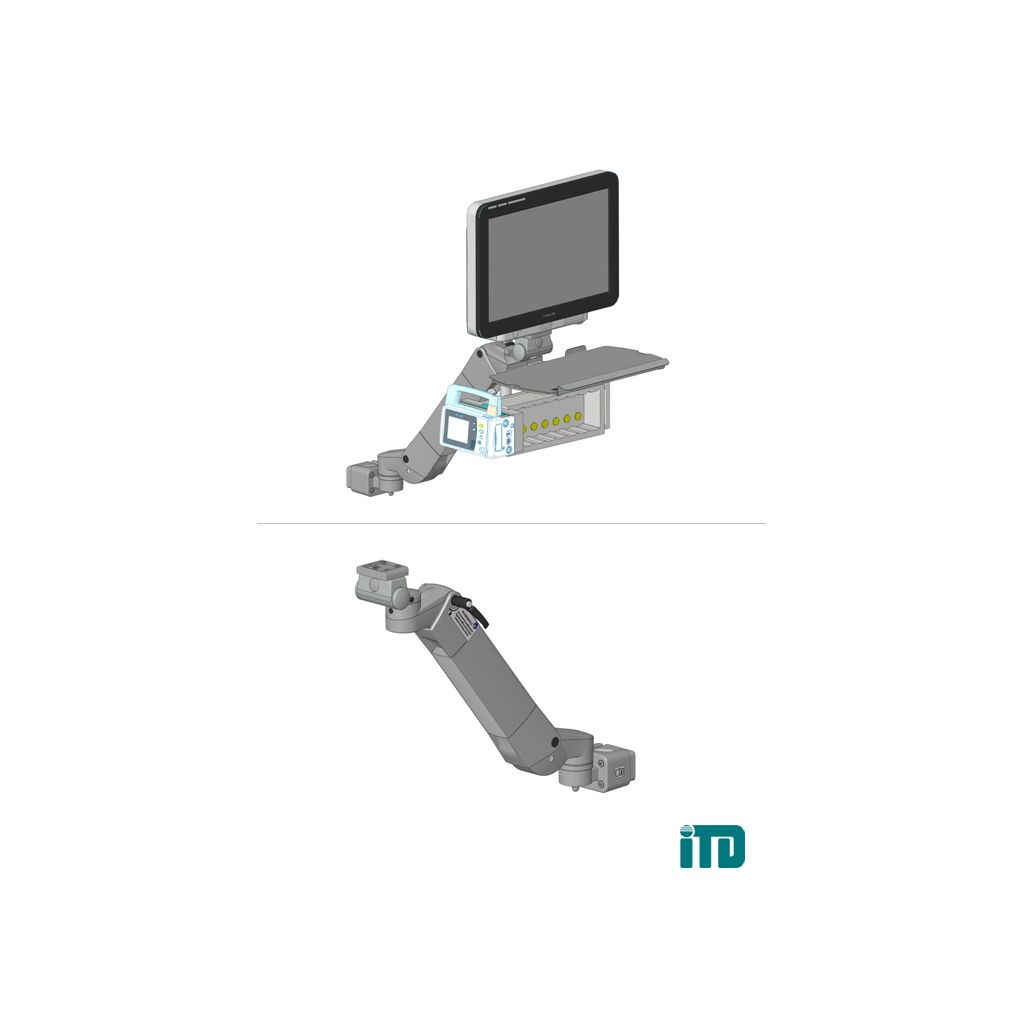

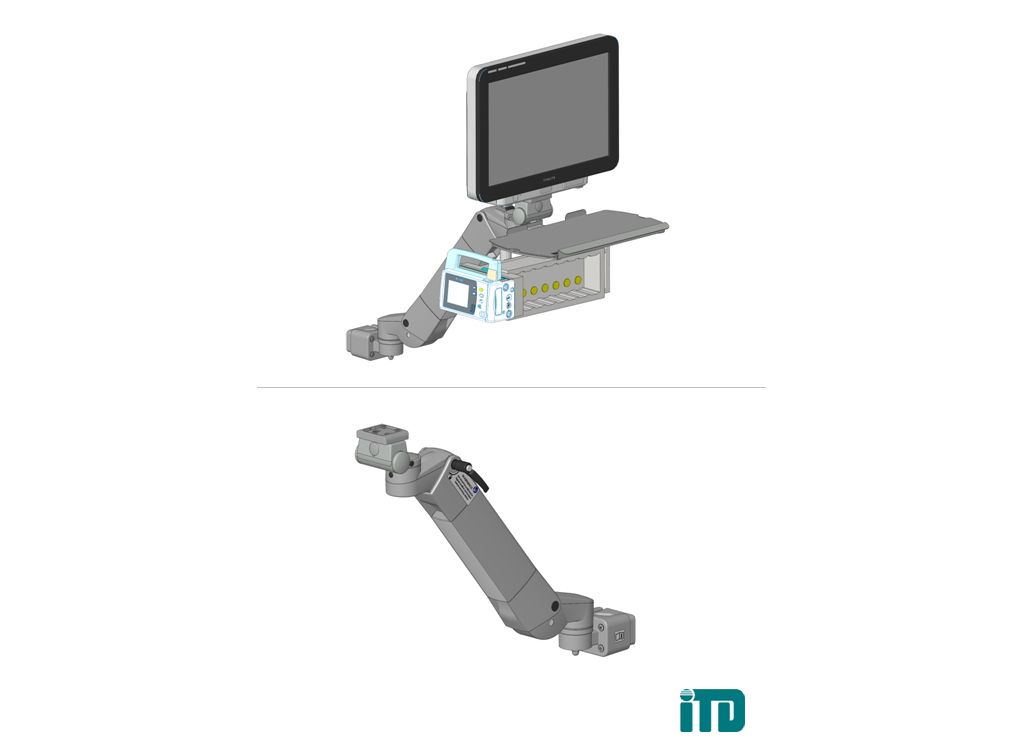

A height adjustable arm for ITD support extrusion, including a tilt and swivel unit for a Philips IntelliVue MX800 monitor.
ITD part no. HA.2096.903
Kit includes:
Adapter for ITD support extrusion; arm, length 400mm;
tilt and swivel unit with an adapter for a Philips IntelliVue MX800.
(Additional Information:
DIN EN 60601-1:2006 tested;
minimum load: 11 kg / 24 lbs;
maximum load: 20 kg / 44 lbs;
maximum load, tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm and adapter for ITD support extrusion: RAL 7035 light grey, powder-coated.
There is also the possibility to mount an additional down-post (HA.1005.991) for an external rack, or a keyboard holder (HA.1024.991))
Mounting kit (ITD part no. HA.2172.903)
A height adjustable arm for ITD support extrusion, including a tilt and swivel unit for a Philips IntelliVue MX800 monitor.
ITD part no. HA.2172.903
Kit includes:
Adapter for support bar D 25-42mm; arm, length 400mm;
tilt and swivel unit with an adapter for a Philips IntelliVue MX800.
(Additional information
DIN EN 60601-1:2006 tested;
minimum load: 11 kg / 24 lbs;
maximum load: 20 kg / 44 lbs;
maximum load, tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm and adapter for support bar: RAL 7035 light grey, powder-coated.
There is also the possibility to mount an additional down-post (HA.1005.991) for external rack, or a keyboard holder (HA.1024.991))
Mounting kit (ITD part no. HA.2173.903)
A height adjustable arm for ITD support extrusion, including a tilt and swivel unit for a Philips IntelliVue MX800 monitor.
ITD part no. HA.2173.903
Kit includes:
Adapter for GCX wall channel
Arm. length 400mm; tilt and swivel unit with an adapter for a Philips IntelliVue MX800
(Additional information:
DIN EN 60601-1:2006 tested;
minimum load: 11 kg / 24 lbs;
maximum load: 20 kg / 44 lbs;
maximum load, tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit and height adjustable arm: RAL 7035 light grey, powder-coated; finish, adapter GCX wall channel: galvanized.
There is also the possibility to mount an additional down-post (HA.1005.991) for external rack, or a keyboard holder (HA.1024.991))
