IntelliVue MX500/MX550 ITD Variable Height Wall Mounts for MX500
Mounting solution
  • Product detail photograph
  • Product detail photograph
  • Product detail photograph
  • Product detail photograph
  • Standard product photograph
  • Product detail photograph

IntelliVue MX500/MX550 ITD Variable Height Wall Mounts for MX500

Mounting solution
Learn more about height adjustable arms for ITD support extrusion available for Intellivue MX400/MX450/MX500/MX550 monitors.

Features

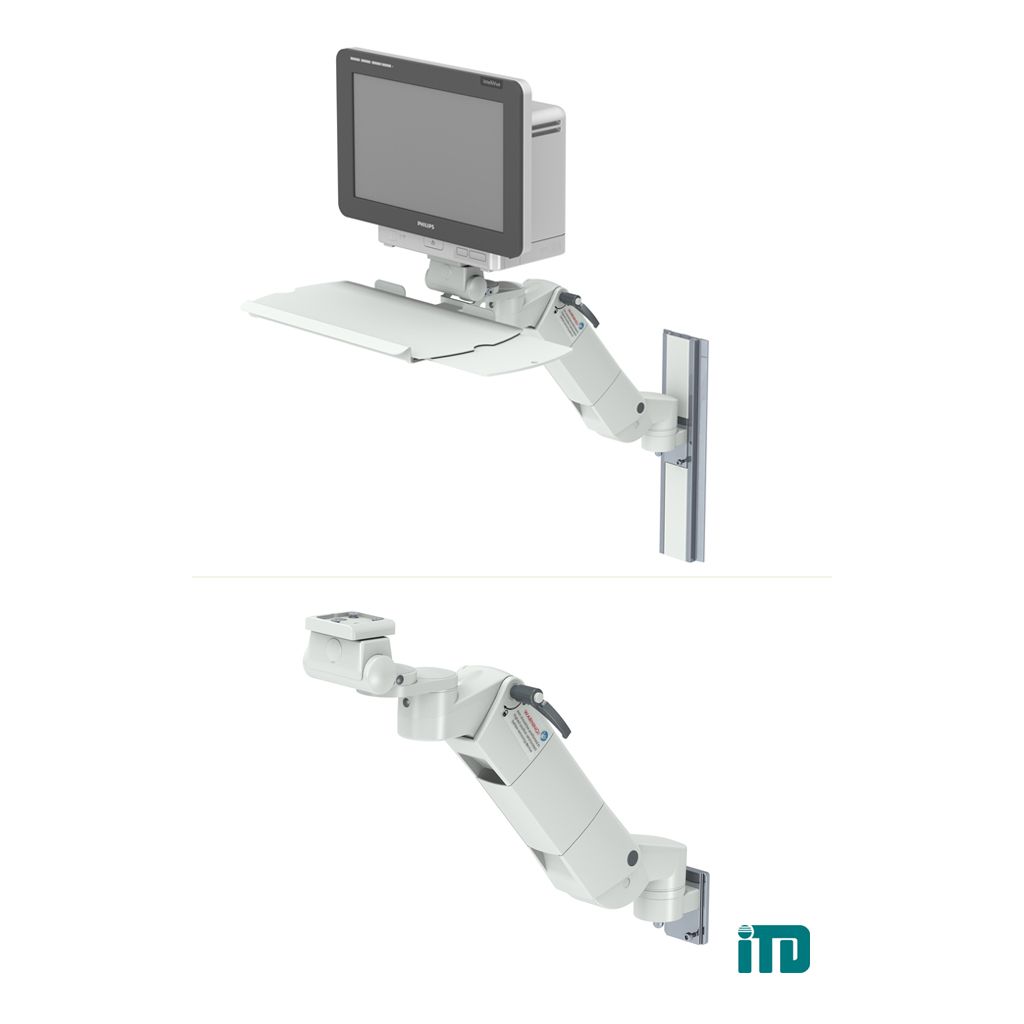

Height adjustable arm on GCX wall channel: Mounting kit
Height adjustable arms for GCX wall channel, including a tilt and swivel unit for a Philips IntelliVue MX400/MX450/MX500 monitor. ITD part no. HA.2248.903, ITD part no. HA.2249.903, HA.2264.903 and ITD part no. HA.2265.903 Kits include: Adapter for GCX wall channel; arm, length 300mm(for ITD part no. HA.2248.903 and ITD part no. HA.2264.903) and 400mm(for ITD part no. HA.2249.903 and ITD part no. HA.2265.903); tilt and swivel unit with an adapter for Philips IntelliVue MX400/MX450/MX500. (Additional information: DIN EN 60601-1:2006 tested; minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit and height adjustable arm: RAL 7035 light grey, powder-coated; finish, adapter GCX wall channel: galvanized; there is also a possibility to mount an additional keyboard holder (HA.1024.991))
Height adjustable arm on GCX wall cha... || 1
Height adjustable arm with extension
Height adjustable arms with extension for ITD support extrusion, including a tilt and swivel unit for a Philips IntelliVue MX400/MX450/MX500 monitors. ITD part no. HA.2258.903 and ITD part no. HA.2259.903 Kits include: Adapter for ITD support extrusion; arm, length 300mm(for ITD part no. HA.2258.903) and 400mm(for ITD part no. HA.2259.903); extension, length 350mm; tilt and swivel unit with an adapter for Philips IntelliVue MX400/MX450/MX500. (Additional information: DIN EN 60601-1:2006 tested; minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit, height adjustable arm, extension and adapter for ITD support extrusion: RAL 7035 light grey, powder-coated; there is also a possibility to mount an additional keyboard holder (HA.1024.991))
Height adjustable arm with extension ... || 1
Height adjustable arm with extension
Height adjustable arms with extension for horizontal standard runner, including a tilt and swivel unit for a Philips IntelliVue MX400/MX450/MX500 monitors. ITD part no. HA.2260.903 and ITD part no. HA.2261.903 Kits include: Adapter for horizontal standard runner; arm, length 300mm (for ITD part no. HA.2260.903) and 400mm (for ITD part no. HA.2261.903); extension, length 350mm; tilt and swivel unit with an adapter for Philips IntelliVue MX400/MX450/MX500. (Additional information DIN EN 60601-1:2006 tested; minimum load: 3 kg / 6,6 lbs; maximum load: 10 kg / 22 lbs; maximum load, tilt and swivel unit: 10 kg / 22 lbs; finish, tilt and swivel unit, height adjustable arm, extension and adapter for horizontal standard runner: RAL 7035 light grey, powder-coated; there is also a possibility to mount an additional keyboard holder (HA.1024.991))
Height adjustable arm with extension ... || 1


Documentation

Product Brochure Philips IntelliVue MX500/MX550 Mounting solution
PDF|591.53 KB
