IntelliVue MX500/MX550 ITD Variable Height Wall Mounting for MX550

Mounting solution
Learn more about the height adjustable arms available for Philips Intellivue MX500 monitors.

Features

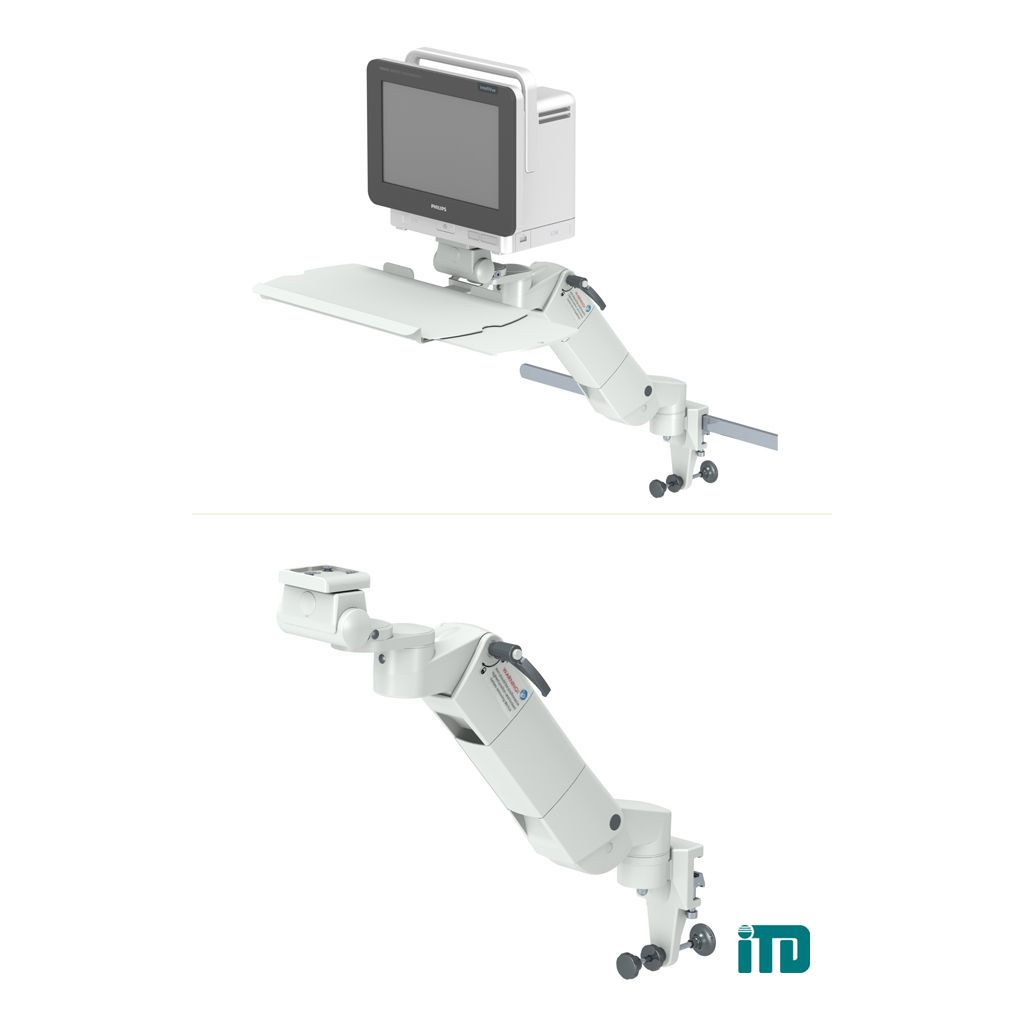

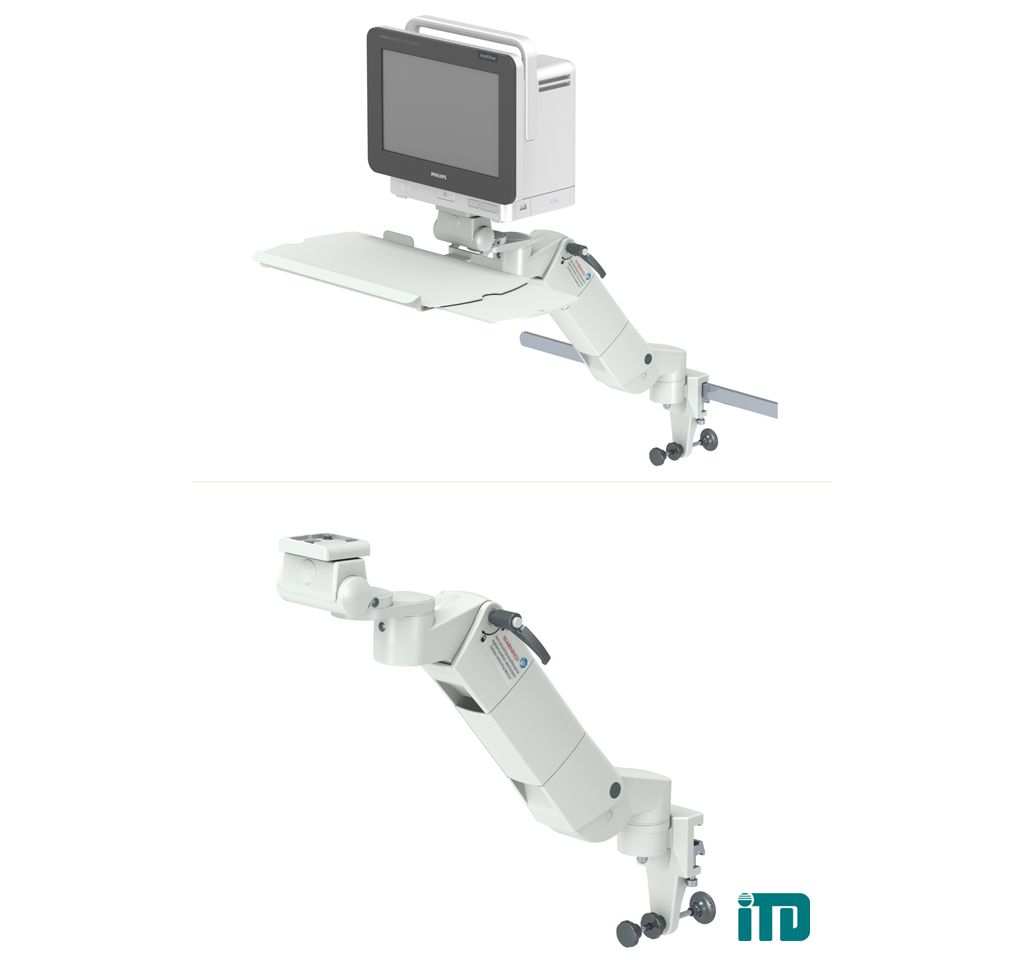

Height adjustable arm on horizontal standard runner
ITD part no. HA.2252.903 and ITD part no. HA.2253.903 Kits include: Adapter for horizontal standard runner; arm, length L300mm (for ITD part no. HA.2252.903) and L400mm (for ITD part no. HA.2253.903); tilt and swivel unit with an adapter for Philips IntelliVue MX550. (Additional information: DIN EN 60601-1:2006 tested; minimum load: 8 kg / 17,6 lbs; maximum load: 14 kg / 30,8 lbs; maximum load tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm and adapter for horizontal standard runner: RAL 7035 light grey, powder-coated; there is also a possibility to mount a keyboard holder (HA.1024.991))
Height adjustable arm on horizontal s... || 1
Height adjustable arm on GCX wall channel: Mounting kit
ITD part no. HA.2256.903 and ITD part no. HA.2257.903 Kits include: Adapter for GCX wall channel; arm, length L300mm (for ITD part no. HA.2256.903) and L400mm (for ITD part no. HA.2257.903); tilt and swivel unit with an adapter for Philips IntelliVue MX550. (Additional information: DIN EN 60601-1:2006 tested; minimum load: 8 kg / 17,6 lbs; maximum load: 14 kg / 30,8 lbs; maximum load tilt and swivel unit: 14 kg / 30,8 lbs; finish tilt and swivel unit and height adjustable arm: RAL 7035 light grey, powder-coated; finish adapter GCX wall channel: galvanized; there is also a possibility to mount a keyboard holder (HA.1024.991))
Height adjustable arm on GCX wall cha... || 1
Height adjustable arm with extension on GCX wall channel
ITD part no. HA.2272.903 and ITD part no. HA.2273.903 Kits include: Adapter for GCX wall channel; arm, length L300mm (for ITD part no. HA.2272.903) and L400mm (for ITD part no. HA.2273.903); extension: length L350mm; tilt and swivel unit with an adapter for Philips IntelliVue MX550. (Additional information: DIN EN 60601-1:2006 tested; minimum load: 8 kg / 17,6 lbs; maximum load: 14 kg / 30,8 lbs; maximum load tilt and swivel unit: 14 kg / 30,8 lbs; finish, tilt and swivel unit, height adjustable arm and extension: RAL 7035 light grey, powder-coated; finish adapter GCX wall channel: galvanized; there is also a possibility to mount a keyboard holder (HA.1024.991))
Height adjustable arm with extension ... || 1


Documentation

Product Brochure Philips IntelliVue MX500/MX550 Mounting solution
PDF|591.53 KB
