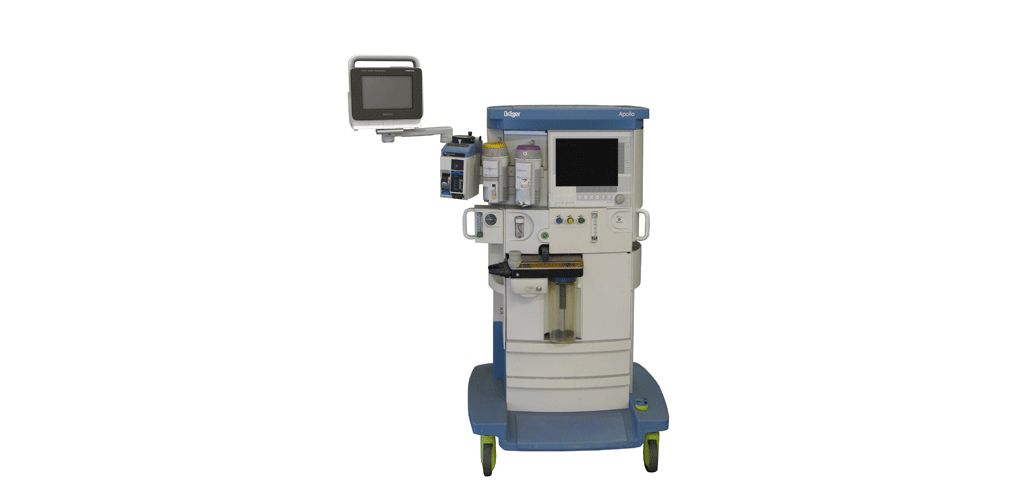

IntelliVue MX500/MX550 Dräger Apollo Anesthesia Machine
Mounting solution
  • Product detail photograph
  • Product detail photograph
  • Standard product photograph

IntelliVue MX500/MX550 Dräger Apollo Anesthesia Machine

Mounting solution
Learn more about the options available to mount the IntelliVue MX400/450/MX500/MX550 patient monitoring system on a Dräger Apollo Anesthesia Machine.

Features
Dräger Apollo Top Shelf Mounting Kit
GCX P/N: DR-0036-28 kit Includes: 12" (30.4 cm) M series pivot arm with down post for 1 or 2 Flexible Module Servers (FMS).
Dräger Apollo Top Shelf Mounting Kit || 1
IntelliVue MX400/MX450/MX500/MX550: Dräger Apollo Pivot Arm
GCX P/N: AG-0018-70 kit Includes: 8" (20.3cm) x 12" (30.5cm) M series articulating arm. Allows for lateral positioning and tilt/swivel adjustments. Cable management features include a cavity below the arm with cable covers; down post for mounting Flexible Module Server (FMS); integrated rotation stop prevents arm from contacting vaporizers; compatible with 2 or 3 vaporizer versions of the Apollo; for left side mounting only.
IntelliVue MX400/MX450/MX500/MX550: D... || 1
IntelliVue MX400/MX450/MX500/MX550: Dräger Apollo Top Shelf Mounting Kit
GCX P/N: AG-0021-101 kit Includes: Horizontal channel mount for MX400/450/MX500/MX550. Allows tilt/swivel adjustment; top shelf base plate with horizontal channel.
IntelliVue MX400/MX450/MX500/MX550: D... || 1


Documentation

Product Brochure Philips IntelliVue MX500/MX550 Mounting solution
PDF|281.31 KB
Product Brochure Philips IntelliVue MX500/MX550 Mounting solution
PDF|441.13 KB
Product Brochure Philips IntelliVue MX500/MX550 Mounting solution
PDF|417.19 KB
